Specifications:

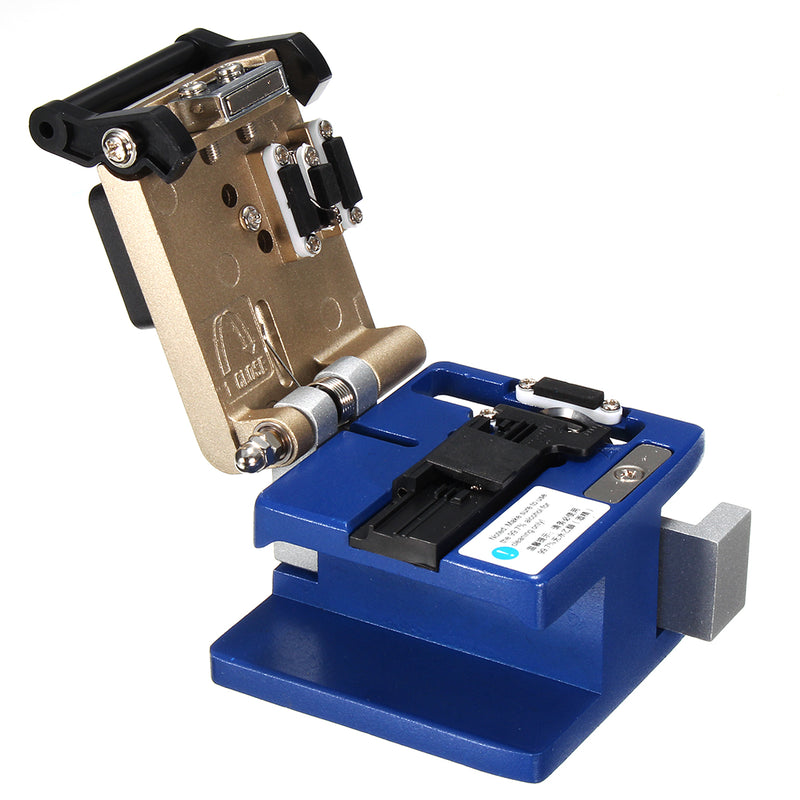

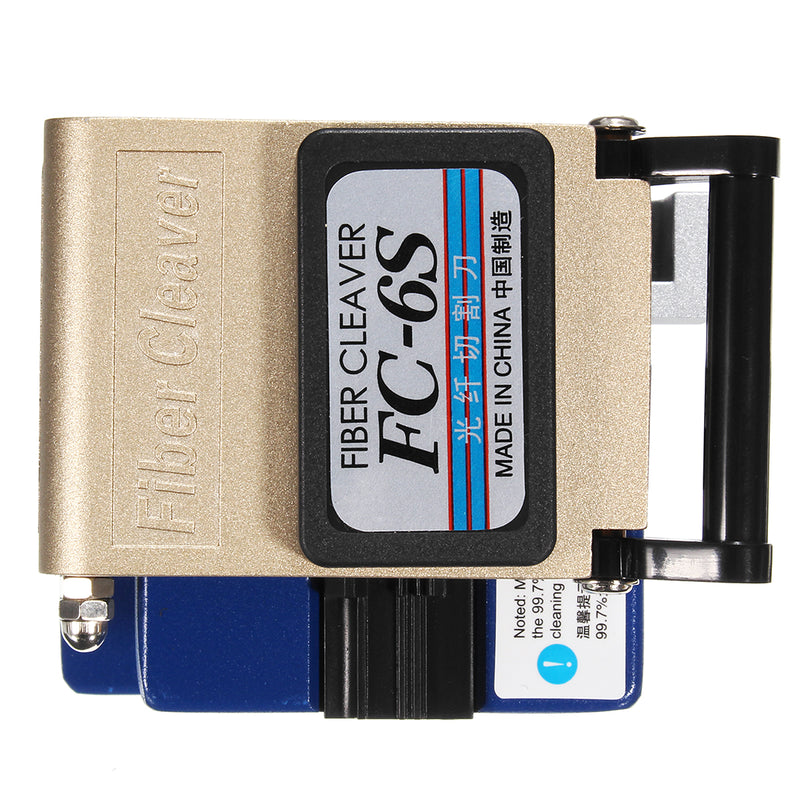

Type: Fiber Cleaver FC-6S
Fiber diameter: 125um
Coating diameter: 250um - 900um
Typical splitter angle: 0.5 degrees
Adjust the peeling length is: 5~20mm
Length of the slit: 9-16mm, 10-16mm
Blade Lifetime: 36,000 columns (3,000 per blade position)
Features:
1. CFS-2 Fiber Stripper:
- 250 um coated layer of 125 um fiber with A.
- Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath
- The open hole of the type V and 140 um on the edge of the
- Clamp can be used to strip the 250 um layer of 125 um fiber
- Jaw factory has been adjusted, shall not be adjusted
- Will not damage the fiber
- All the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation
- According to the handle ergonomic design, comfort grip
- Does not use the blade, locked in a closed state
2. Wire Stripper:
- The use of temperature is -20 ° C ~ 50 °C
- Factory pre-set, no need to adjust this stripper again to prevent fiber scratch; cutting blade precision positioning, quenching and tempering treatment, anti-rust primer.
- If not use, set the blade lock in the closed state.
- For stripping 250 micron buffer coating to expose 125 micron cladded fiber
- Second hole for stripping 2-3mm fiber jackets
- 140 μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
- Pre-set at the factory - no adjustments needed
- Will not scratch or nick glass fiber
- All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
- Comfort-grip, ergonomic handles
3. FTTH Fiber Optic Stripping Tool Kits designed for the installation, operation and maintenance of optical fiber network

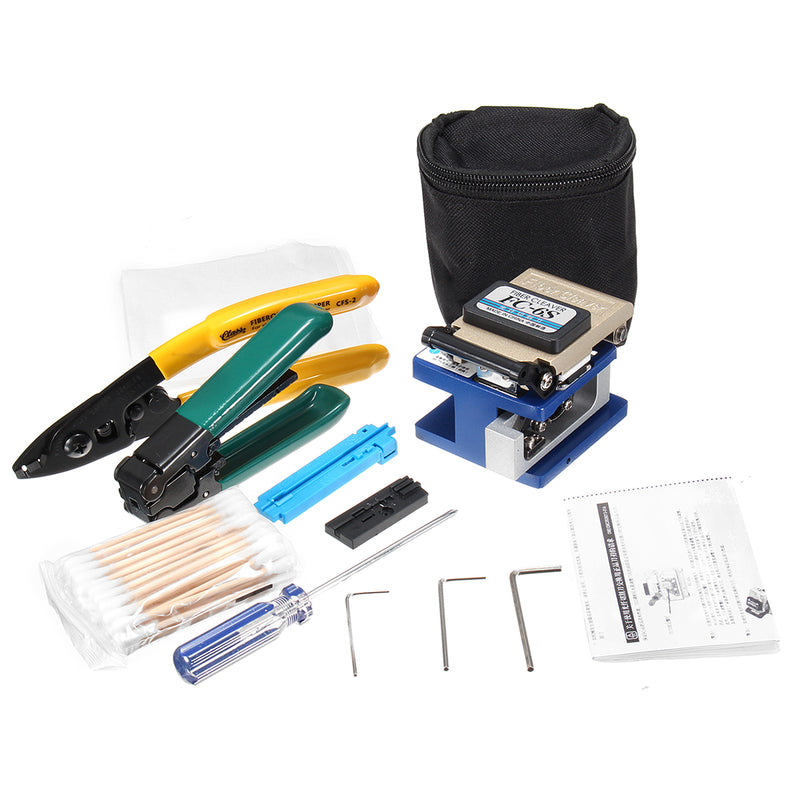

Package Included:
1 x Fiber Cleaver FC-6S
1 x Fiber Optic Stripper CFS-2
1 x Fiber Optic Stripping Tool Plier
1 x Fixed-length Fiber Optic Wire Stripping
1 x Fiber Coating Stripper Cutting Guiderway
1 x Phillips Screwdriver
1 x Large Hex Wrench
1 x Medium Hex Wrench
1 x Small Hex Wrench
1 Pack of Cotton Swabs
1 Pack of Clean Paper
1 x Small Pouch
1 x User Manual
