Specification:
Model: MZ45-76A2-200-12
Material: Plastic, Aluminum

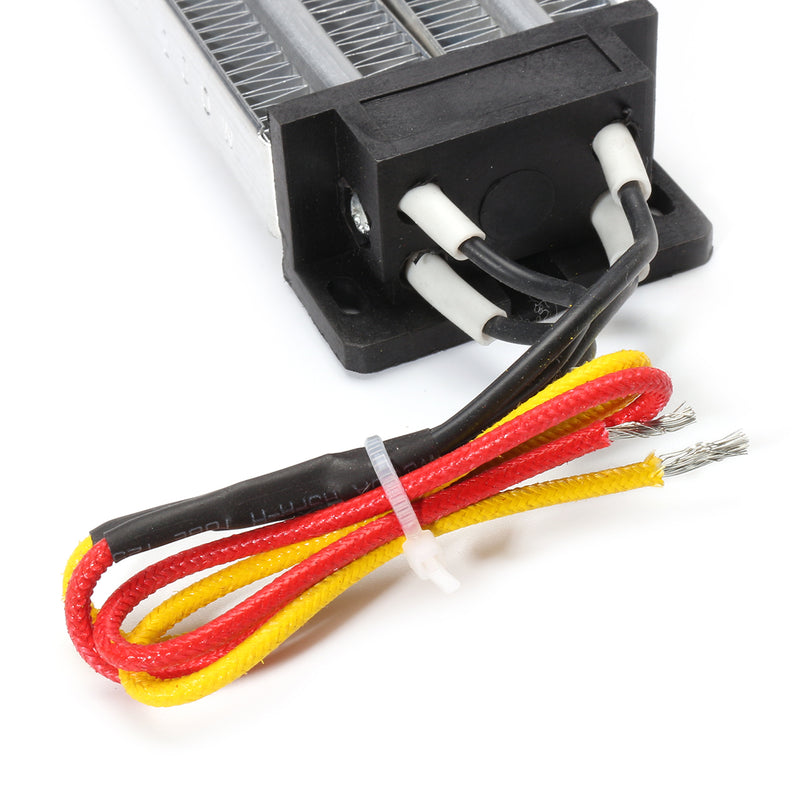

Wire: Included
Surface Insulate
Main Color: Black, Silver Tone
Rating Voltage: 12V (Connect bare wires, do not divide positive and negative, just connect it as rated voltage)
Rating Power: 200W(R=24 degrees, 3.3m/s)
Heat Material: PTC Thermistor
Heat Methods: Heat Conduction

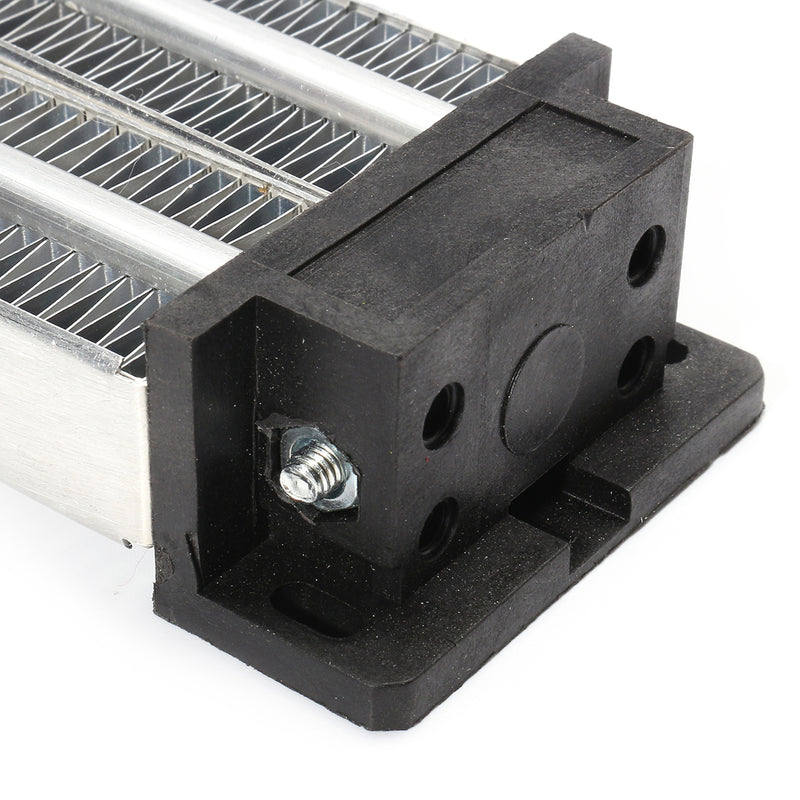

Mounting Hole Size: 8*4mm
Mounting Hole Center Distance: 100*44mm
Size: 120*51*26mm/7.4*2*1inches(including corrugated length of about 76mm)
Package Included:

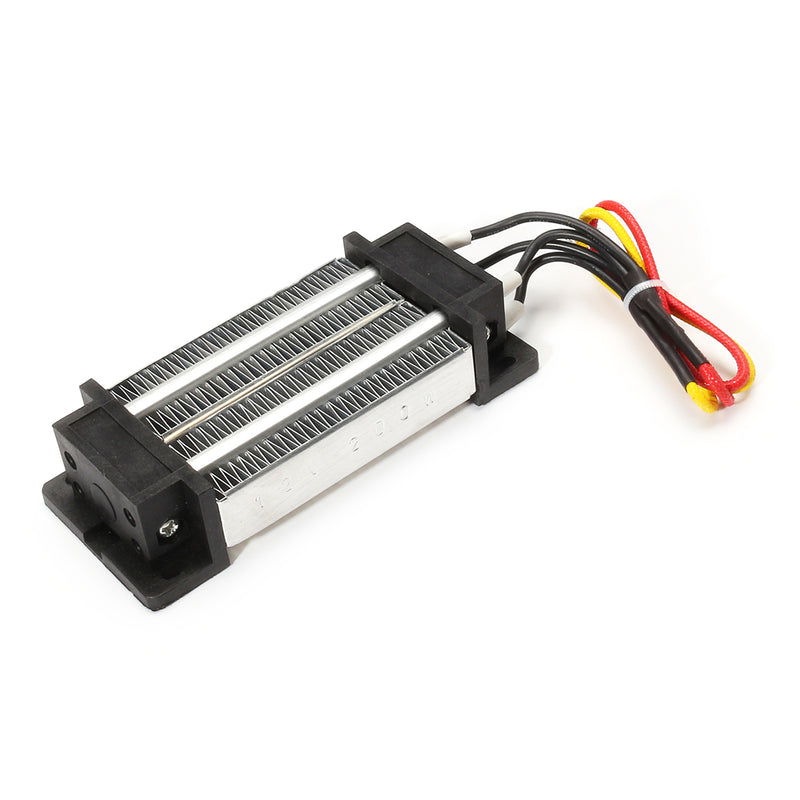

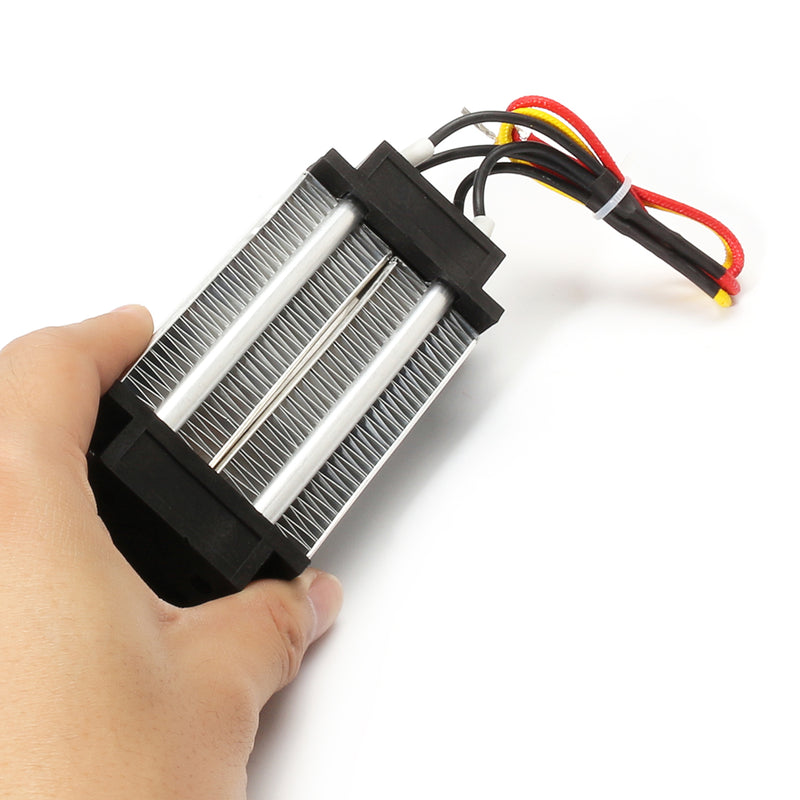

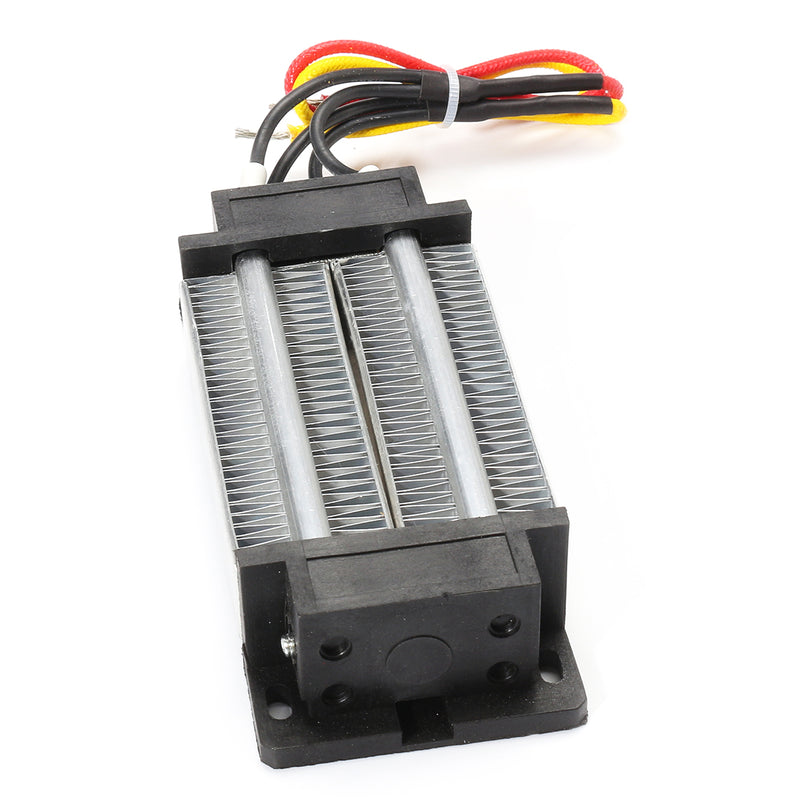

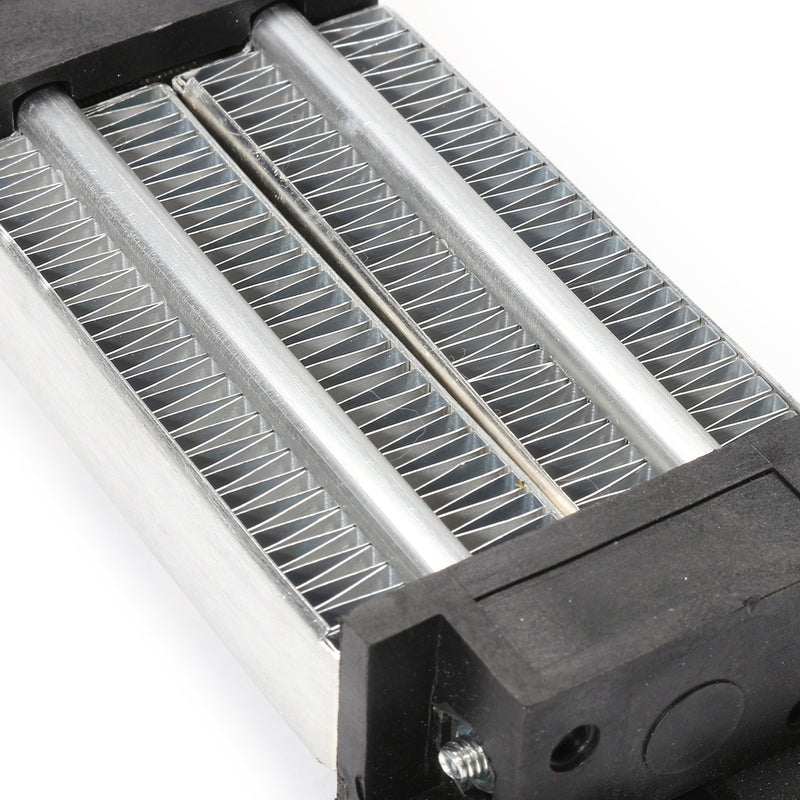

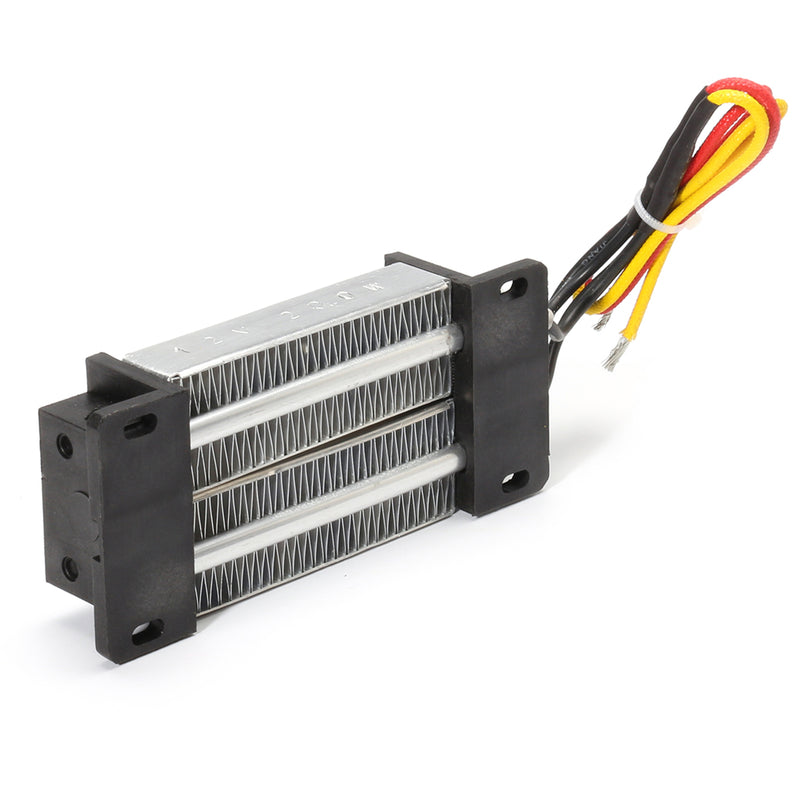

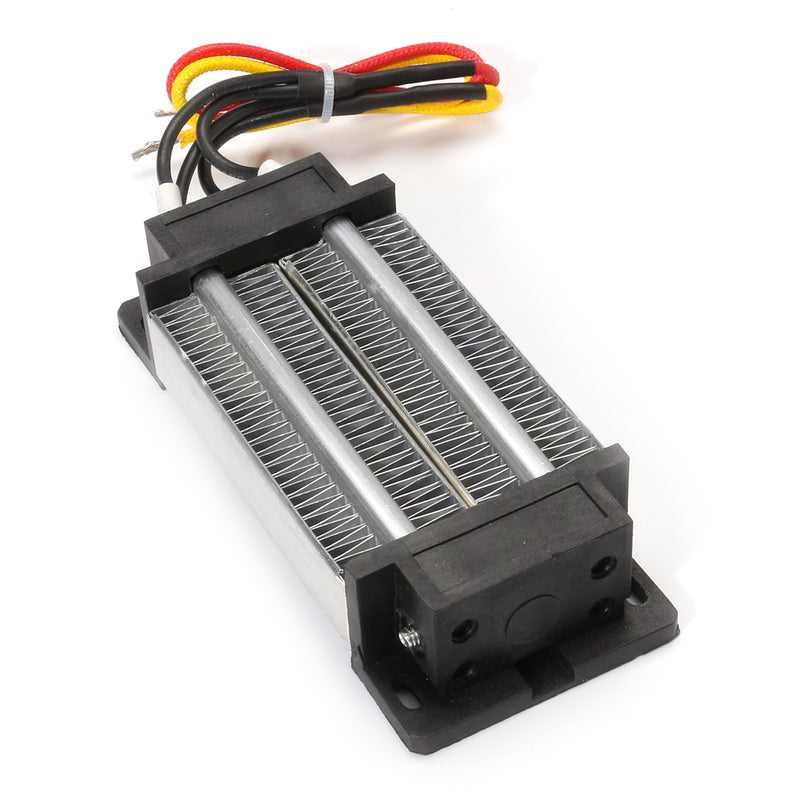

1 x Thermostatic Insulation PTC Heating Element Heater
Applications:
Air Conditioning Units, Air Curtain Machine, Drying Machine, Dryer, Heater,Cars, Need to provide warm air devices, etc.
Dissipation Power: (Because of the different users to use, and the characteristics of PTC itself and energy saving ,insulation type PTC heater product actual use most of the energy dissipation within 50% to 100% of the rated power.
Specialty:
1. Heat up quickly, when fan failure can control temperature, long service life.
2. Do not burn, safe and reliable, not red, the halogen-light PTC heating.
3. Safety, surface of the insulation.
