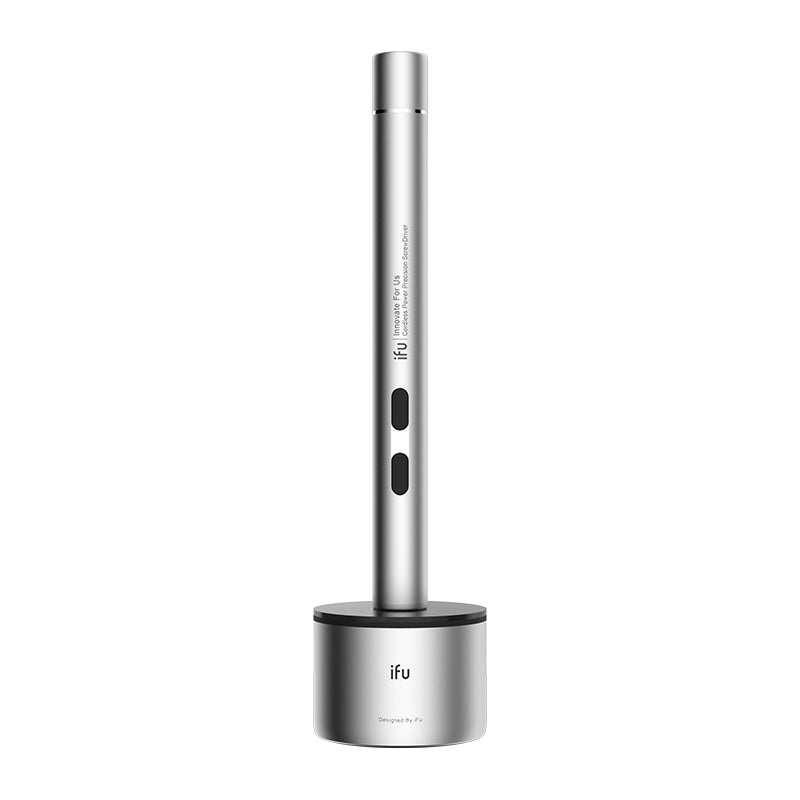

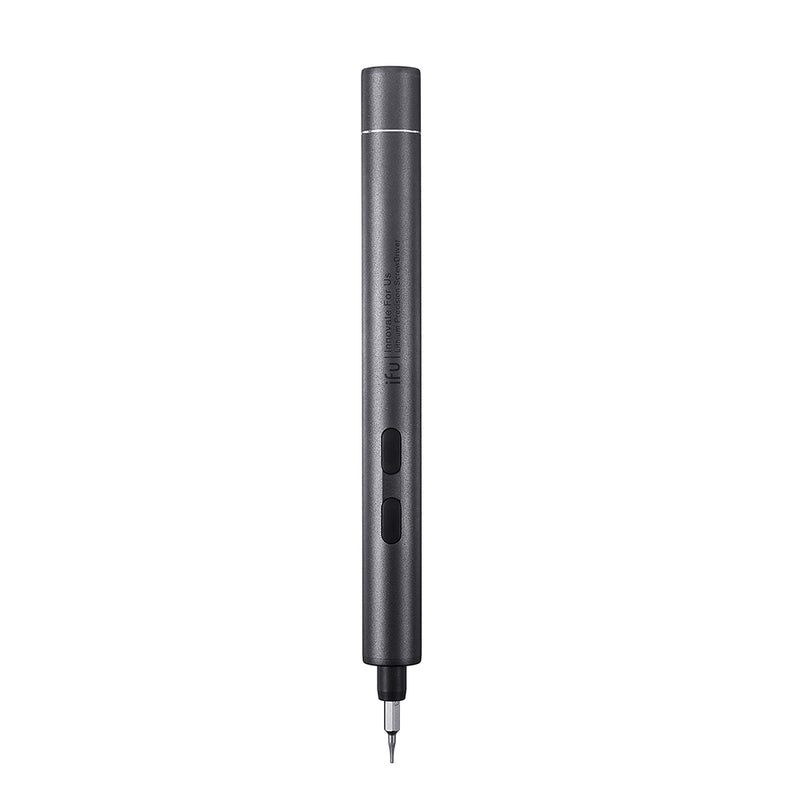

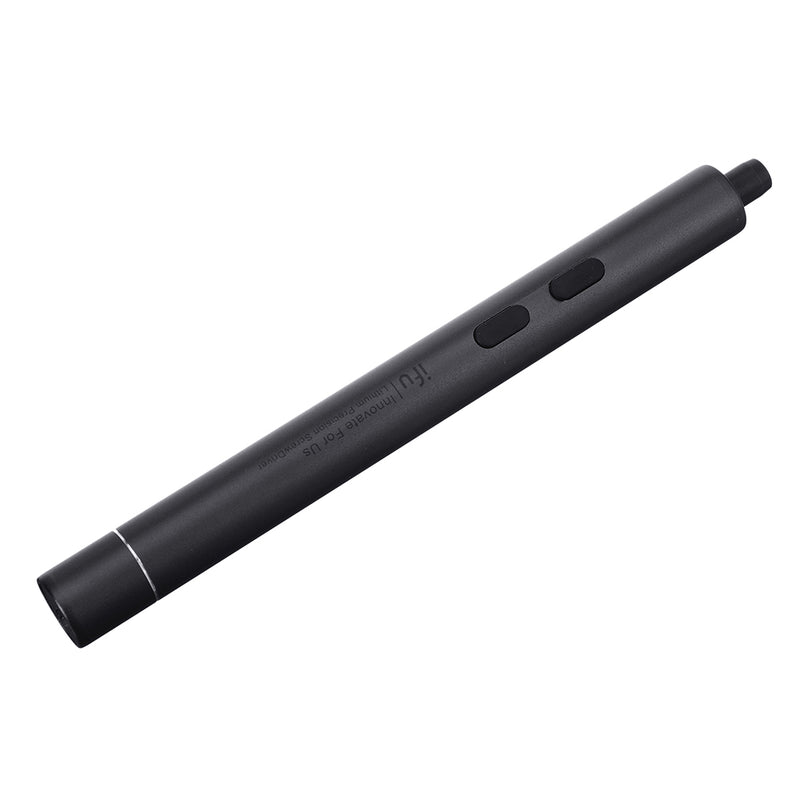

Specifications:
| Brand |
iFU |
| Model |
MR1 |
| Material |
S2 Aluminum Alloy Steel |
| Input Voltage |
DC 3.7V |
| Battery Type |
Lithium-ion Battery |
| USB Charge Type |
Micro USB |
| Speed |
200r/min |
| Max Torque |
0.2/3N.m |
| Charge Time |
40 Min |
| Bits Size |
4x28mm |
| Host Weight / Size |
Apprex. 52g / ¢15.7*167 mm |
| Package Weight / Size |
Apprex. 550g66*46*280mm |

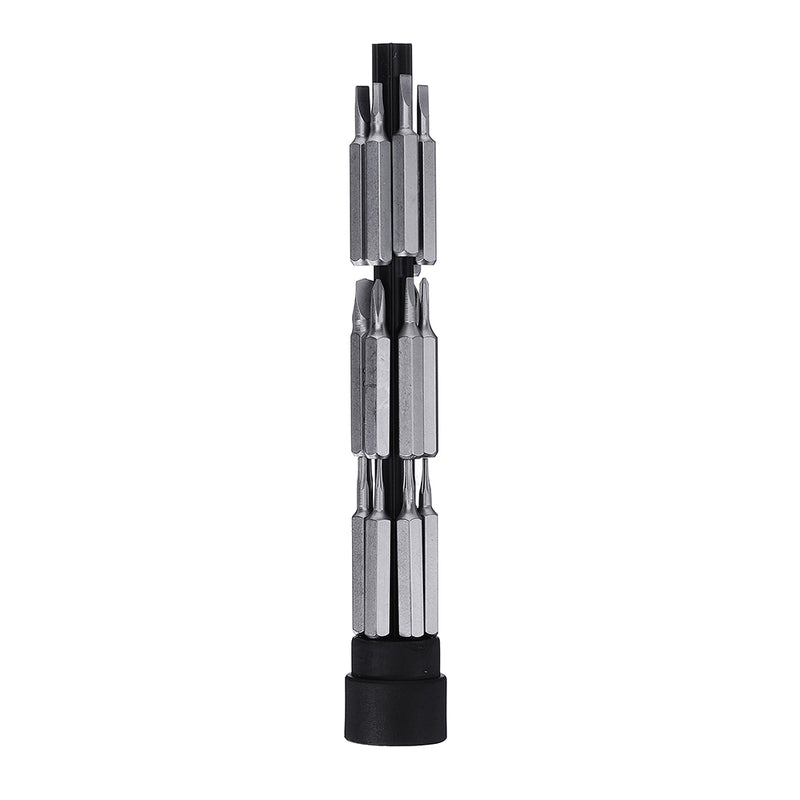

Screw Bits
| |
Bit Type |
Application |
| Cross bit |
PH0000, PH000
PH00, PH0, PH1
|
Most household appliances, electronic products, etc.; |
| One word |
SL1.5, SL2.0, SL2.5
|
Some household appliances and precision instruments |
| Hexagon |
H1.5, H2.0
|
Professional products such as drones, models, engines, fire-arms, props, etc. |
| T-type |
T2, T3, T4, T5 (TR5),
T6 (TR6), T8 (TR8)
|
The disassembly and assembly of mobile phones, notebooks,
hard drives, computers, game controllers, razors, etc |
| Five-star |
P2 (five-star 0.8),
P5 (five-star 1.2)
|
Apple mobile phone/computer screw disassembly; |
| Special |
∆ 3.0 |
Products that require professional maintenance in home appliances |
| Medium |
1.5 (+1.5)
|
Remove the inner middle plate screws of the mobile phone,
such as Apple 6S and subsequent versions |
| Sleeve |
2.5 (2.5) |
Remove the 2.5 hex socket screw |
| Y type |
Y0.6 |
Internal screw for mobile phone |
Feature:
4x28mm screw bits meet the daily work perfectly.The motor drives screwdriver simple operating and labor-saving.
Cordless design, power by the rechargeable lithium-ion battery .
If the full power standby can reach more than 180 days.
Fully charged, can be assembled with about 800 precision screws.
Electric/manual combination for efficiency and safety.
High-precision carbon brush motor with no-load speed 200r/min.

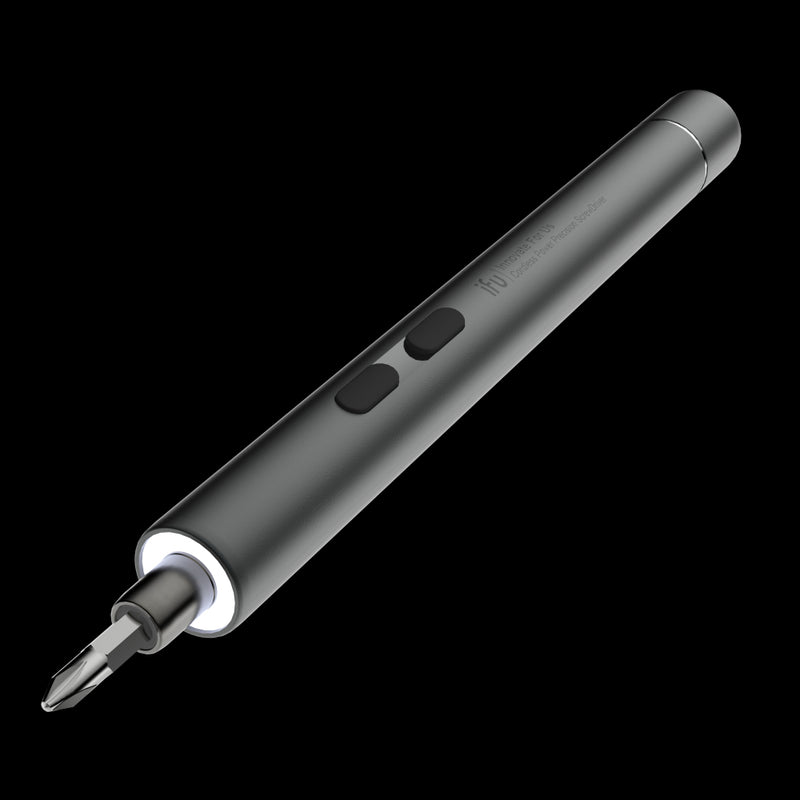

With 3 LED shadowless light, more convenient to do the repairing job.
Suitable for the quartz watch, regular household appliances such as Cameras Digitais, Radios,Glasses, Tablet PC, Smart Phone, Drones,Joystick, RC Car, hard drive, maintenance of children's toys etc
Tips:
The storage box can hold many kinds parts, and it can be superimposable expand capacity(Foldable)
6 independent batch storage spaces, inside the box with magnetizer,demagnetize function

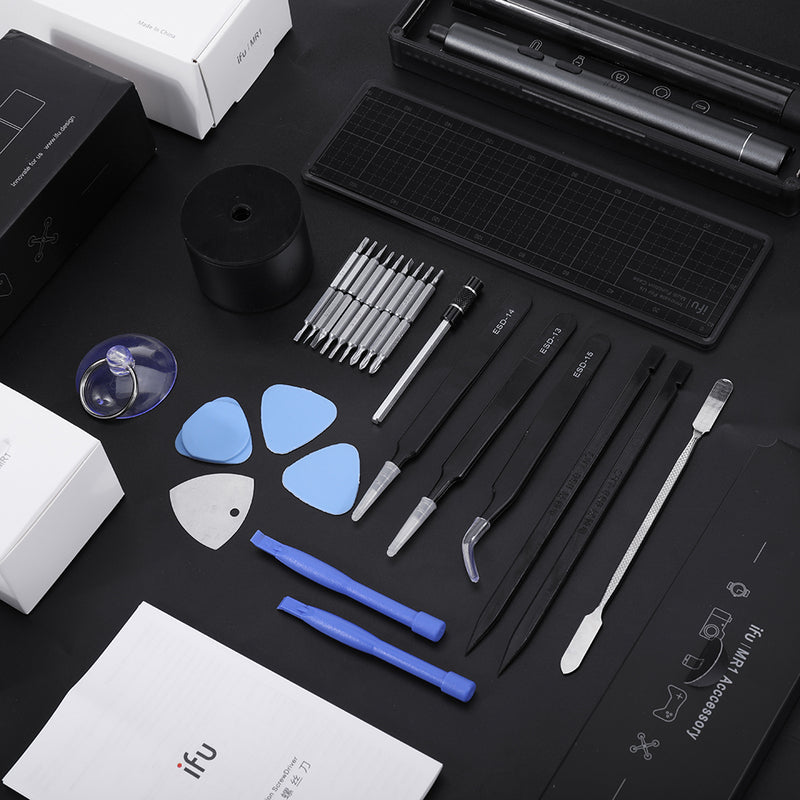

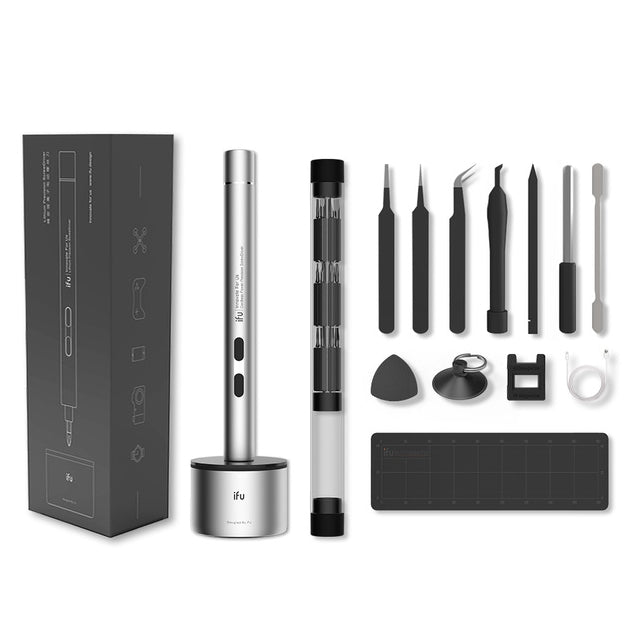

Package included:
1 set iFU repairing screwdriver set
...
1XScrewdriver
23 XScrew bits

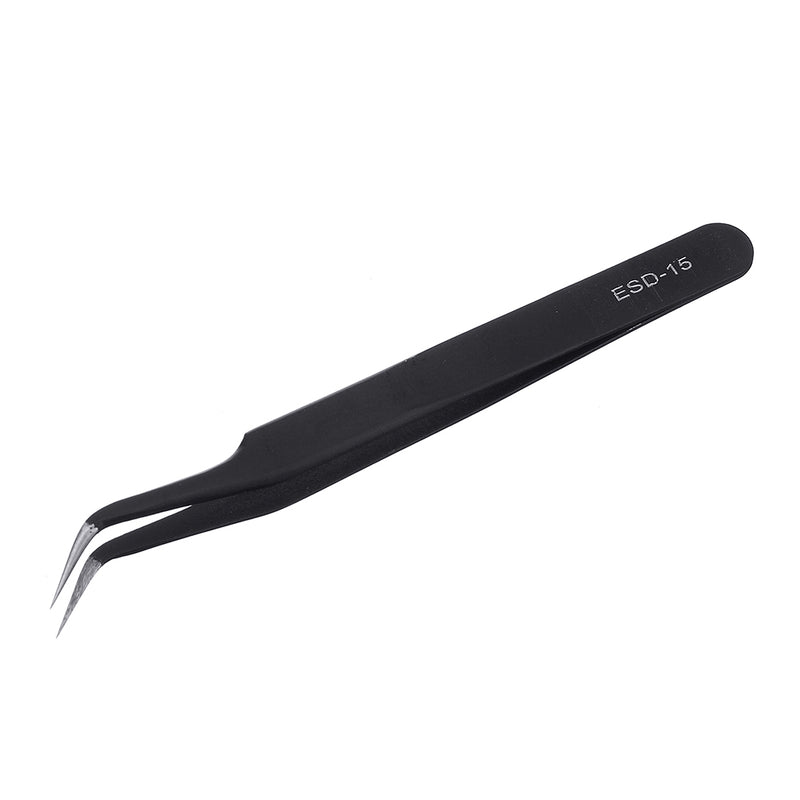

1XTweezers
1XCrowbar
1Xmagnetic plates
1XMagnetizer
1XSuction cups
