Features:
Made of high quality steel, collection of stripping, trimming, crimp terminal three functions in one tool.
save more effort than conventional wire strippers, stripping line are more better.
does not destroy the line, improve work efficiency.
Easy stripping without any adjustment.
Multifunction, made of steel by special hardened, with long lifetime.
For cutting and stripping wire and cable.
For crimping insulated and non-insulated terminals.
Specifications:
Material: Blade: SS41; Handel: ABS+TPR
Blade hardness(HRC): 52°- 57°
Hardness: Body hardness: HRC88-90; Cut hardness: HRC55-60
Total length (mm): 210mm
Operating functions:
Plier
Stripping: 24-10AWG /0.2-6mm²
Crimping: Insulation Terminal: 22-10AWG/0.5-6mm²
Crimping: Non-insulation Terminal: 12-10AWG/4-6mm² 16-14AWG/1.5-2.5mm² 22-18AWG/0.5-1mm²"
Screwdriver:
Slot (3/16 inch, 1/4 inch)
Phillips (PH0, PH1, PH2)
Torx (T15)

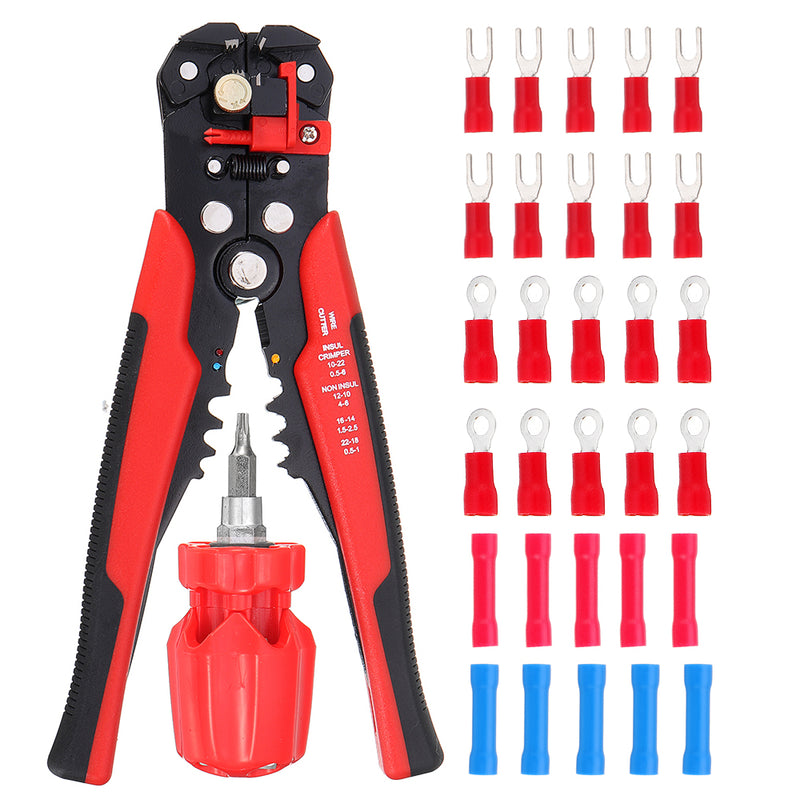

Package included:

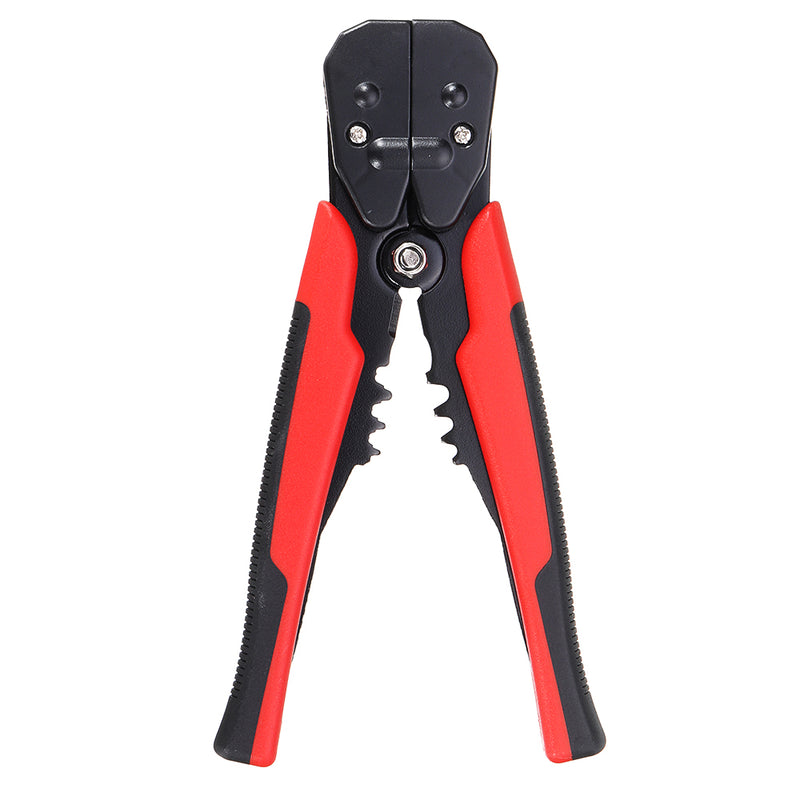

1 x Automatic Wire Stripper

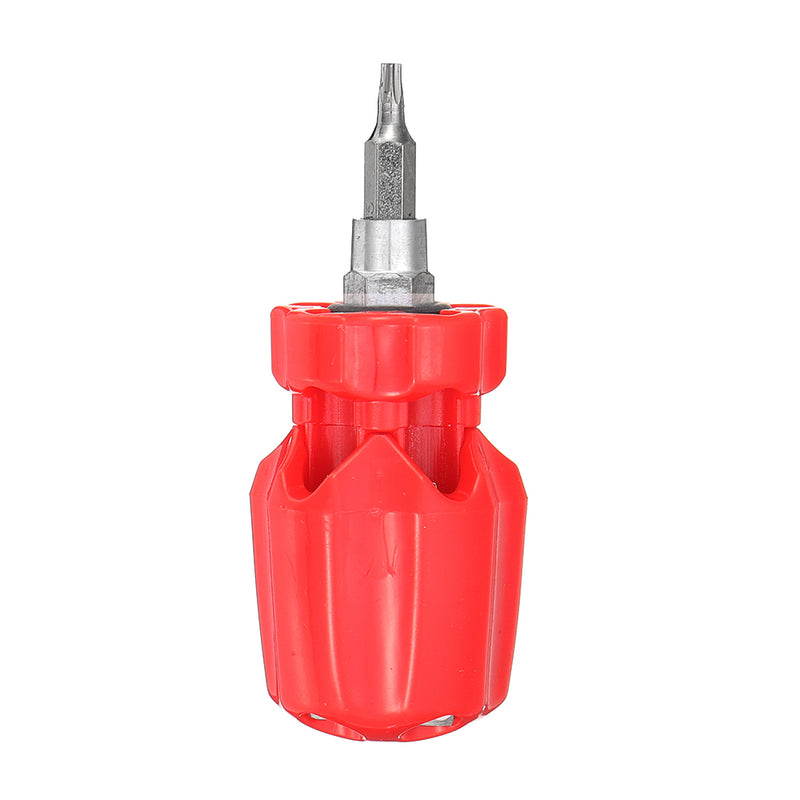

1 x Mini Screwdriver Set
10 x SV1.25-3 Red Round Terminals
10 x RV1.25-3 Red Round Terminals
5 x BV1.25 Red Rectangle Terminals
5 x BV2 Blue Rectangle Terminals

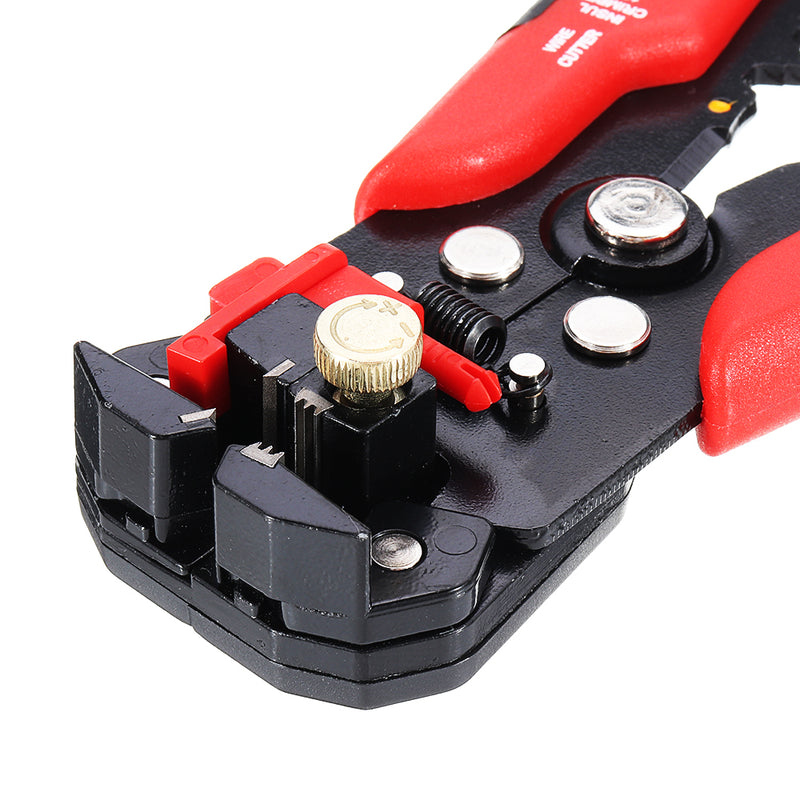

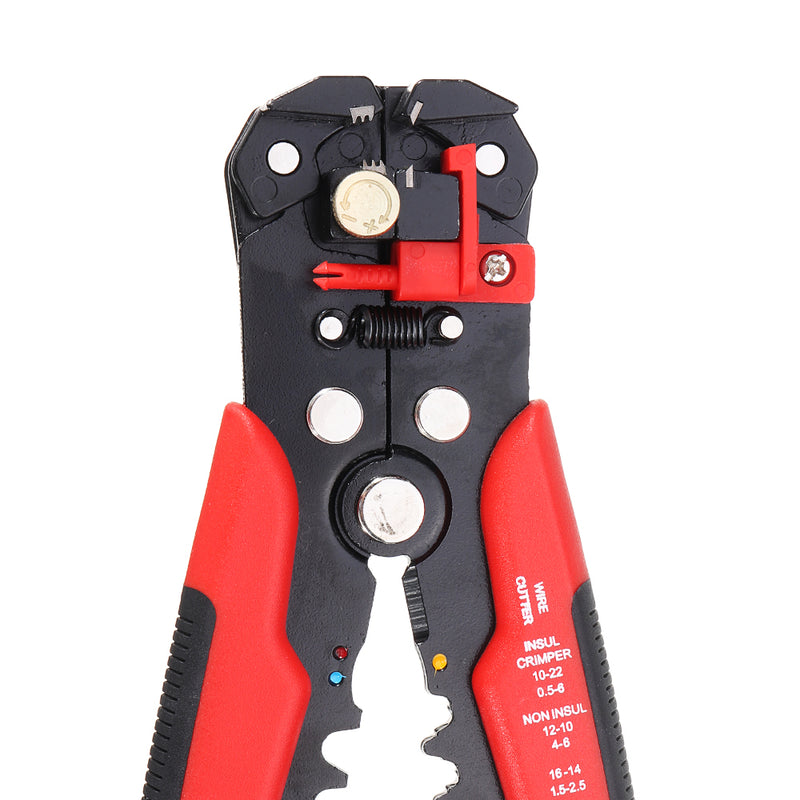

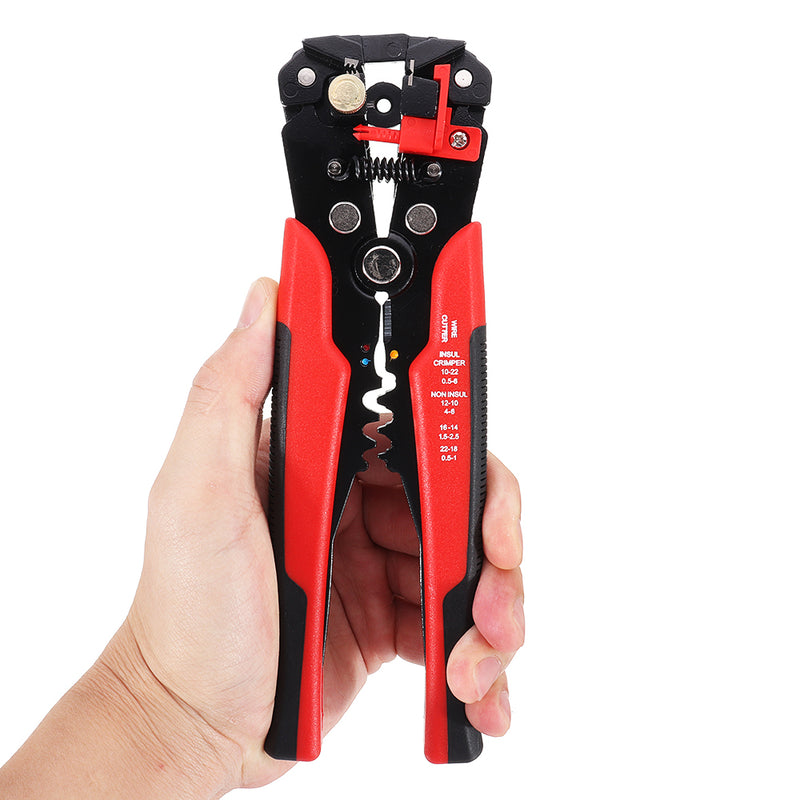

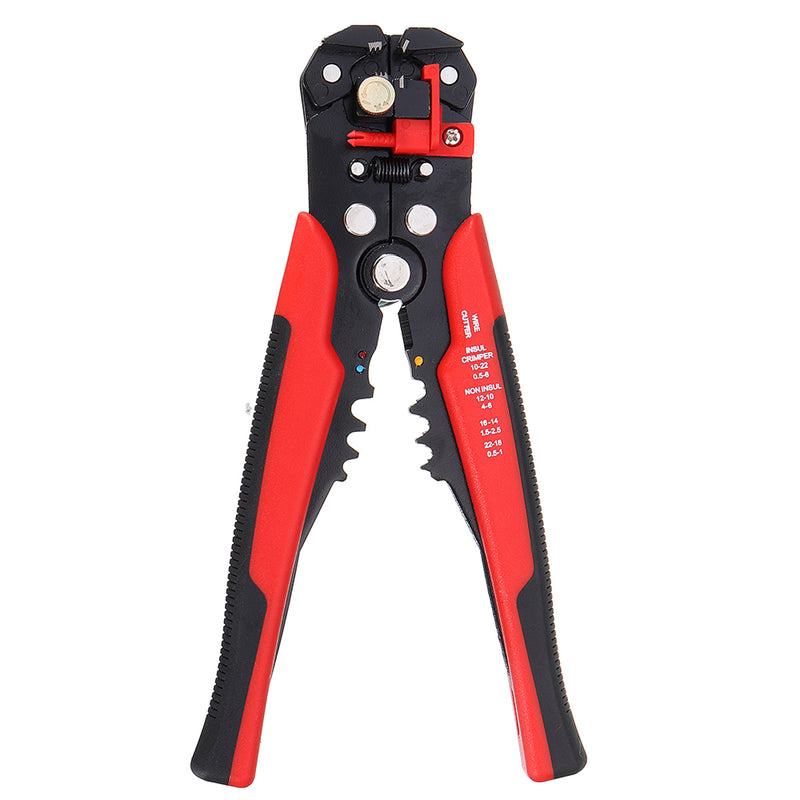

Detail Pictures:
