Description :

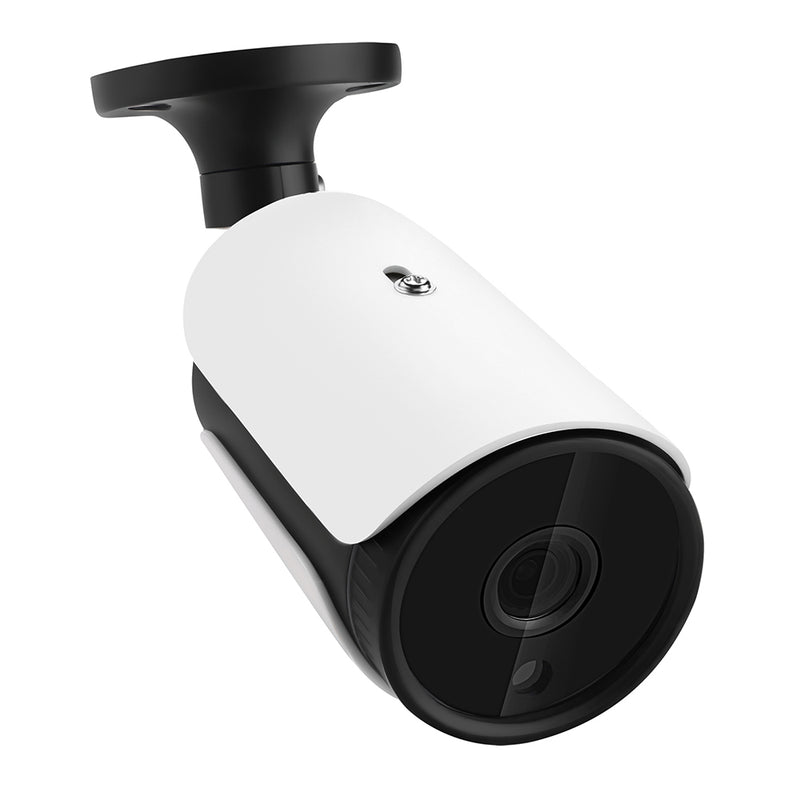

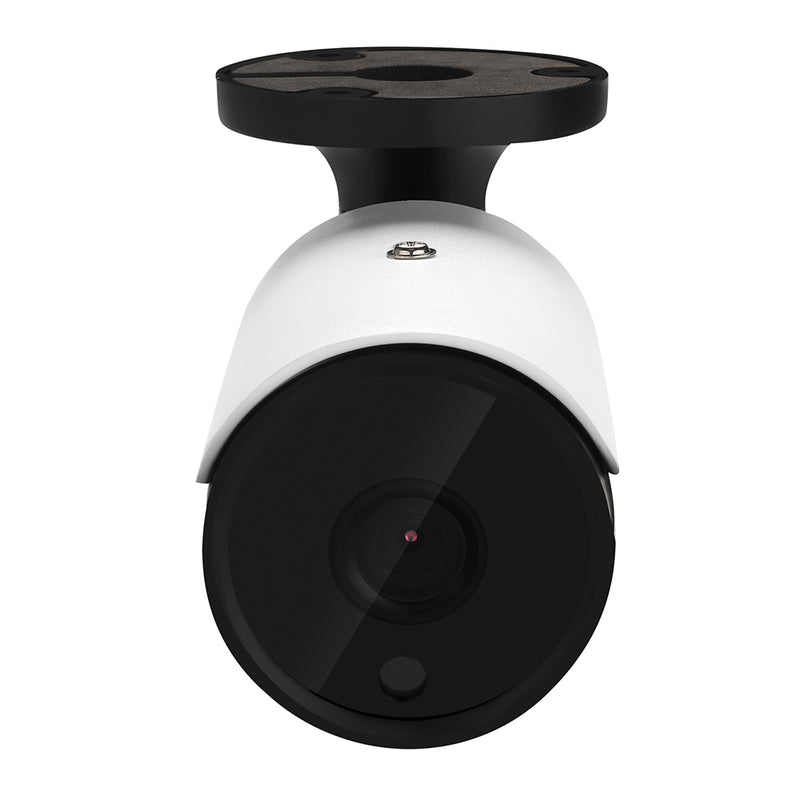

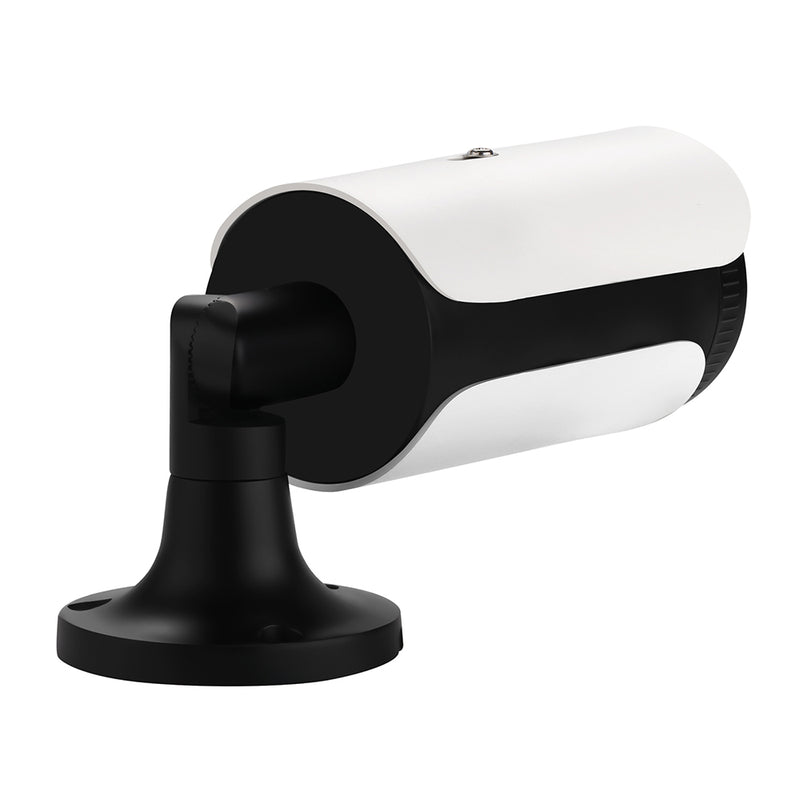

COTIER TV-635bH2/IP POE H.264 2MP(1080P) POE IP Camera Video Surveillance Baby Monitors- Support various mobile monitoring(iPhone,Android)
- All Netcom , supports mainstream NVR and HIKVISION DAHUA Private Agreement.
- Support ONVIF;access third party
- 2MP H.264++/H.265
- Built-in POE power supply module
- Built-in POE power supply module, no external power supply. But you need a POE switch or POE NVR.
- Advanced H.265/H.264 video compression,Super low rate,high definition quality of image;
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.
- Support ONVIF;access third party;
- Support various mobile monitoring(iPhone,Android);
- APP:AEeye2.0 Provide web, CMS, center platform management software MYEYE,provide SDK development.
- Support cloud technology, easy to achieve network penetration, fro in-line and alarm information pushed.
- DC 12V/1A POE 13W
Specification :
| Brand |
COTIER |
| Model |
TV-635bH2/IP POE |
| System Structure |
Embedded RTOS, Dual-Core 32bit DSP(Hi3516EV100), Pure Hard Compression |
| Sensor |
2.0M CMOS Sensor
Color 0.1Lux@F1.2, Black/White 0.01Lux@F1.2 |
| Video Output |
Main Stream: 1920*1080@20fps,1280*720@25fps
Sub-Stream: 704*576@25fps; |
| Video Compression |
H.265/H.264,Support Dual Stream,AVI;0.1M~10Mpbs Variable;1~30f/s Variable |
| Shutter |
1/50(1/60)s to 1/10,000s |
| Lens |
3.6mm 3MP Megapixel Lens Optional |
| IR Distance |
Support IR-CUT 36×Φ5 IR LED, IR distance 20M |
| Noise Reduction |
Support 2D/3D |
| Wide Dynamic |
Support Digital |
| Network Interface |
1*RJ45 10/100M Adaptive Ethernet Port; Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc. |
| Reliability |
Comprehensive Lightning Protection, 7 * 24 Hours 65 ℃ High Temperature Stable And Reliable Testing |
| Mobile Monitoring |
Support Multiple Mobile Monitoring (iOS, Android) |
| Other Function |
Support WEB, OSD, Live Video Transmission, Motion Detect And IO Alarm, Front-End Storage/Playback/Download, And Center Reminder And Image Linkage, Support JPEG Capture; United Remote Client Monitoring Sofaware
, MYEYE; Perfect SDK. |
| Function |
ONVIF |
Support |
|
|
| P2P |
Support |
|
|
| POE |
Support |
|
|
| Audio |
|
|
|
| Wifi |
|
|
|
| Manual Focus Zoom |
|
|
|
| Auto Focus Zoom |
|
|
|
| License Plate |
|
|
|
| Others |
Package Size(CM) |
L19.5CM*W10.5CM*H10.5CM |
| Volume(M3) |
L18.7CM*W7.0CM*H7.0CM |
| N.W.(Kg) |
0.35Kg |
| G.W.(kg) |
0.55Kg |
| Power Supply |
DC12V/1A/ POE 13W |
| Power |
5W |
Package Includes :
1 x POE IP Camera
1 x Power Adapter DC12V1A
1 x Set of Camera Mounting Screws
1 x CD
