Description :

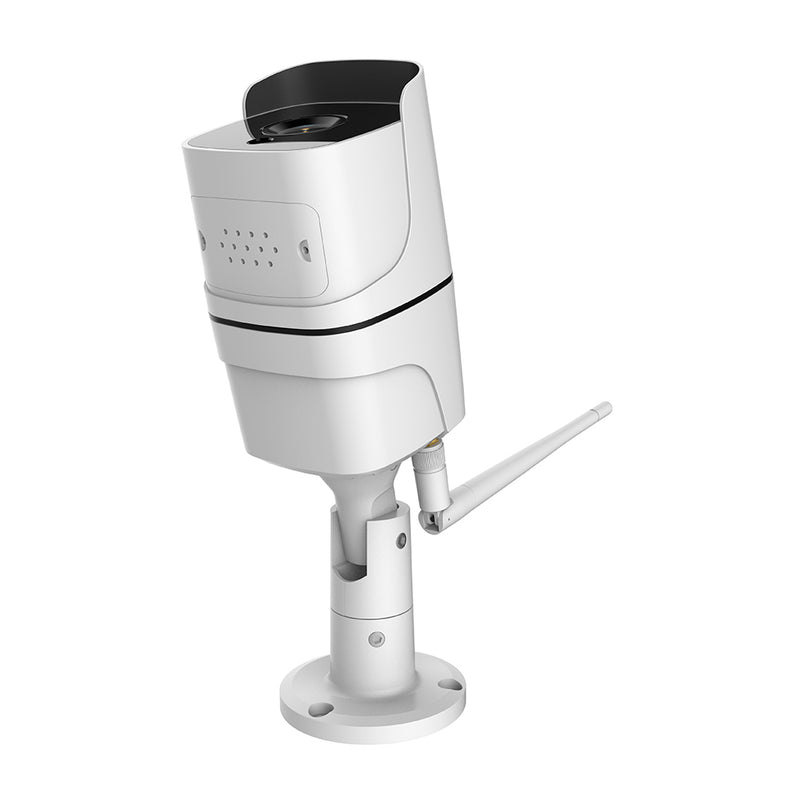

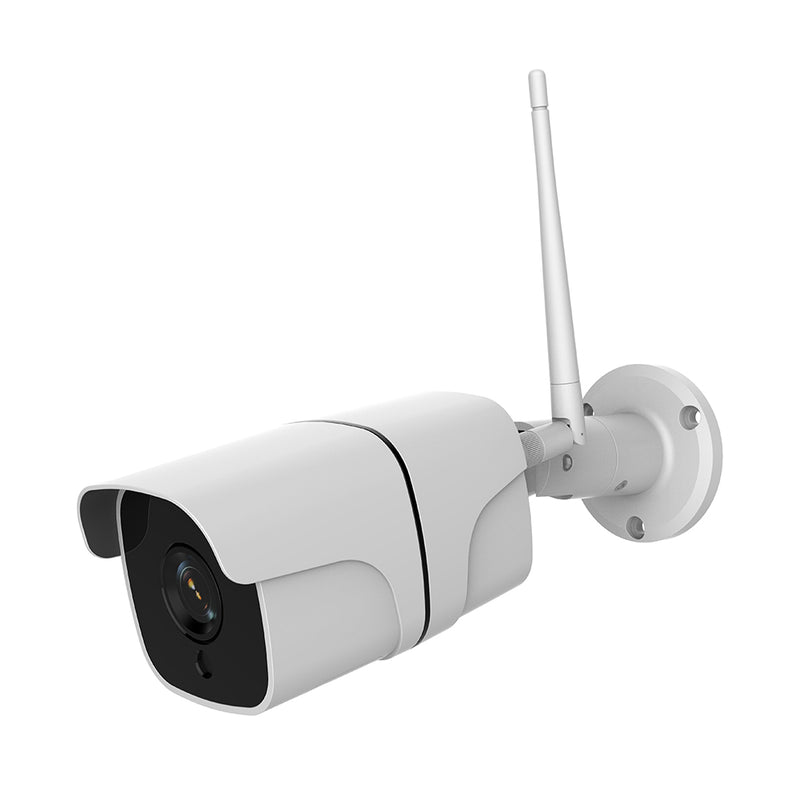

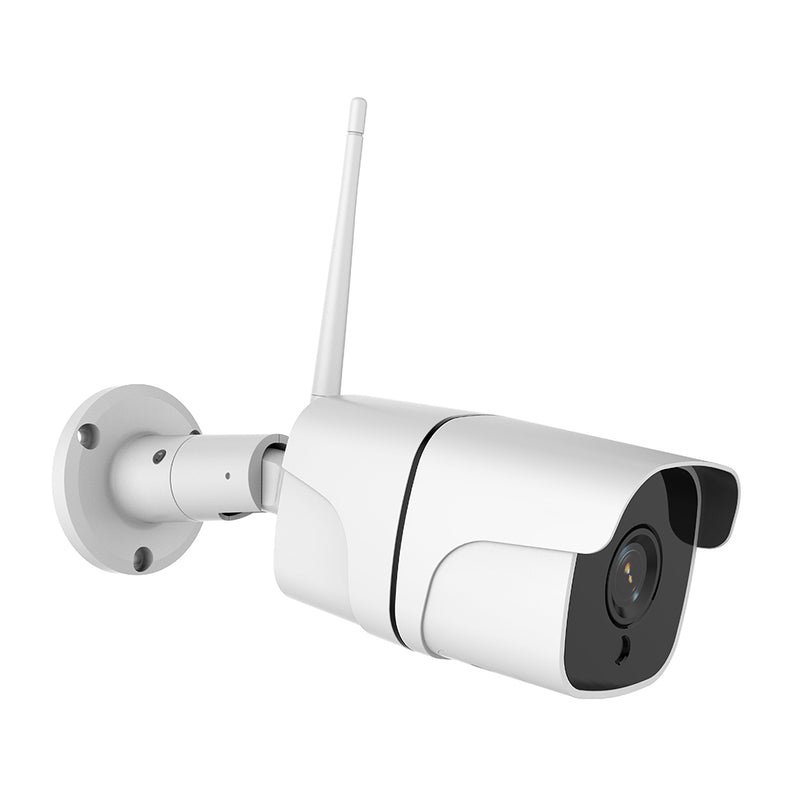

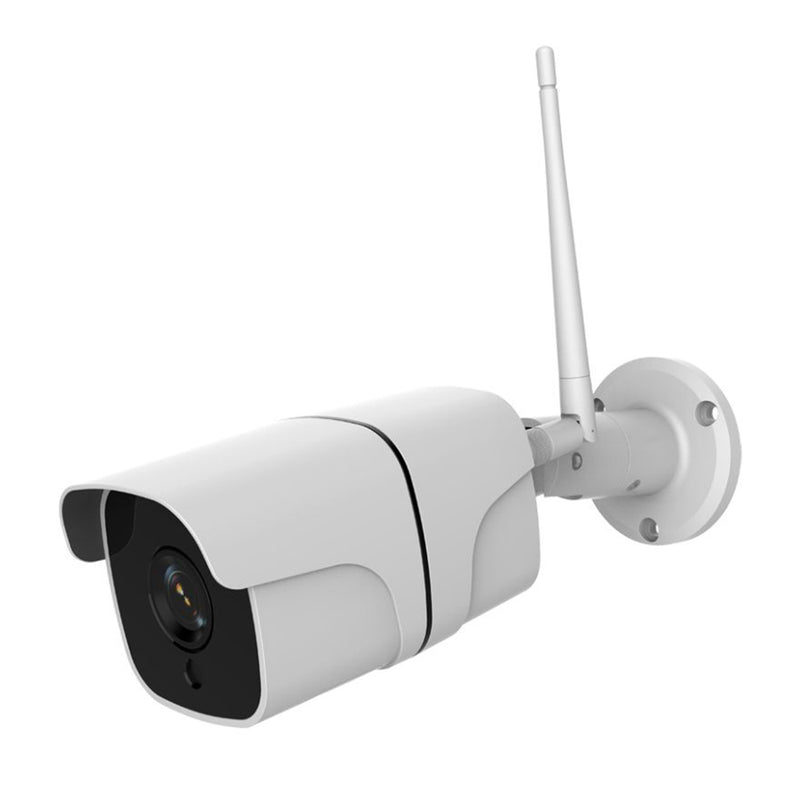

Elinksmart Star 30W HD 1080P Waterproof H.264 Infrared Night Version M-otion Detection Home WIFI Camera Baby Monitors
- EASY CONNECTION (2.4G WiFi/ WiFi Hotspot) Wifi Camera's videos wont be saved on any servers or forwarded by manufacturer, your phone direct connect with the camera.
- Cut night vision gives you fantastic night experience, you will never be in dark .
- M-otion detection sensibility can be adjusted by yourself via setting in APP "esmartcam" ( downloaded from Google Play )
- Card storage and cloud storage support all-day video r-ecord and motion r-ecord (r-ecord videos when detecting moving objects), If the network is interrupted while the wifi
camera is running, the SD-card will still keep recording videos. Support onvif, our wifi camera can be used on NVR system.
- MULTI-PICTURE & SHARING & ZOOM: The App can add multiple wifi cameras and support 4 cameras split-screen viewing at the same time.
- Dust-proof, waterproof and rain-proof, which can be widely used in all kinds of bad weather conditions.
- Recording takes up very small space, and supports up to 128GB.
- Advanced video preview connection speed.
- Support WiFi hotspot AP and routing dual mode switching
- Support remote access for smartphones, computers and tablets
- It can be widely used in outdoor and indoor places requiring high-definition image quality, such as shops, families, basements, parking lots, gardens, etc.
Specification :
General |
Brand: Elinksmart
Model: Star 30W
Shape: Camera
Technical Feature: WiFi,Waterproof,Infrared,OSD
Special function: Speech Talk/Dust-proof, Waterproof and Rain-proof
Mount Types: Wall bracket
IP camera performance: Remote Control,M-otion Detection,Night Vision,Support video control,Real-time video capture and recording,Screenshot,Interphone,Backlight Compensation,White Balance
M-otion Detection Distance: 12m
Compatible Operation Systems: Windows 7,Windows 8,Windows 10,Android,IOS
APP: esmartcam
APP Language: English,French,Spanish,Russian,German,Italian,Japanese,Chinese,Chinese Traditional
Connection: Wireless
Interface: TF Card Slot,Micro SD Card Slot
Features: HD,Small
Chip type: Hass 3518E
Storage Method: SD Card Storage and Cloud Storage
Lens Structure: Optical zoom
Video Formats: H.264
Color: White
Certificate: CE,RoHs,FCC |
Network |
AFFD: DFS
Protocol: HTTP,UDP,DHCP,TCP,IP,ONVIF
Wireless: WiFi 802.11 b/g/n
WiFi Distance : 20m

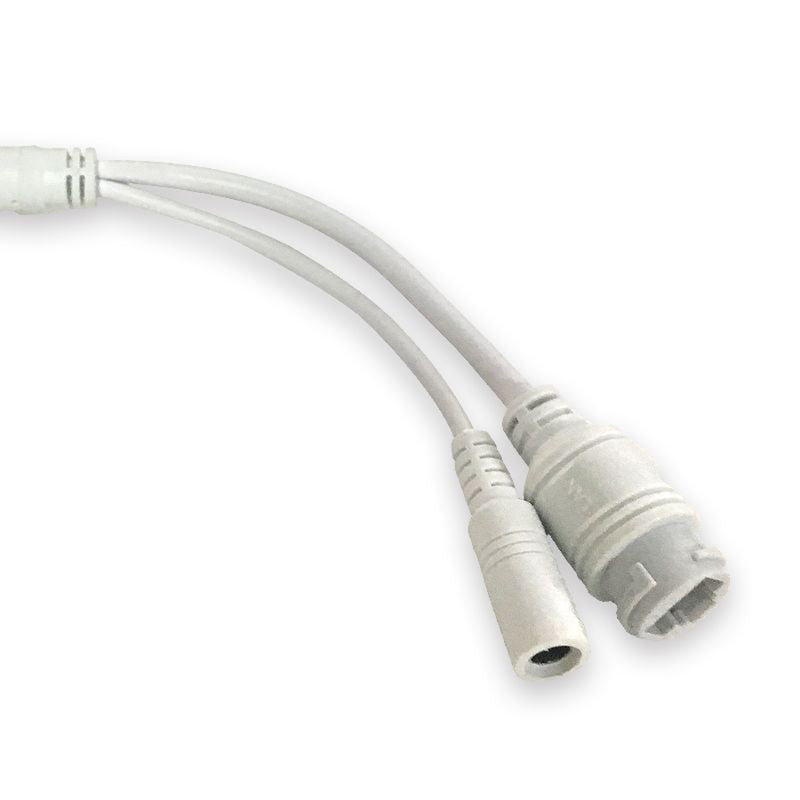

Network Port: RJ-45
IP Mode : Dynamic IP address
Online Visitor (Max.): 15
Web Browser: IE
SDK: SDK-H
Safety: Administrator password protection |
System and Hardware Info |
Mobile Access: Android,IOS,Windows Mobile
Motion Alarm : Alarm information and snapshot images
Alarm Notice: FTP Photo
OSD: Yes
Local-storage: TF / Micro SD card up to 128GB
Language: English,French,Spanish,Portuguese,Russian,German,Italian,Japanese,Chinese,Simplified / Traditional Chinese
Minimum focus distance: 2.8
Maximum Monitoring Range: 30m
FOV: 120 degrees |
Video Image Audio |
Video Compression Format: H.264
Horizontal definition: 750TVL
Sensor: CMOS
Sensor size (inch): 1/4
Pixels: 2MP
Video Standard: PAL,NTSC
Video format: H.264,AVI,MP4
Video Resolution: 1080P
Frame Rate (FPS): 1-25
Resolution: 1920 × 1080
Image Adjustment: Brightness,Lens correction
Backlight Compensation: Yes
White Balance: Yes
Minimum Illumination: 1.0LUX/0.01LUX(IR LED ON)
Infrared Sensitivity: Yes
Image Freq.: 1-25
Picture Sharpness: 1280 x 1080(1080P)
Audio Input: Built-in mic.
Audio Output: Built-in speaker |
Night Vision |
Infrared LED: 10
Infrared Distance: 12m
Brightness: Automatic regulation |
Physical Environment |
Exterior Material: Metal
Environment: Home
Waterproof: IP66
Operate Temperature (℃): -20-45
Working Humidity (%) RH: 65 |
Power |
Power Requirement: 5V DC power supply
Specification of Power Supply: 5V 2A |
Dimensions and Weight |
Product weight: 0.3200 kg
Package weight: 0.5680 kg
Product size (L x W x H): 6.00 x 6.00 x 19.50 cm / 2.36 x 2.36 x 7.68 inches
Package size (L x W x H): 19.50 x 16.00 x 8.00 cm / 7.68 x 6.3 x 3.15 inches |

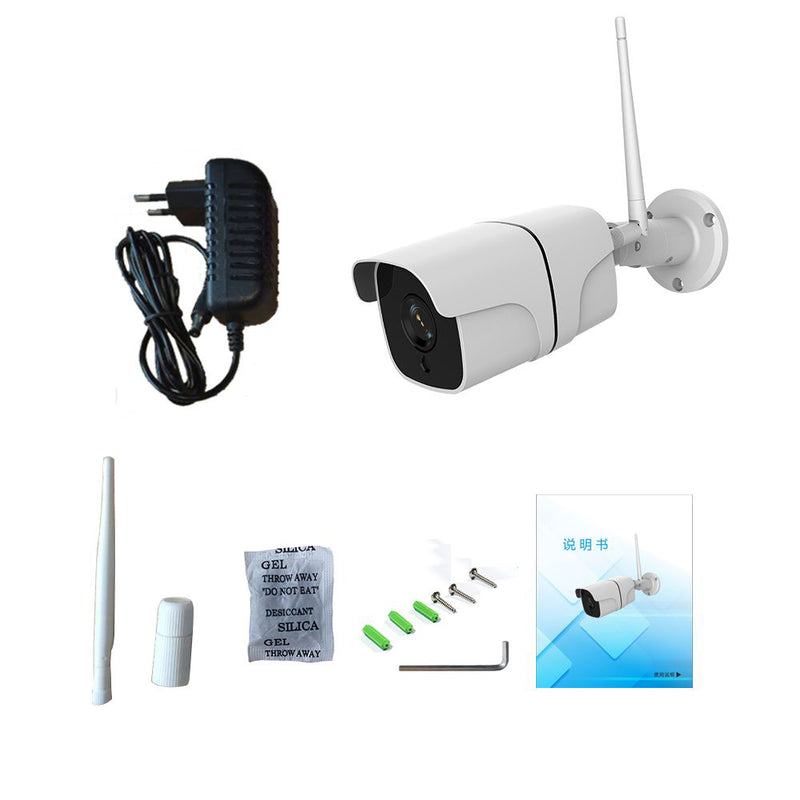

Package Includes :
1 x Home WIFI Camera
1 x Power Adapter
1 x Pack of Screws
1 x User Manual
