Description :

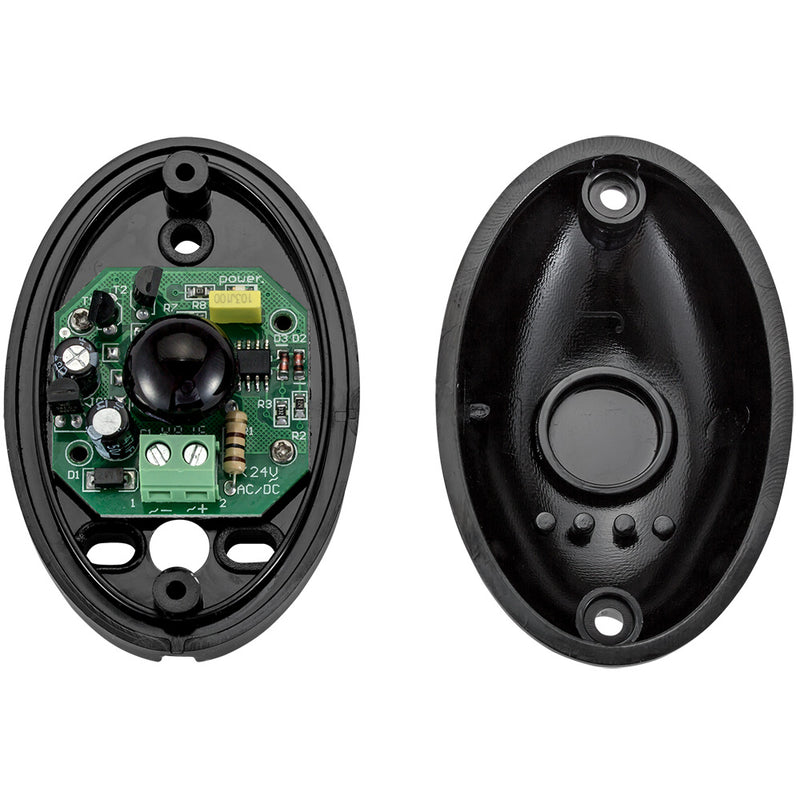

Home Waterproof ABO-20 20m Active Single Beam Infrared Probe Detector Outdoor IR Alarm For Gate Door Window Burglar Alarm System This is upgrade version of single beam sensor with latest LED light and more smt components compare with the old 3 lights handmade model, it's more stable and reliable.
When interrupt the infrared, the relay will output switch signal, it can work for parking barrier, walking gate, vehicle gate as body induction. It also can work as window, door and passageway anti-burglar detection.1. Single Beam Infrared Sensor
2. Anti-glare up to 50, 000 LUX, to avoid the impact of glare or car lights
3. Sealed design to anti-rain (fog), dust (worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit)
4. With high levels of anti-RFI / EMI capability
5. High-power transmitter, sensitivity surplus degree up to 90%
6. High-power infrared receiver tube, low-power process technology
7. Adjustable of beam interdiction period, to make it more flexible and adaptable
8. Professional anti-jamming optical housing
Specification :
| Material |
PC |
| Color |
Black |
| Weight |
140g |
| Size |
7.6 x 4.8 x 3.6 cm |
| Installation |
Wiring Mount |
| Trigger Time |
50ms |
| Outdoor Warning Distance |
10m |
| Indoor Warning Distance |
20m |
| Alarm Linkage |
Yes |
| Communication |
Wired Connection |
| Working Voltage |
DC12-24V |
| Conditions |
Fog, Rain, Dust, Etc. |
Package Includes :
1 x Transmitter
1 x Receiver
4 x Screws
