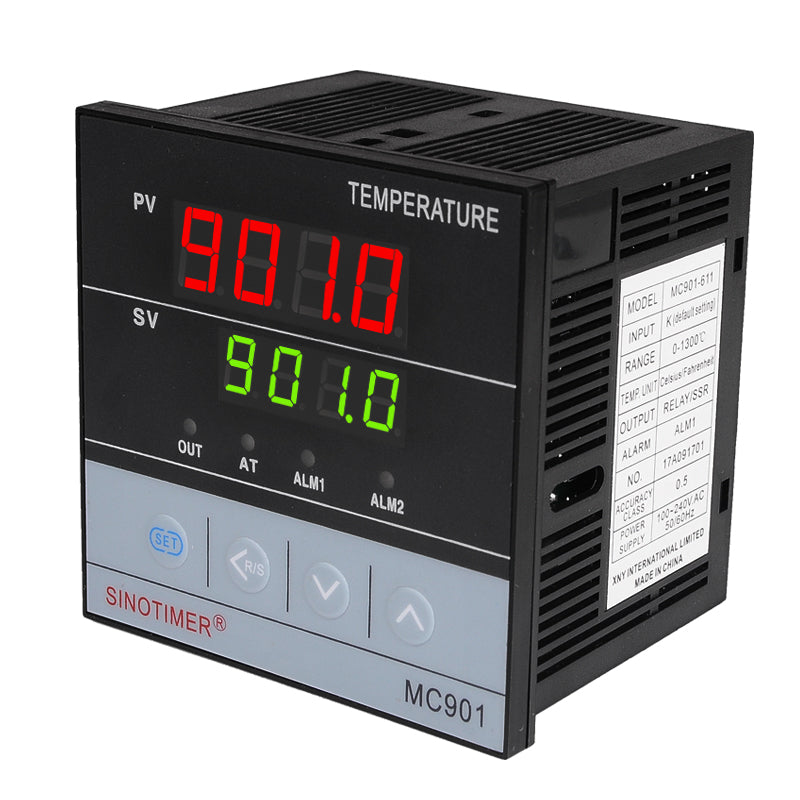

Description :MC901 96x96mmUniversal Input Digital PID Thermostat Instrument SSR Relay Output for Heat Cool with Alarm - MC901 series instruments: four-digit LED digital display,measurent accuracy 0.3% the maximum resolution 0.1 degree at thrmocouple and thermal resistance input,
the maximum resolution 0.001 at analong input
- Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels
- The thermocouple and thermal resiatance of instrument input signals can be set freely
- Uses it in Heating Control as well as for Cooling control
- Auto-tune function can find the best PID parameter automatically
- Displays temperature in Celsius (°C) or Fahrenheit (°F)
- Four digits LED display can go up to "9999
- It is used in various industries to control and monitor process temperatureSpecification :
| Model |
MC901 |
| Input Type |
Thermocouple: K, E, S, R, J, T, B
RTD: Pt100
( The User can set the input signal type according the requirement. )
|
|
Temperature Range
|
0 ~ +1300ºC
(this is the default setting. User can set the temperature range which you wanted.)
|
| Display |
Celsius °C / Fahrenheit (°F) (user can select it) |
| Display Resolution |
0.1°C / 0.1°F |
| Accuracy |
± 0.5% FS
|
| Control mode |
PID, ON/OFF |
| Control Output |
Relay contact+ SSR voltage output (just support one group output) |
| Alarm |
Alarm 1 ( Upper-limit bias alarm , User can change to be other Alarm Mode.) |
| Power Supply |
85 ~ 265V AC, 50 / 60Hz. |
| Item Dimension |
MC901 96 x 96 x 85 mm |
| Mounting Hole Size |
MC901 96 x 96 mm |
| Weight |
260 g ((including packing) |

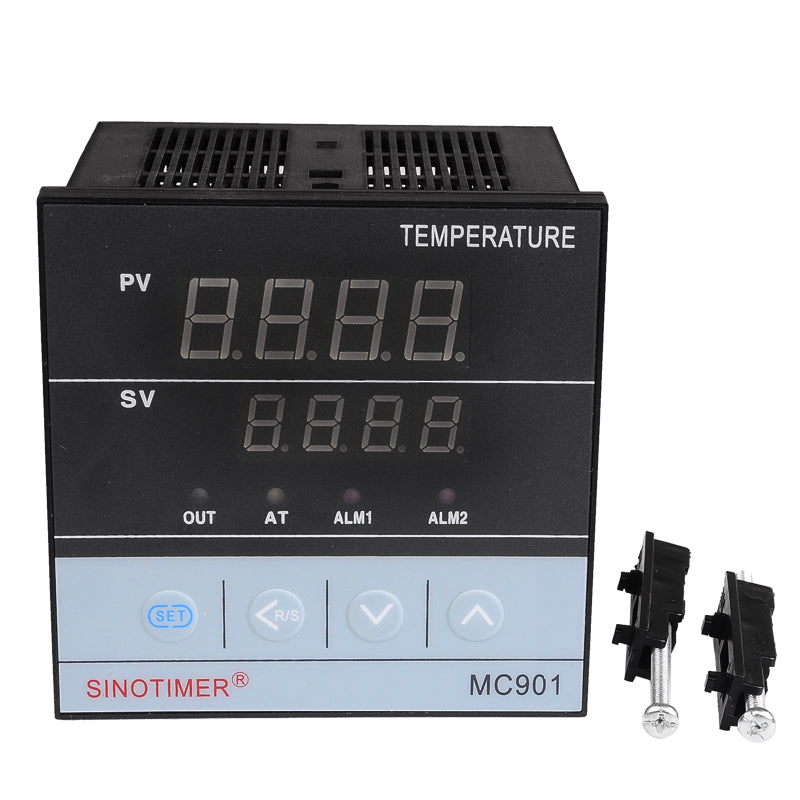

Package Includes :1 x PID Digital Temperature Controller (NOT include Thermocouple)1 x English User Manual
