Specification
| Material |
Brass |
| Model |
DN15(1/2 Inch) |
| Ball |
Chrome-plated brass |
| Stem |
Brass |
| Seats |
PTFE |
| Gaskets |
PTFE |
| Handle |
Plated Steel |
| Handle Cover |
Rubber |
| MPA |
1.6mpa |
| Working Temperature |
-10*C~120*C |
| Hole Diameter |
13.5mm |
| Length Size |
60mm |
| Height Size |
42mm |
Features
a.Durable and easy to install.
b. Brass Ball Valves are an economical alternative to stainless steel versions. Rated at 600 PSI (water, oil, and gas), these full port valves are strong enough for many applications.

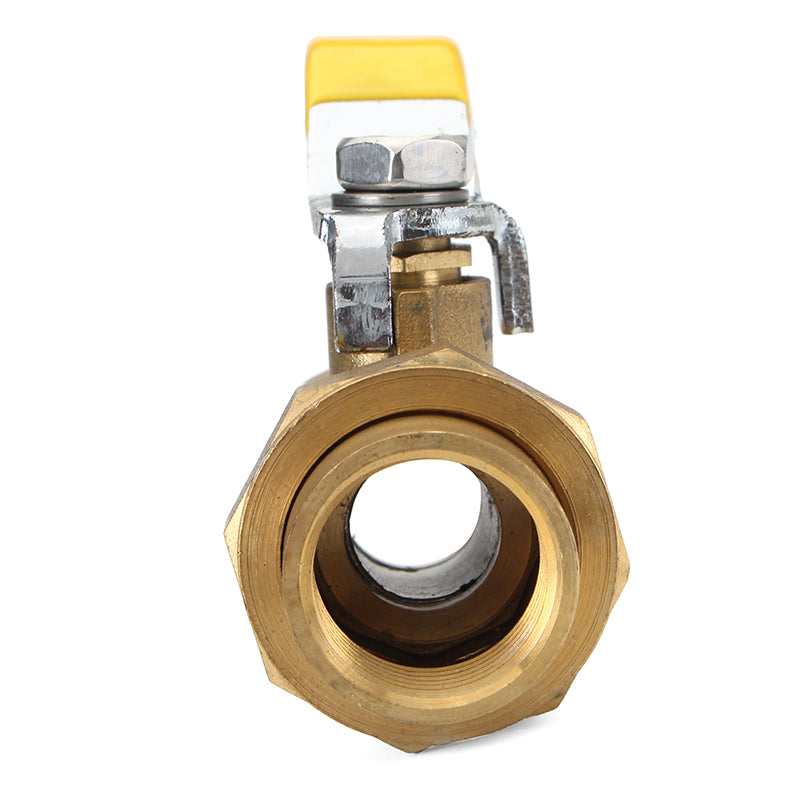

c.Their full port design allows unrestricted flow to reduce cavitation and pressure drop.d Forged brass for higher corrosion resistance than steel.

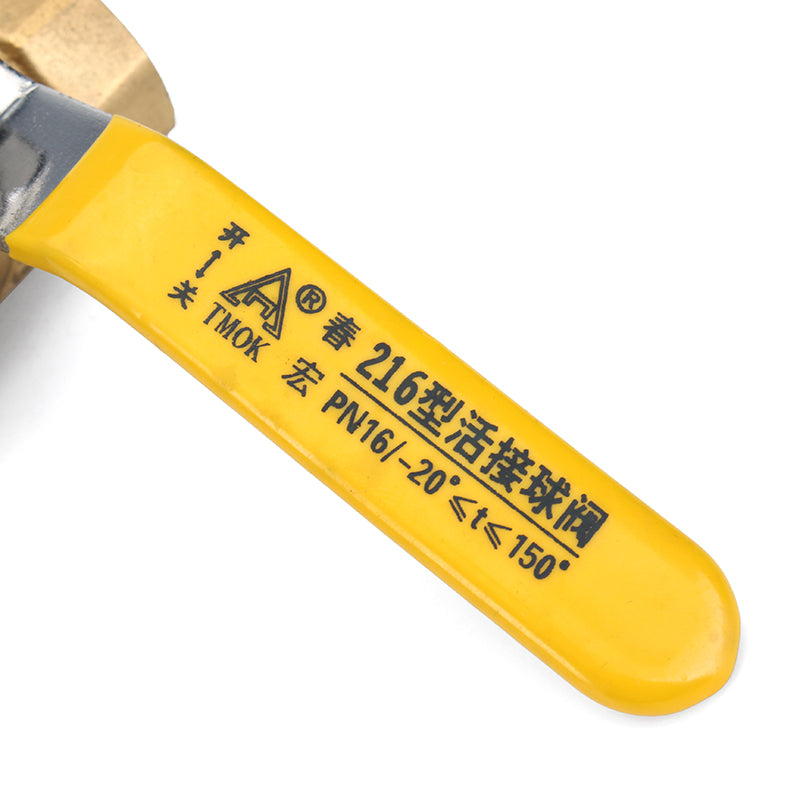

e. Plastic-covered lever handle for on/off manual control.
f Full port flow for higher operating efficiency than standard port.
g Inline valve for connecting two pipes going in the same direction.
h.Female NPT threads for connecting to male threaded pipe fittings.
i Product contains brass which does not meet federal and state requirements for drinking water.
Package Included

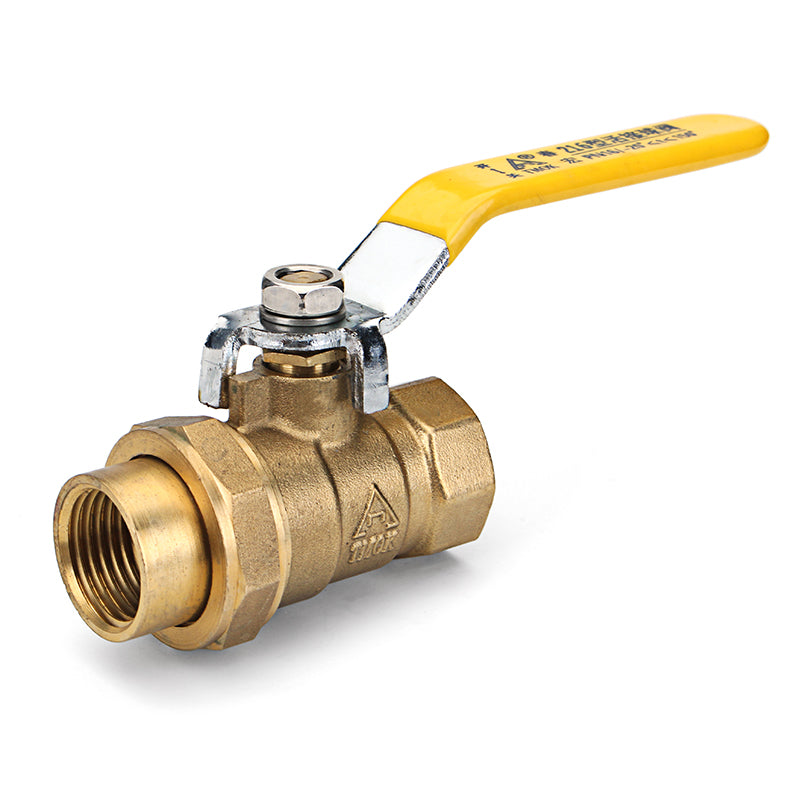

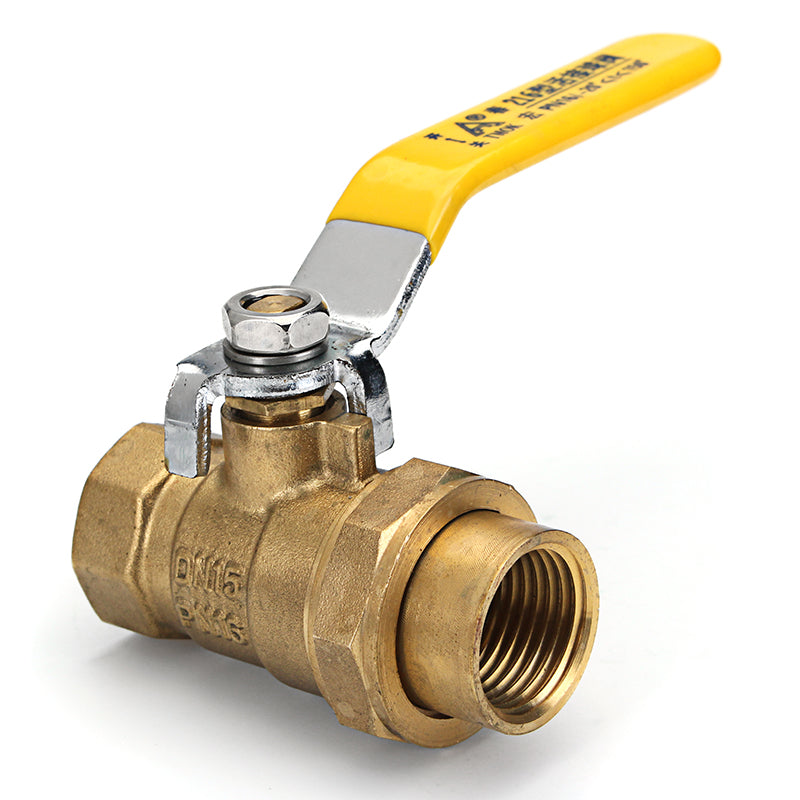

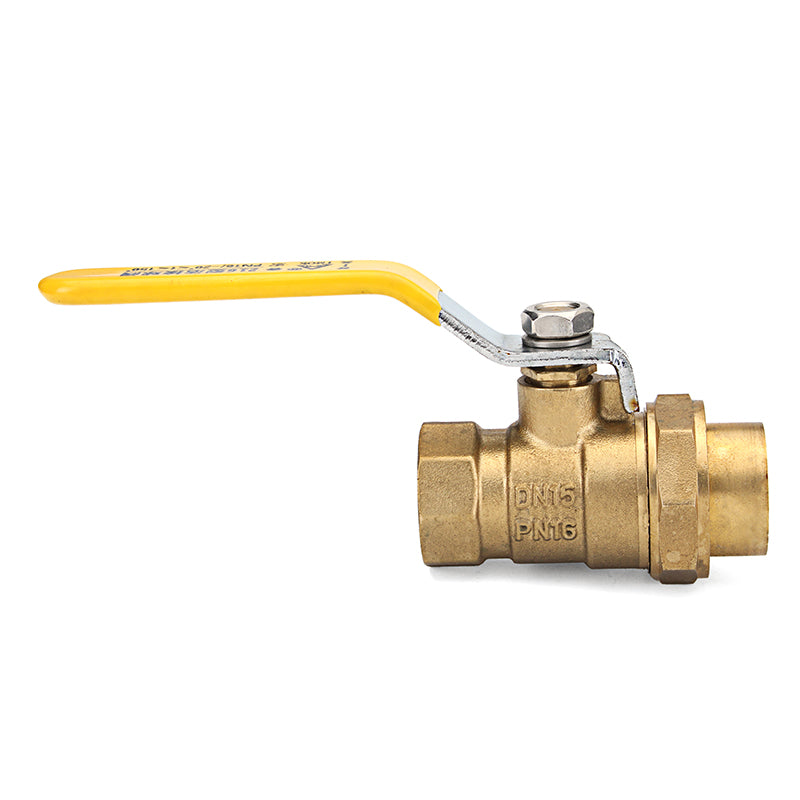

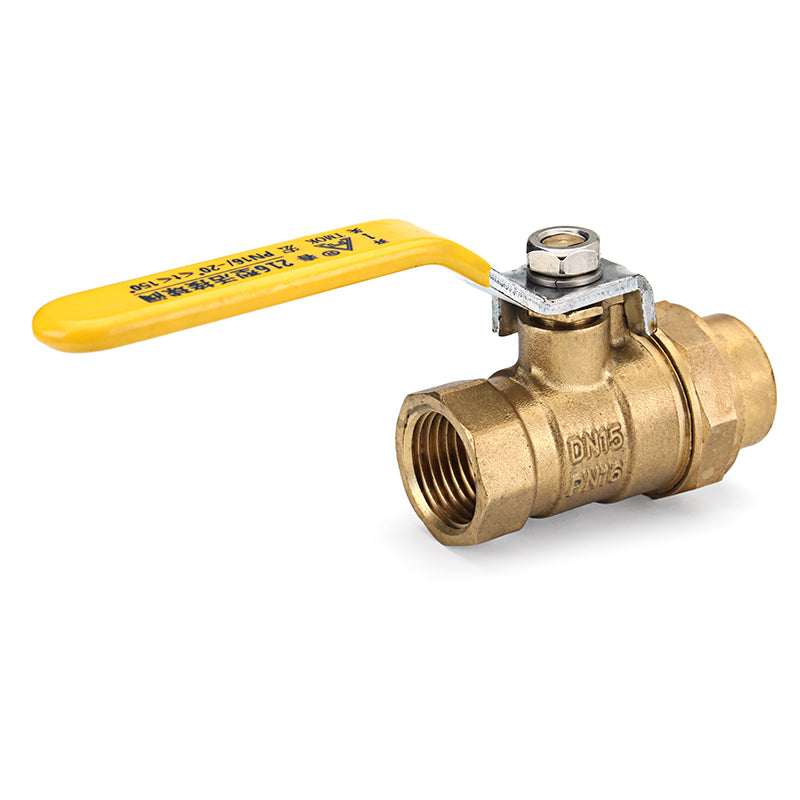

1Pcs Brass Ball Valve
