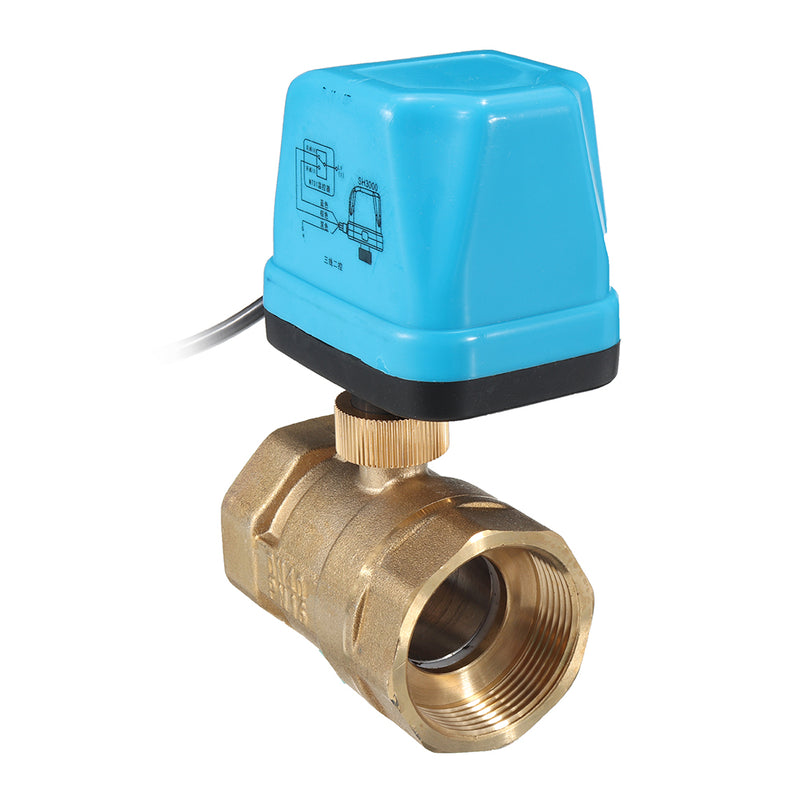

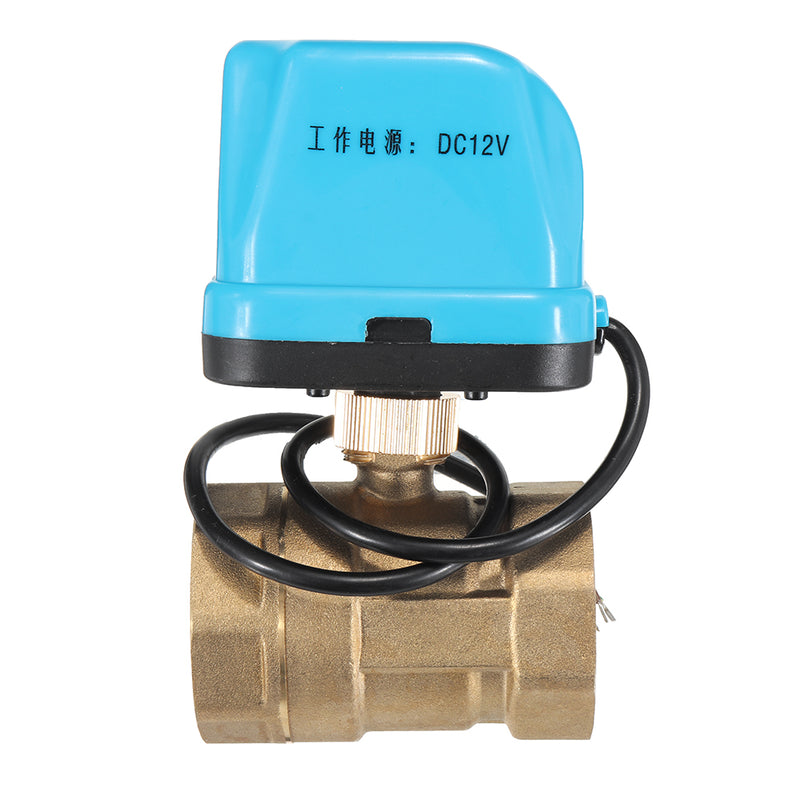

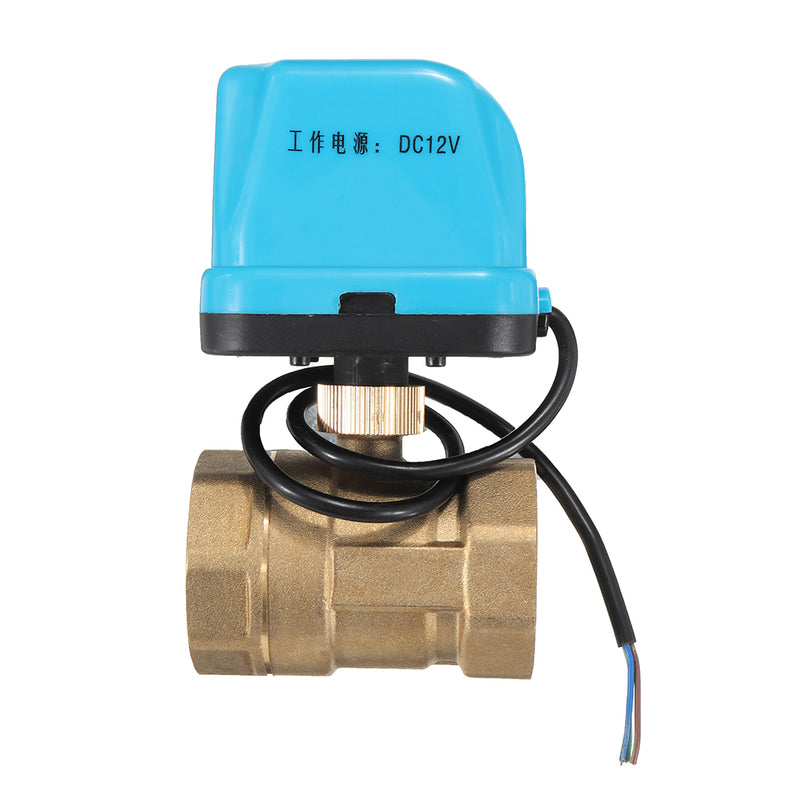

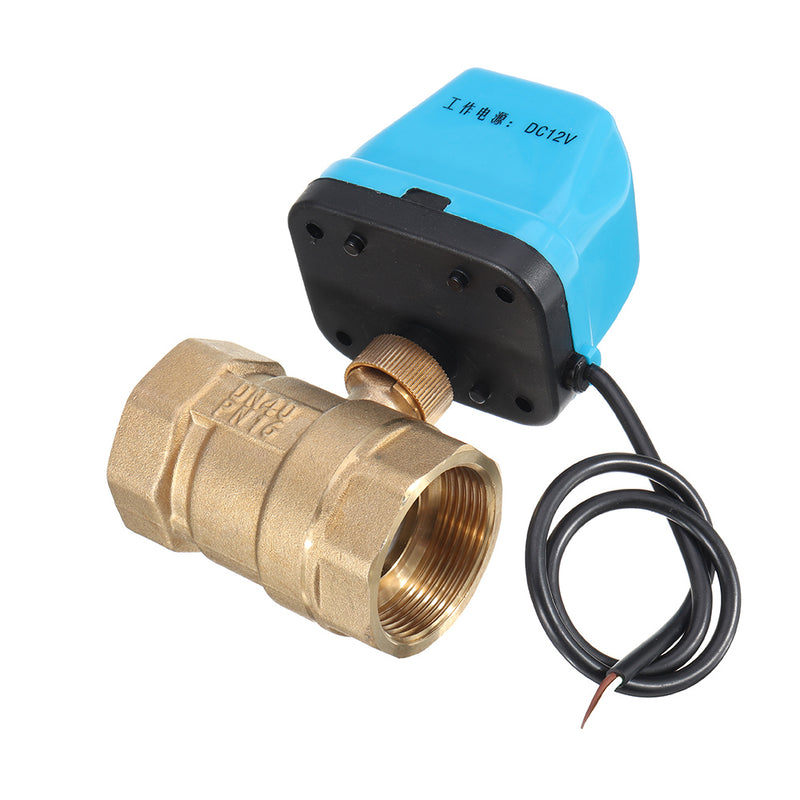

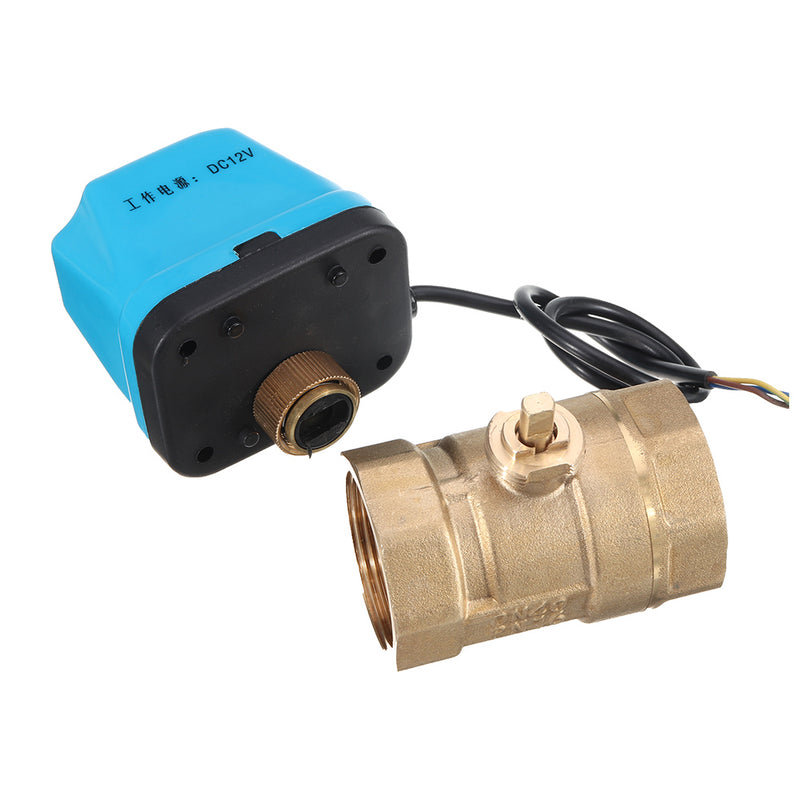

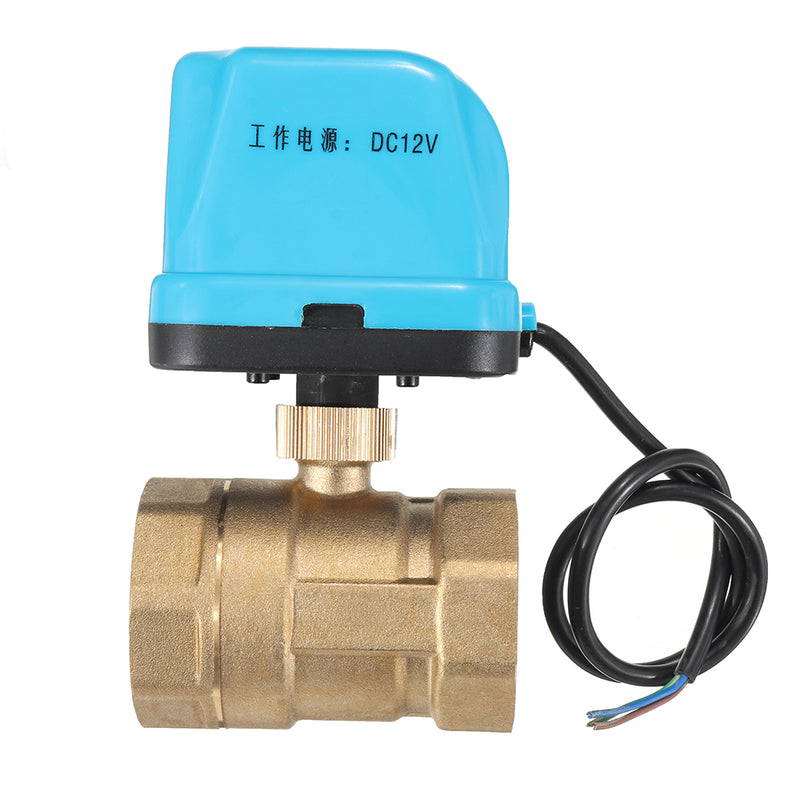

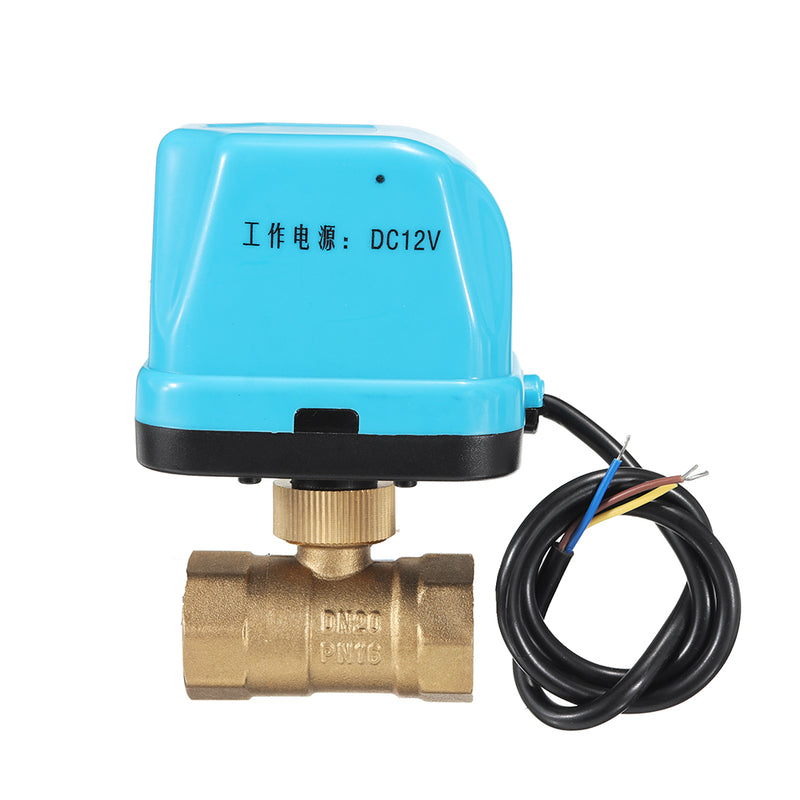

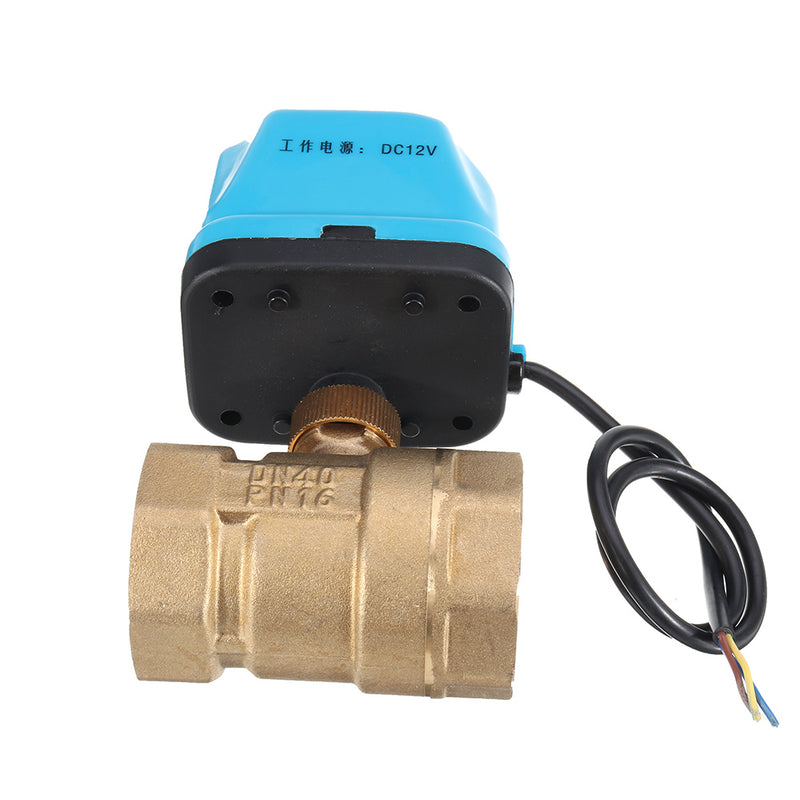

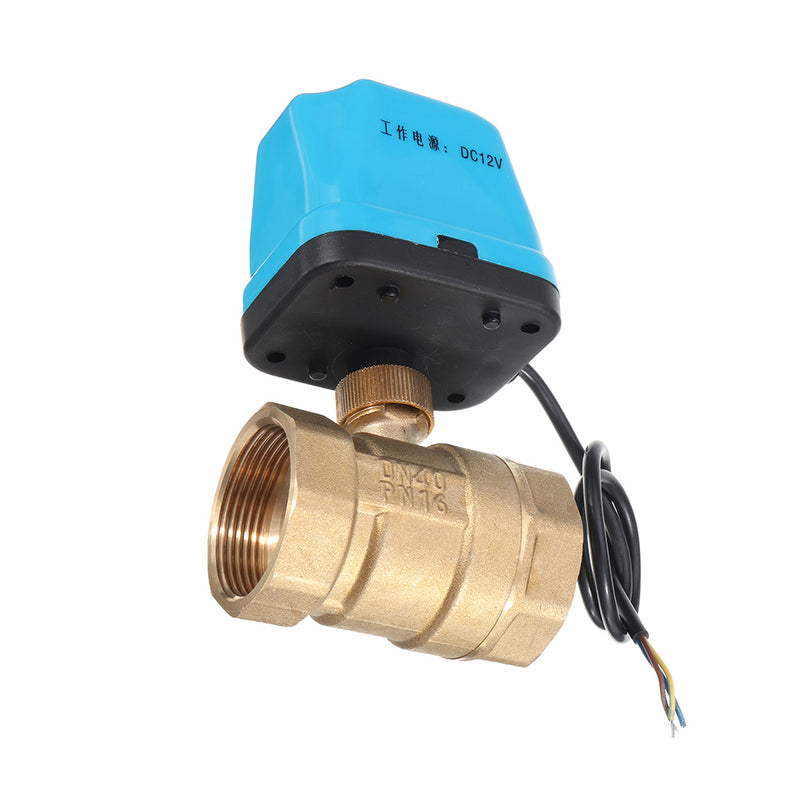

Description:This motorized ball valve is made of solid brass, will fully open or fully close in 5~15 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.
Specification:
| General Specification |
| Brand |
TMOK |
| Model |
TK260 |
| Valve Type |
Ball Valve |
| Size |
1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32), 1-1/2"(DN40), 2"(DN50) |
| Technical Parameters |
| Body Material |
Brass |
| Seal Material |
PTFE |
| Connector Type |
G Thread Female |
| Nominal Pressure |
1.6MPa (PN16) |
| Fluid Temperature |
2~94℃ |
| Environment Temperature |
0~60℃ |
| Voltage |
DC 12V |
| Wire Control |
3 Wire |
| Power Consumption |
6W (Only use electricity during opening or closing.) |
| Open/Close Time |
5~15s |
| Bore Type |
Full Port |
| Enclosure Rating |
IP65 |
AC 220V, Please refer to: ID: 1239895Features:- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open or close valve in 5~15 seconds, once in position, it automatically stops using energy.
- Save energy, reduces likelihood of overheating, long service life.
- Provided with four sizes from 1/2" to 1-1/4" for option, well fits for different applications.
Package Included:
1 x Motorized Brass Ball Valve(DC 12V)
