Specification:
Brand: TMOK
Model: TK360
Valve Type: Globe Valve
Position Type: Normally Closed
Body Material: Brass
Sealing Disk Material: EPDM
Sealing Ring Material: FKM
Connector Type: G Thread Female
Nominal Pressure: 1.6MPa (PN16)
Fluid Temperature: 2~94℃
Environment Temperature: 0~60℃
KV (Flow Coefficient): 2.5
Shutoff Differential Pressure: 0.25Mpa
Voltage: AC 220V
Power Consumption: 2VA
Fully Open Time: 10s
Fully Close Time: 5s
Enclosure Rating: IP40
Size: 3/4"(DN20)
Features:- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open valve in 5 seconds, or close in 5 seconds.
- With manual handle for operation, push it down and hold to open the valve.

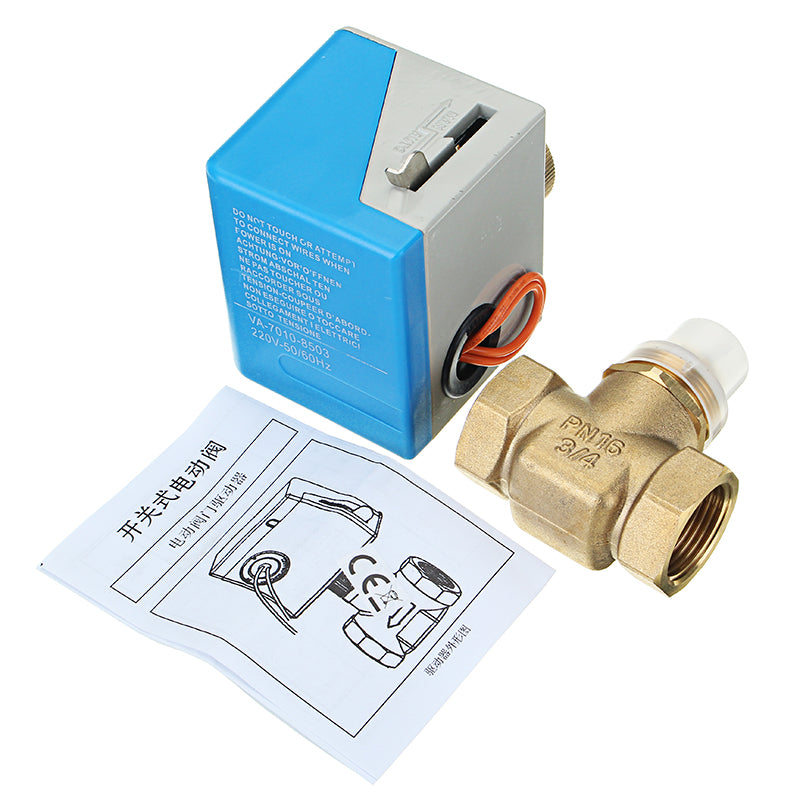

Package Included:1 x Motorized Brass Globe Valve
More Details:
