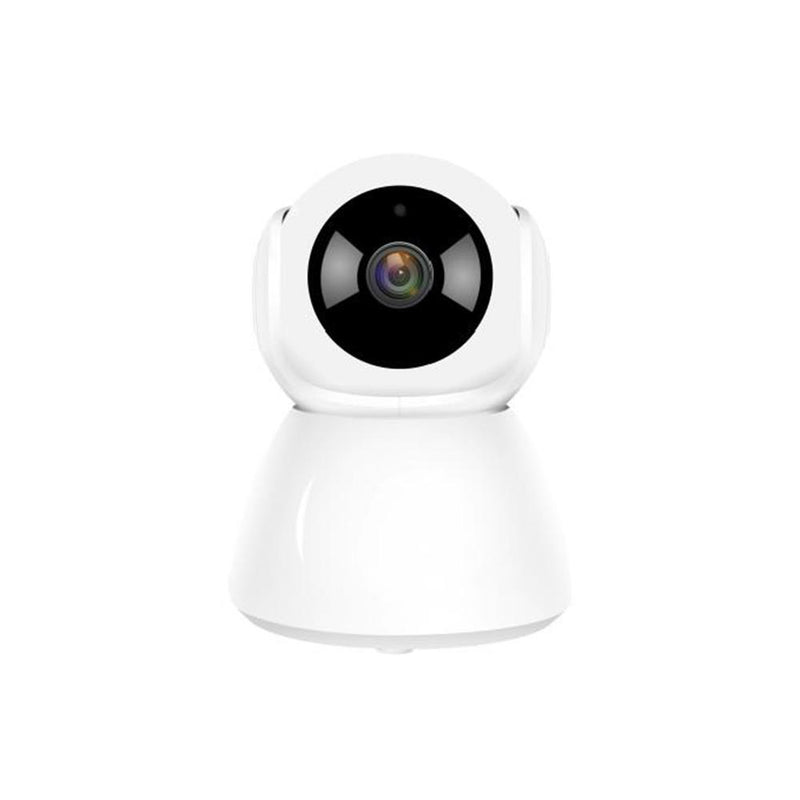

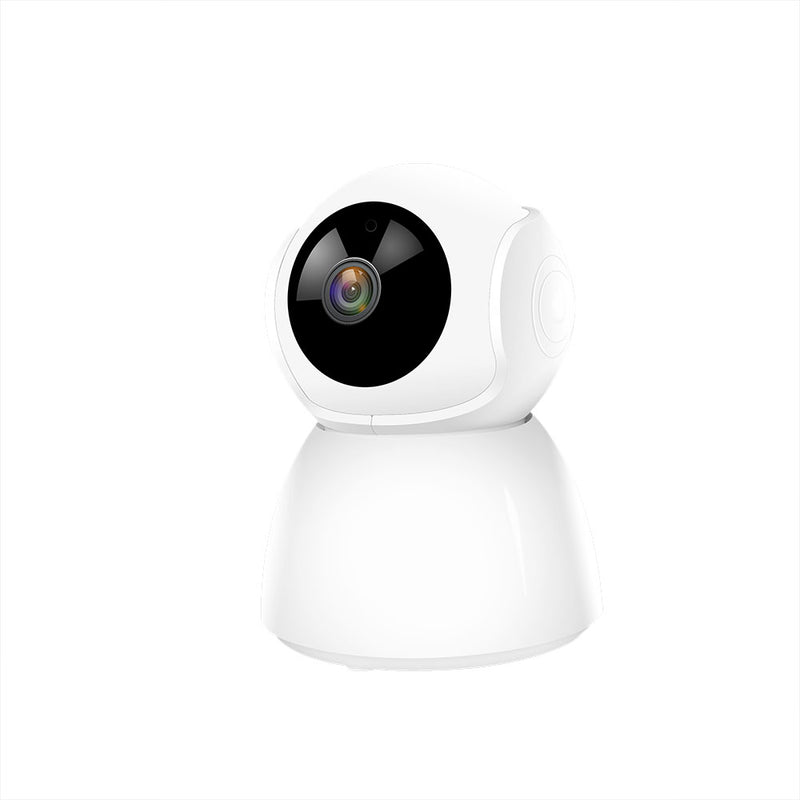

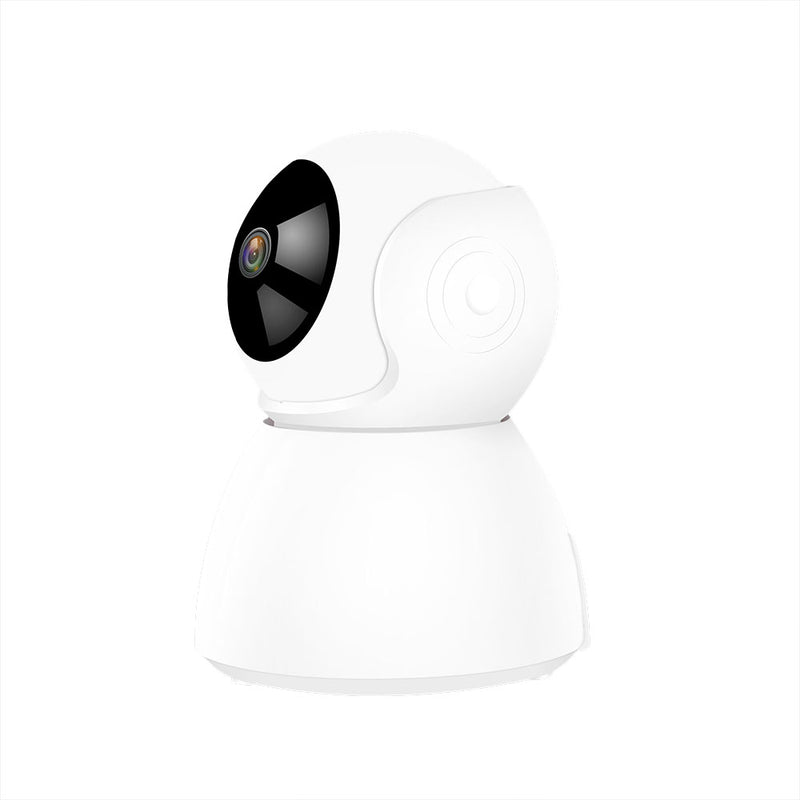

XIAOMI Xiaovv MVT3820G-Q8 Smart HD 1080P 360° Panoramic Camera Infrared Night Vision AI Mo-tion Detection Machine Smart Tracking / Voice Intercom / Alarm Push / Mo-tion Detection
Specification :
| Brand |
Xiaovv |
| Model |
MVT3820G-Q8 |
| Color |
White |
| Weight |
320g |
| Size |
8 x 11cm |
| Product Parameters |
| Sensor Resolution |
1920 x 1080P |
| Control System |
V380 / V380 Pro
(Search through "google play' for android for Ios) |
| Pixels |
200W |
| Lens |
3.6MM |
| View of Angle |
72° |
| FOV |
Pan :0°-355°/Tilt :-10°-60° |
| Preset Position |
6 |
| Video Encoding |
H.265/25FPS |
| Video Standard |
PAL:25FPS |
| Illumination |
0.01 Lux |
| Electronic Shutter |
Auto |
| Digital Wide Dynamic |
Support |
| Onvif |
Support |
| Digital Noise Reduction |
2D/3D |
| IR LED |
4PCS Infrared Array |
| Internet |
WIFI(IEEE802.11b/g/n) |
| Night Vision |
Ir-Cut Automatic Switchover ,5-10M (Differ From Environment) |
| Audio |
Built-in microphone and loudspeaker,support two-way real-time audio transmission,ADPCM audio compression standard,self-adapting stream |
| Network Protocol |
TCP/IP ;UDP;RTSP;HTTP
DDNS;DHCP;FTP;NTP
|
| ONVIF |
Support |
| Storage |
Support TF Card(Max 64G ) |
| Power |
5V/1.6A |
| Working Environment |
Working Temperature: -10℃ ~ + 50℃
Working Humidity: ≤95%RH |
recommended:
| Product |
Picture |
Function |
ID |
| [ Newest ] Xiaovv B7 Full Color Waterproof HD1080P IP Camera |
|
- H.265 Waterproof
- Infrared Night Version
|
1527553 |
| [Baterry Version] Xiaovv L3 Out IP Camera |
|
- Battery Powered
- M-otion Detection
- All Waterproof |
1526259 |
| Xiaovv B1 Outdoor IP Camera |
|
- Large Wide-Angle HD Lens
-Quad Screen View
- Onvif Support |
1515417 |
- HD 1080P Quality
High-definition picture quality, clear picture in real time
- Infrared Night Vision, Automatic Switching Built-in 6 high-power infrared lamps, can be clearly imaged without any lights at night, with IR-CUT, automatic sensitized switching infrared night vision, can effectively protect for 24 hours
- 360° Panoramic View
360° panoramic view of the viewing angle, horizontal rotation of 355°, vertical rotation of 60°, horizontal viewing is possible
- Two-Way Voice Intercom Integrated professional noise reduction algorithm effectively filters out background noise.
The pickups is wide, and the built-in fidelity speakers make the dialogue clearer and the vocal collection clearer.
- Smart M-otion Detection Alarm If there is an object moving within the effective monitoring, the alarm system will push the abnormal information to the phone, and the situation can be understood in real time.
- Multi-Device Simultaneous Remote Monitoring
Support smart phones, tablets and computers to watch at the same time, support multiple users to log in to an account at the same time for viewing, remotely view the scene at any time
Package Includes :
1 x IP Camera
1 x USB Cable
1 x Power Adapter
1 x Base
1 x Screw Package
1 x English Manual
