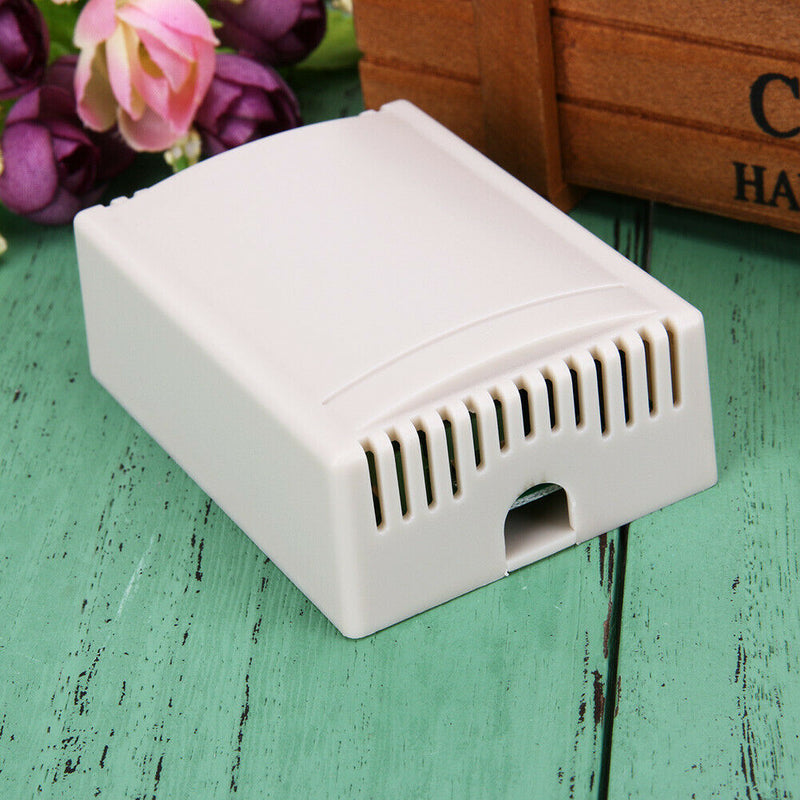

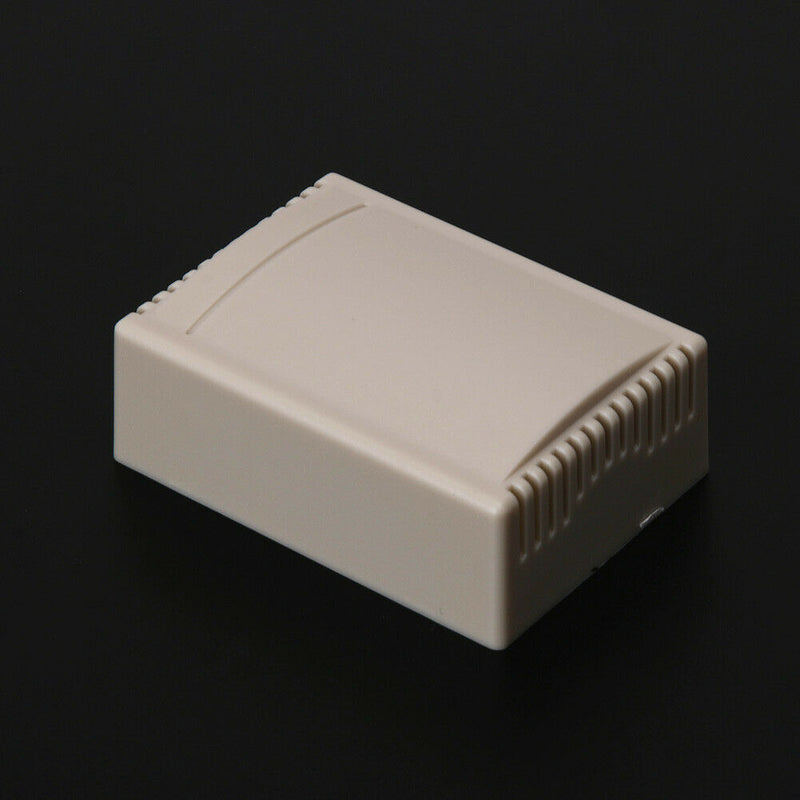

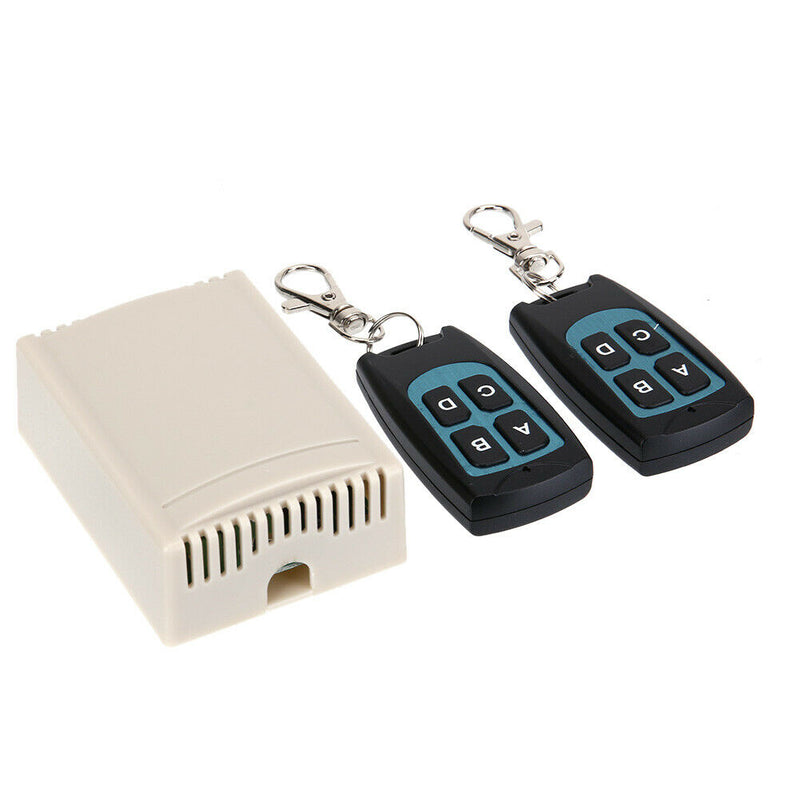

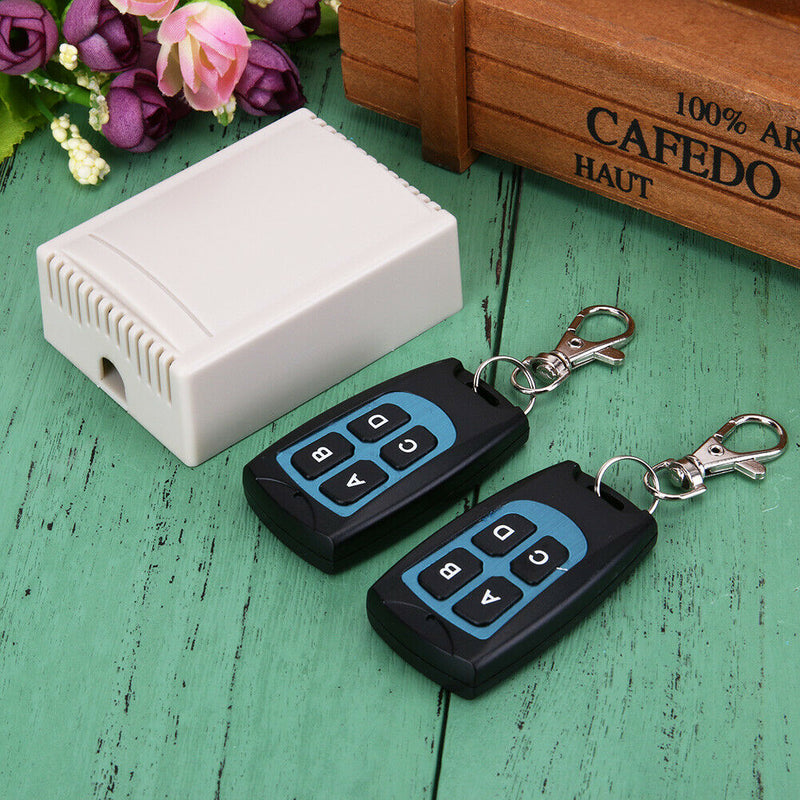

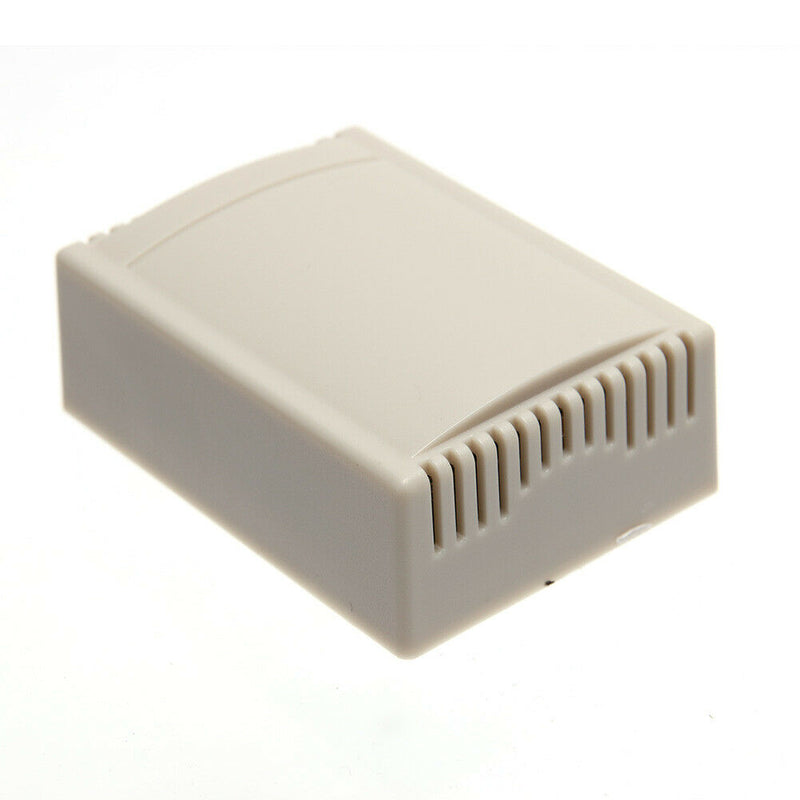

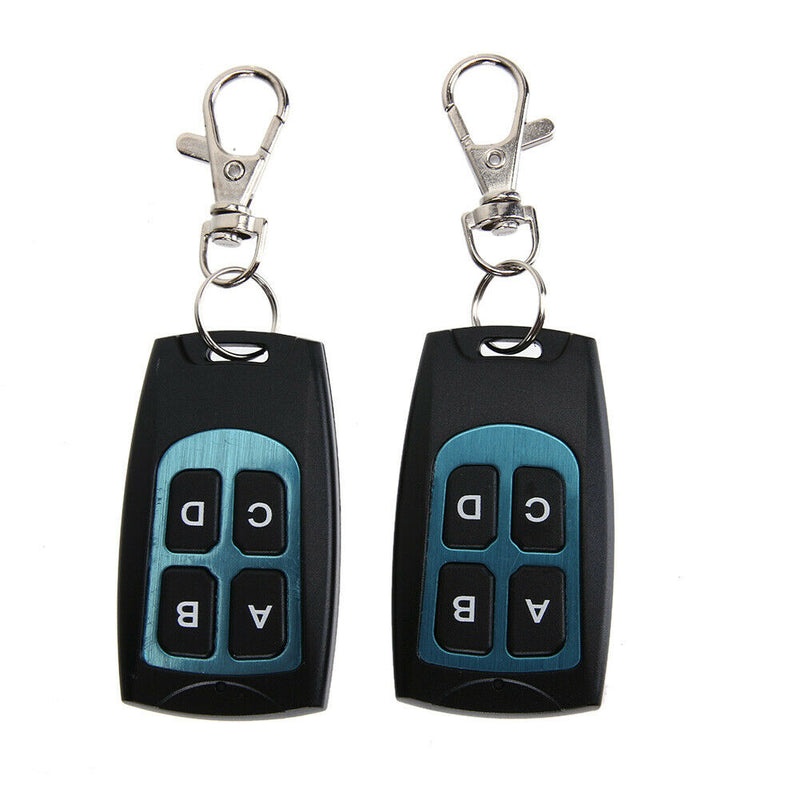

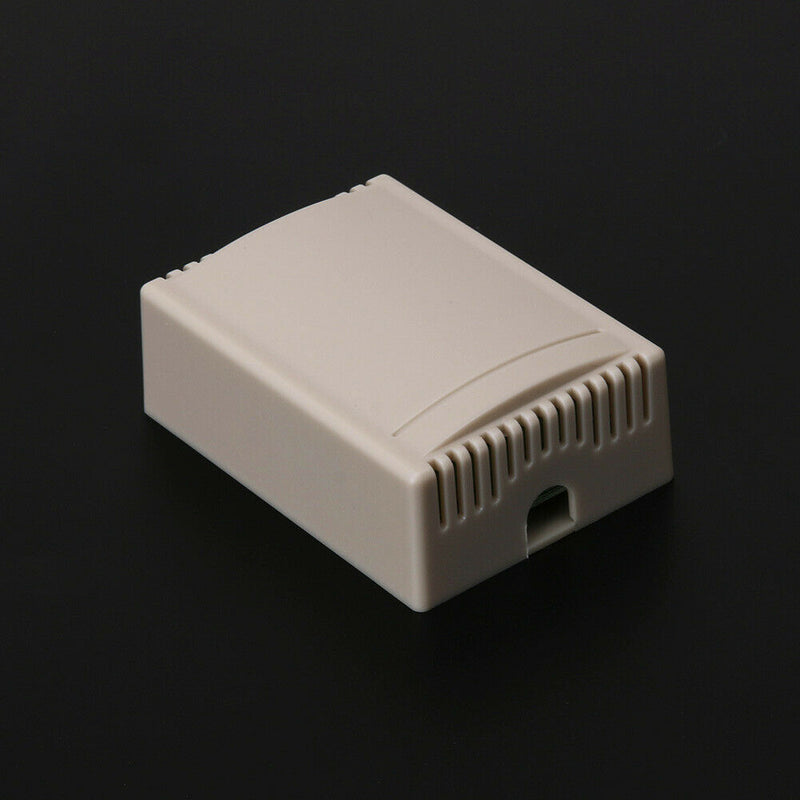

ITEM NAME:12V Four-Way Learning Code Multi-Function Remote Control Open A#S Product Description Description: output method A, self-locking - with short circuit to take the connection 2 \ 3 position B, non-lock - short circuit to vacant not connected C, interlock - connect the 1 \ 2 position with a short circuit Learning / clearing methods and steps 1. Press the learning button, the indicator light off, let go, press the remote control any key indicator light flashes three times after the bright, that learning success; 2. Can learn more than 20 different address code 2262 chip, 1527 chip equivalent frequency wireless remote control; 3. Clear: long press the learning button for about 8 seconds, the light from the off to the recovery is always bright, that the information has been completely cleared. Main Specifications 1, the working voltage: DC12V 2, static operating current: ≠¤ 6mA 3, the working temperature: -40 ℃ +80 ℃ 4, the receiving sensitivity: ≠¥ 105dBm 5, the operating frequency: 433MHz 6, the output voltage: AC, DC optional 7, the output current: ≠¤ 10A 8, size: 72mm x 52mm x 26mm Included: 1 set of control switches.C, interlock - connect the 1 \ 2 position with a short circuit. A, self-locking - with short circuit to take the connection 2 \ 3 position. 4, the receiving sensitivity: ≠¥ 105dBm. B, non-lock - short circuit to vacant not connected.
