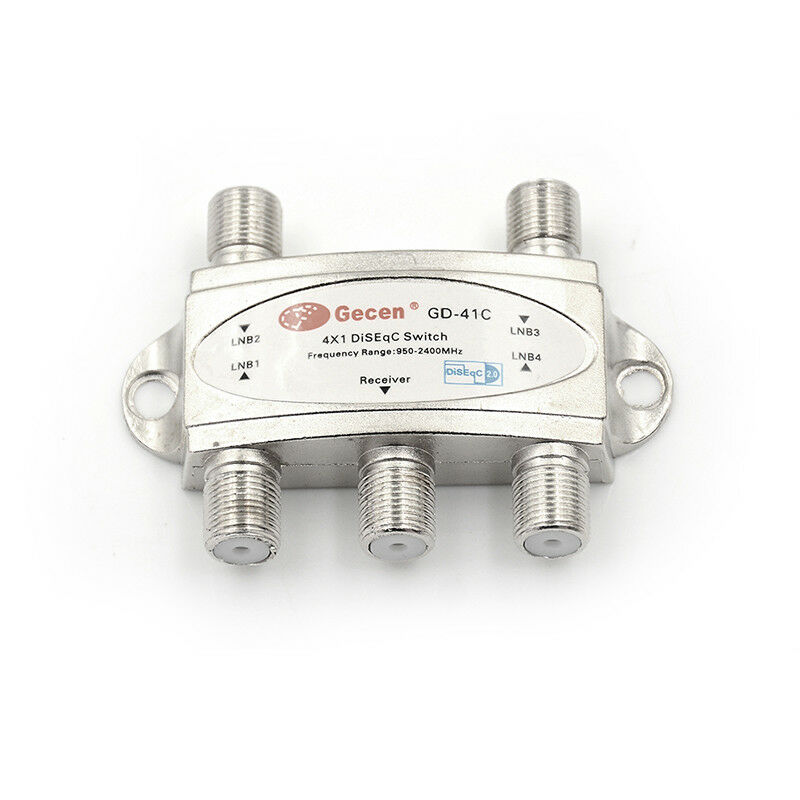

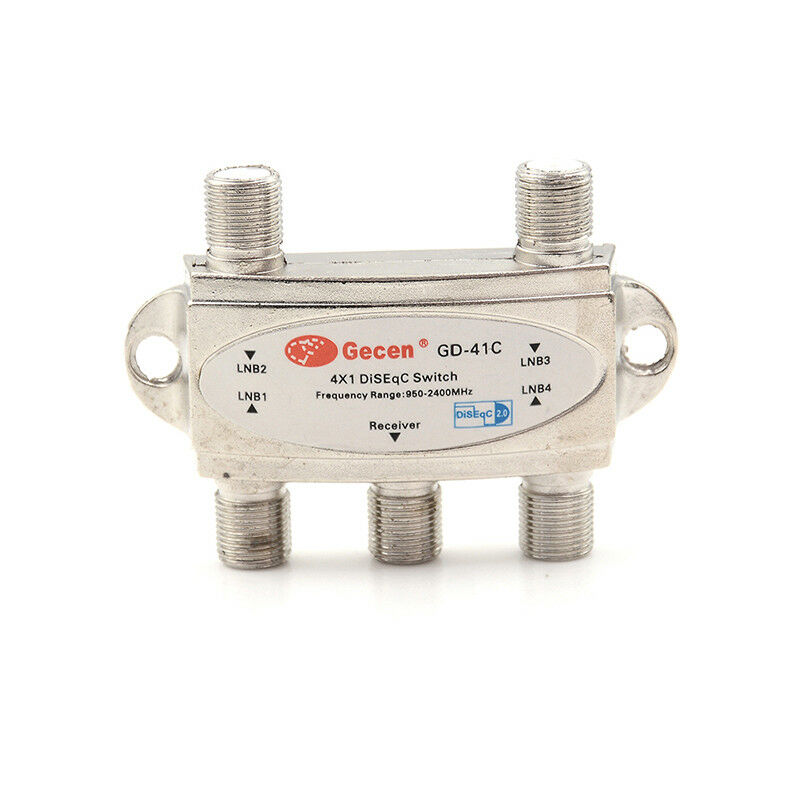

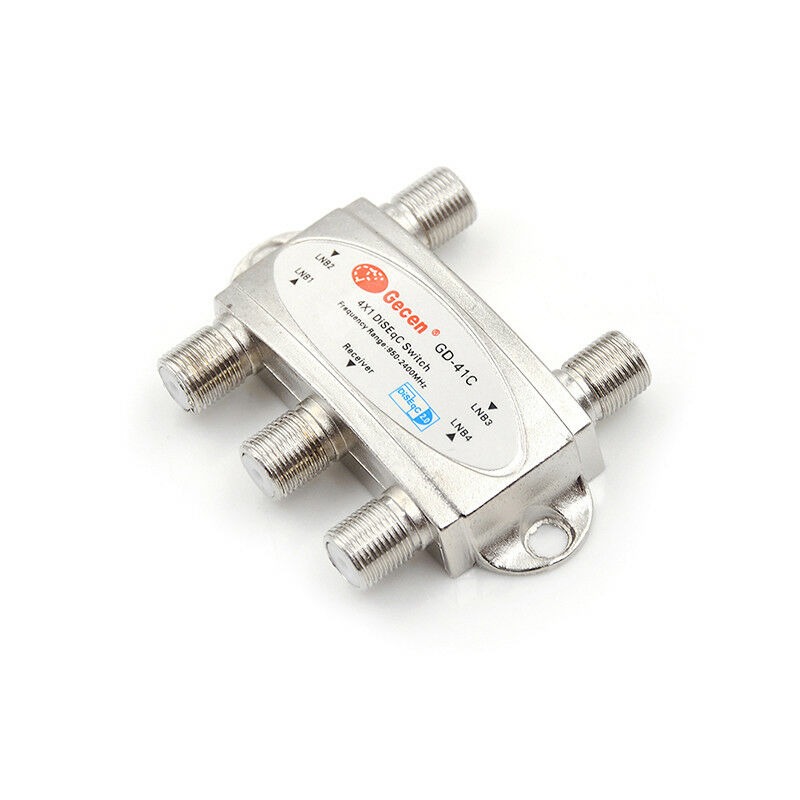

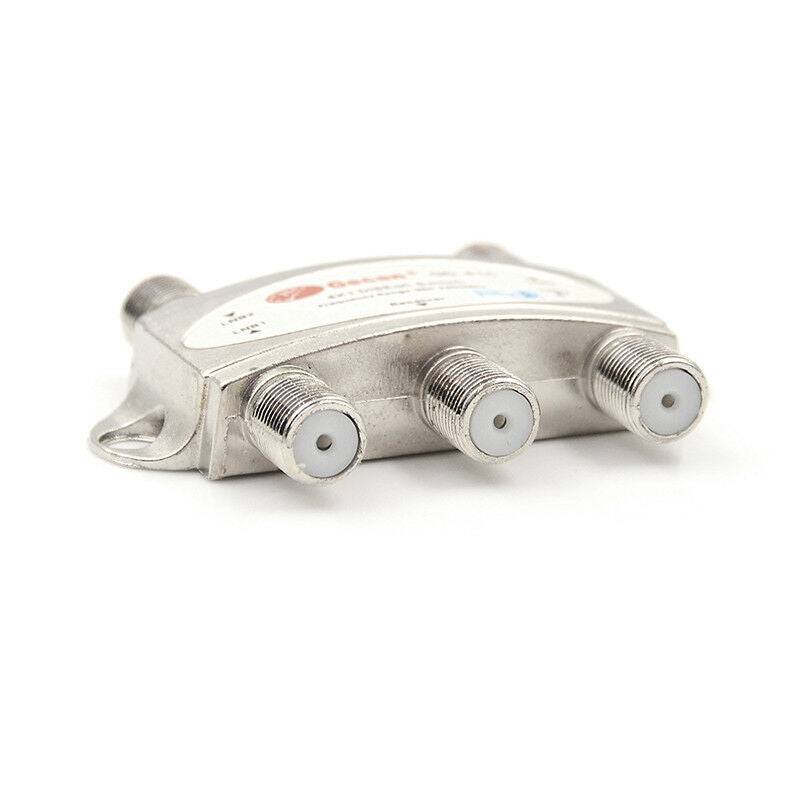

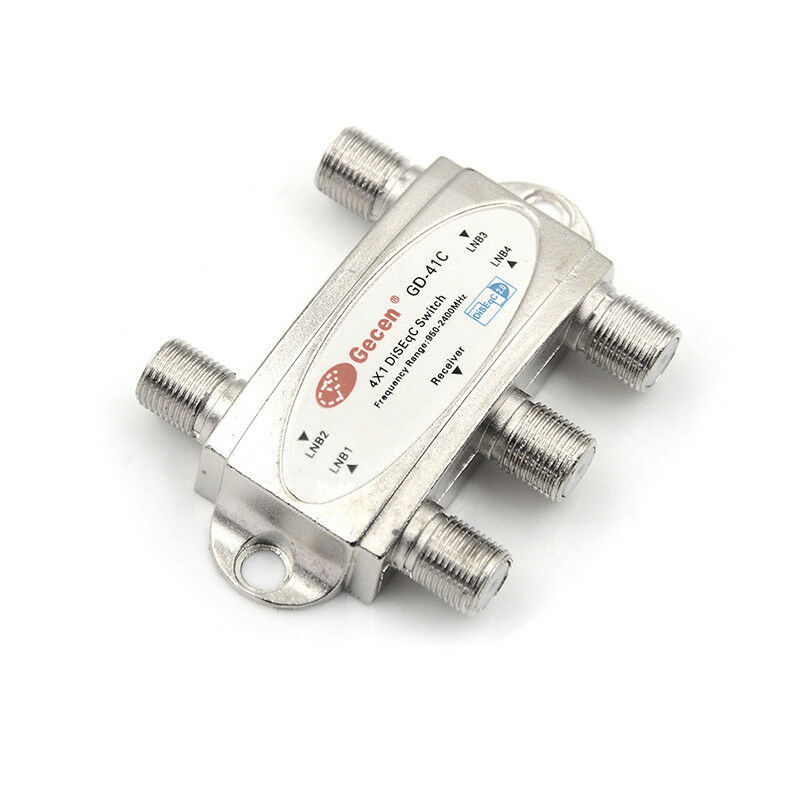

ITEM NAME:1pcs DiSEqc wideband switch connect 4dishes 4 lnb for satellite receiver LU Features: Zinc die-cast housing, nickel-plated Excellent quality component , professional circuit design and low loss Excellent quality chip , professional program design and compatible with more types of satellite receiver Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached DiSEqC 2.0 , support bi-directional DiSEqC full control functions Select one of two satellite signals through DiSEqC commands supplied from satellite receiver Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously Support DiSEqC “standby†commands This DiSEqC Switch is 4-way Wideband DiSEqC Switch that allows for simultaneous connections for up to 4 satellites to be hooked up and linked into one receiver. This DiSEqC switch is compatible with all Free To Air FTA Receivers. Number of Inputs: 4 Number of Outputs: 1 MPN: 4 x 1 Switching Signal: DiSEqC 1.0〠2.0 Connectors: "F" type female Frequency Range: 950-2400MHz Insertion Loss: 3(dB) Isolation: 20(dB) Return Loss: 8(dB) Normal Working Voltage: 12-20(V) DC Power Consumption:10(mA) DC Max Power Passing:500(mA) Impedance(all ports):75(ÃŽ ©) Color: Silver Package Content: 1 x Wideband 4x1 Satellite Switch 13.7mm Package Content: 1 x Wideband 4x1 Satellite Switch.This DiSEqC switch is compatible with all Free To Air FTA Receivers. Support DiSEqC “standby†commands. Switching Signal: DiSEqC 1.0〠2.0. Zinc die-cast housing, nickel-plated. Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached.
