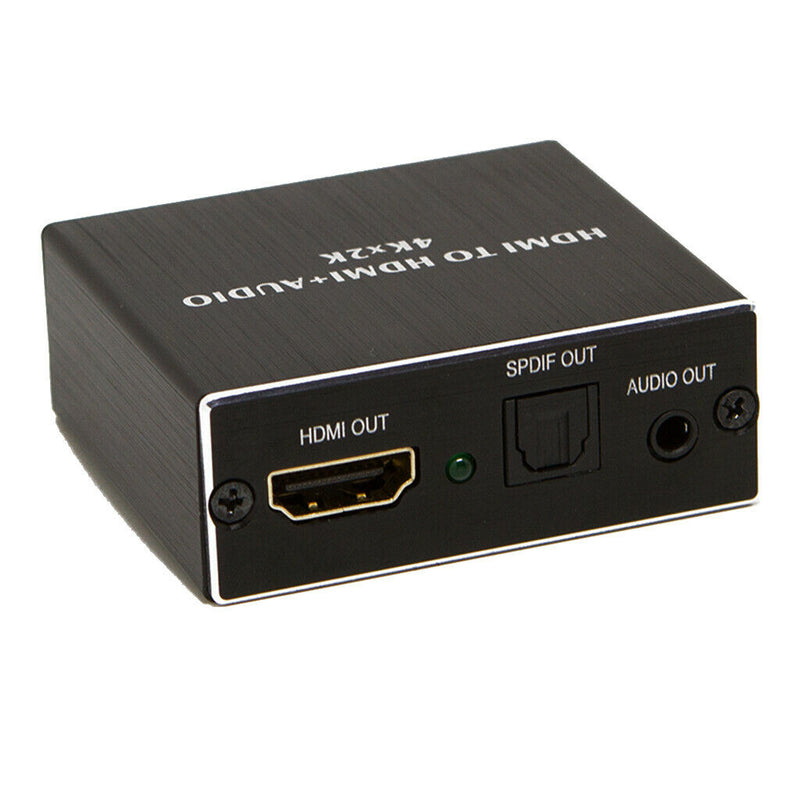

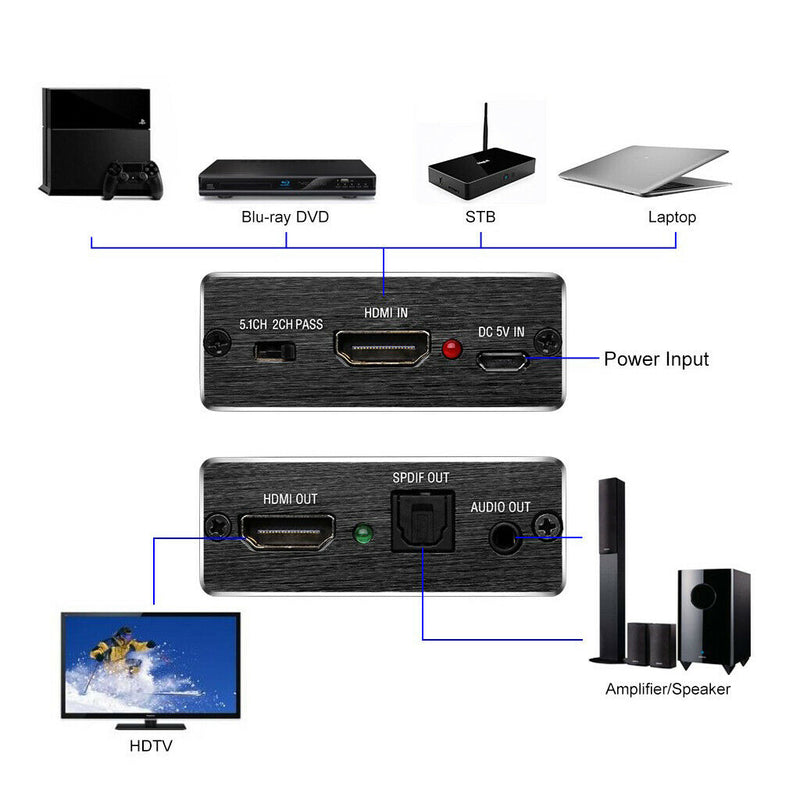

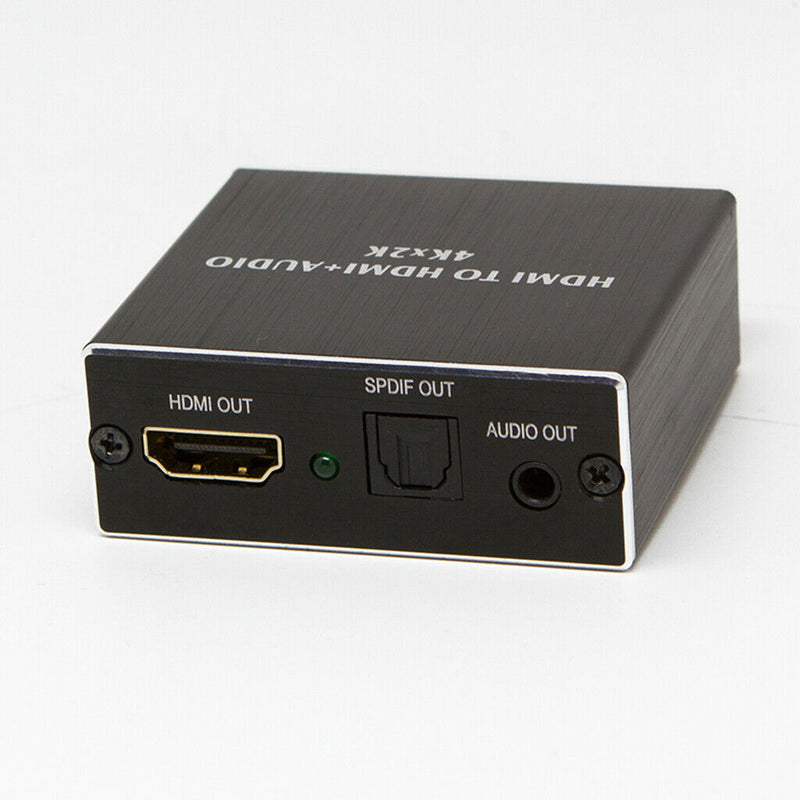

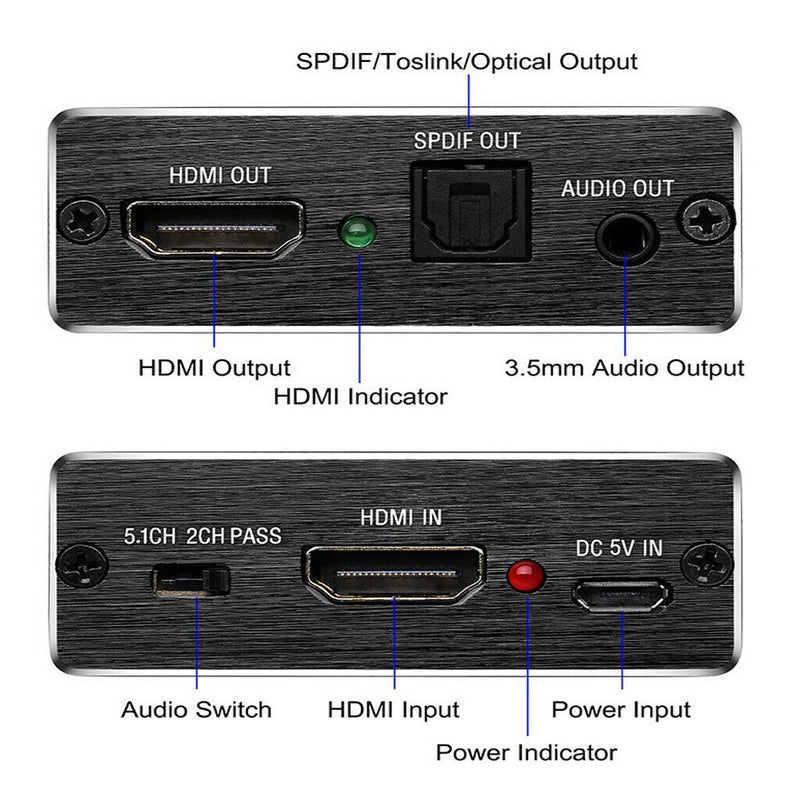

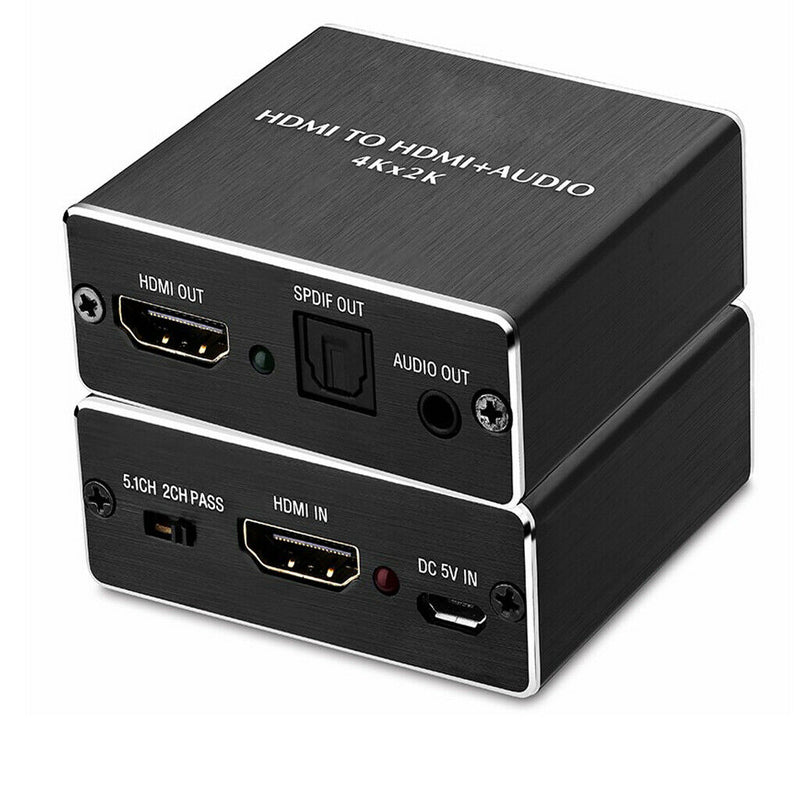

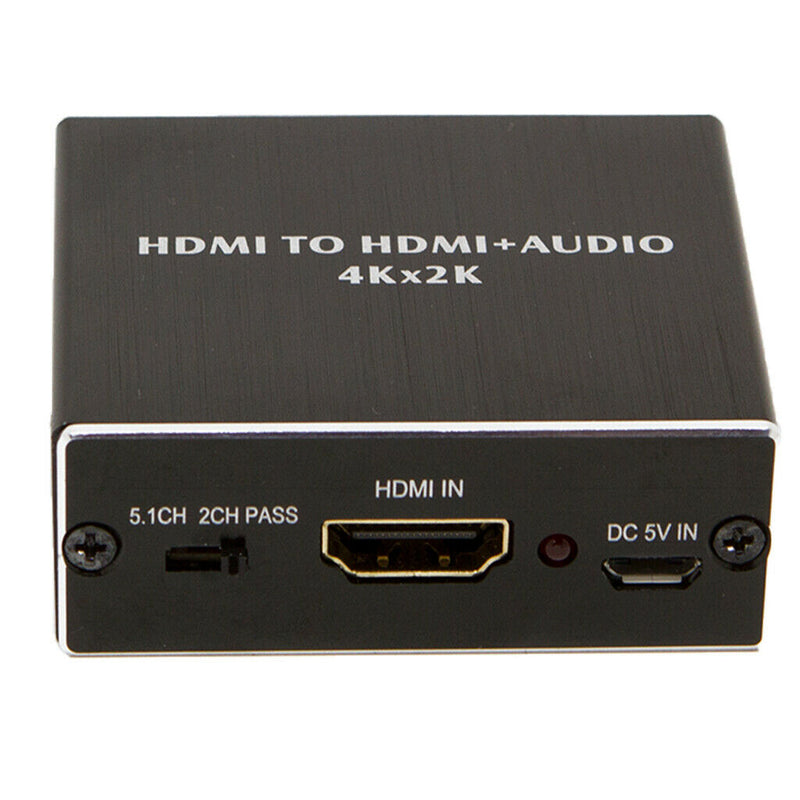

ITEM NAME:4K X 2K P HDMI To HDMI +SPDIF+Audio RCA Stereo Extractor Converter Splitter Description: One HDMI Input to one HDMI Output(Pass Mode), SPDIF (Optical) digital audio output(2CH/5.1CH Mode), and 3.5mm Stereo audio output(2CH Mode) SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/30Hz, 3D/24Hz Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color; Supports Video EDID Pass Through, Audio EDID Settings: Pass, 2CH and 5.1CH 3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS Audio. Suitable for various HDMI source devices like or without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box,, , PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc Specification: Size:154x90x25mm Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack HDMI resolution :4K x 2K, 30HZ/1080i/720p/1576i/576i/480p/480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 340MHz Max baud rate: 10.2Gbps Max working current: 500mA Three switing audio EDID settings: Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound. 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio. 5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF. Package Includes: 1 PieceX HDMI to HDMI Audio Extractor 1 x Micro USB cable 1 X English User Manual SKU: ALU0019108363006987.One HDMI Input to one HDMI Output(Pass Mode), SPDIF (Optical) digital audio output(2CH/5.1CH Mode), and 3.5mm Stereo audio output(2CH Mode). 3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS Audio.
