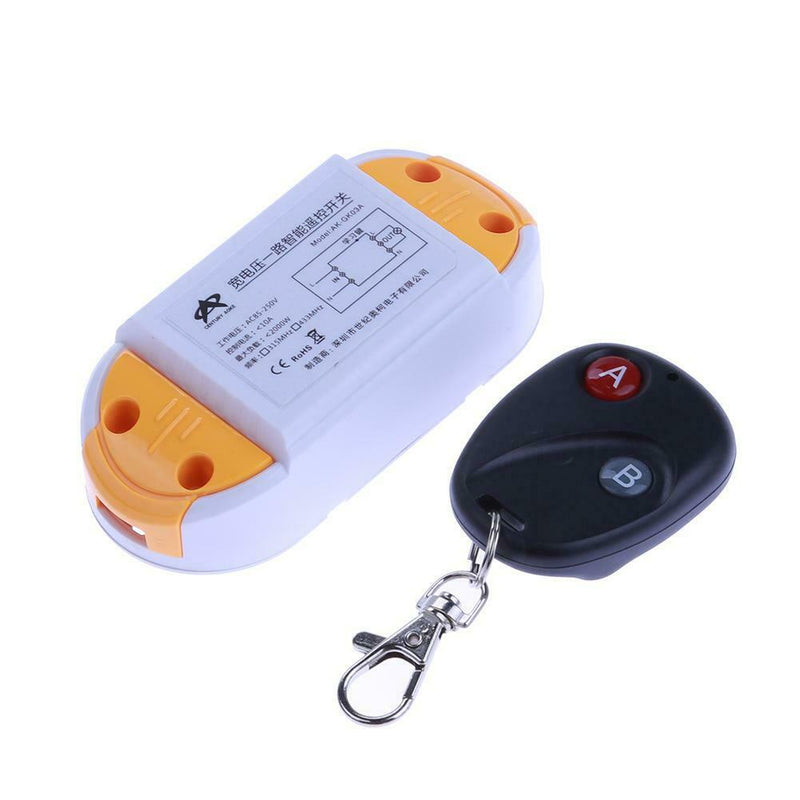

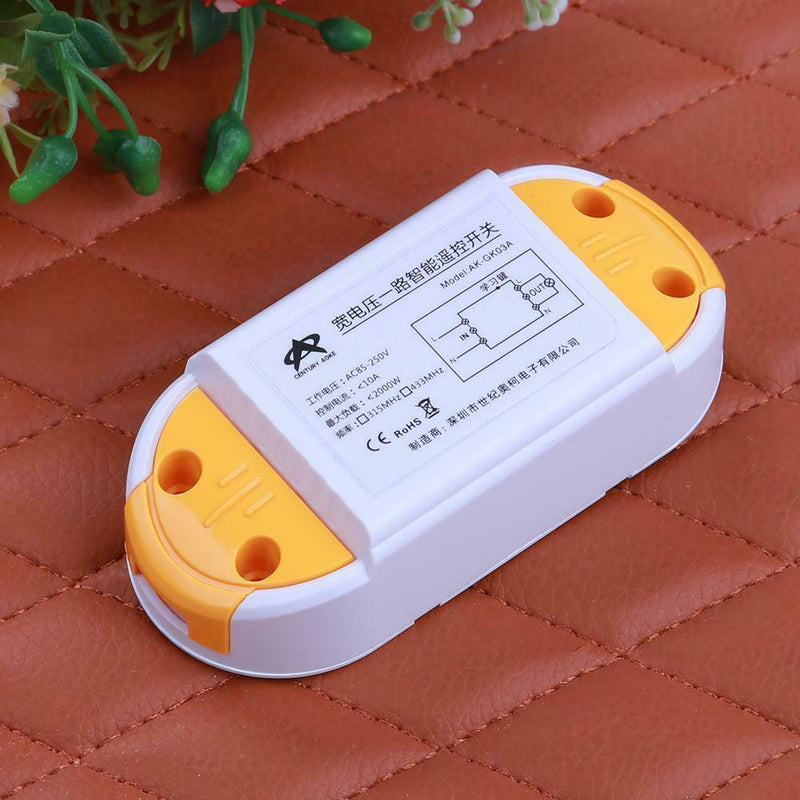

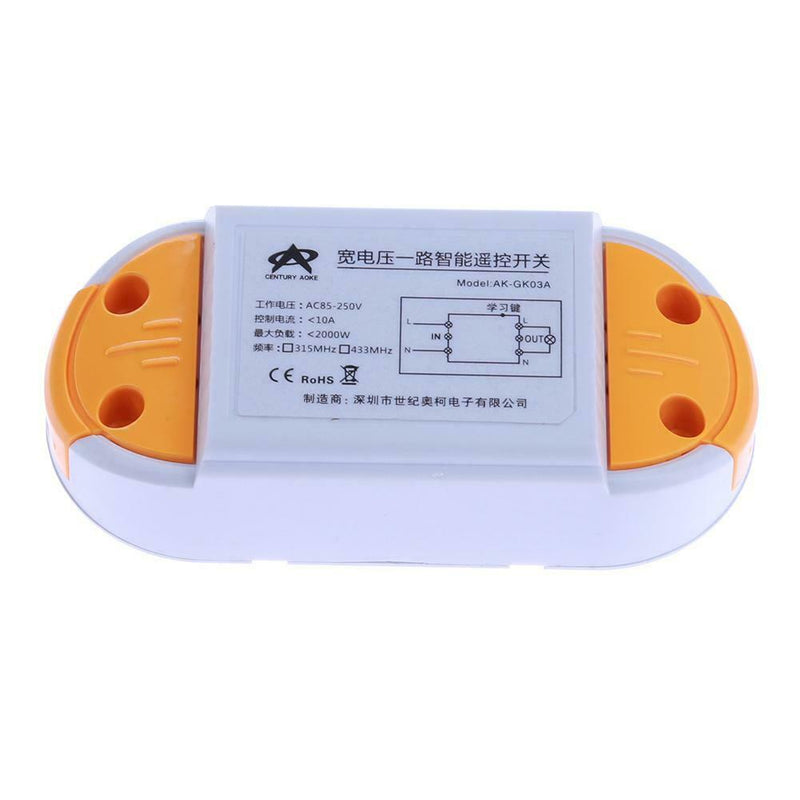

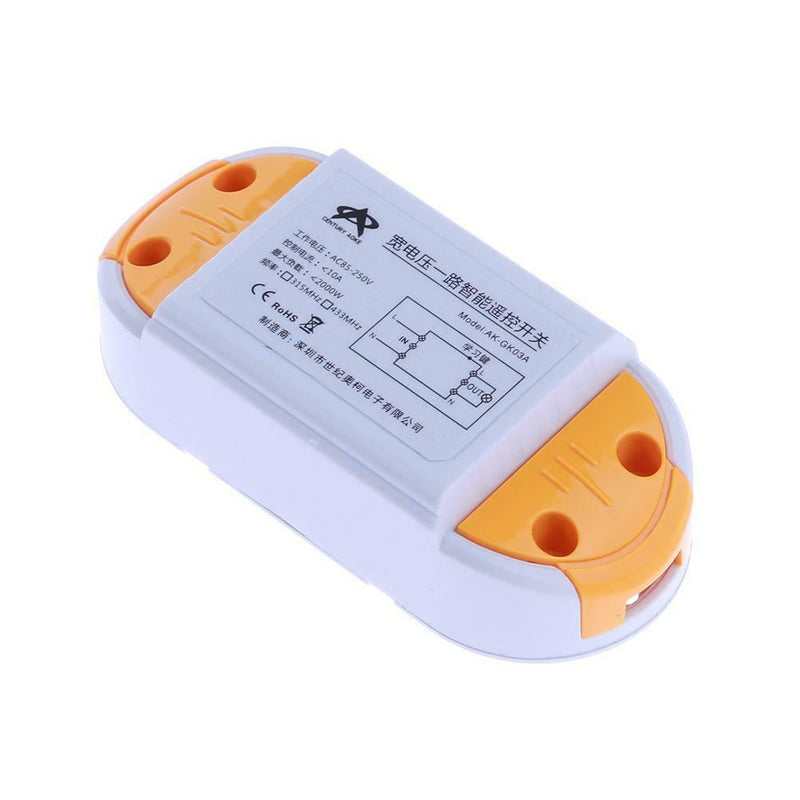

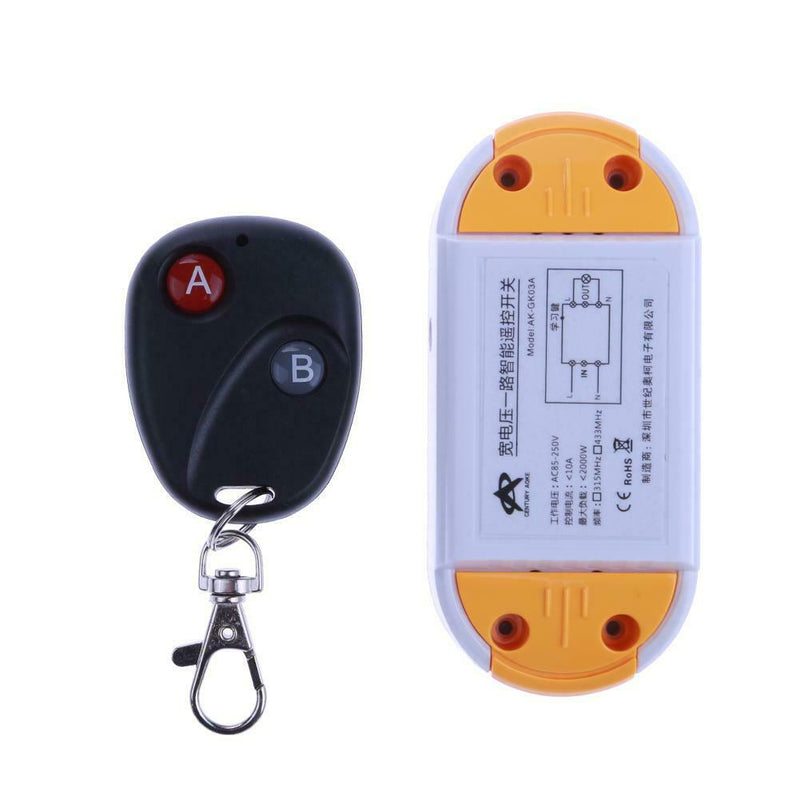

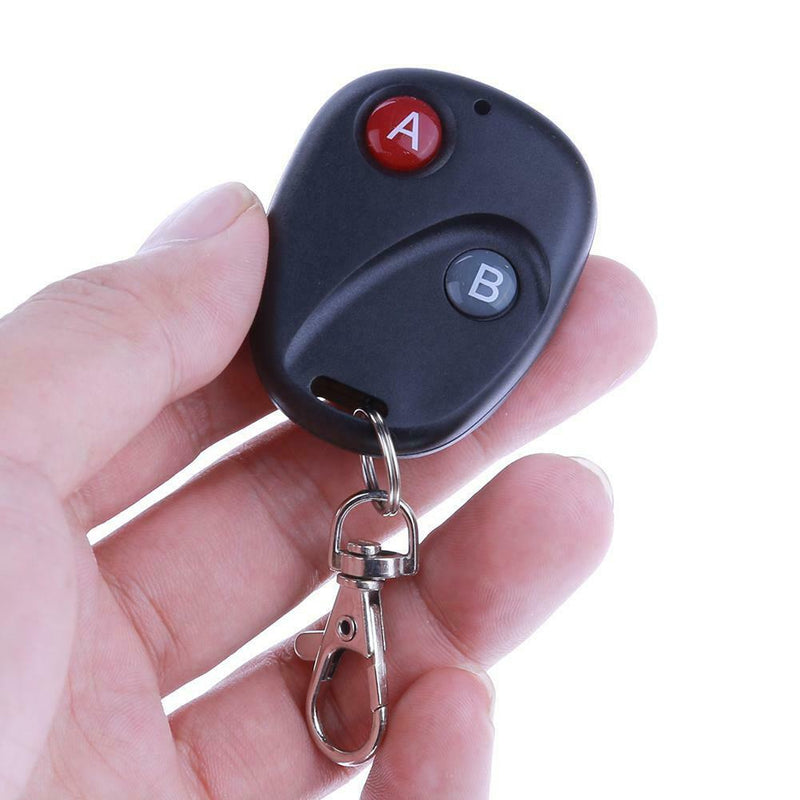

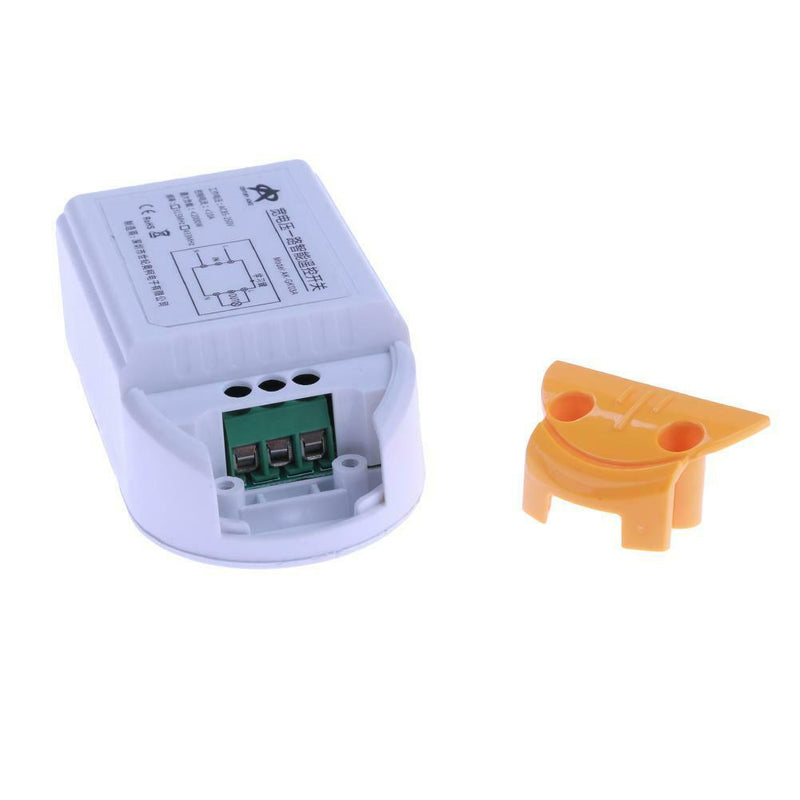

ITEM NAME:AC 220V One Way Remote Control Power Switch 1000W Power Wireless Switch Product Description Description: AC 220V One Way Remote Control Power Switch 1000W High Power Wireless Switch Features: This 220 volt single way remote control switch adopts 10A relay, and can load 1500 Watt appliance. A remote controller controls a plurality of switches, and a plurality of remote controllers can control a switch, easy to use. Mainly used in lamps, electric doors, windows, lifting equipment, gates, hoists, industrial control and security industries. Specifications: Operating voltage: AC220V Operating temperature: -10 degrees to 60 degrees Operating frequency: 315/433MHZ(default 315MHZ) Standby current: 10MA Maximum load: 1000W Remote control distance: 20-40m/65.6-131.23ft Case size: approx. 100x45x30mm/3.93x1.77x1.18in Remote Control size: approx. 50x40x12mm/1.96x1.57x0.47in Control panel weight: approx. 53g Remote control weight: approx.21g Material: ABS Working Mode: Self locking, Point action and interlocking Operation Manual: Press the learn button for three seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes four times to show the success of the study. Note: The controller can learn the fixed code / learning code, such as 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control. Removal method: Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success. Work mode switching: Short circuit 1, 2, 3 different ways to switch work. 1. Point action---Short circuit empty 2. Self locking---Short circuit 1,2 3. Interlocking----Short circuit 2,3 Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding. I.Maximum load: 1000W. Work mode switching Point action---Short circuit empty. Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.
