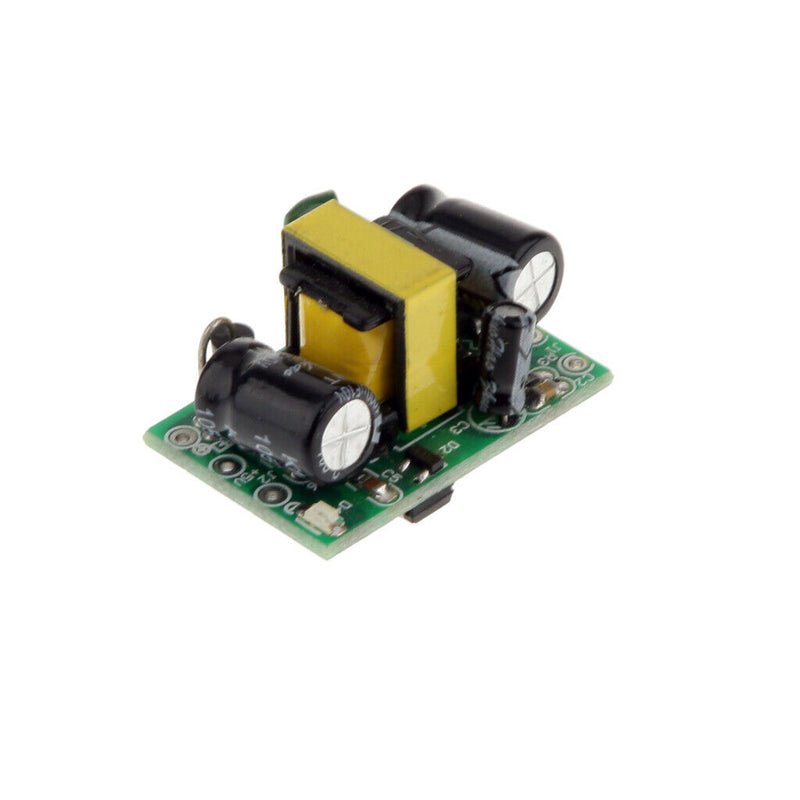

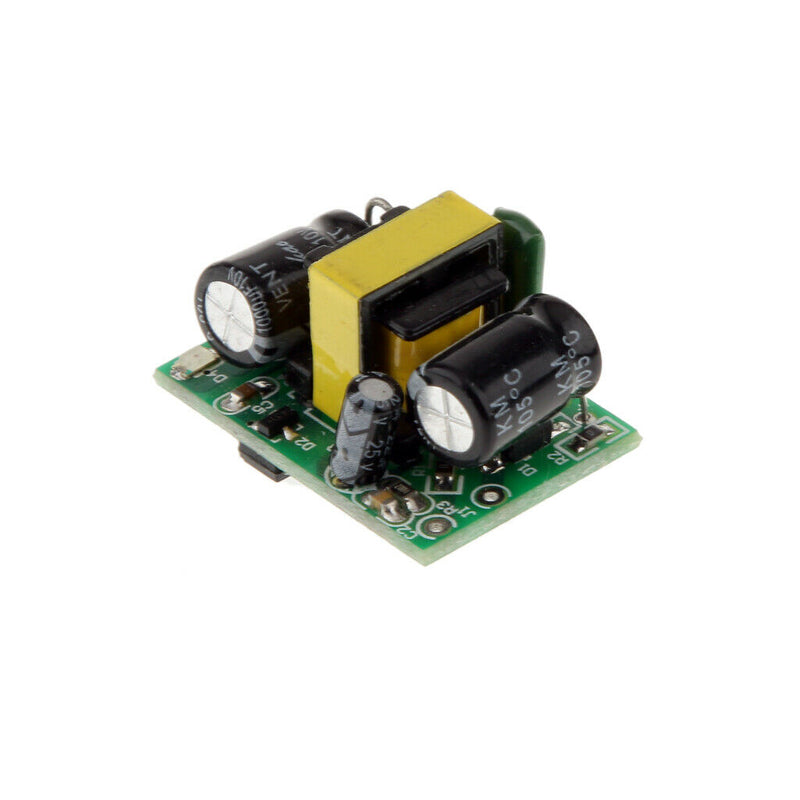

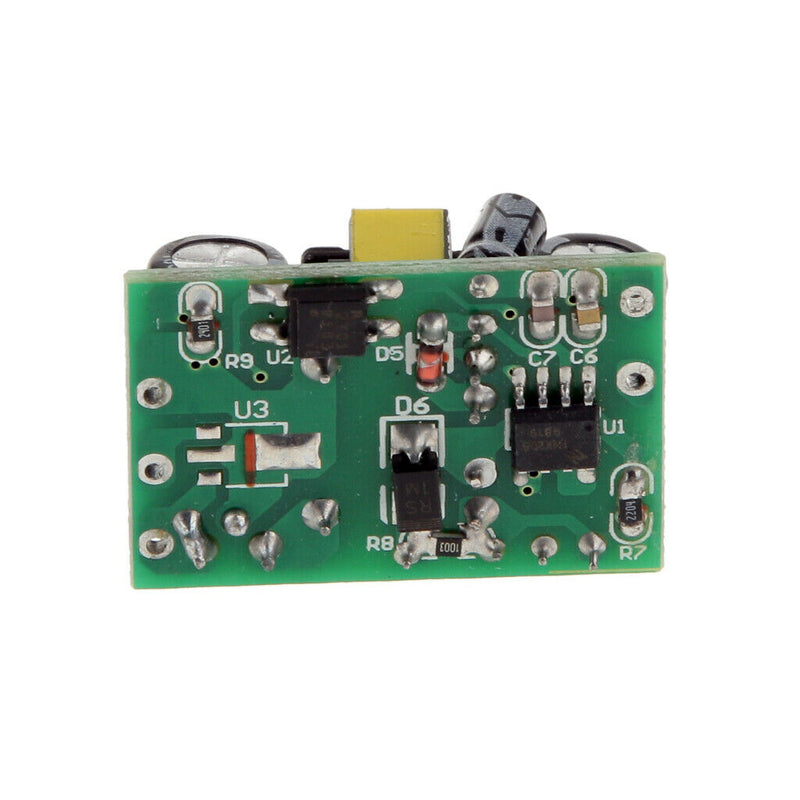

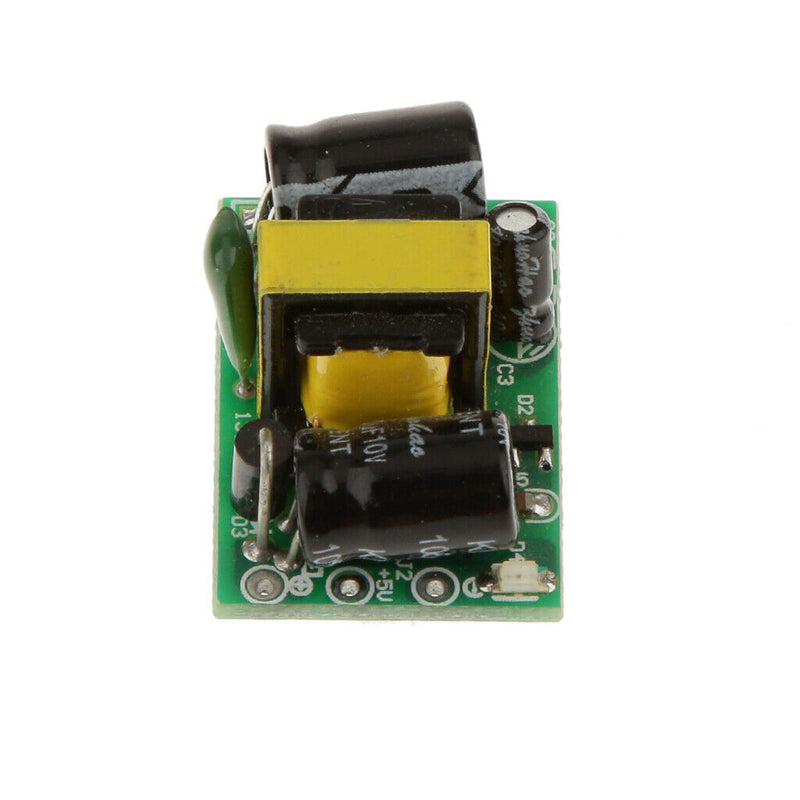

ITEM NAME:AC-DC Converter AC90 ~ 240V To DC6V Switching Power Supply Board AC Module Description: Switching power supply has a temperature protection, overcurrent protection and short circuit protection AC90 ~ 240V wide voltage input, high and low voltage isolation DC6V output, compact, precise regulation 431 Protection functions: recovery characteristics: lock, after re-starting recovery Input voltage range: 85 V ac to 265 V ac Input Current: 0.0273 (AC110V) 0.014 (AC220V) Input surge current: 20A Output voltage range: 5.90 ~ 6.1V Output Current Range: 0A to 500mA, 700mA peak current Output power: 3w Max 3.5W, output efficiency: 85% Switch Overshoot: 10% Output Rise Time: 100ma Operating temperature: -20 to 60 ℃, relative humidity: 40 to 90% RH Material:Plastic Size:Approx.3x2x1.5cm(LxWxH) Package includes: 1X6V500MA Switching Power Supply SKU: DMO0012960951001074.DC6V output, compact, precise regulation 431. Output power: 3w Max 3.5W, output efficiency: 85%. Output Current Range: 0A to 500mA, 700mA peak current. Input Current: 0.0273 (AC110V) 0.014 (AC220V). Input surge current: 20A.
