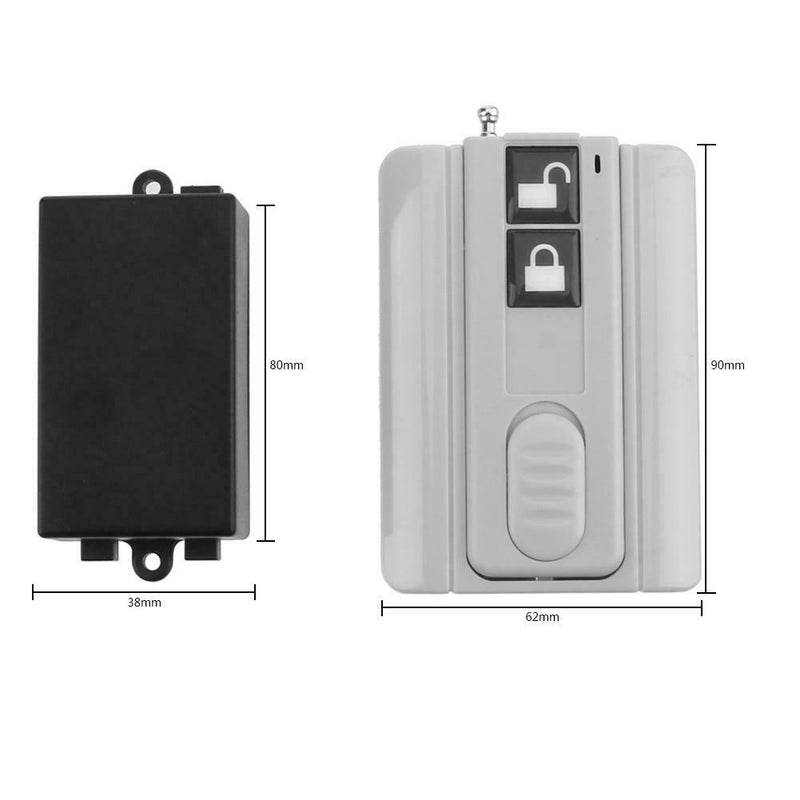

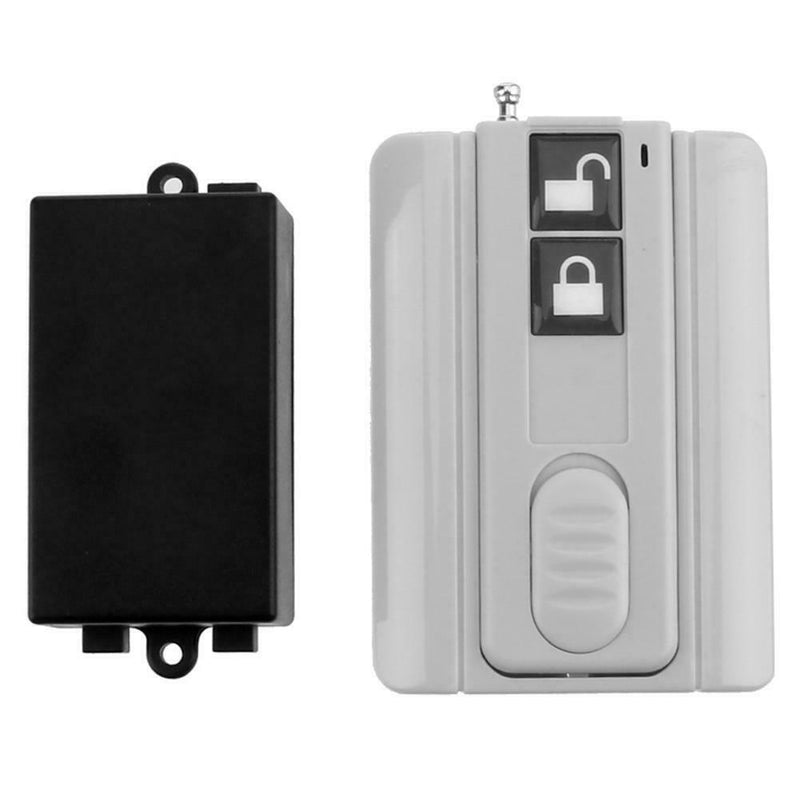

ITEM NAME:AC220V Wireless Remote Control Switch+433MHz Receiver Remote Controller A#S Product Description Description: AC220V Wireless Remote Control Switch Transmitter+433MHz Receiver Remote Controller Intelligent Wireless Remote Control Switch +433MHz Receiver Remote Controller Feature: This 220 volt single way remote control switch adopts 10A relay, and can load 1500 Watt appliance. A remote controller controls a plurality of switches, and a plurality of remote controllers can control a switch, easy to use. Mainly used in lamps, electric doors, windows, lifting equipment, gates, hoists, industrial control and security industries. Specification: Operating voltage: AC220V Operating temperature: -10℃to 60℃ Operating frequency: 433MHz Standby current: 10mA Maximum load: 1500W Remote control distance: 100-500m/109.36-546.80 yards Case size: approx. 80 x 38 x 22mm/3.15" x 1.5" x 0.87" Remote Control size: 90 x 62 x 15mm/3.54" x 2.44" x 0.59" Control panel weight: approx. 38g Remote control weight: approx. 40g Material: ABS Working Mode: Self locking, Point action and interlocking Operation Manual: Press the learn button for three seconds, lights off, press any key of the remote control, and the indicator light flashes four times to show the success of the study. Removal method: Continue to press the learning button for about 8 seconds. The indicator light is return to always bright shows the delete is succeed. Work mode switching: Short circuit 1, 2, 3 different ways to switch work. 1. Point action---1,2,3 three pins vacant, do not insert jumper 2. Self locking---short circuit 1, 2 3. Interlocking----short circuit 2, 3 Note: The controller can learn the fixed code(PT2262, SC2260 chip and so on)/ learning code(EV1527, HS2240 and so on) 20 different encoding, arbitrary button remote control, and beyond will be cleared the earliest learned remote control. Included: 1 x Remote Control Switch 1 x Remote Controller.Point action---1,2,3 three pins vacant, do not insert jumper. Work mode switching Working Mode: Self locking, Point action and interlocking. Continue to press the learning button for about 8 seconds.
