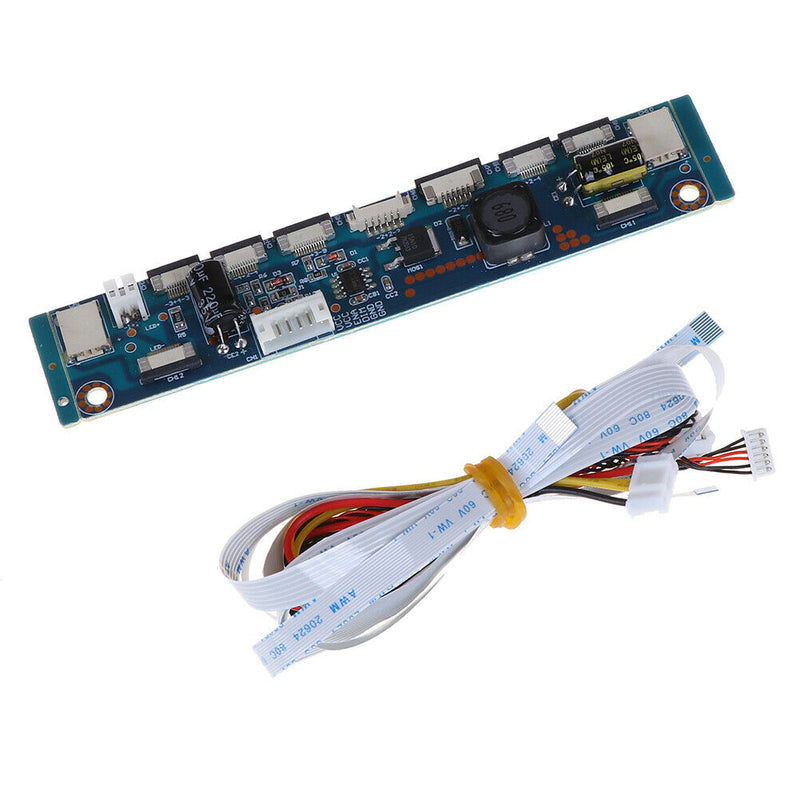

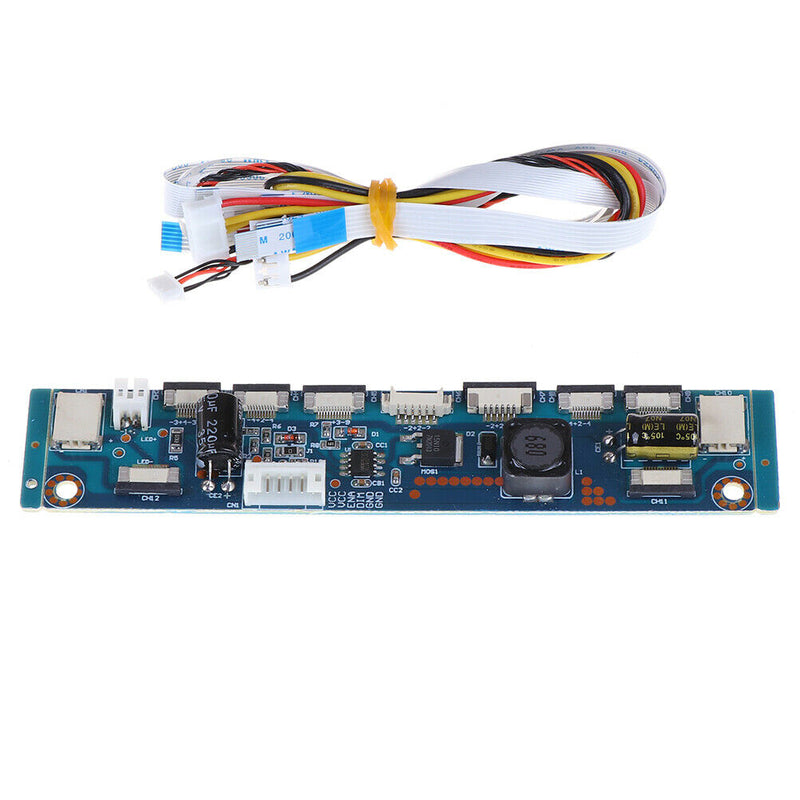

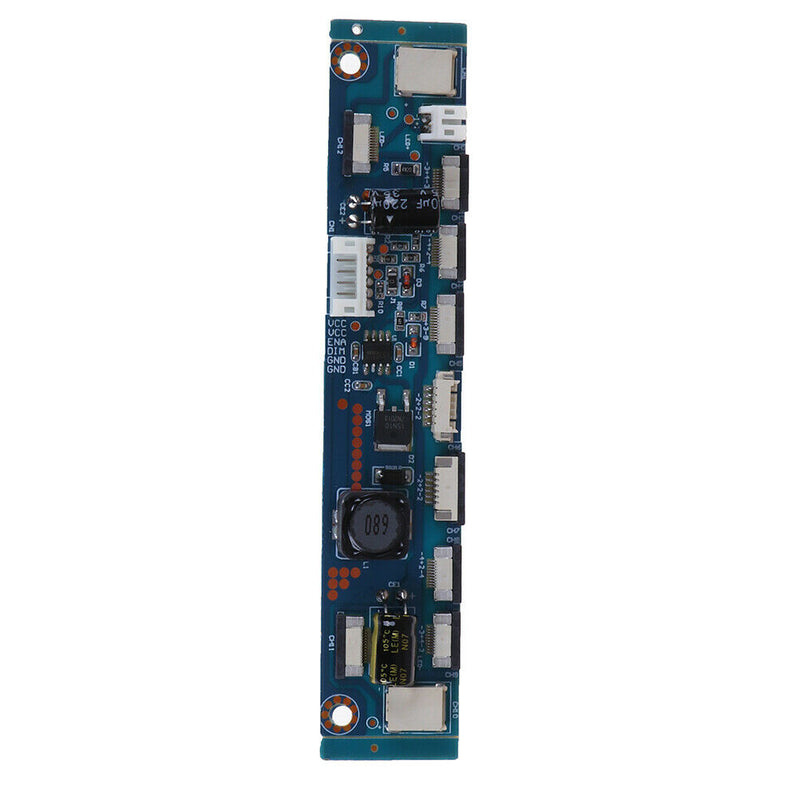

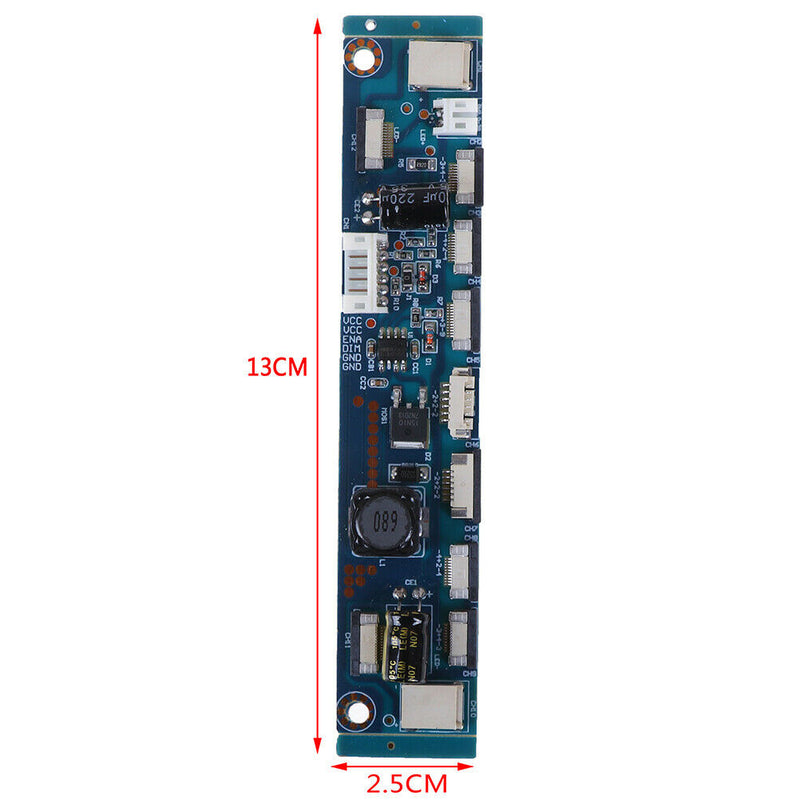

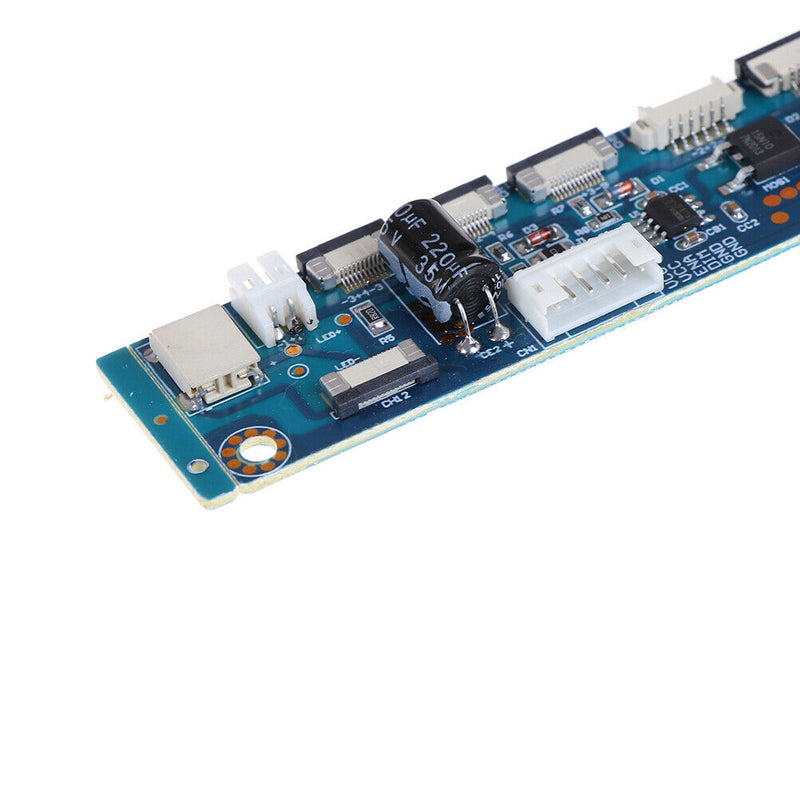

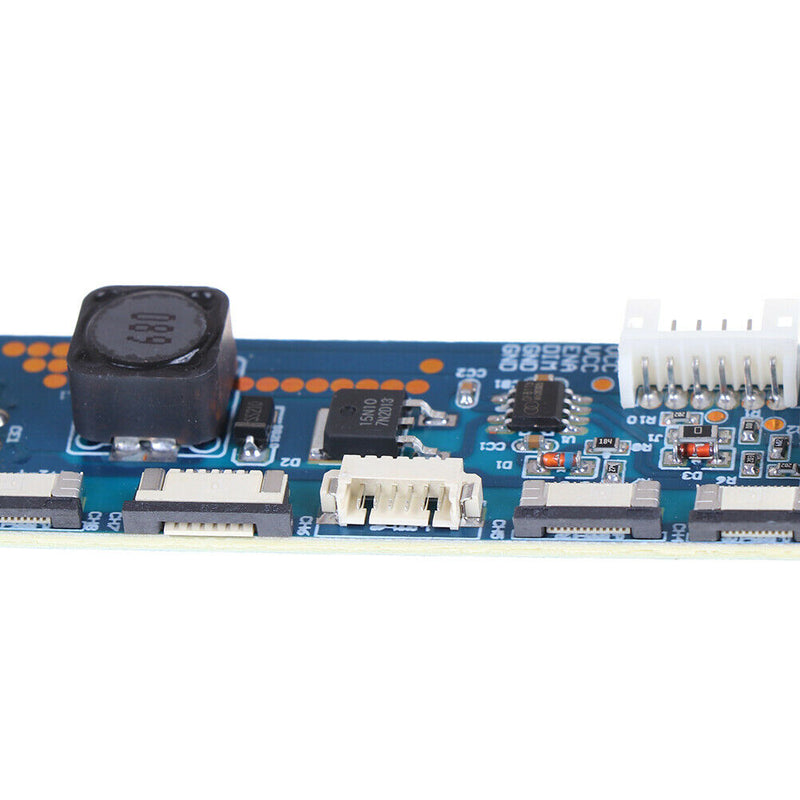

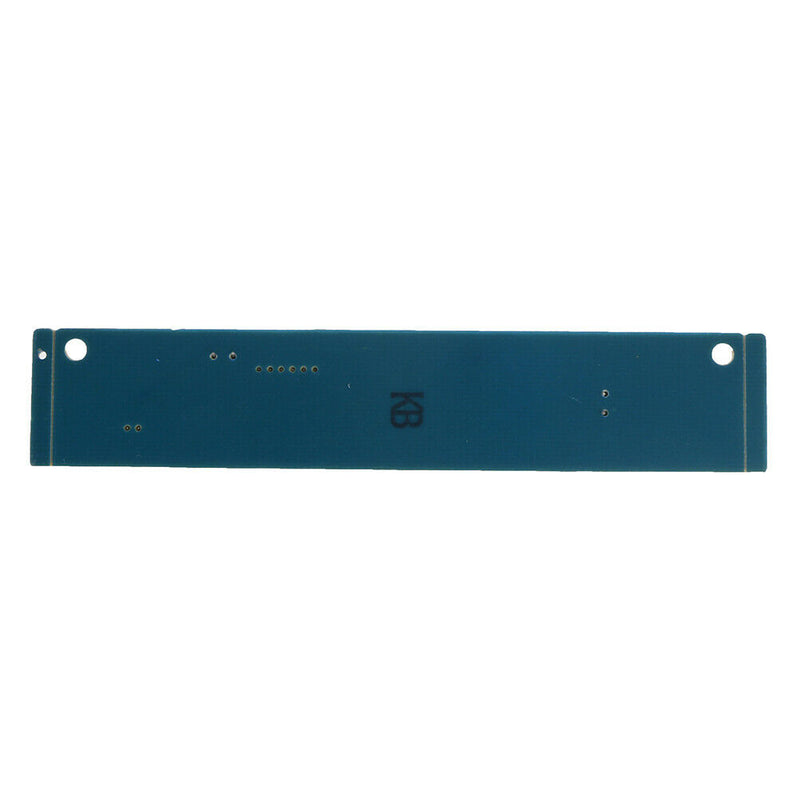

ITEM NAME:Backlight LED Constant Current Board Driver Board 12connecters LED Strip TesteME Description: Not provide technical support. you should know how to use it. If not, think twice before your order. Thanks! LED high-pressure board conversion instructions 1: Connect the power, ground, and switch signals required by the booster board to the universal LED booster board VCC Power ON Switch Signal ADJ Brightness Control GND Ground HINT: Connect the same way as the LCD high voltage board 2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few lines Line is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition. LED connection must pay attention to the definition of the interface is only positive and negative points, the positive input power supply must not be reversed or wrong, Improper connection caused by the consequences of their own, special reminder, but also understanding. Size: 12.3cm * 3.1cm Annex: send six LED cable + 1 power supply control line 6P 10p 12P soft row 6P electronic lines Interface definition: Outputs 12 interfaces -3 + 4-3; -4 + 2-4; + 3-9; -1 + 1; -2 + 2-2 electronic wire; -2 + 2-2FFC; -4 + 2-4; -3 + 4-3; -5 + 2-5 * 2; Small mouth * 2 Input: Power supply switch signal brightness control ground wire (Same as LCD) Not all of the interfaces are soldered on, we pre-installed one or more details see above description. Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package Included: 1 x Backlight LED Inverter Tester Constant Current Board Driver Board 12 Connecters;.1 x Backlight LED Inverter Tester Constant Current Board Driver Board 12 Connecters;. 1: Connect the power, ground, and switch signals required by the booster board to the universal LED booster board.
