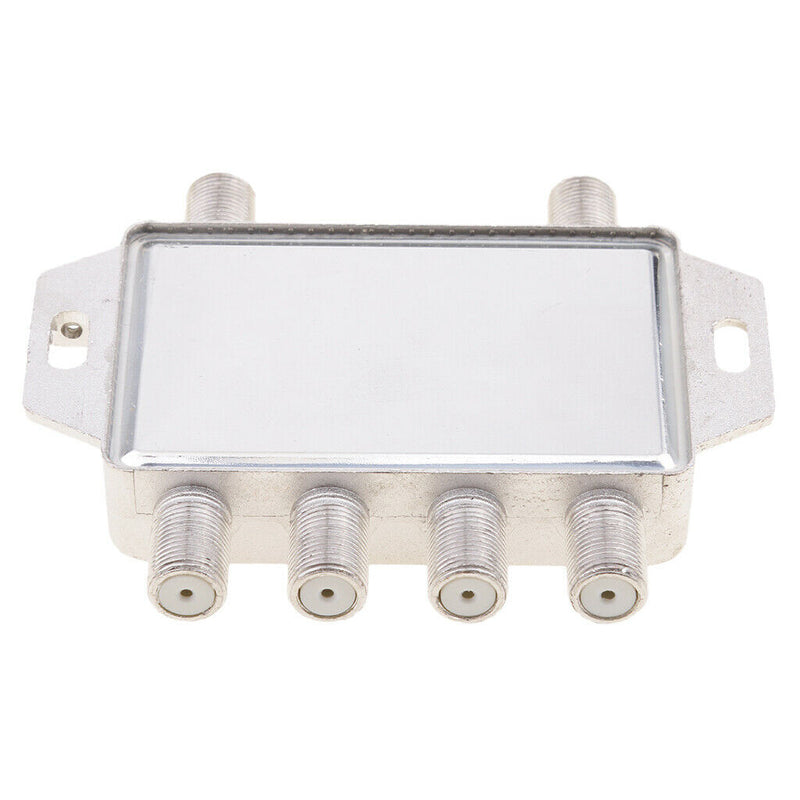

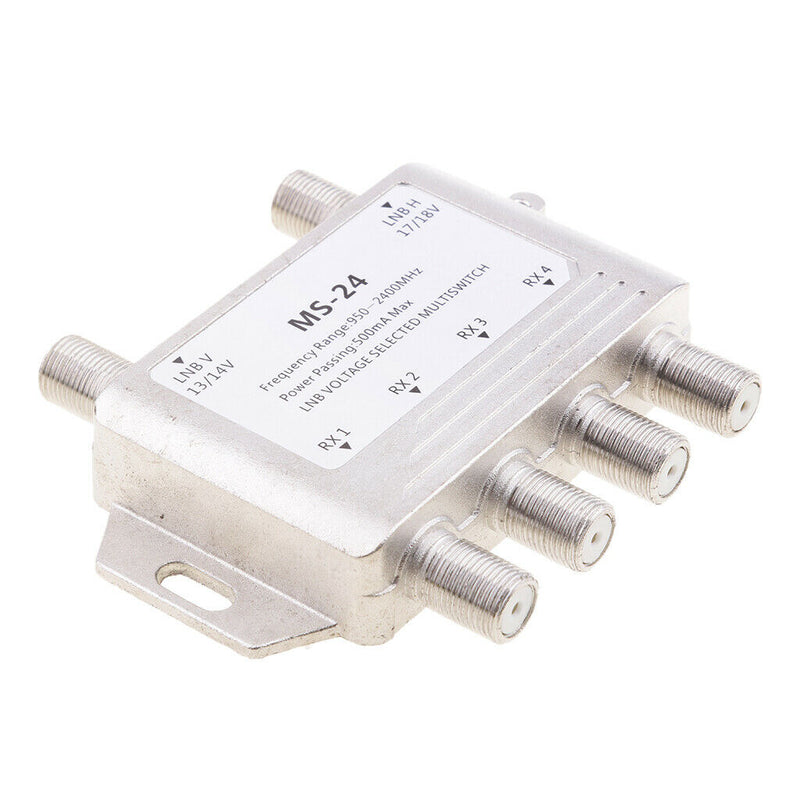

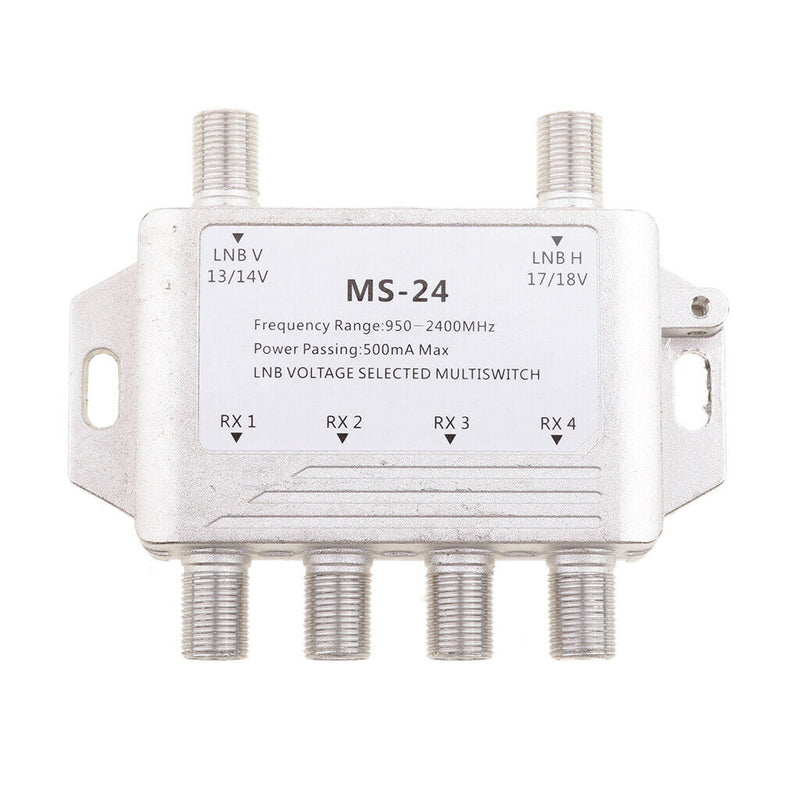

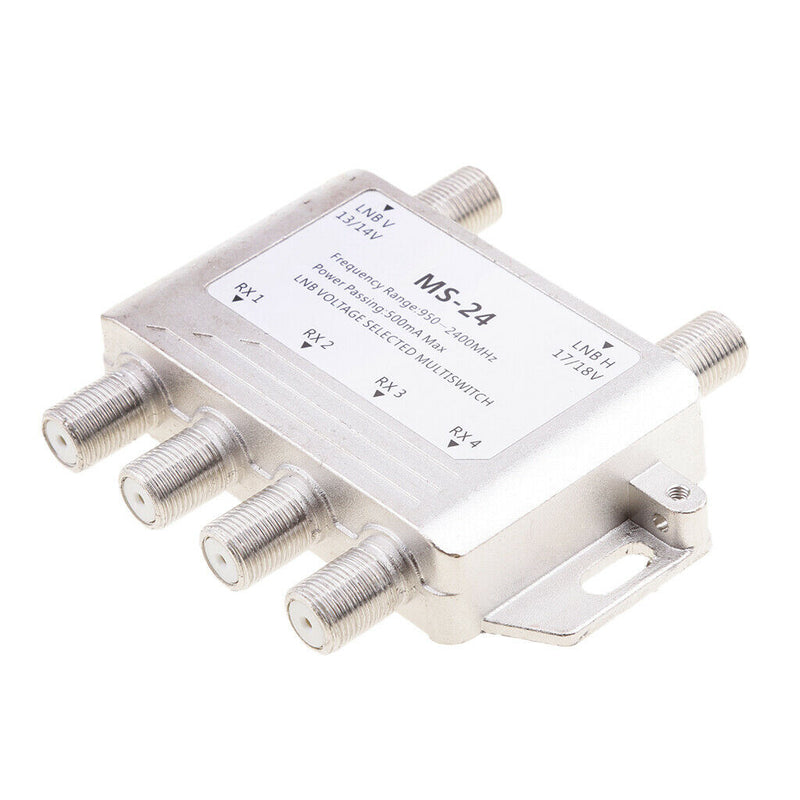

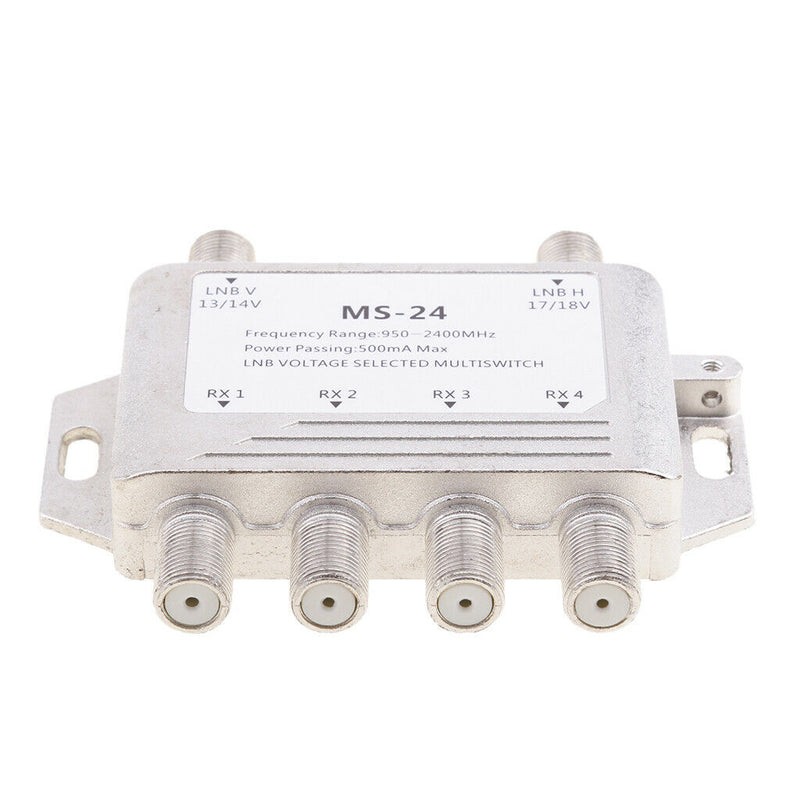

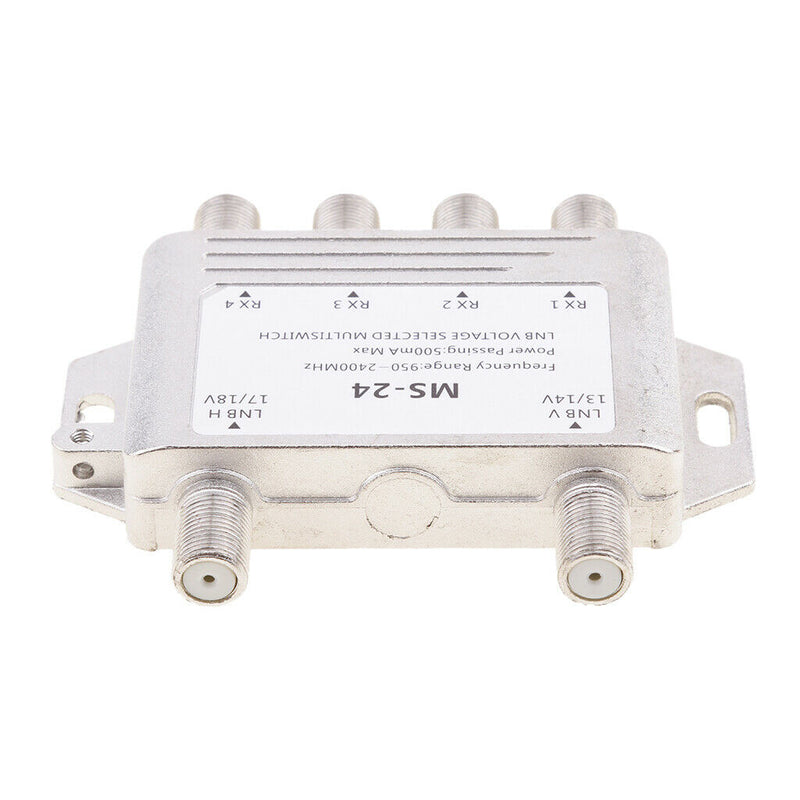

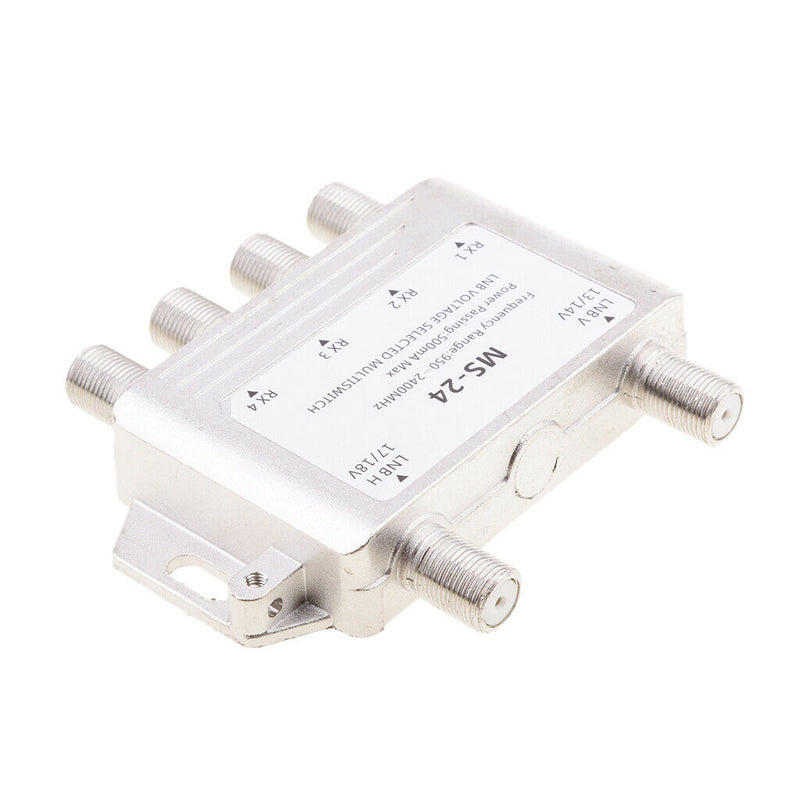

ITEM NAME:DirecTV 2x4 Multi-Switch 4 Output Ports DTV FTA 2 X 4 Multiswitch Dish Description: Excellent quality components, professional circuit design and low loss 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port Capable of connecting two Satellite TV signals simultaneously, which is switched through 13/18V Distributed into four subscribers to use simultaneously and no mutual interference Applicable to multi-satellite and multi-receiver usage Specification: LNB frequency range: 950 to 2,400MHz Insertion loss: 5dB Return loss: 10dB Isolation: 26dB LNB V voltage: 13V/14V LNB H voltage: 17V/18V DC current consumption: 30mA Max. DC current to LNB: 500mA Input and output: 75ÃŽ © F type connector Package Includes: 1 piece 2x4 Way LNB Voltage Selected Multiswitch SKU: DMO0015025268001609.Input and output: 75ÃŽ ©. Insertion loss: 5dB. F type connector. LNB frequency range: 950 to 2,400MHz. DC current to LNB: 500mA. DC current consumption: 30mA.
