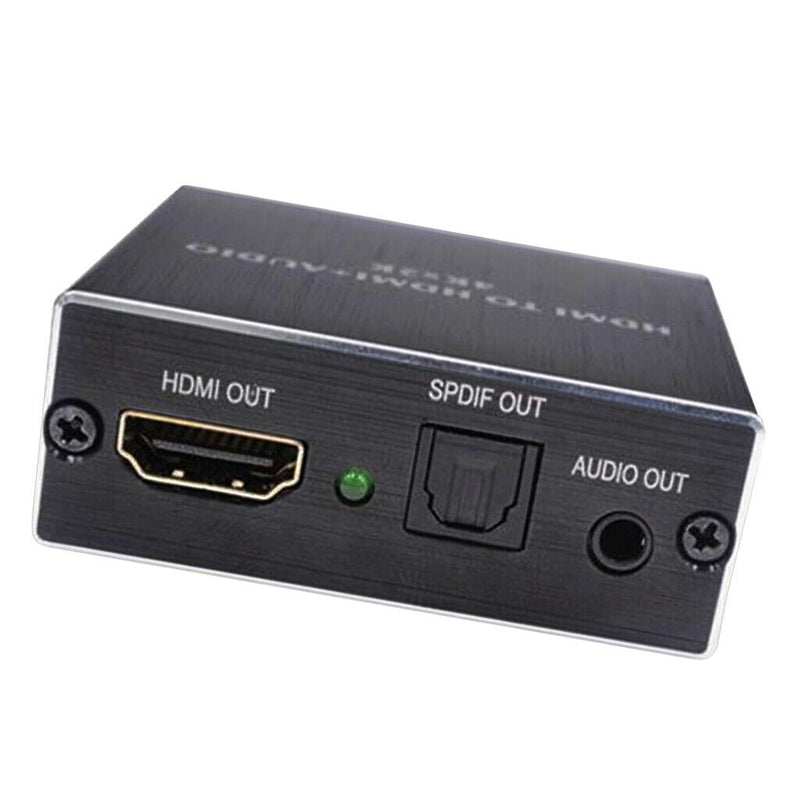

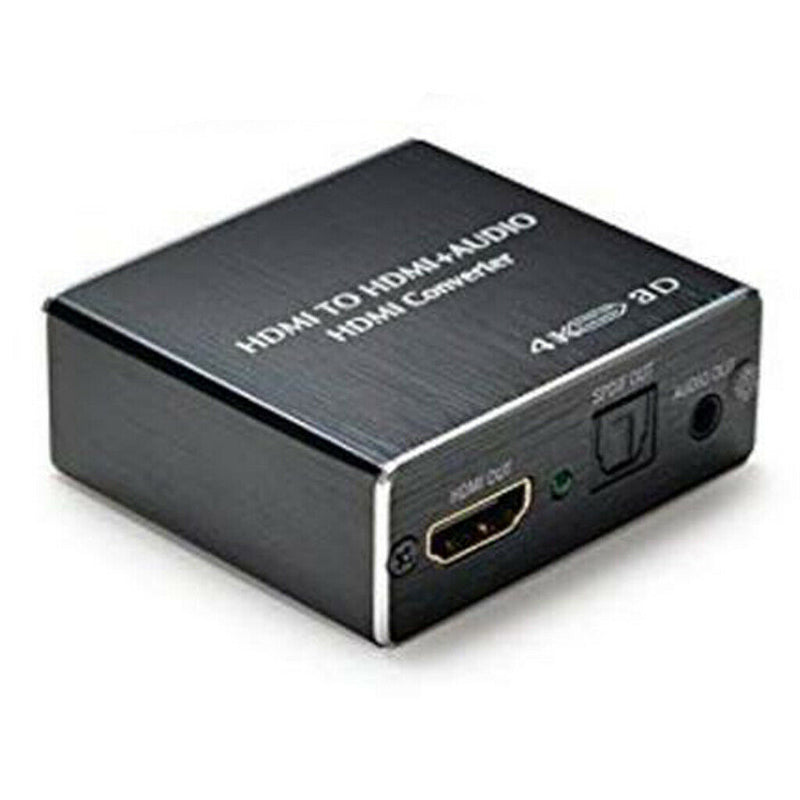

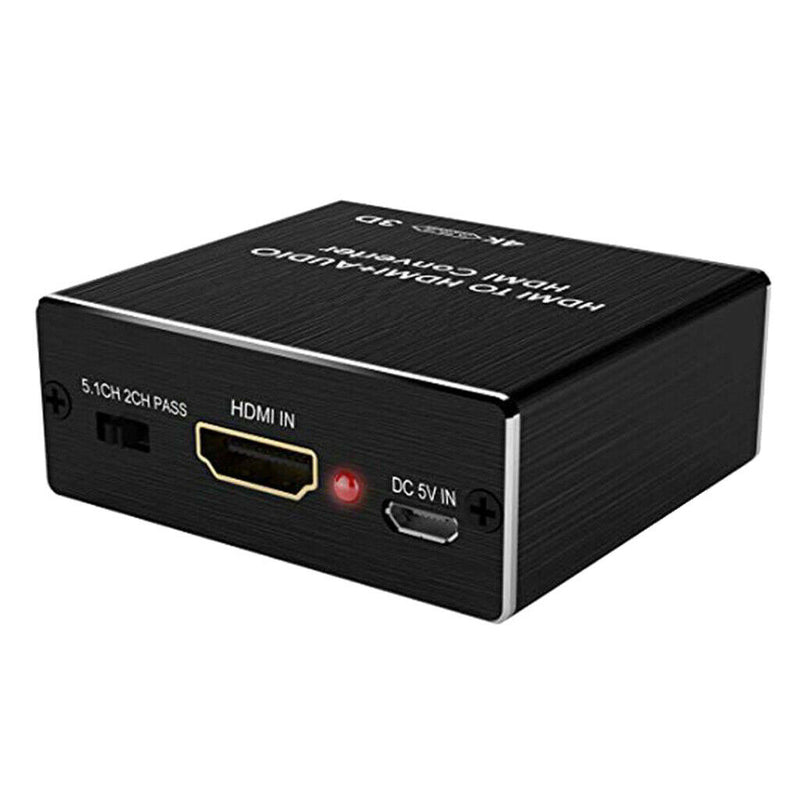

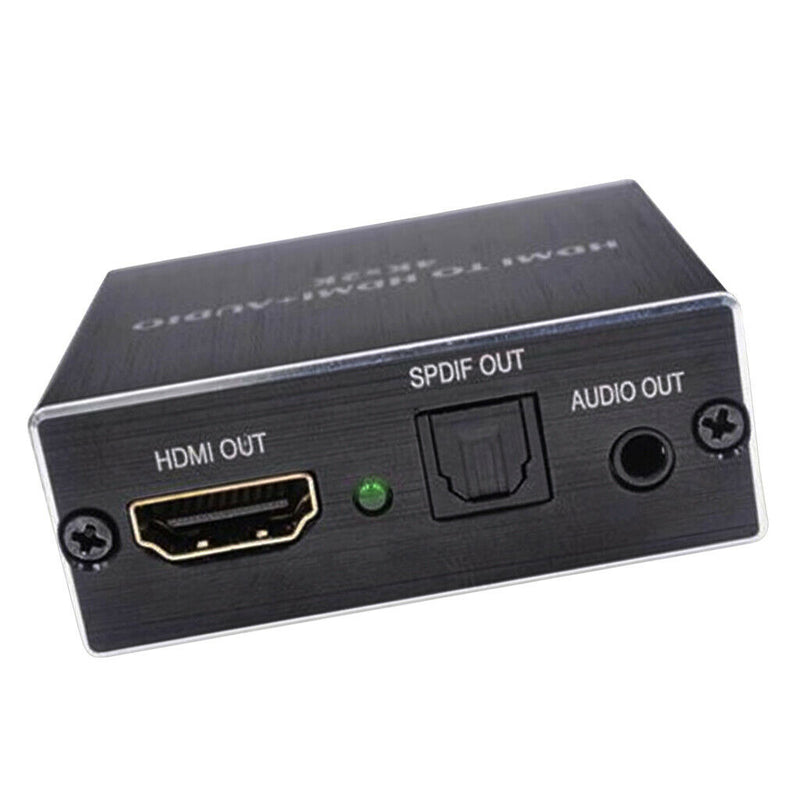

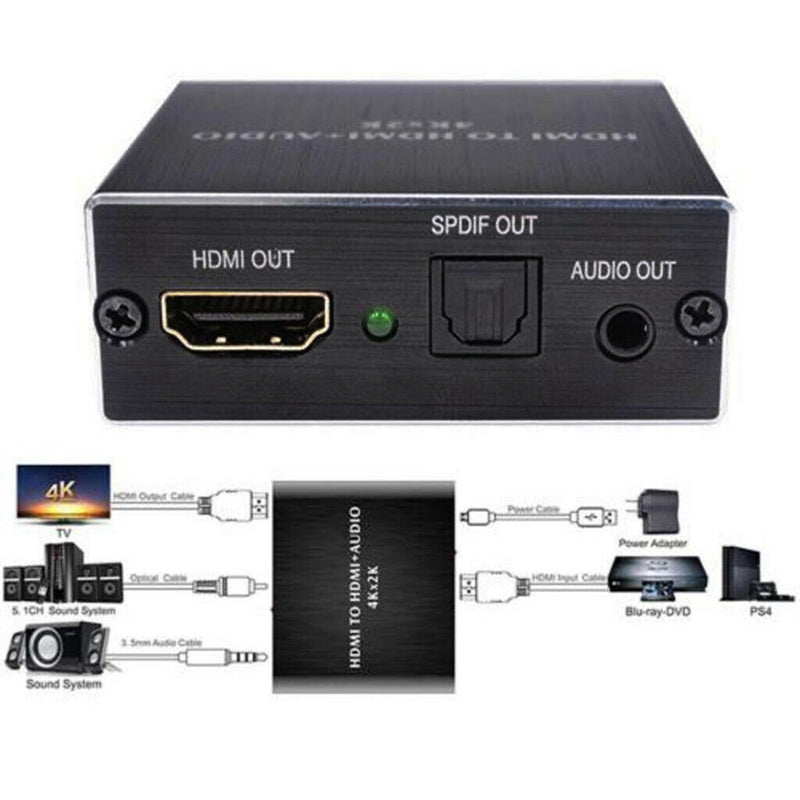

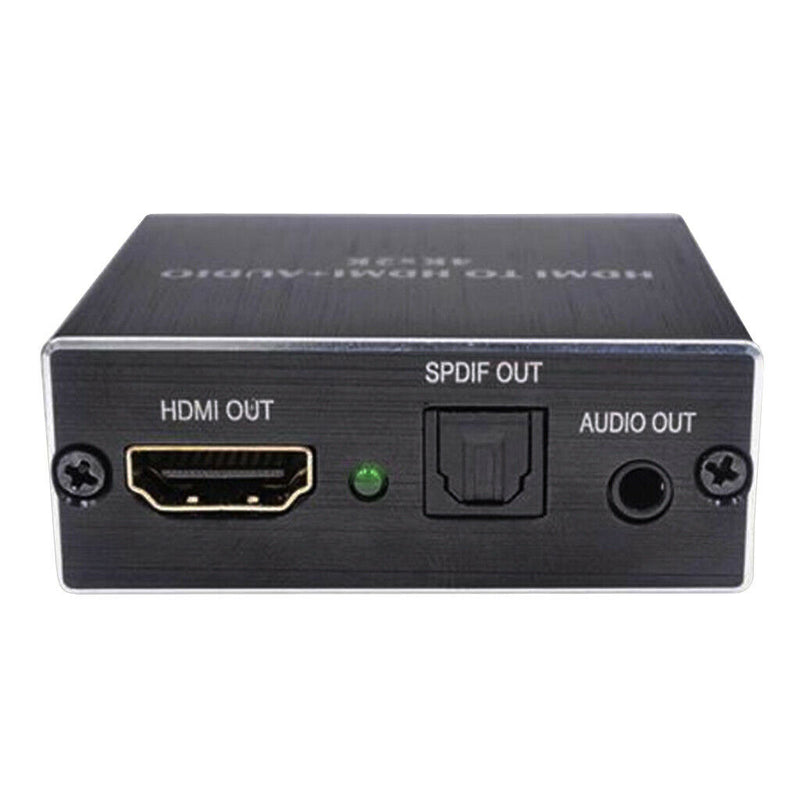

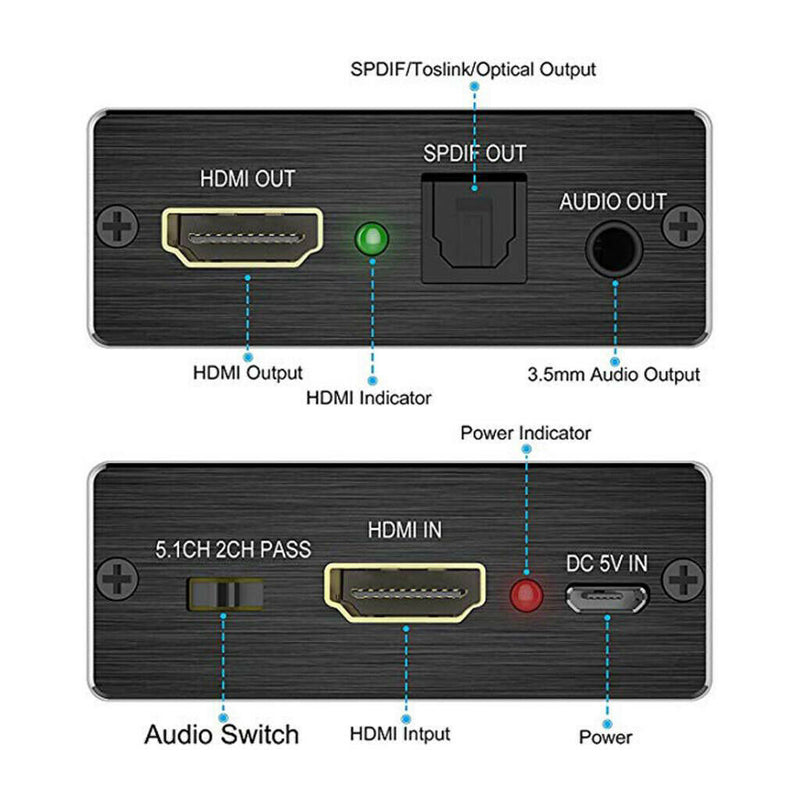

ITEM NAME:HDMI Audio Splitter 4K Audio Extractor HDMI To Optical SPDID & 3.5mm Audio Description: 4K HDMI Audio Extractor HDMI to HDMI and Optical SPDIF + 3.5mm Stereo Audio Extractor Converter HDMI Audio Splitter Adapter. Convert 1x HDMI Input to 1x HDMI + 1x Audio (SPDIF)Output + 1x 3.5mm Analog Audio Output. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby digital 5.1CH and DTS 5.1CH. Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz. HDMI to achieve the synchronization of audio signal separation. There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options. LED clearly indicate the working state of the Extractor. Specification: Size: 5x5x3cm/1.97x1.97x1.18inch Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack HDMI resolution :4Kx2K, 24 / 50 / 60fs / 1080P / 1080i / 720p / 576p / 576i / 480p / 480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 225MHz Max baud rate: 6.75Gbps Max working current: 190mA Package Includes: 1 Piece HDMI Audio Extractor 1 Piece Micro USB Cable 1 Piece User Manual SKU: ALU0013435877012897.4K HDMI Audio Extractor HDMI to HDMI and Optical SPDIF + 3.5mm Stereo Audio Extractor Converter HDMI Audio Splitter Adapter. Convert 1x HDMI Input to 1x HDMI + 1x Audio (SPDIF)Output + 1x 3.5mm Analog Audio Output.
