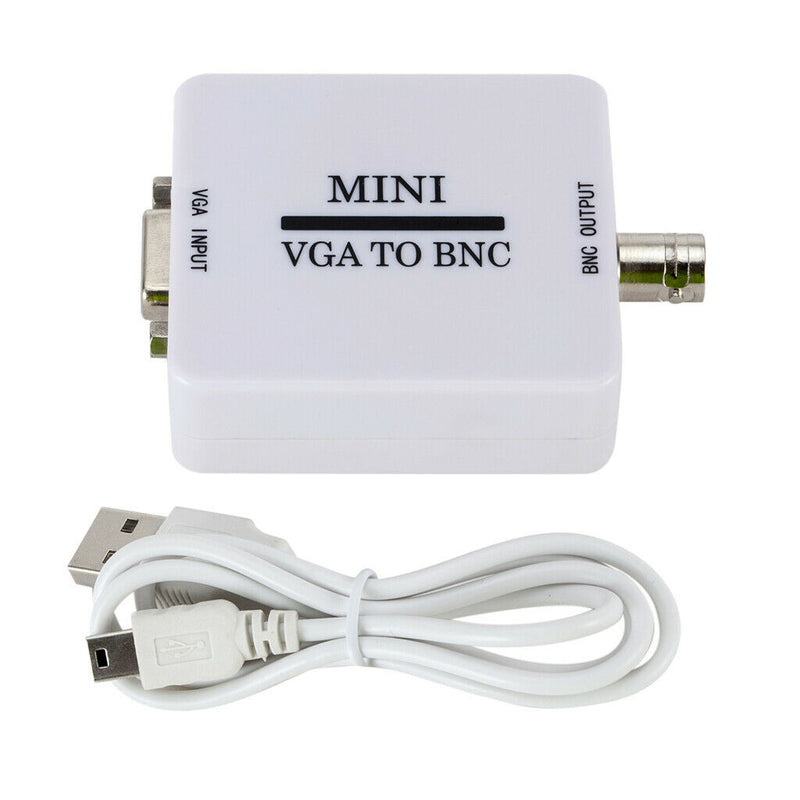

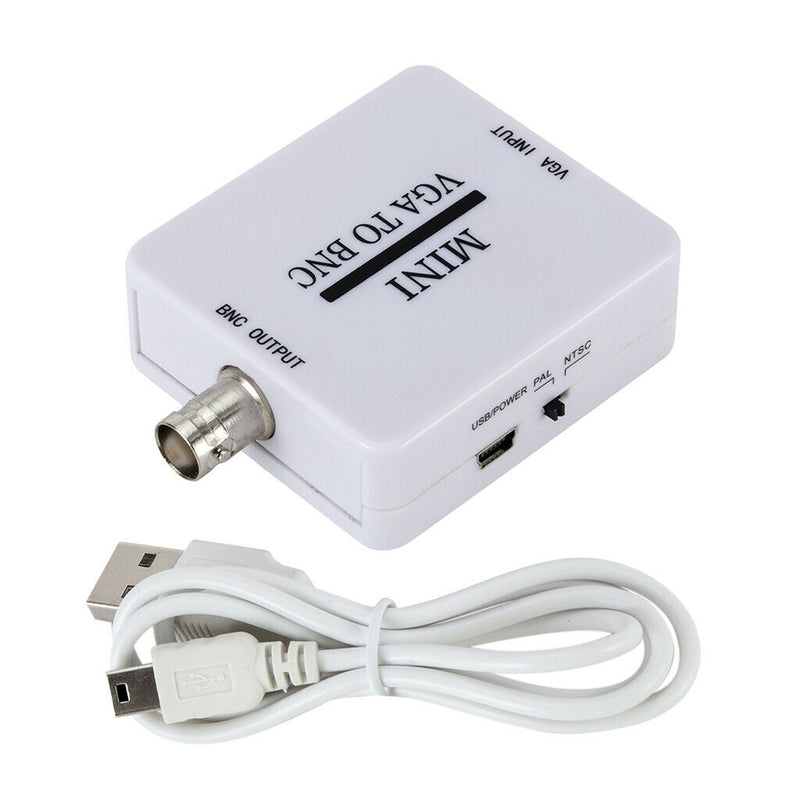

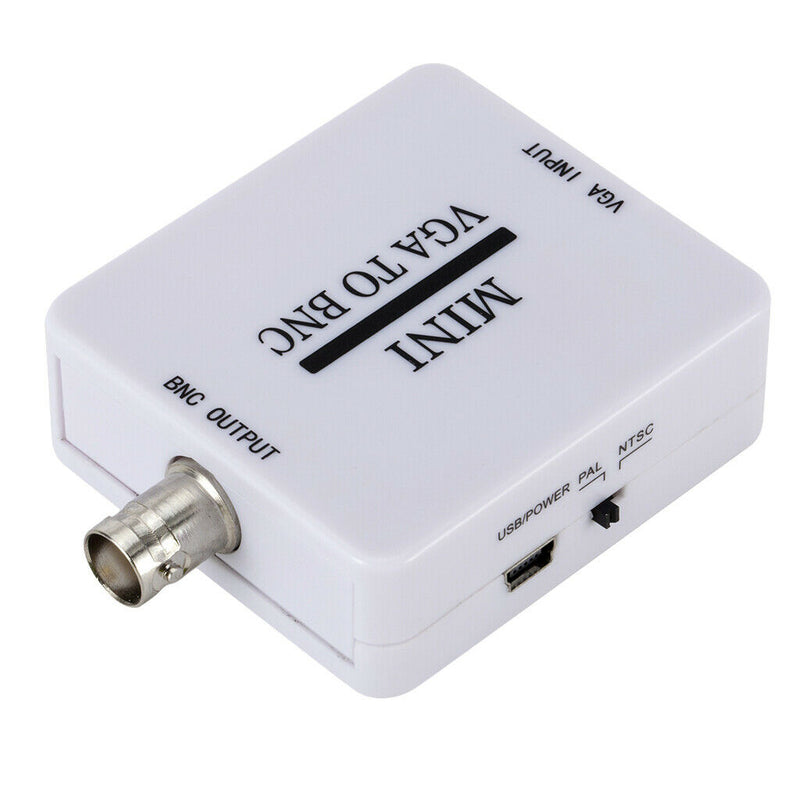

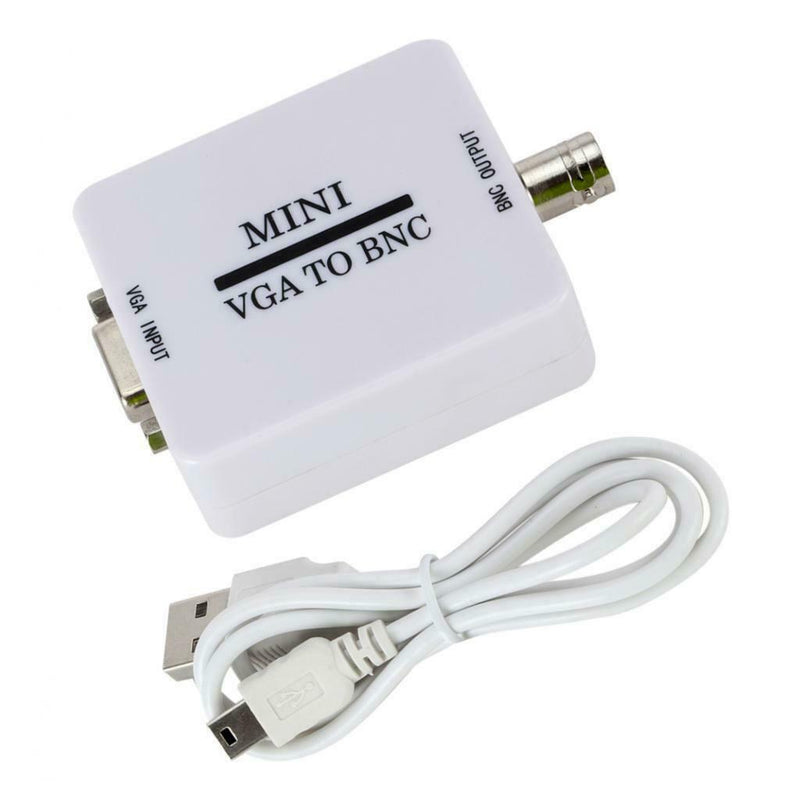

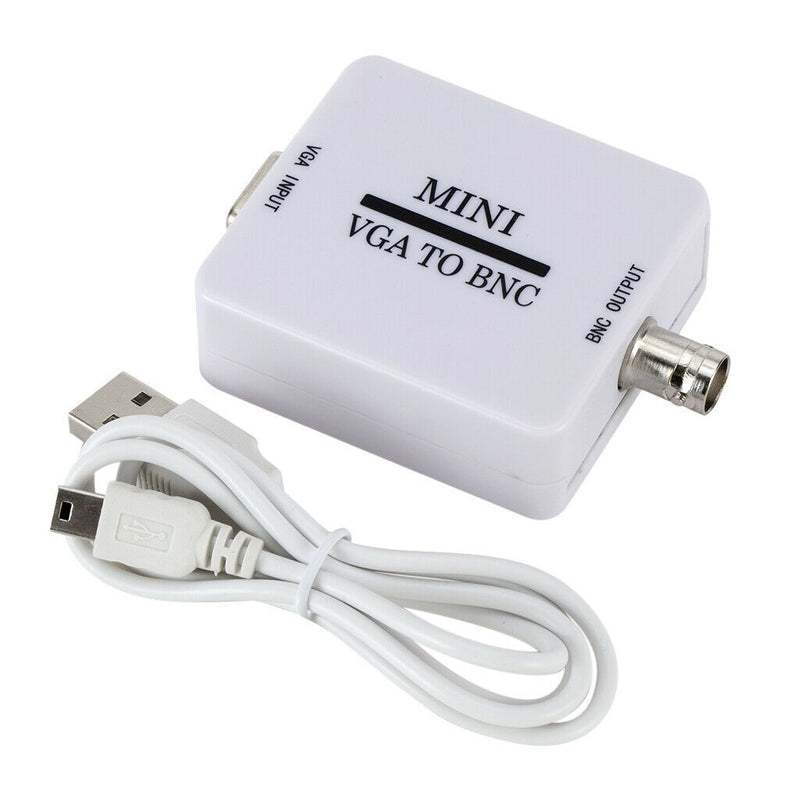

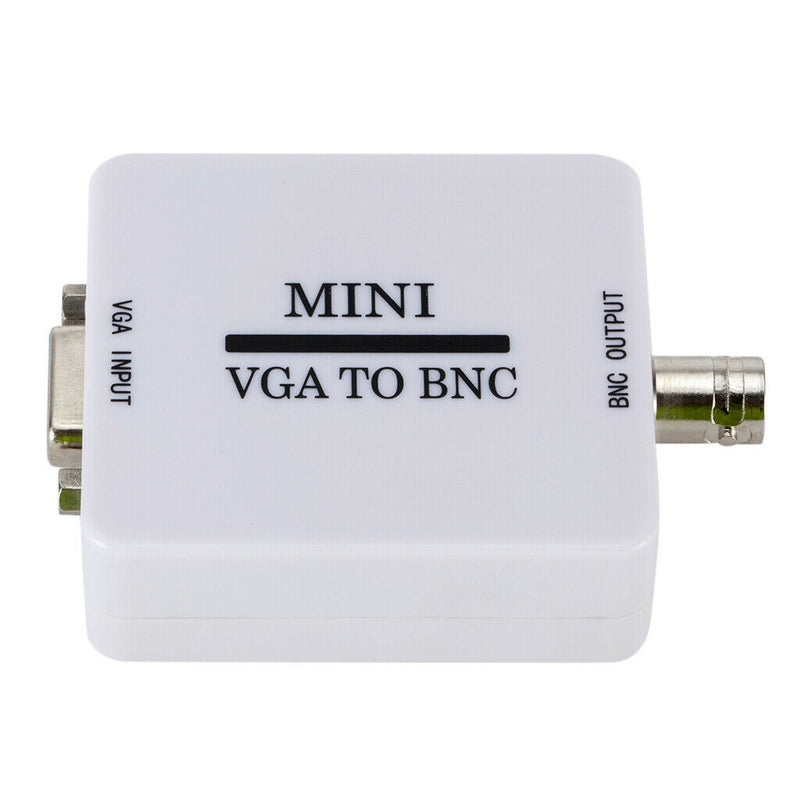

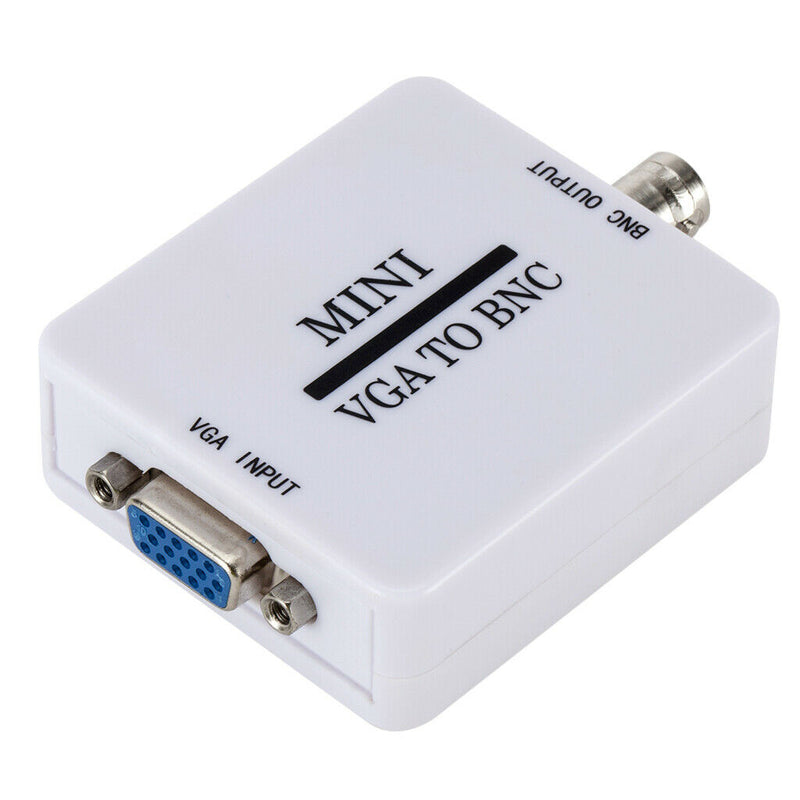

ITEM NAME:Mini VGA To BNC Video Converter Adapter Conversor Switcher For HDTV Monitor Description: The VGA video scan converter is used to convert various images of the computer from 640x480 to 1920x1080, supporting NTSC or PAL video. It provides a composite output format. It is used for applications such as video conferencing, home theater, lecture room or TV computer image conversion. 1. Automatically detects and converts incoming PC images to NTSC, PAL. 2. Support high resolution PC input to SXGA (1920 @ 60Hz). 3. Support resolution: 640x480 60 fps; 800x600 60 frames, 75 frames 60 frames 75 frames; 1024x768,1280x720 60 frames; 1280x768 60 frames, 75 frames; 1280x1024 60 frames per second, 75 frames;1360x768 60 fps; 1400x1050 60 fps; 1440x900 60 sheets;60 frames per second, 60 frames for 1680x1050; 1600x1200; 1920x1080 for 60 frames per second Specification: Input Port : VGA Output Port: BNC ESD protected mannequin:  ±8kV (air gap discharge)  ±4KV (contact discharge) Size: Approx. 6 x 5.5 x 2cm/2.4 x 2.2 x 0.8 inch Operating temperature: 0 C 40 C / °~ °Ã‚ °~ °F 104 F 32 Storage temperature: 20 C 60 C / °~ °4 °~ °F F 140 Relative humidity: 90% RH (non-condensing)~ Power consumption: (maximum) 2.5W (maximum) Operational control and function 1. VGA input: VGA input port, connected to a PC or VGA generator. 2. Audio input: L / R - Analog audio input port, connected to the computer's audio output port. 3. Video output: BNC output, connected to the BNC interface display. 4. Power: USB is connected to the power of the PC's USB port. 5. PAL / NTSC format: Package Includes: 1 Piece VGA to BNC Converter 1 Piece USB Cable Note: Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting. Thank you for your understanding, nice day! SKU: ALU0013002468018089.Video output: BNC output, connected to the BNC interface display. Output Port: BNC. 1 Piece VGA to BNC Converter. VGA input: VGA input port, connected to a PC or VGA generator. The VGA video scan converter is used to convert various images of the computer from 640x480 to 1920x1080, supporting NTSC or PAL video.
