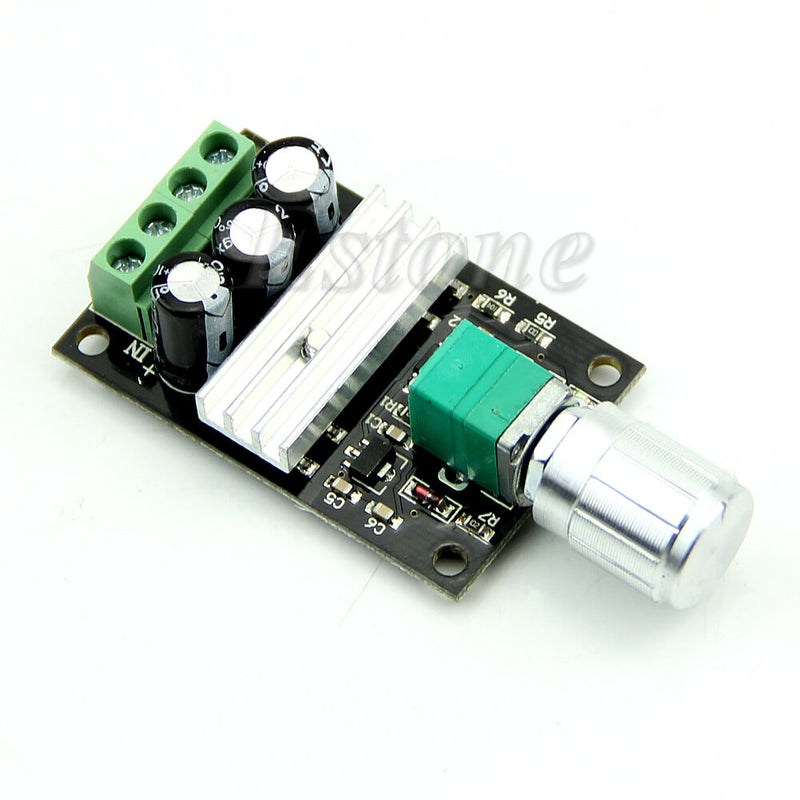

ITEM NAME:New PWM DC Motor 6V 12V 24V 28V 3A Speed Control Switch Controller 1203BK 100% brand new and high quality This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load. Main technical parameters: Input supply voltage:6V-28VDC The maximum output power:80W The maximum continuous output current:3A Duty Cycle adjustable:0%-100% Size:32mm x 50mm x15mm Quantity:1PC Operating instruction: 1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram. 2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits. 3. You can now control the speed of the motor through potentiometer. 1 x DC Motor Speed Control.Also note that monitor settings may vary from computer to computer and may distort actual colors. Duty Cycle adjustable:0%-100%. The maximum continuous output current:3A. If you have any problems, we are very glad to help you.
