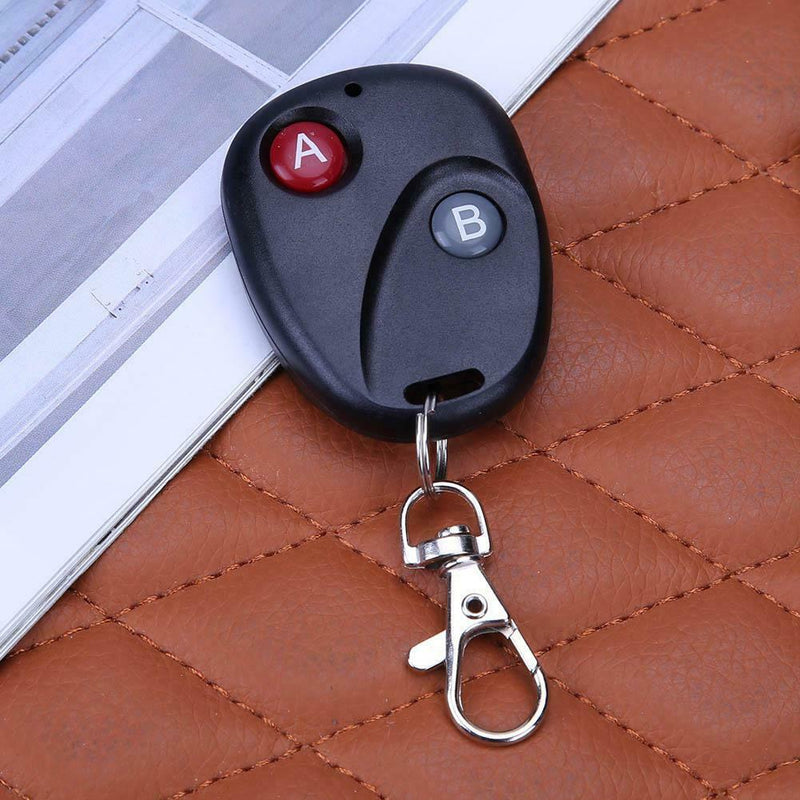

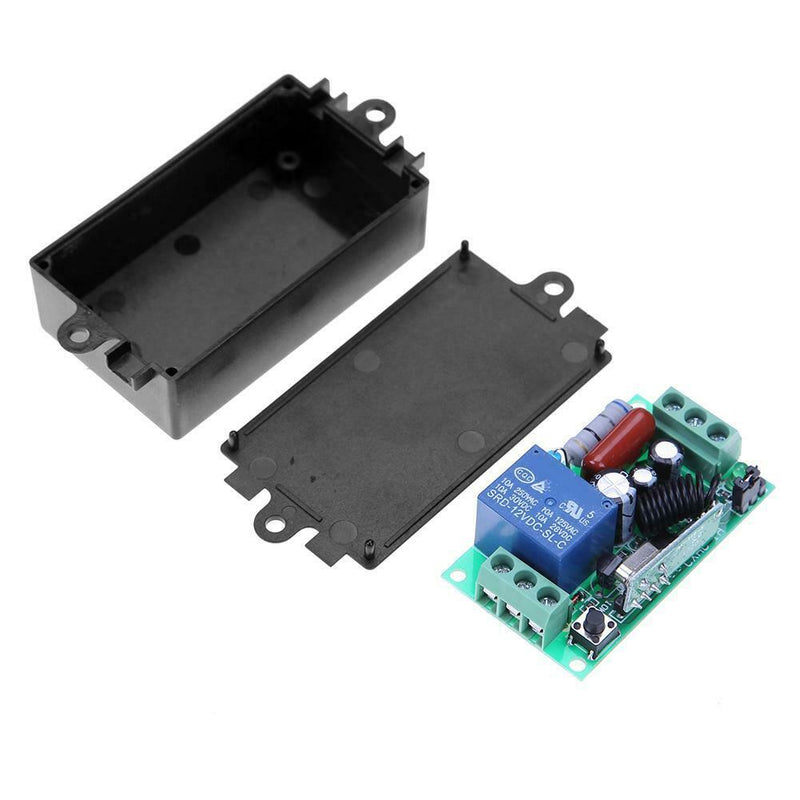

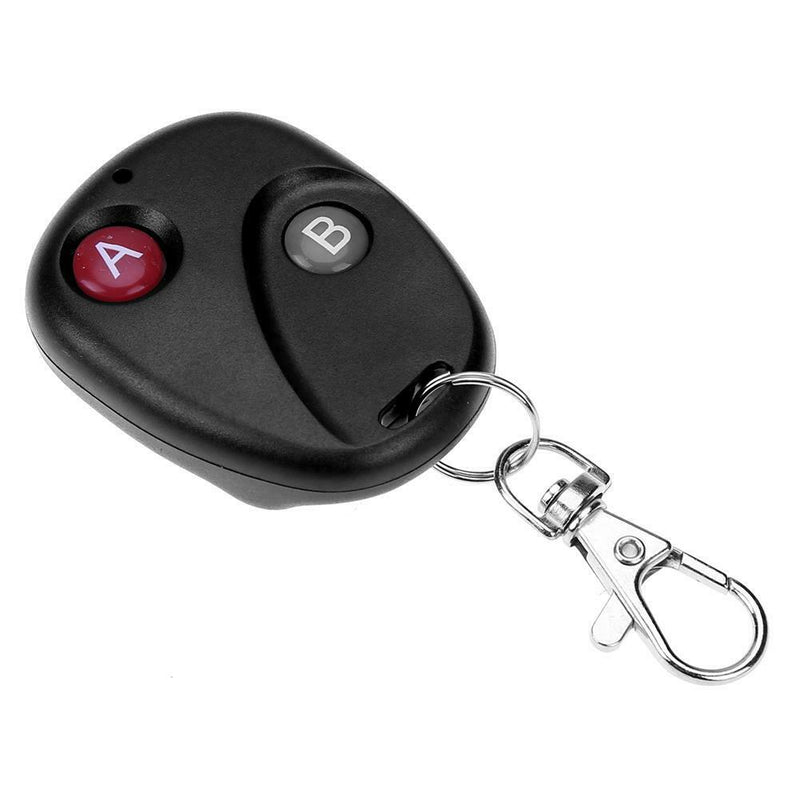

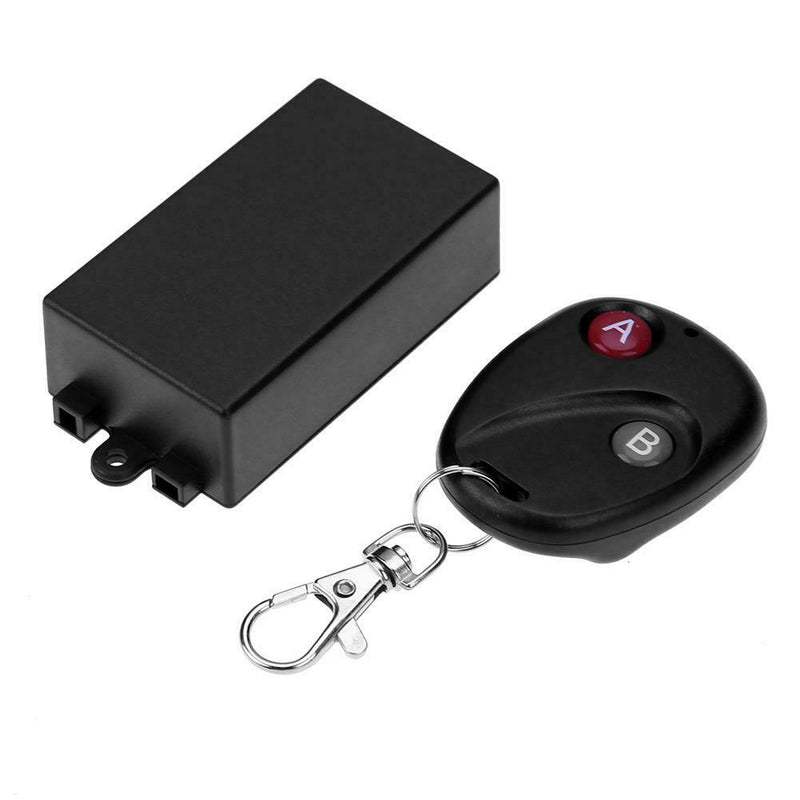

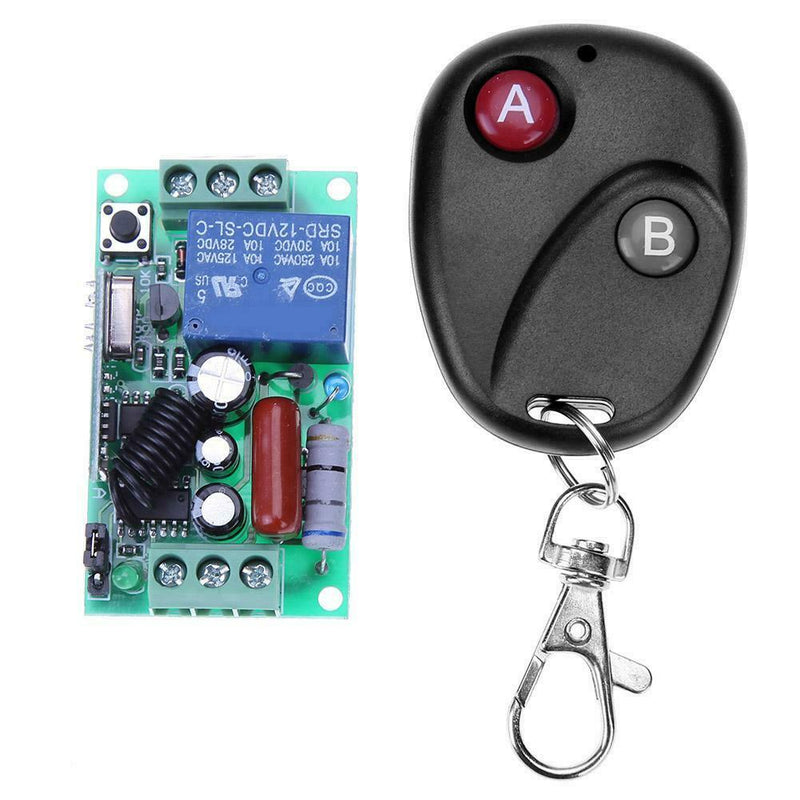

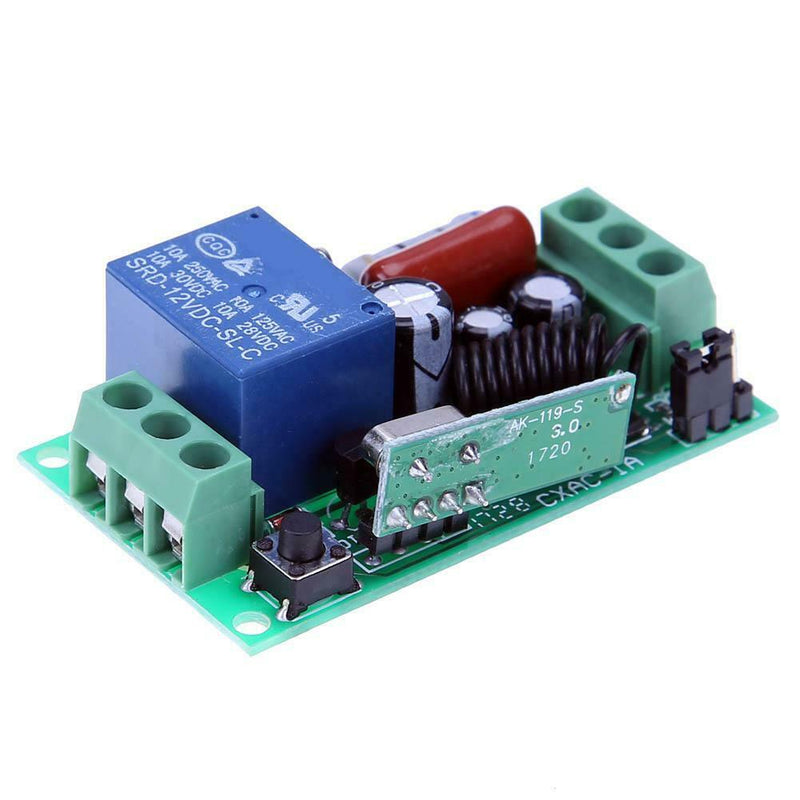

ITEM NAME:Receiver Transmitter 220V 1CH RF Wireless Remote Switch Light Lamp LED SMD A#S Product Description Description: Features: 1. This controller is controlled by intelligent microprocessor, which can be used in the control of garage door, lighting control, motor control, door control system, etc. 2. It has the features of simple installation and safety and reliability. Specifications: Operating voltage: AC 180-240V Operating temperature: -40~80degrees Operating frequency: 433MHZ Maximum load: 1500W Receive sensitivity: ≠¥-95dB Remote control distance: 20-40m Product size: Shell size: approx. 80 x 38 x 20mm/3.15 x 1.5 x 0.79in Remote Control size: approx. 50 x 40 x 12mm/1.97 x 1.57 x 0.47in Product weight: Control panel weight: approx. 38g Remote control weight: approx. 22g Material: ABS Working Mode: Self locking, point action and interlocking (adjustable) Operation Manual: Long press the learn button for 2~3 seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 4 times to show the success of the study. Note: The controller can learn the fixed code / learning code, total 20 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control. Removal method: Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success. Connection Way: 1, 220 volts ac output: learning single remote control switch input, 220v ac power after 220, the output received L very public end, electrical appliances on the output side often start and N end, a simple control circuit is designed. 2. Direct current output: the learning type 220 volt single-channel remote control switch input terminal, and then a 220 volt ac power supply. The positive terminal of the dc power supply on the output end, and the negative pole of the cathode is connected to the cathode. The dc power s.Receive sensitivity: ≠¥-95dB. Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success. Working Mode: Self locking, point action and interlocking (adjustable).
