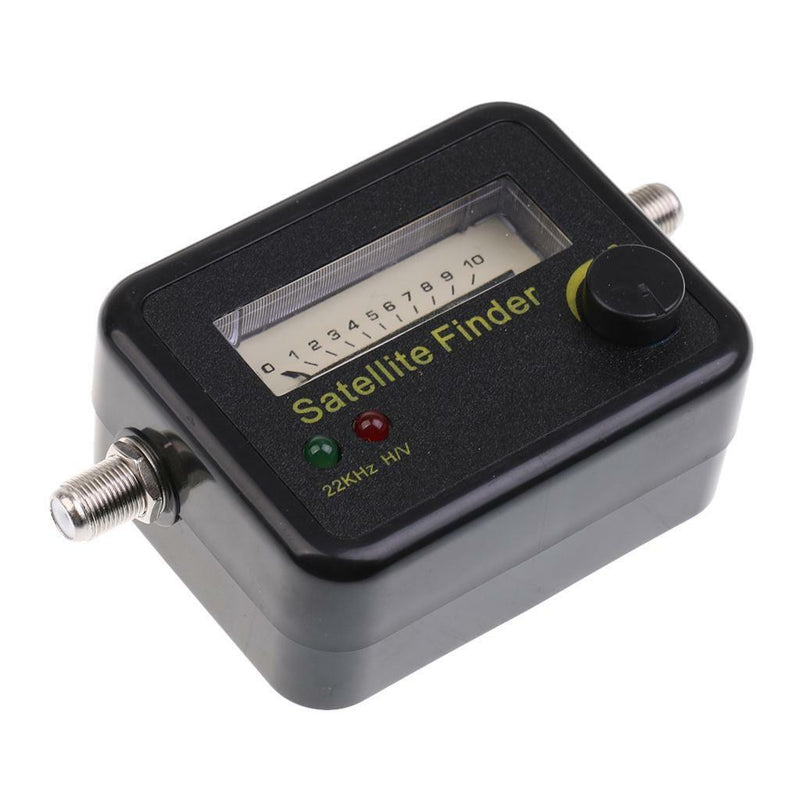

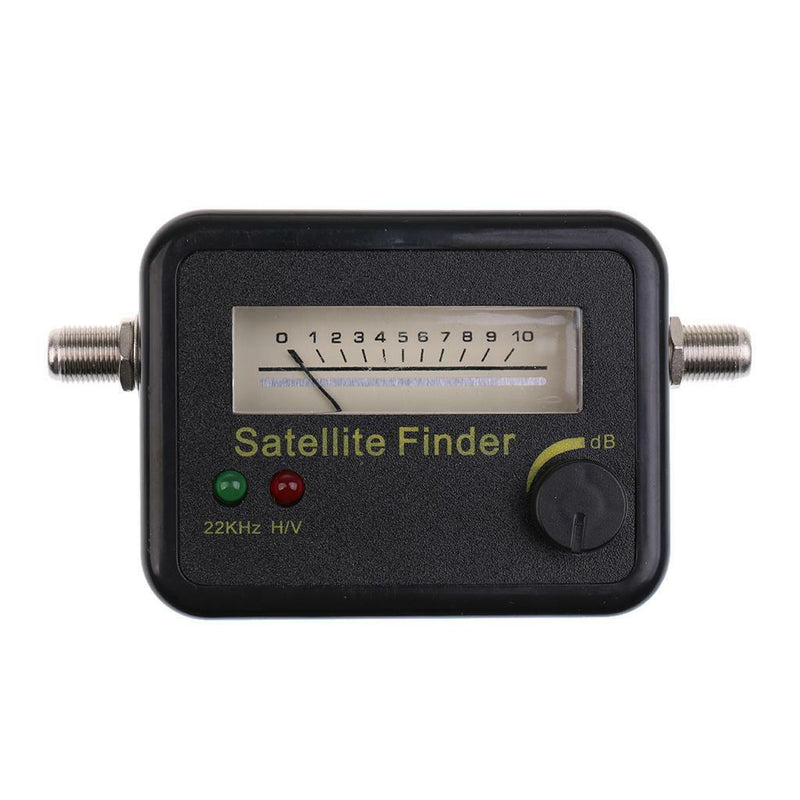

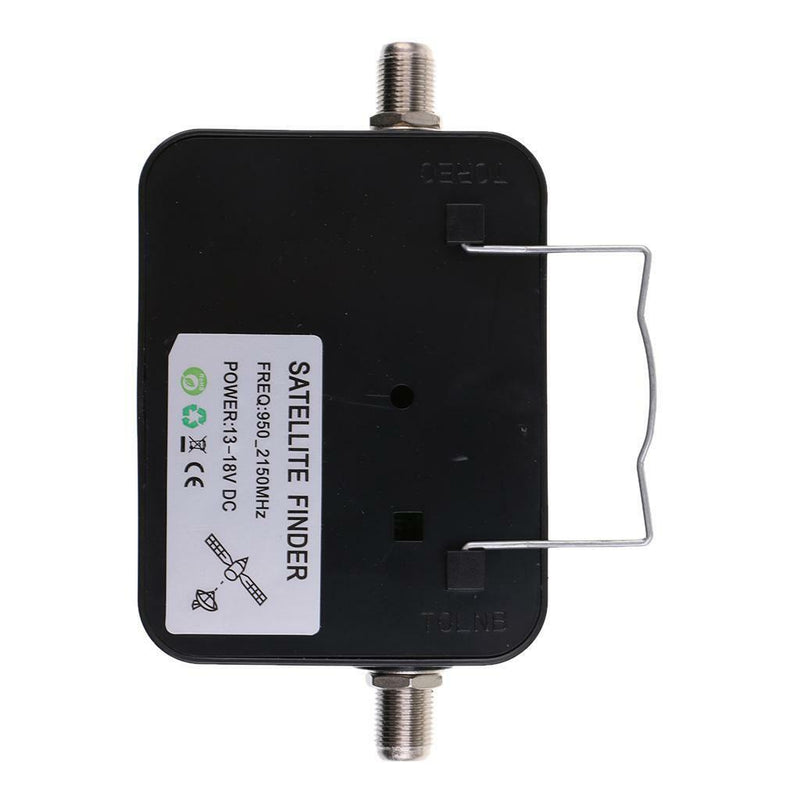

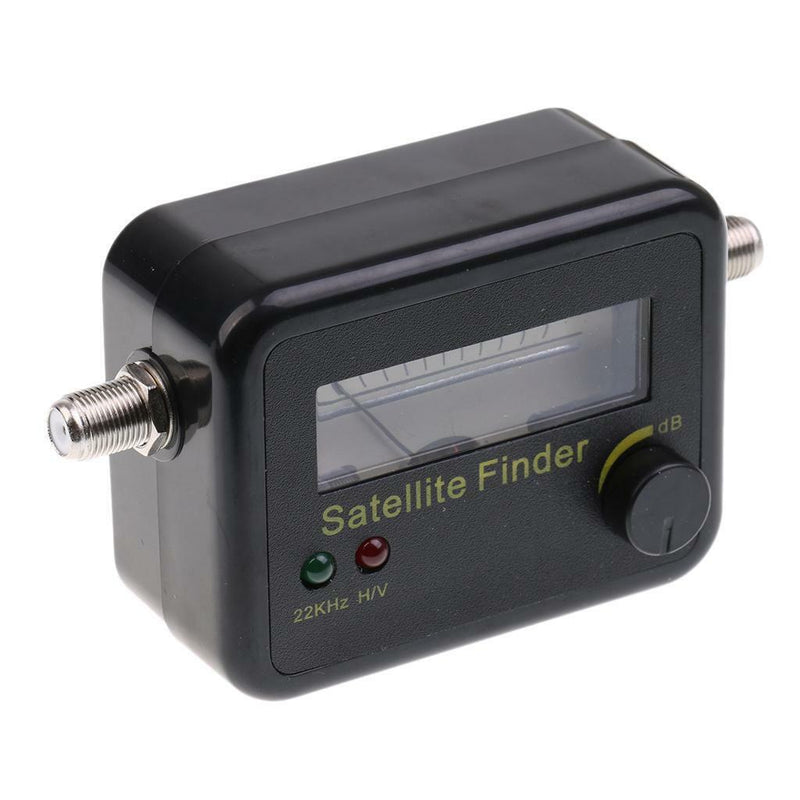

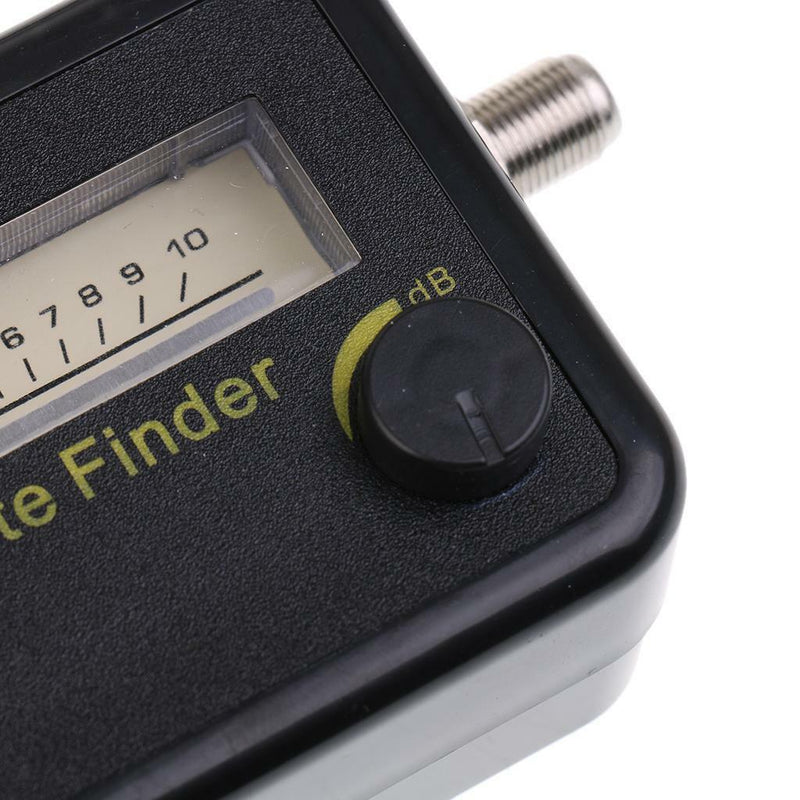

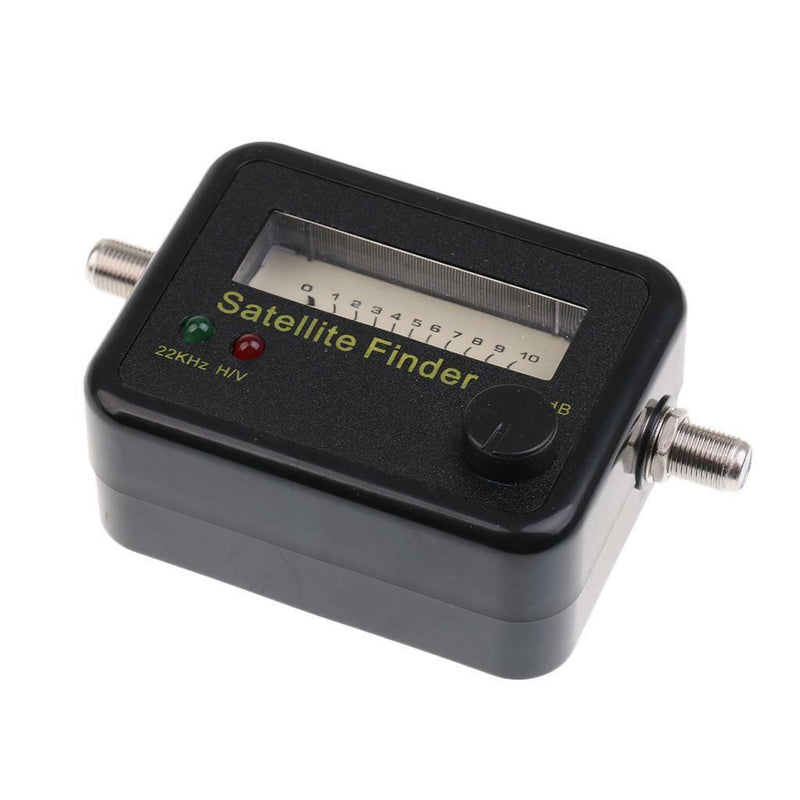

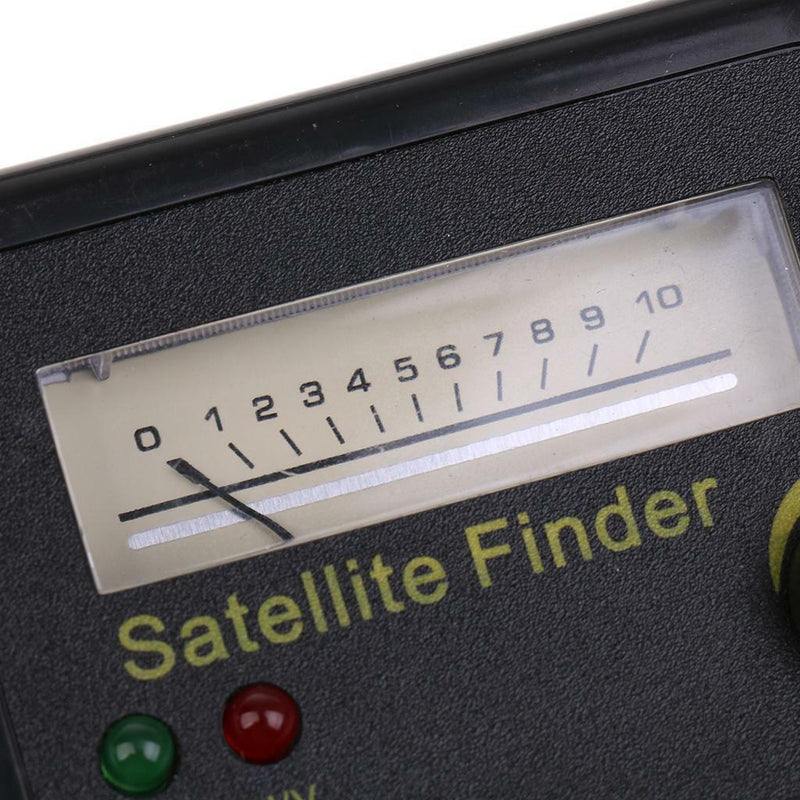

ITEM NAME:Sat Finder Kit For Satellite Dish Alignment Satfinder Satellite Signal Meter Description: - Connect the Satellite Finder between the star receiver and the antenna LNB. - Adjust the knob on the front panel of the finder so that the pointer on the dial points to the "5" position. - Adjust the azimuth and elevation of the antenna. When the pointer is deflected to the maximum angle, adjust the knob on the front panel counterclockwise to attenuate the received signal and adjust the azimuth, elevation and polarization angle of LNB . Until the pointer of the Satellite Finder is no longer so far. - Combined with the satellite receiver to determine whether the signal is the required star signal. If it is, remove the finder and reconnect the receiver with the LNB. If the received signal is not the desired star signal, repeat the above work. - Satellite Finder is just an Auxiliary equipment,it is only a preliminary judgment whether the antenna direction exists in the presence of a star Specification: - Size:Approx.110*60*33mm/4.33*2.36*1.3inch - Frequency Range:950-2150MHz - Input level Range:-40ï ½Å¾-10dBm - Impedance:75ÃŽ © - Insertion Loss:≠¤5.0dB - Power Supply:13-18V DC - Operating Temperature:0ï ½Å¾40℃ Package Included: 1 Piece Satellite Finder 1 Piece User Manual.If it is, remove the finder and reconnect the receiver with the LNB. If the received signal is not the desired star signal, repeat the above work. - Adjust the knob on the front panel of the finder so that the pointer on the dial points to the "5" position.
