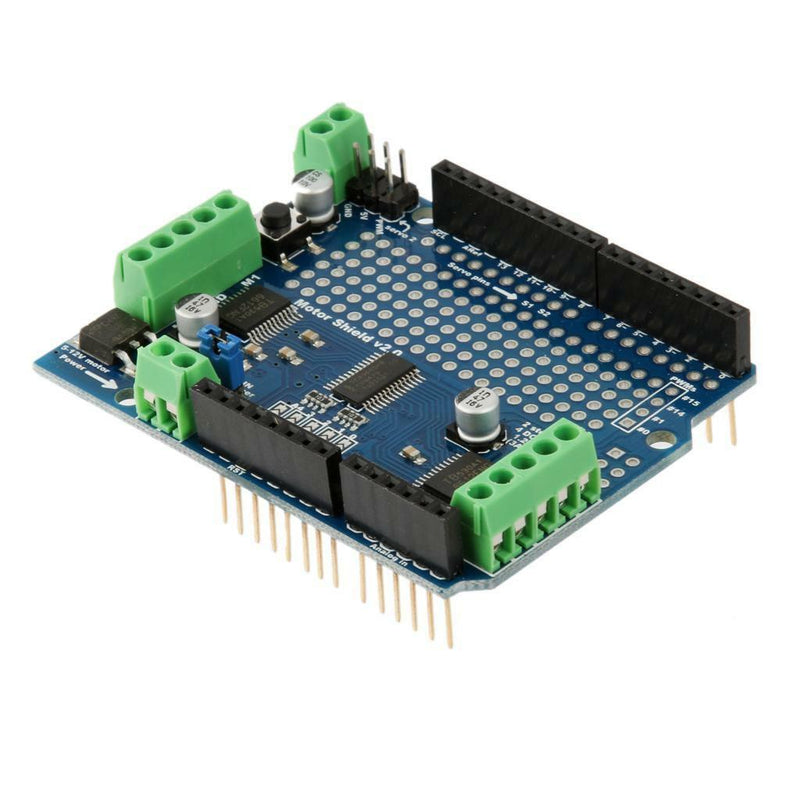

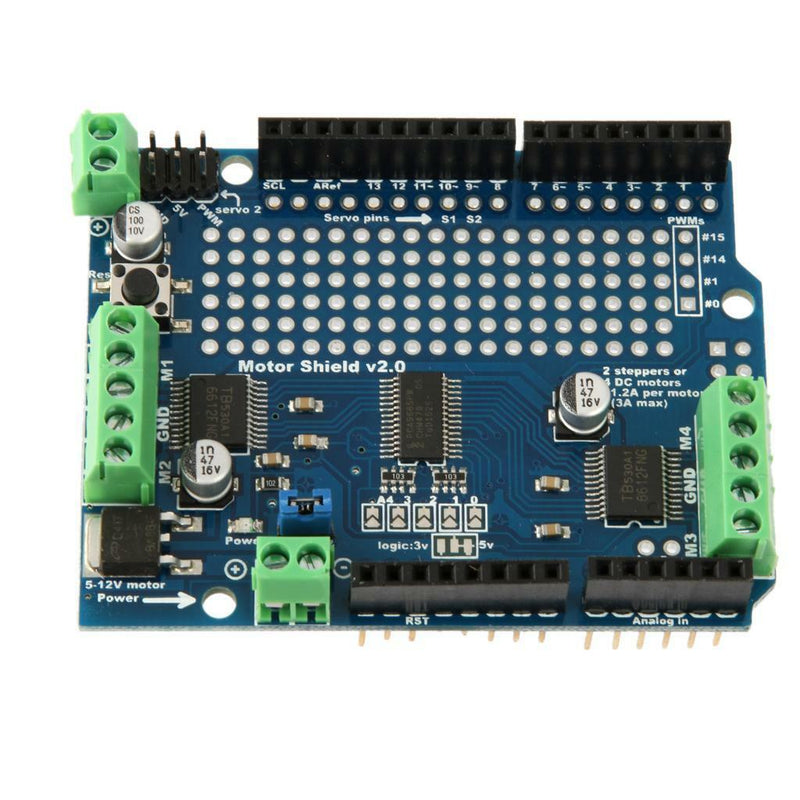

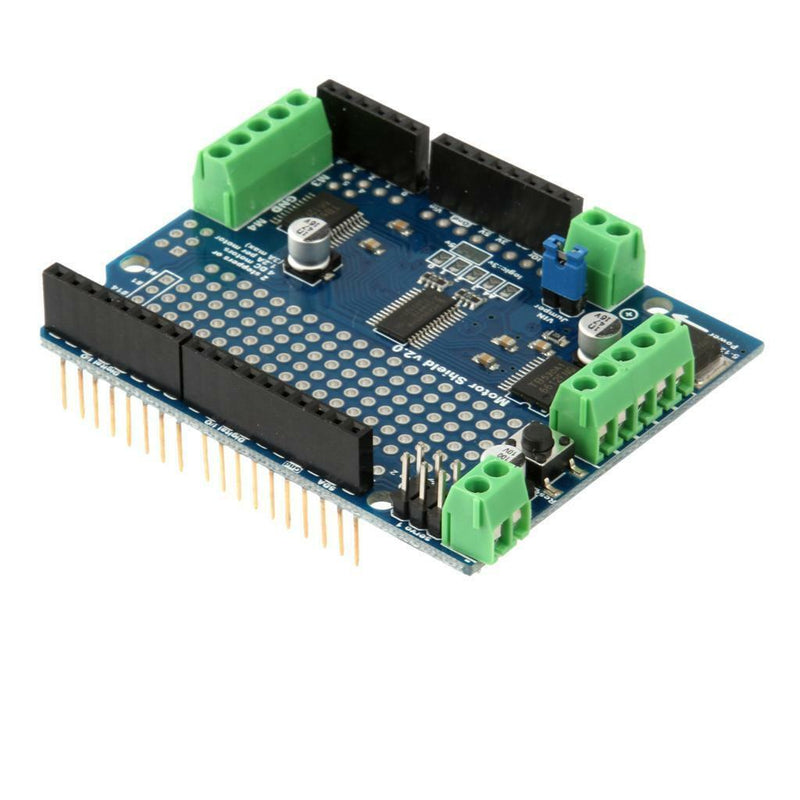

ITEM NAME:Stepper Motor Driver Monster Moto Shield for V2 Kit Description: 2 connections for servos connected to the 's high-resolution dedicated timer - no jitter 4 H-Bridges: TB6612 chipset provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 13.5VDC. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution) Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. Motors automatically disabled on power-up Big terminal block connectors to easily hook up wires (18-26AWG) and power reset button brought up top Polarity protected 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies Tested compatible with UNO, , ADK/Mega R3, Due, Diecimila & Duemilanove. Works with Mega/ADK R2 and earlier with 2 wire jumpers. Size:7*5.3cm Material: Plastic Package includes: 1x Stepper Motor Servo Shield.Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. 1x Stepper Motor Servo Shield. Can run motors on 4.5VDC to 13.5VDC. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution).
