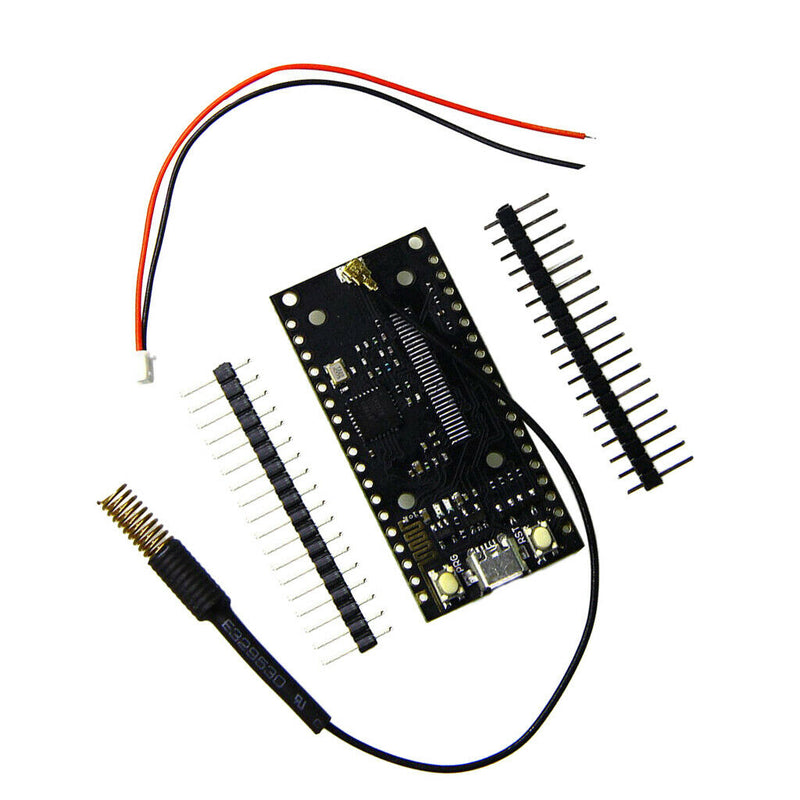

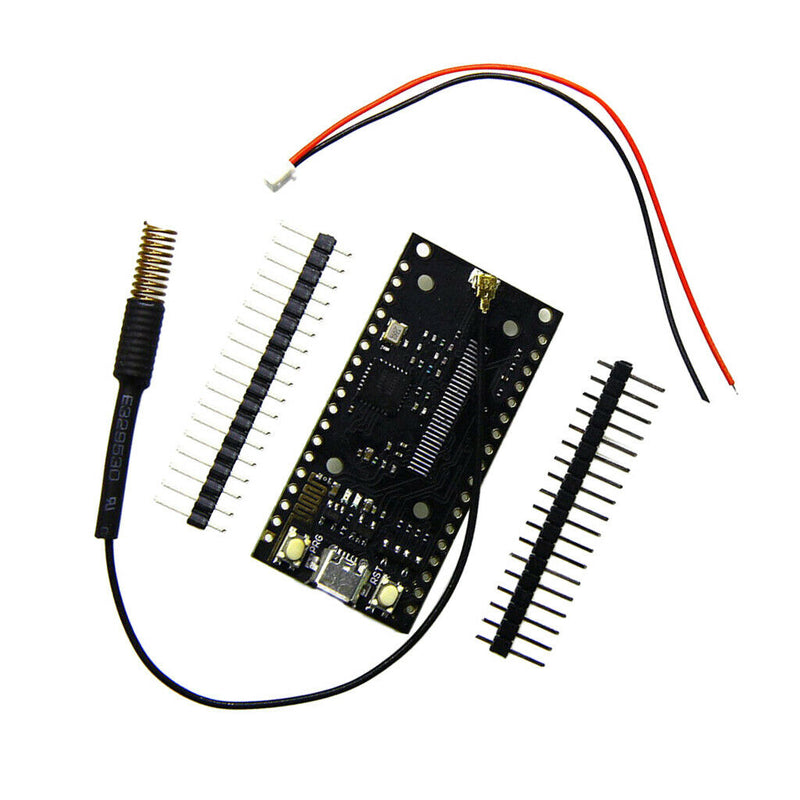

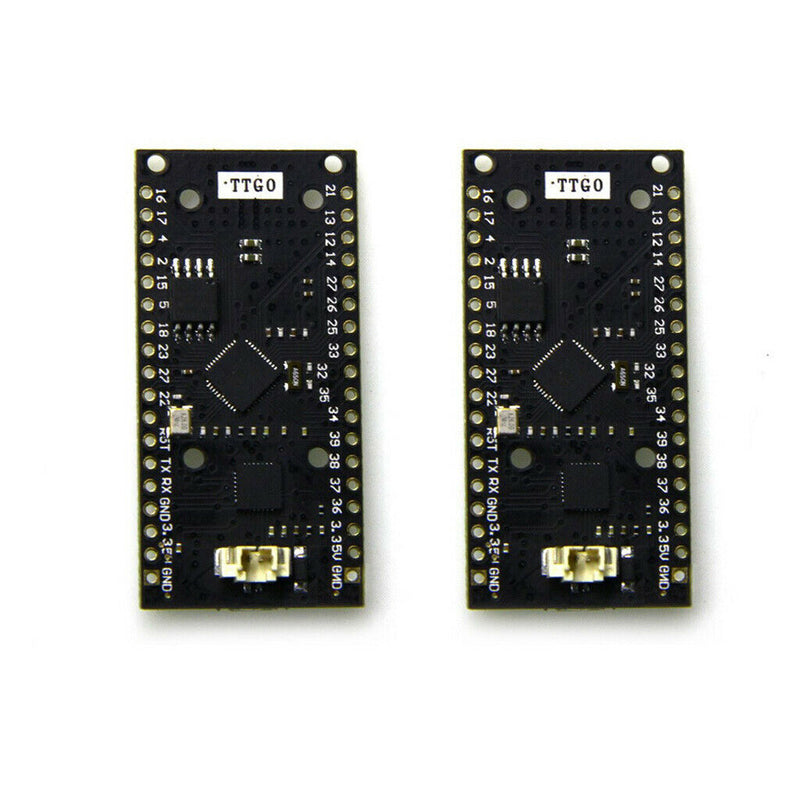

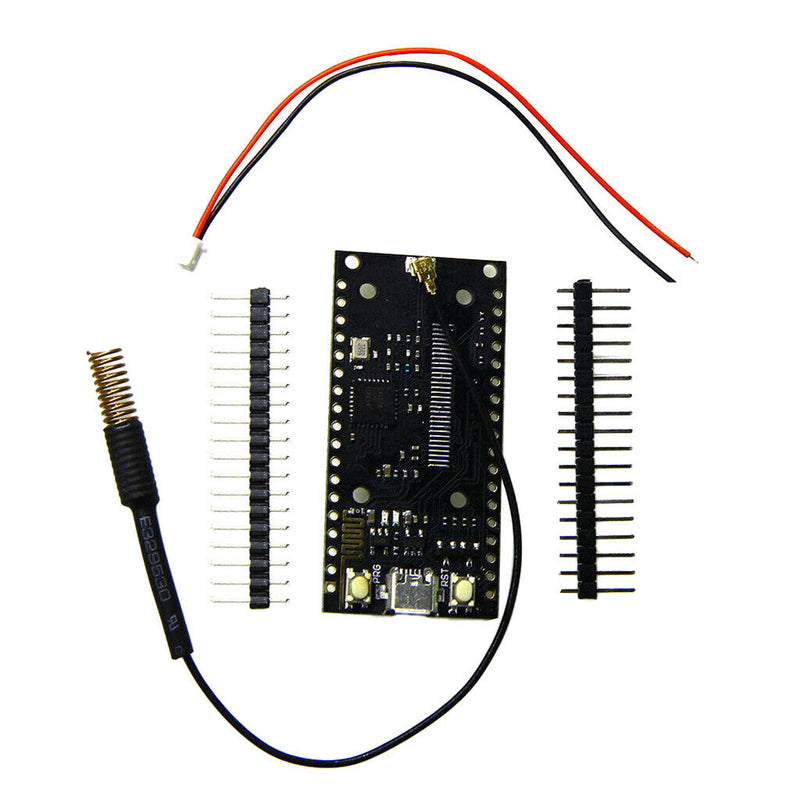

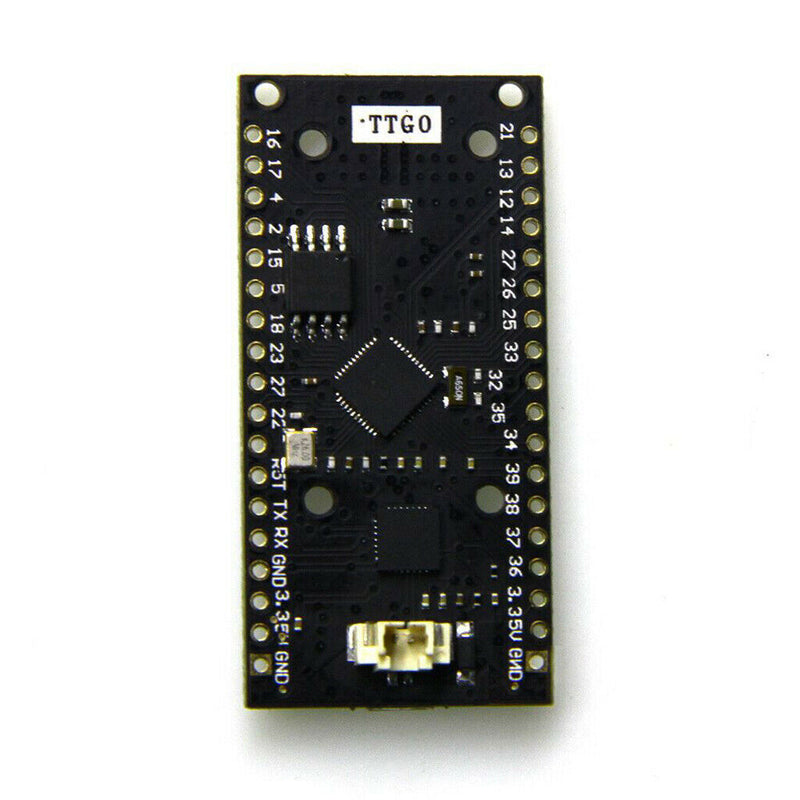

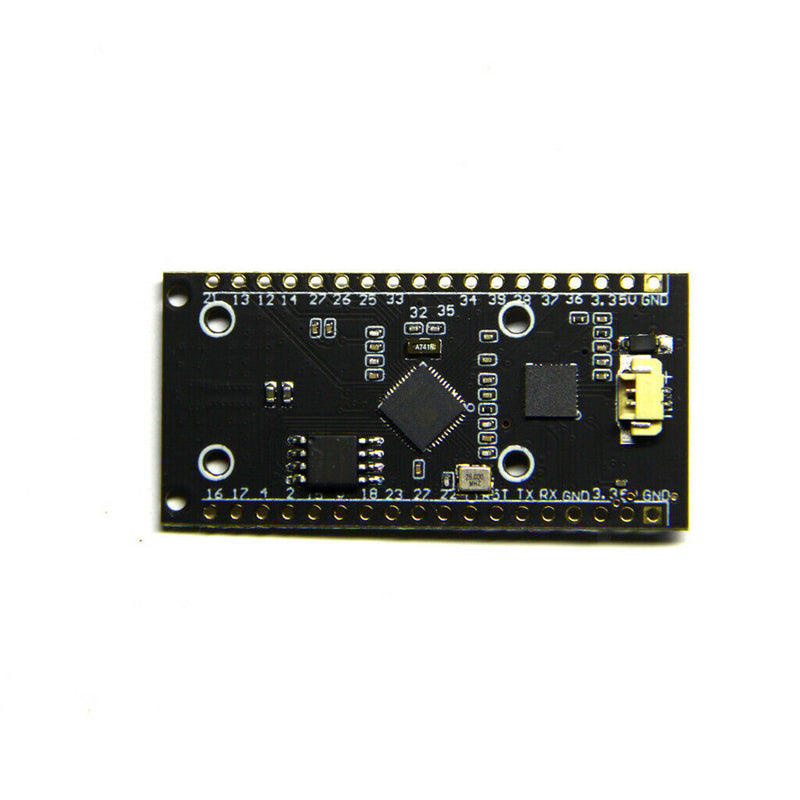

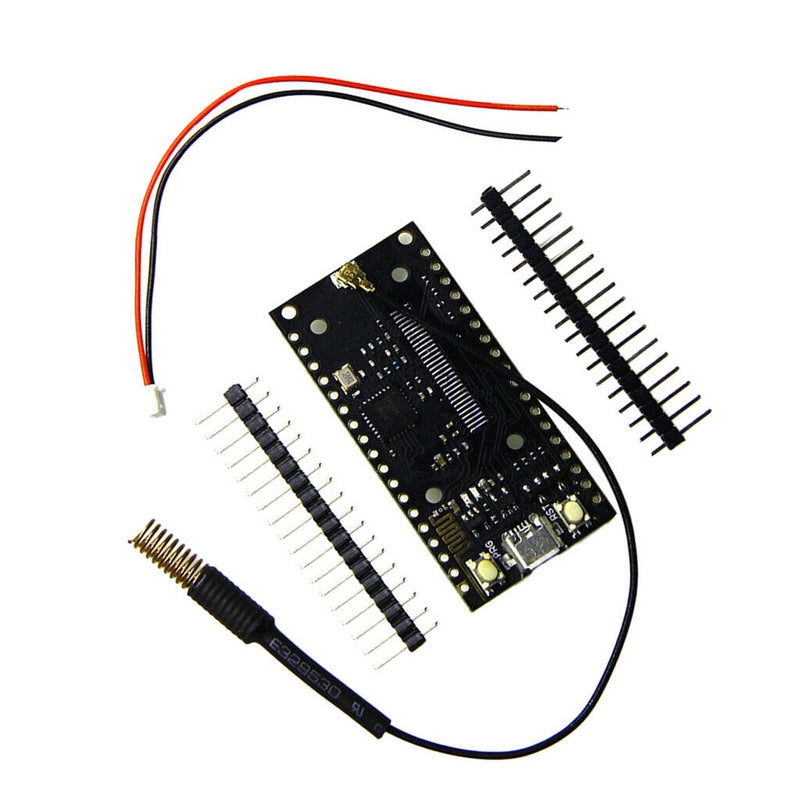

ITEM NAME:SX1278 LoRa ESP32 Bluetooth and WiFi Lora Kit, 32 Module Internet Development Description: The main chip uses Lexin ESP32, Tensilica LX6 dual-core processor, the main frequency is 240MHz, and the computing power is up to 600DMIPS. The chip has 520KB, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode (traditional and BLE low-power Bluetooth). The product is based on WIFI 32 and is added to SX1278 chip, which is LoRaTM remote modem, 433MHz frequency, high sensitivity of about -148dBm, +20dBm power output, high reliability. Onboard 16Mbytes (128Mbbits), Wi-Fi antenna, lithium battery charging circuit and interface, CP2102 USB to serial chip. Support for the development environment for quick and easy program verification and product development. Specification: Material: Electronic component Size: Approx. 53 x 27 x 10mm / 2.08 x 1.06 x 0.39inch Package Includes: 1 Piece SX1278 LoRa ESP32 WIFI Module 1 Piece Antenna 1 Piece Line 2 Pieces Pins Note: Color might be slightly different due to the color calibration of each individual monitor. Please allow slightly measuring deviation due to manual measurement. SKU: DMO0014167977010767.1 Piece SX1278 LoRa ESP32 WIFI Module. The product is based on WIFI 32 and is added to SX1278 chip, which is LoRaTM remote modem, 433MHz frequency, high sensitivity of about -148dBm, +20dBm power output, high reliability.
