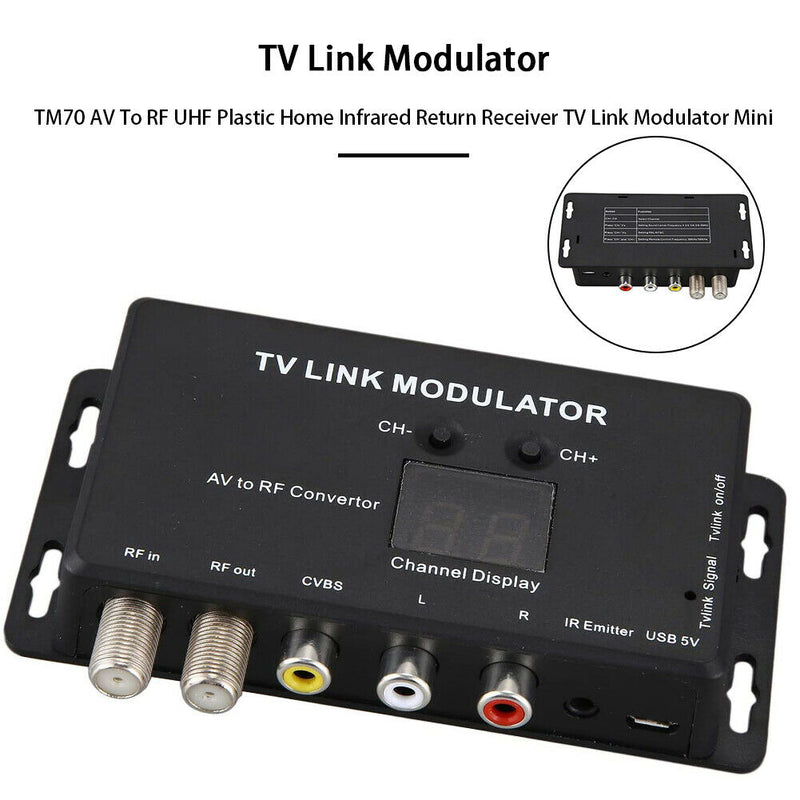

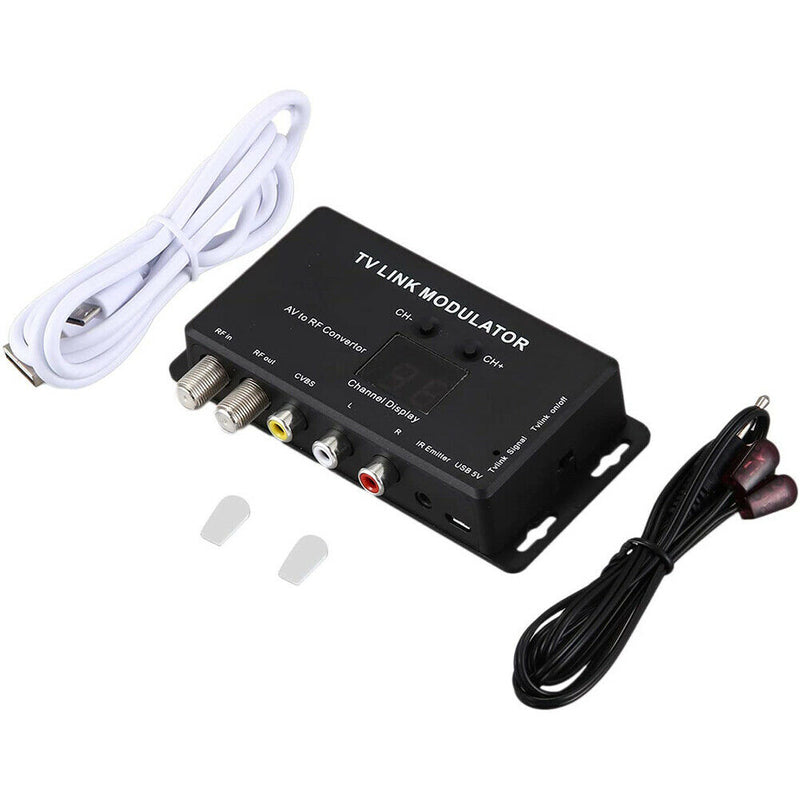

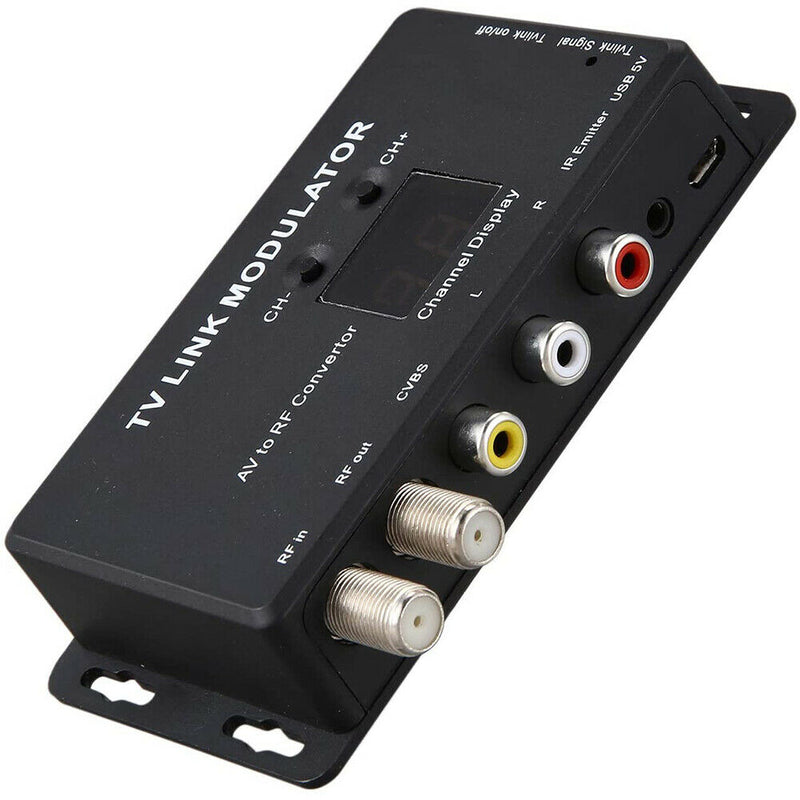

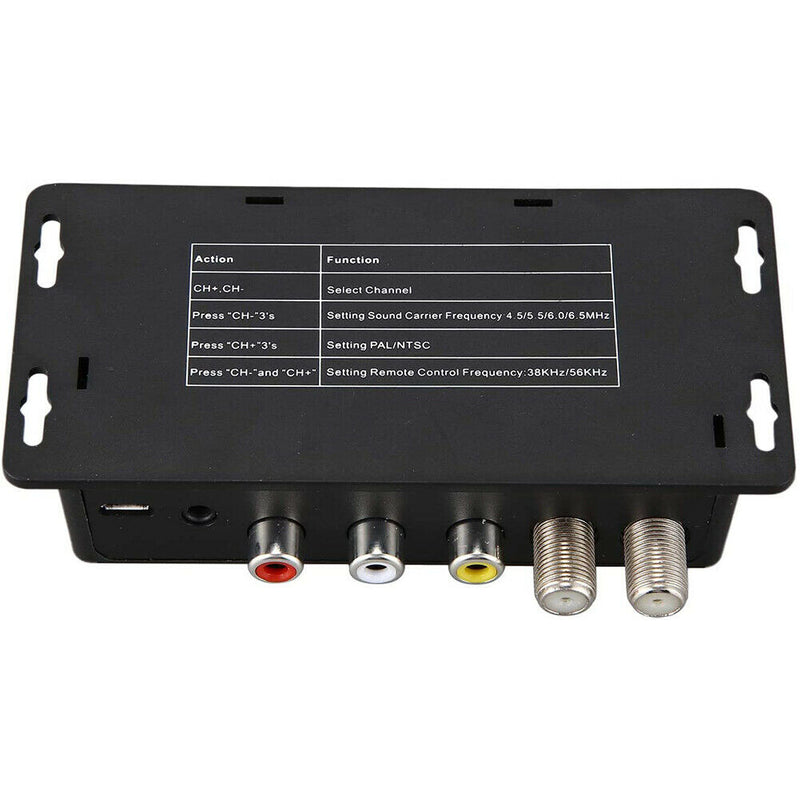

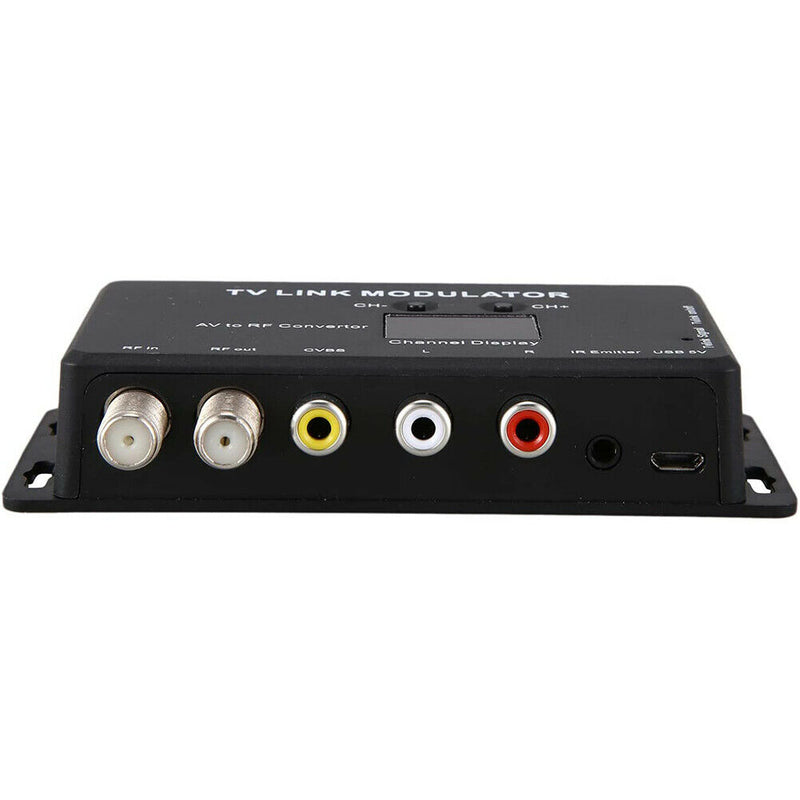

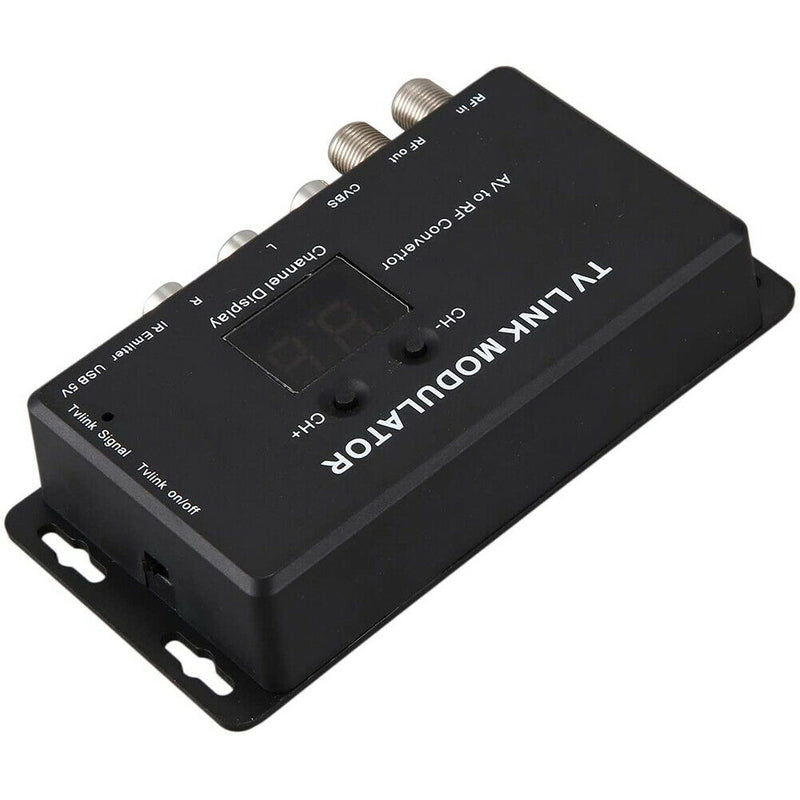

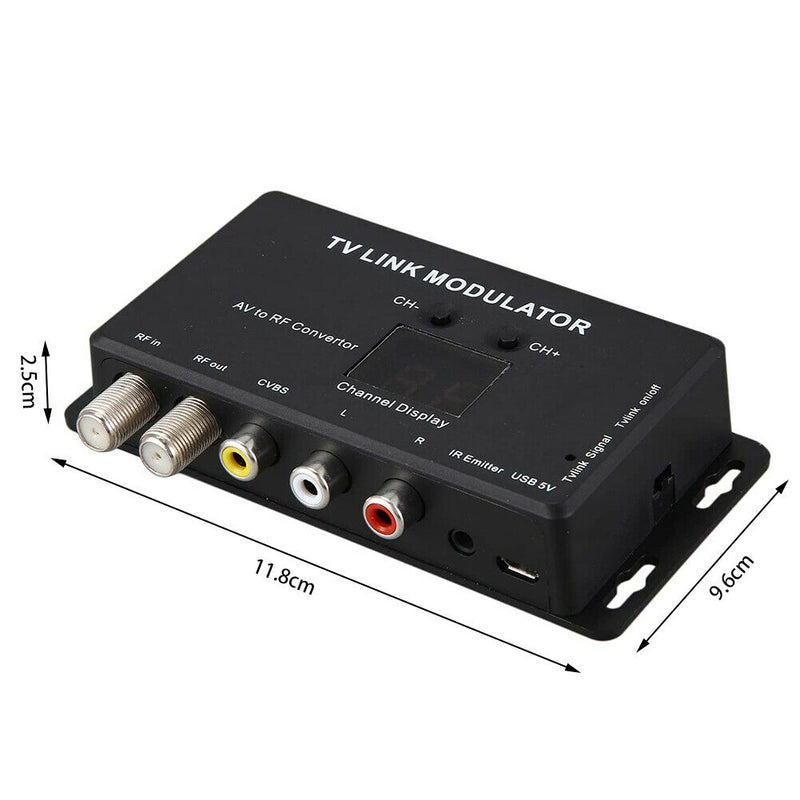

ITEM NAME:TM70 AV To RF UHF Plastic Home Infrared Return Receiver TV Link Modulator Mini Features: Cost effective for your own local CATV system Compatible with set top boxes and other A/V sources UHF modulator -PAL/NTSC selectable Output level adjustable Audio/ video output level adjustable Output channel selectable&;nbsp; RF outputs for use with SLX and TV-Links Specifications: Type: TV Link Modulator Material: Plastic Color: Black Size(L*W*H): About 9.6x11.8x2.5cm Modulator: Standard: PAL/NTSC Channel Range: UHF 21~69 Output Level: 85 ±5dBuV Sound System: M=4.5MHz〠B/G=5.5MHz〠I=6.0MHz〠D/K=6.5MHz A/V Connector: RCA female RF Input: F-female RF Outputï ¼Ë†DC output): F-female (DC outputï ¼Å¡9VDC/100mï ¼â€° IR Emitter:&;nbsp; Remote Control Frequency: 38KHz/56KHz Remote Distance: ≠¥ 8m&;nbsp; Default Factory Setting: Channel 21(471.25MHz)ï ¼Å’PAL/I /38KHz Power Consumption: USB5V at 400mA Operating Temperature: 0℃ ~ +40℃ Package Included: 1pc x TV Link Modulator 1pc x Power Line 1pc x IR Emitter 1pc x Manual Note: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures. 2. Please allow 0.5-2 cm differences due to manual measurement..UHF modulator -PAL/NTSC selectable. Channel Range: UHF 21~69. Type: TV Link Modulator. 1pc x TV Link Modulator. RF outputs for use with SLX and TV-Links. RF Outputï ¼Ë†DC output): F-female (DC outputï ¼Å¡9VDC/100mï ¼â€°.
