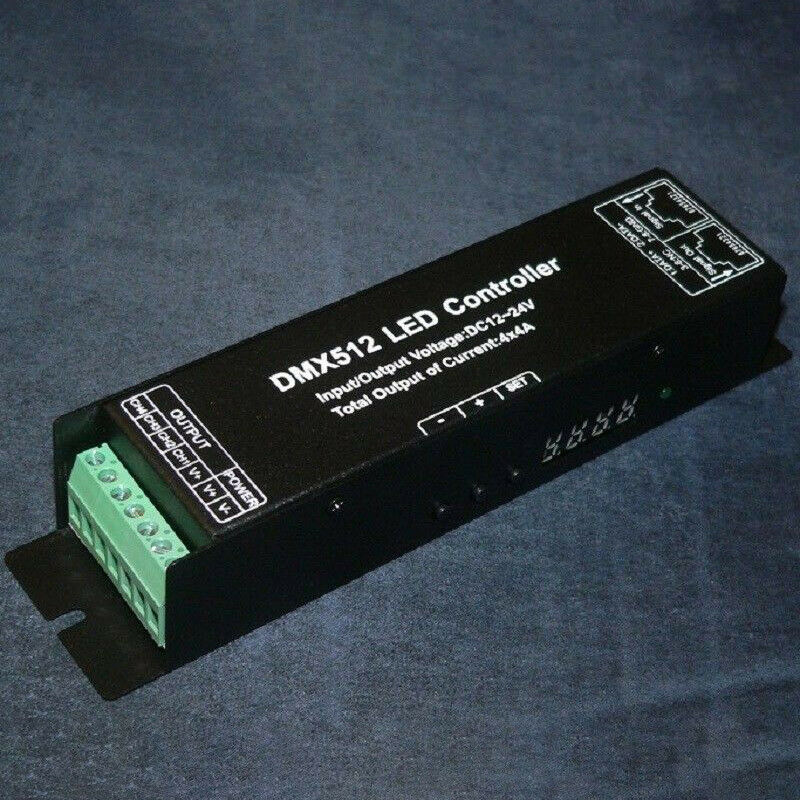

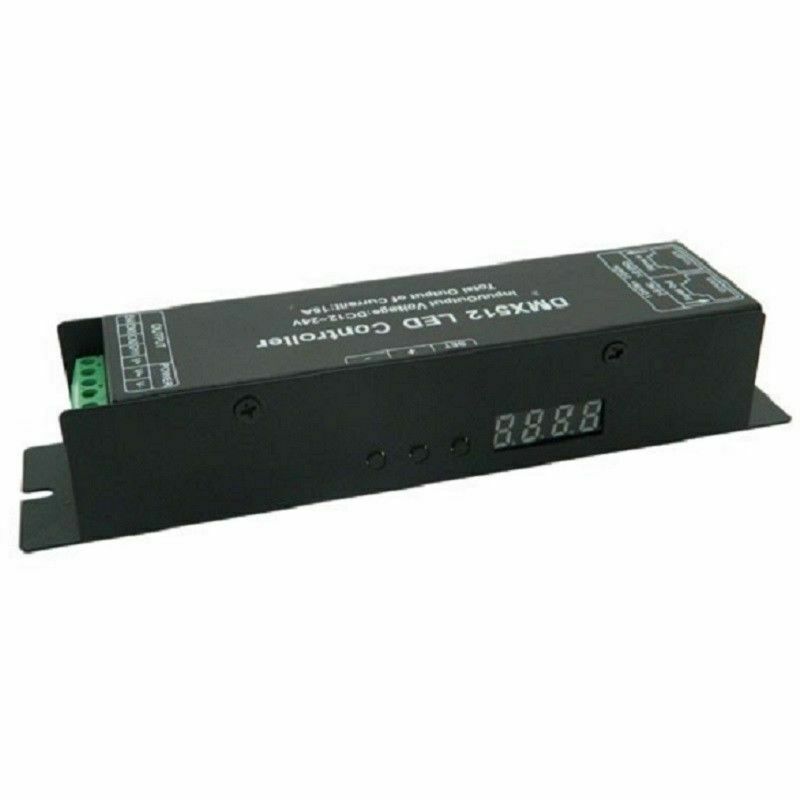

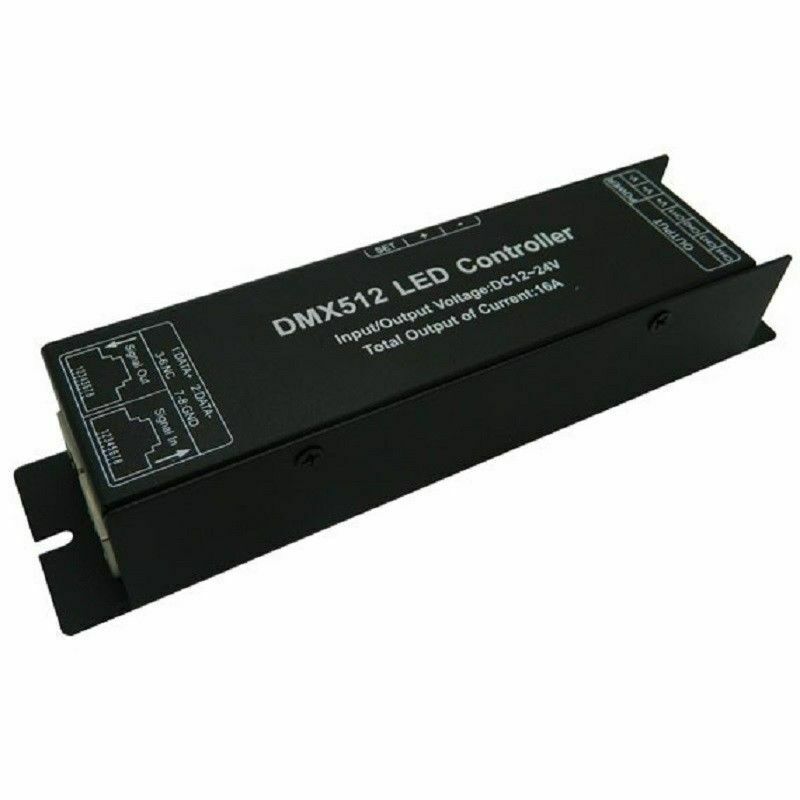

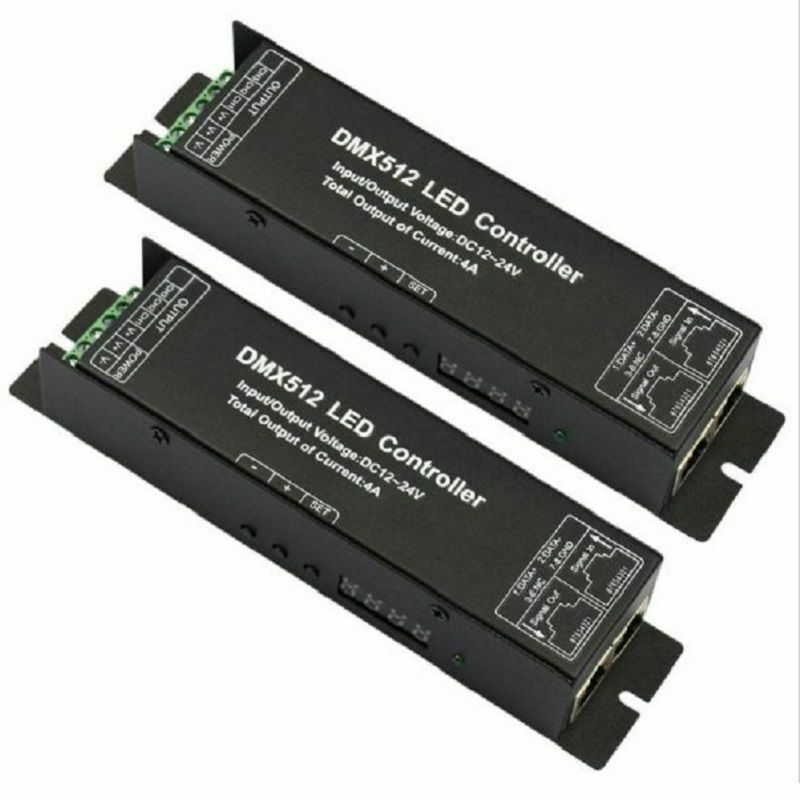

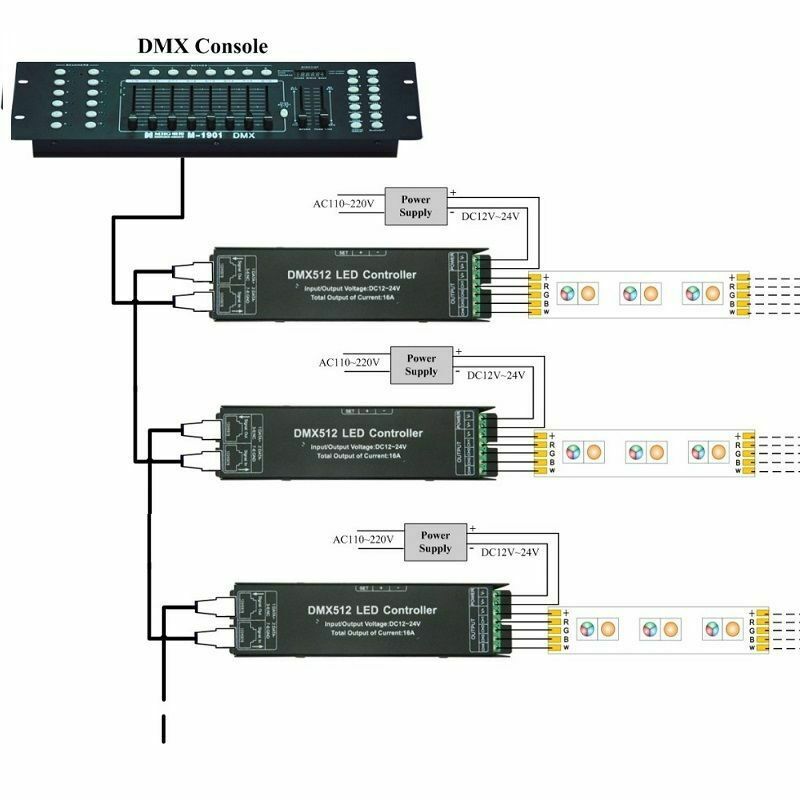

ITEM NAME:Dmx 512 Decoder Driver Dmx512 Rgbw Controller For Rgbw Led Strip Light 12V-2O1L2 Dmx 512 Decoder Driver Dmx512 Rgbw Controller For Rgbw Led Strip Light 12V-2O1L2 The first number on the digital display shows the function icon.A, H or S display optional and the last three numbers show the Arabic date 001-512,If letter "A" is displayed, this means that DMX Controller is in the LTS state and that this decoder is in the state control signal DMX512 and at this time connect with power cord around the decoder to the DMX console.It can be controlled by the DMX console. If the digital display shows "A001", it means that the first one is the address code 001, and the other three channels are 002, 003, 004.If this decoder is connected to the other decoder, then the other decoder first address code is 005, and the other three channels thereof are 006, 007, 008.The DMX controller can be connected to a variety of decoders or controlled alone. If two or more address codes of the decoder are identical, that means that these same address code decoders change in the same effect and they can realize synchronously controlled effects.1) If the first letter "H" is displayed, it means that this decoder is in the built-in mode function and works in the built-in program. The build-in models are as follows:2) When the first letter "S" is displayed, the decoder is in the built-in speed setting state function. In this state, only H-08 and H-09 are valid. Lightly press the SET button to set the speed to the adjustable state and then press the +/- button. So you can realize the 11 steps speed option. Other functions are not effective. Key Function Specification: There are three buttons (Button 1: SET, Button 2: -, Button 3: +) on the decoder, the function of them are as follows:Button SET, mode switch button, press this button last for about 2 seconds, so switch can be the shape of the function A S function (function S to work H) "+" Button: Raise button, increases the last three digit.Find many great new & used options and get the best deals for Dmx 512 Decoder Driver Dmx512 Rgbw Controller For Rgbw Led Strip Light 12V-2O1L2 at the best online prices at shop2india!
