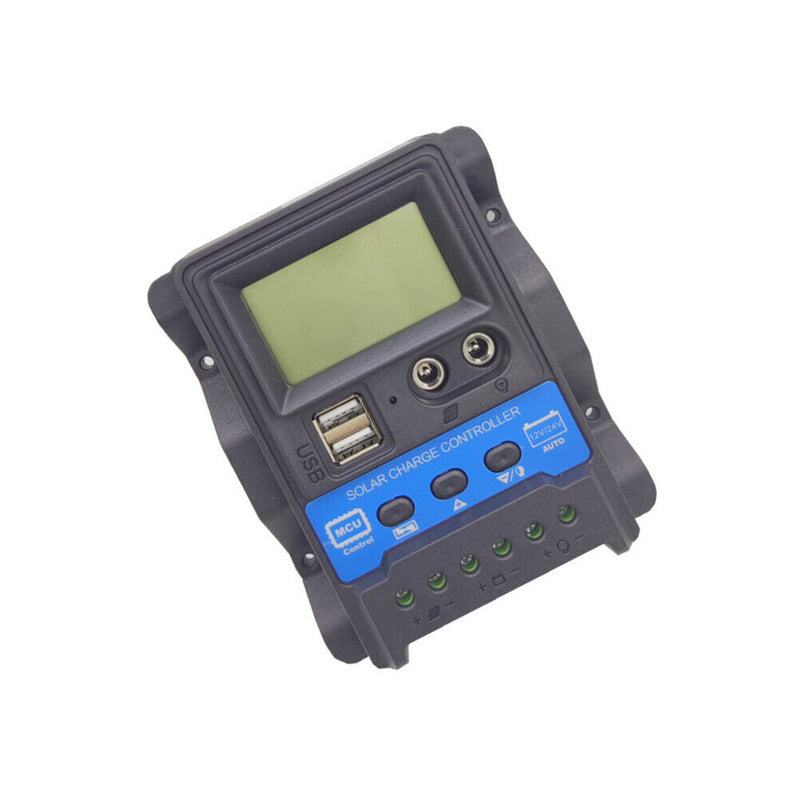

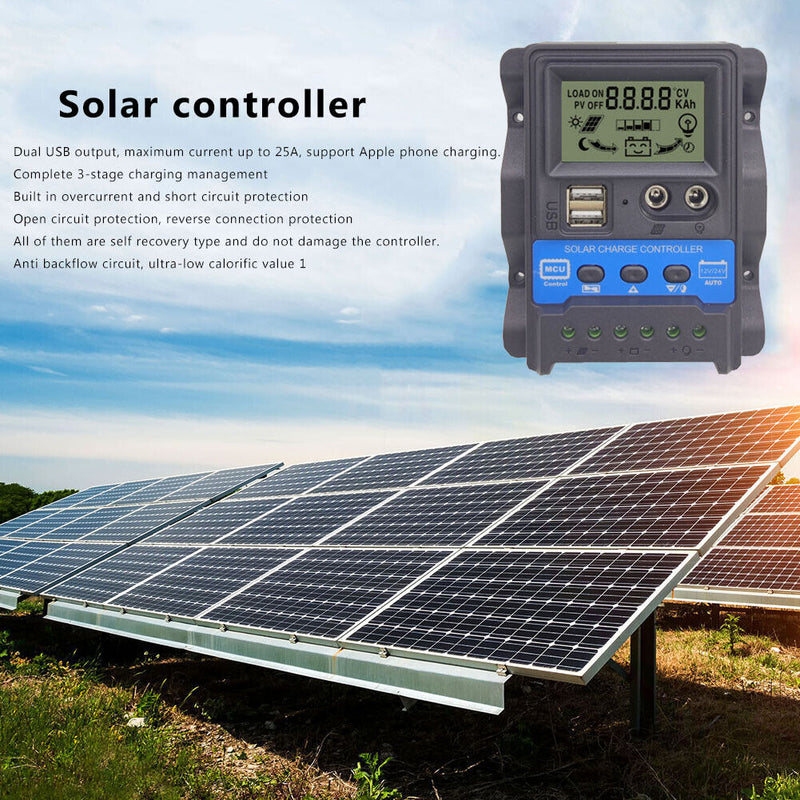

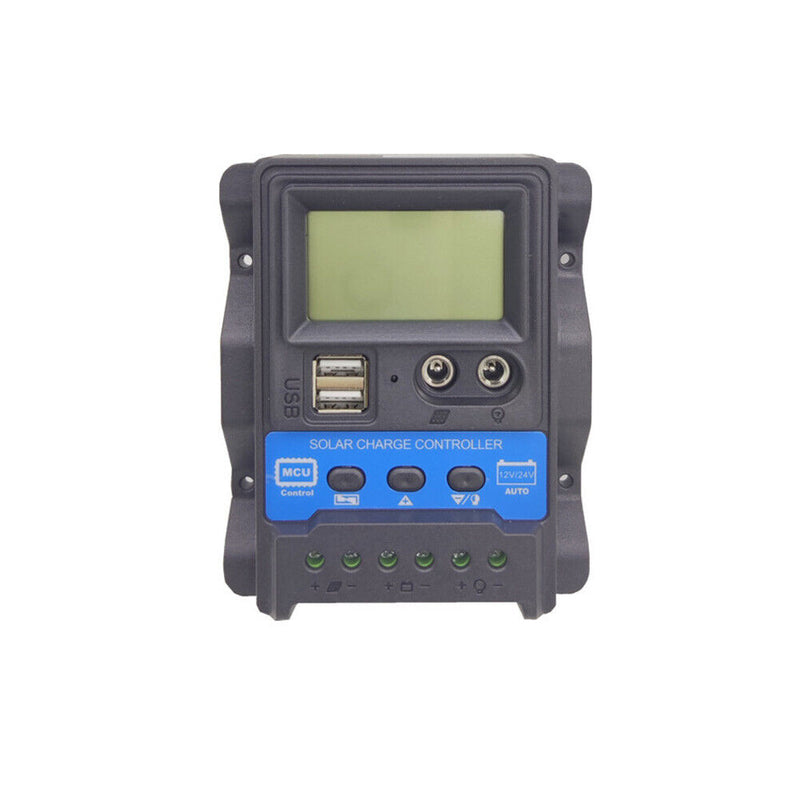

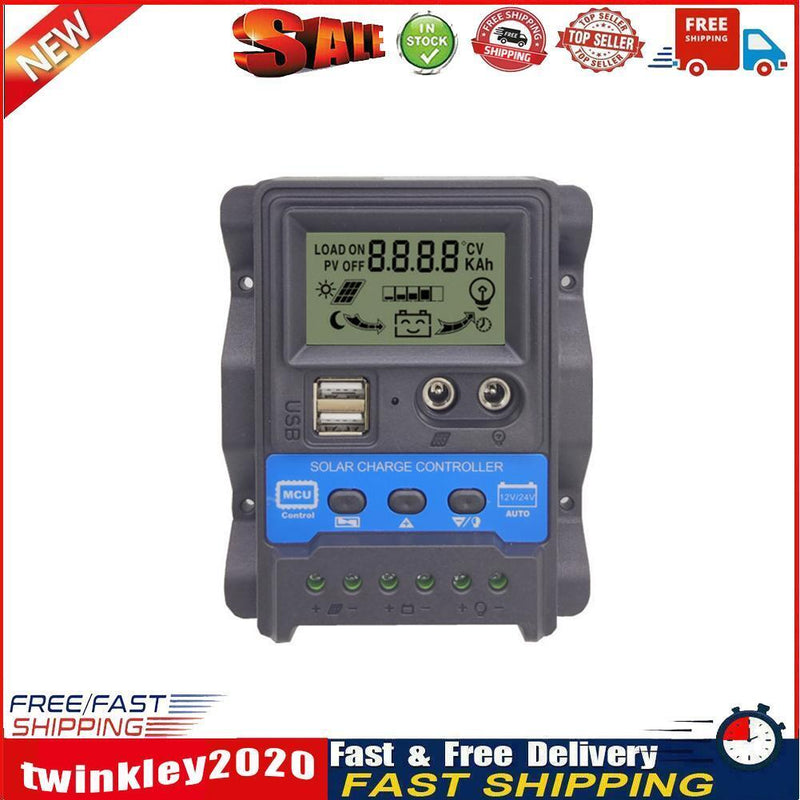

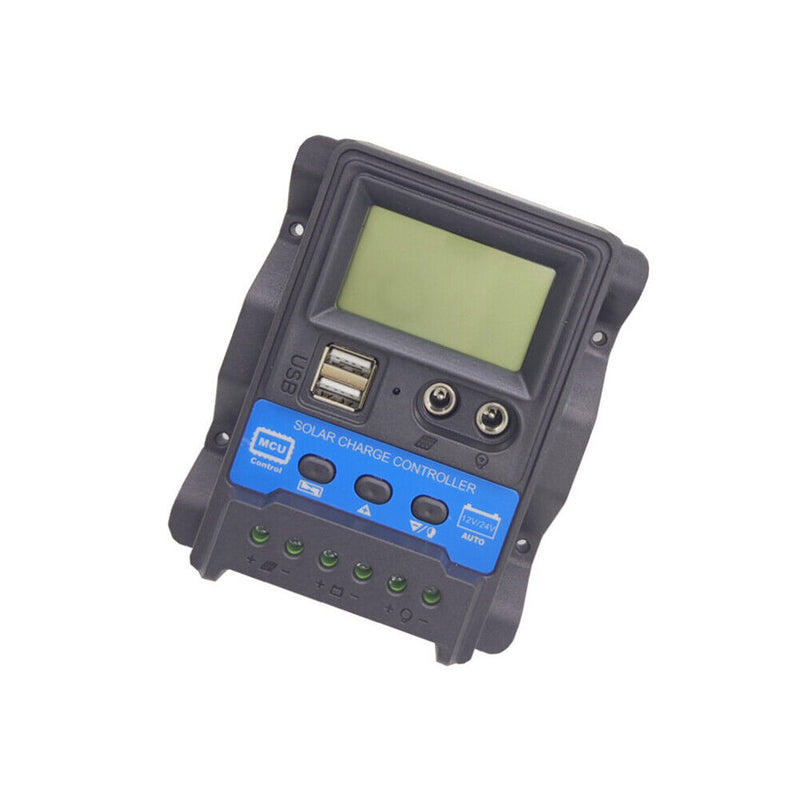

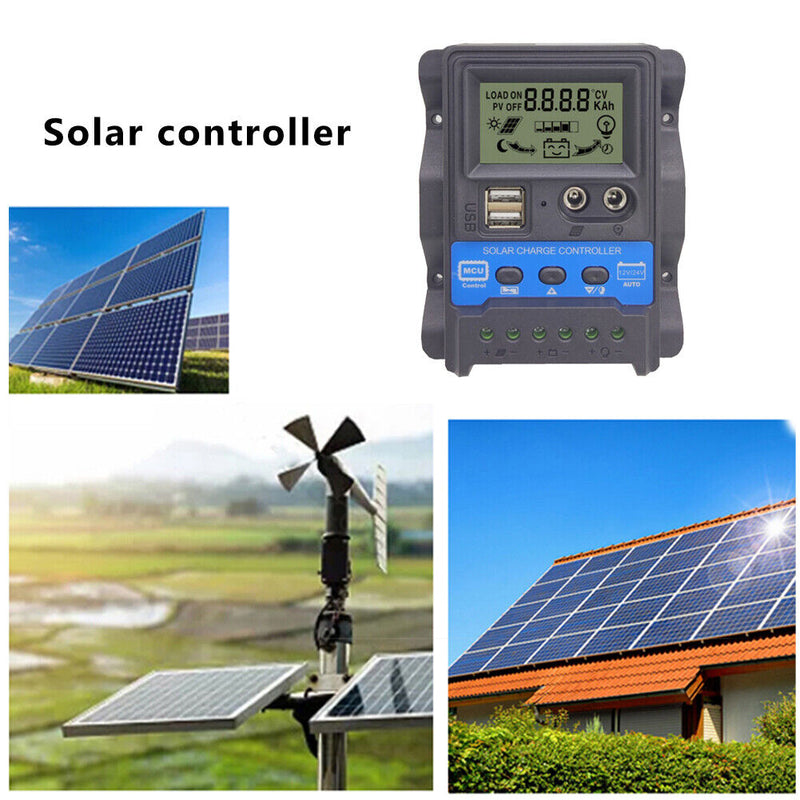

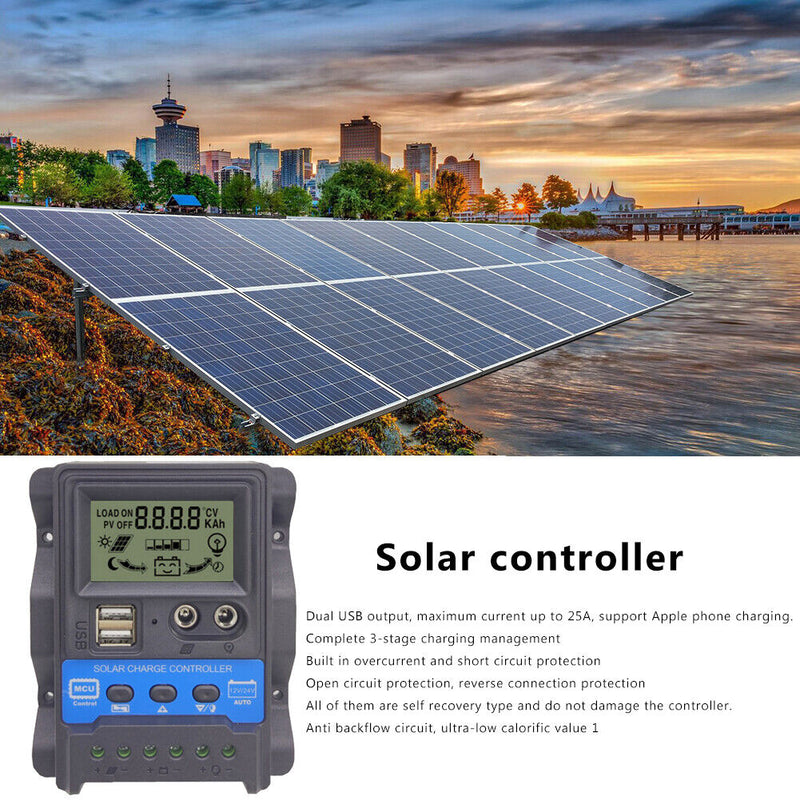

12V/24V Auto Solar Charger Controller with Light Time Control LCD Display PWM Dual USB Output Solar Cell Panel Charger Regulator
Feature:
1. Industrial grade main control chip is adopted.

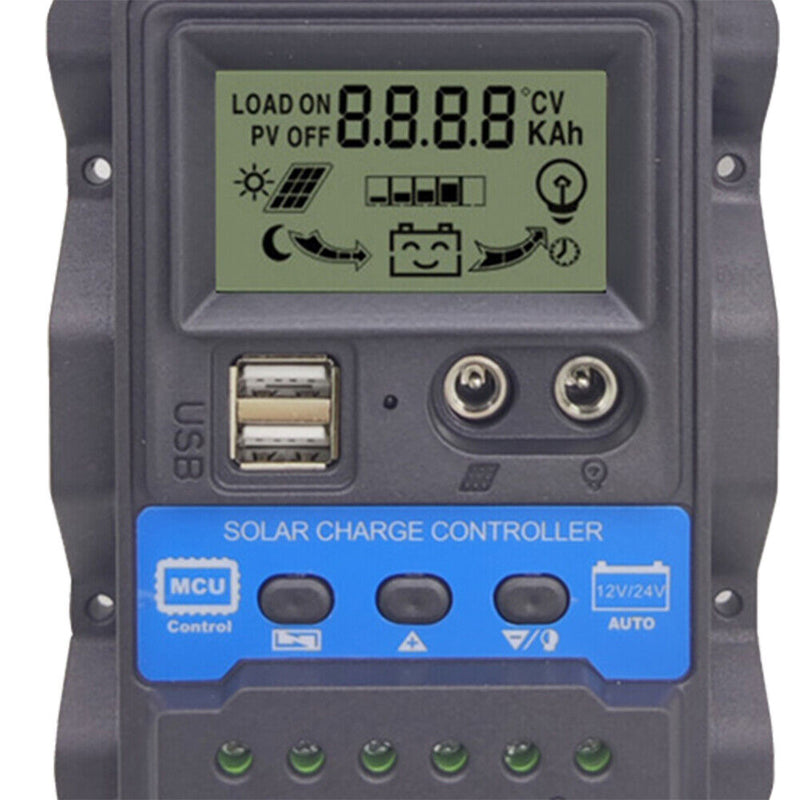

2. Large screen LCD display charge and discharge current display cumulative power generation and discharge quantity query temperature display light control + delay control adjustable charge and discharge parameters with power-off memory and other functions.
3. Double USB output, maximum current up to 25A, support iPhone charging.
4. Complete 3-stage charging management.
5. Built-in over-current, short-circuit protection, open-circuit protection, reverse protection, all self-restoring type, no damage to the controller.
6. Anti-backflow circuit, ultra-low calorific value.
Specification:
System voltage: 12V24V automatic adaptation
Rated charging current 10A / 20A / 30A (it can be purchased as needed)
Maximum photovoltaic voltage: 12V battery, up to 23V 24V battery maximum 46V
Lift charging pressure: 14.4V
Floating voltage: 13.7V (default, adjustable)
Discharge cutout voltage: 10.7V (default, adjustable)
Discharge recovery voltage: 126V (default, adjustable)
Charging recovery: 13V
Light-controlled open light threshold photovoltaic plate: 8V (optical control light is delayed)
Light control switch light threshold photovoltaic plate: 8V (optical control turning light has delay)
USB output: 2-way USB output, 5V / 2.5A (maximum)
Stope current:
