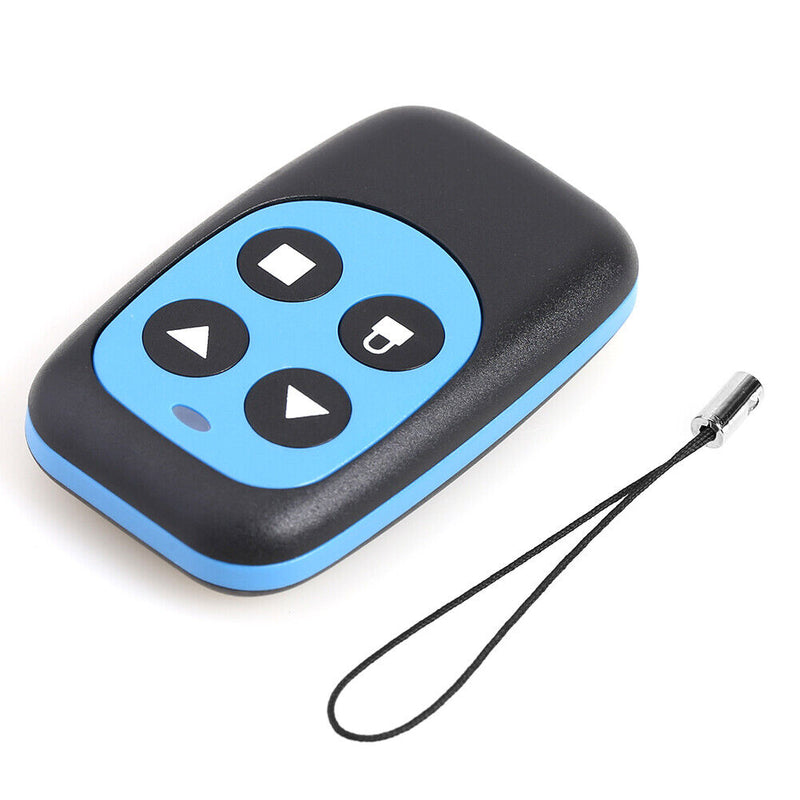

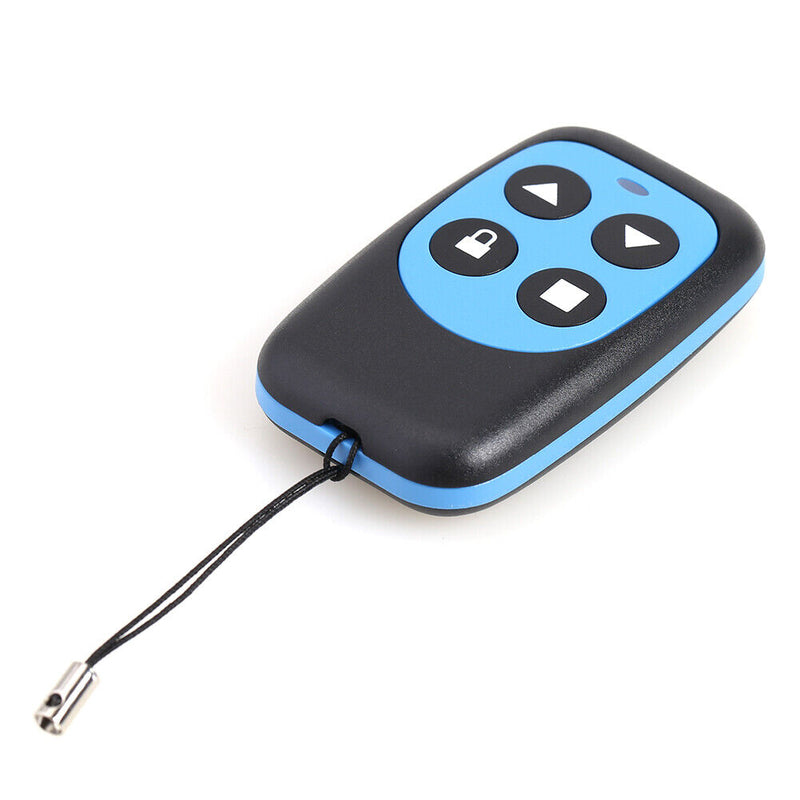

Item Name: 250MHz-868MHz Car Key Garage Door Gate Opener Remote Control Duplicator (A). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
250MHz-868MHz Remote Control Multi Frequency Car Key Garage Gate Door Opener Remote Control Duplicator Clone Fixed Code
Specification:
Button type: A, B (Optional)
Working voltage: DC 12V
Working current: 14mA
Quiescent current: 0mA
Working frequency: multi-frequency
Transmitting power: 10mW
Launch distance: 100m (open environment)
Applications: universal fixed code (chip type 2260, 2262, 2264), learning code (1527, 2240) remote control.
Chip models that supports cloning:
1. HT-12E, 2.AX5326-3, 3.AX5326-4, 4.AX5026, 5.PT2262, 6.PT2242, 7.HT600, 8.HT680, 9.HT6207, 10.HT6010, 11.HT6012 12 HT6014, 13.MC145026, 14.HT640, 15.EV1527, 16.527, 17.PT2260, 18.SMC918, 19.SMC926, 20.HT12D, 21.PT2240B for obstacles, garage doors, car/motorcycle, etc. wireless Copy and reproduction of remote control.
Operation method:
1. Code (learning) Place the original remote control and the copy remote control as close as possible, first press a button on the original remote control, and then immediately after the indicator light turns on, press and hold a button on the automatic copy remote control for about three times Within seconds, the indicator light will flash 3 times and then flash quickly, which means that the address code of the original remote control button has been successfully learned. The operation of other keys is the same as learning. 2. Clear the code Press the unlock button and lock button at the same time for 2 seconds, the indicator light starts to flash 3 times. At this time, press and hold the lock button, release the unlock button, and press the unlock button three or four times within 5 seconds. The indicator light flashes quickly, indicating that the code has been cleared. Test whether the existing remote control code has been successfully cancelled: After completing the clear operation, you can press any button on the remote copy control. If the indicator light does not flash immediately at this time, it will flash after 2 seconds, which means that the copy of the original remote control code has been completely cancelled. If the indicator light still flashes quickly, the code still exists and needs to be cleared again. 3. Restore the cancelled code The remote copy control has a restore function. If you accidentally clear the address code of the ordinary copy remote control during use, you can press the "Start" and "Mute" buttons (the next two buttons) on the remote at the same time. After about three seconds, the indicator light will flash 3 times. It starts to flash quickly, which means that the clean address code has been successfully restored.
Precaution:
1. Before using our remote copy control to copy, please clear the existing code from the automatic copy remote control. 2. Automatic copy remote control cannot copy bearing code, such as hcs301.
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
