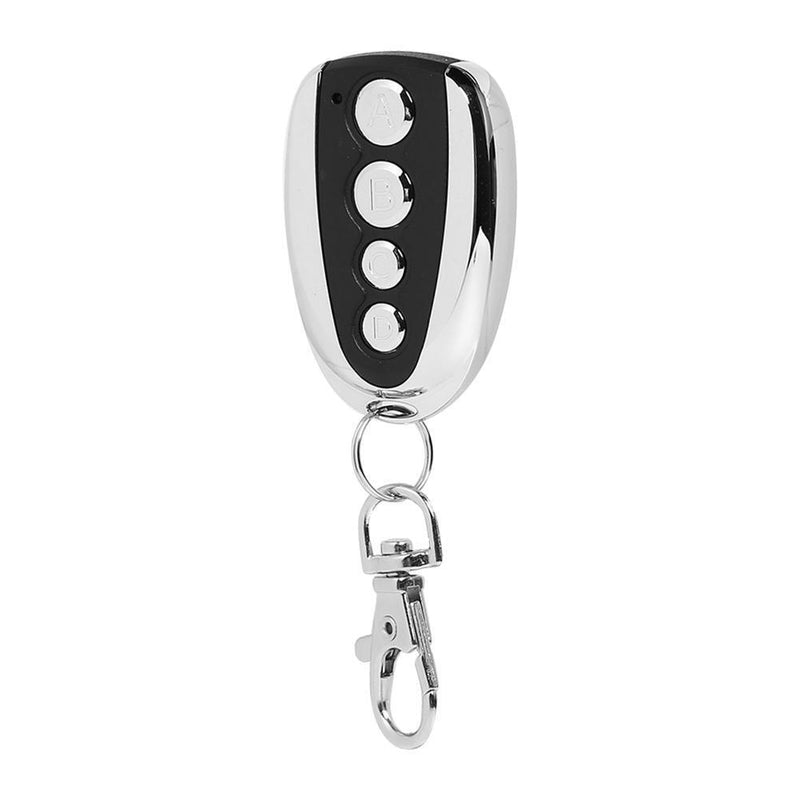

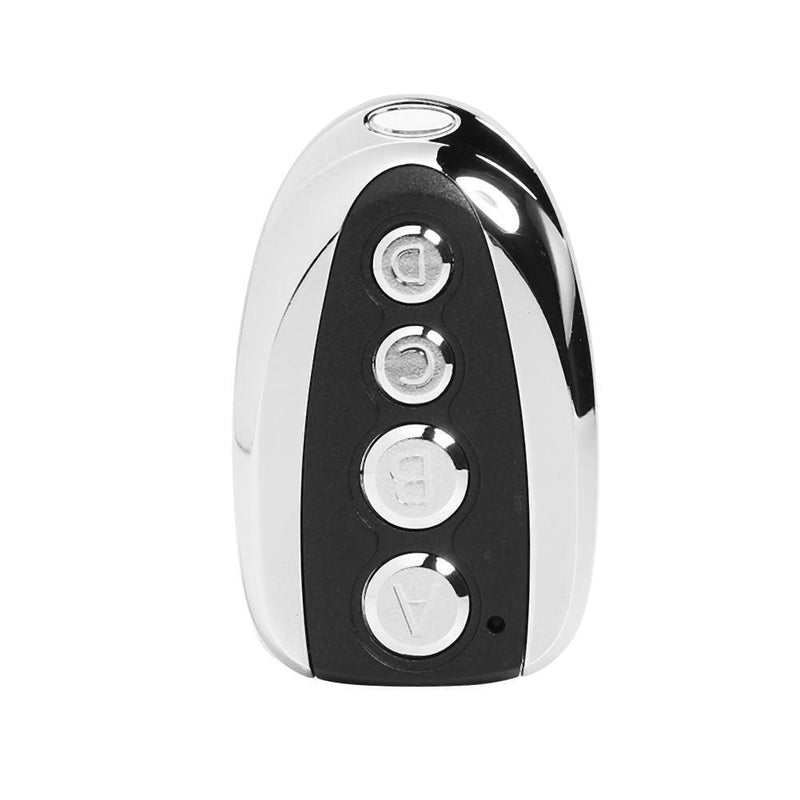

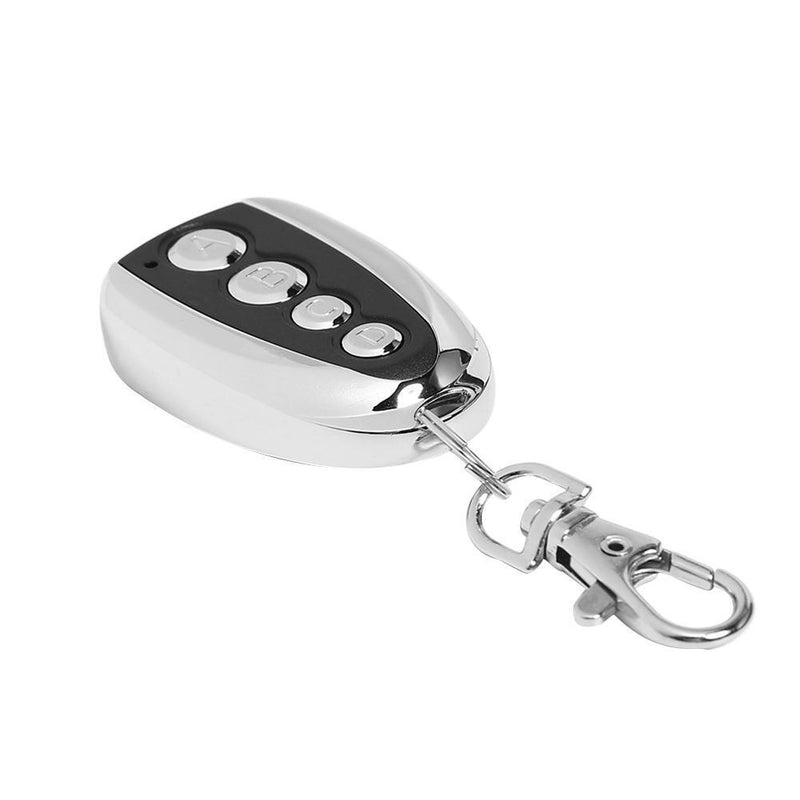

Item Name: 433.92 Mhz Duplicator Copy Remote Control for Universal Garage Door (1pc). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Feature:
This remote control is a copy of the remote control, code, copy the original remote control (original remote control to be able to use normally, the same frequency).
Specification:
Product Material: ABS
Quantity: 1pc, 2pcs
Rated voltage: 12V
Rated current: 8mA
Corresponding frequency: 433.92MHz
Modulation mode: ASK (AM)
Transmission power: 100mW
Wireless transmitting distance: 50-100m (scope of application: garage door, alarm, automatic door, curtain door, lamps, alarm)
Chips in the copy range: 2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527, 1527, 2240
Product size: 50*30*10mm/1.96*1.18*0.39''
Packing weight: 40g
Method of Copying:
1. Code cleaning method:
Press the unlock button and lock button at the same time(some shells are the up button and down button), after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.
2. Copying:
One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same.
Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.
3. Tips: if you reset the code of remote control and want to recover, press two keys until LED light flicks.
Warm Tips:
In the configuration and selling process, most clients wish to replace the original remote control with a general remote control, You may configure your remote control within 20 seconds if you meet the following three
