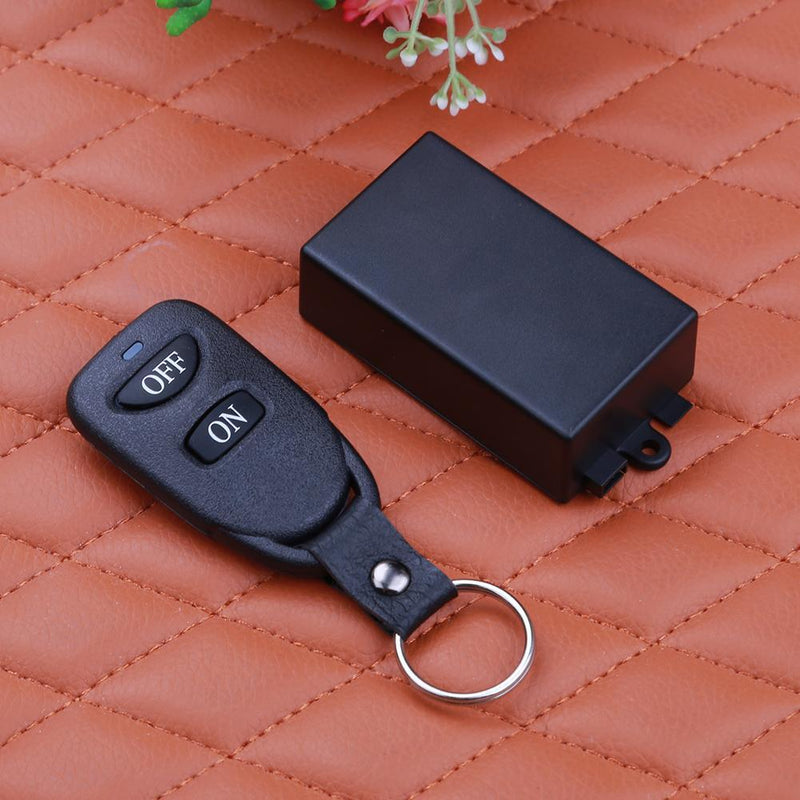

Item Name: AC 180-240V 433MHz 1 CH Channel Wireless RF Relay Remote Control Switch. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Features:

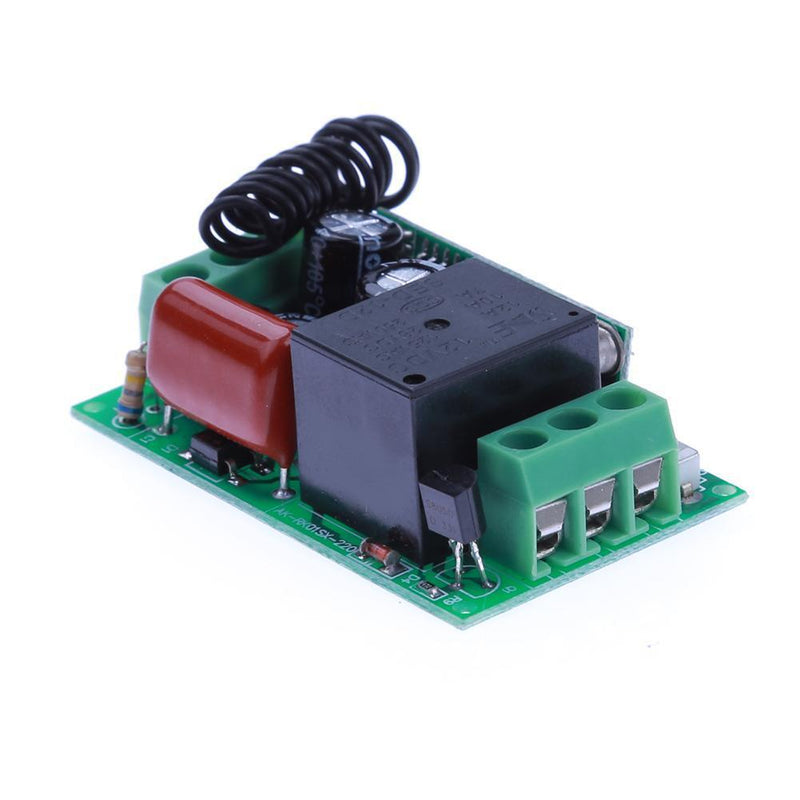

This 220 volt single way remote control switch adopts 10A relay, and can load 1500 Watt appliance.
A remote controller controls a plurality of switches, and a plurality of remote controllers can control a switch, easy to use.
Mainly used in lamps, electric doors, windows, lifting equipment, gates, hoists, industrial control and security industries.
Specifications:
Specifications:
Operating voltage: AC 180-240V
Operating temperature: -40~80 degrees
Operating frequency: 315/433MHZ(default 315MHZ)
Receive sensitivity: -95dB
Remote control distance: 20-40m
Product size:

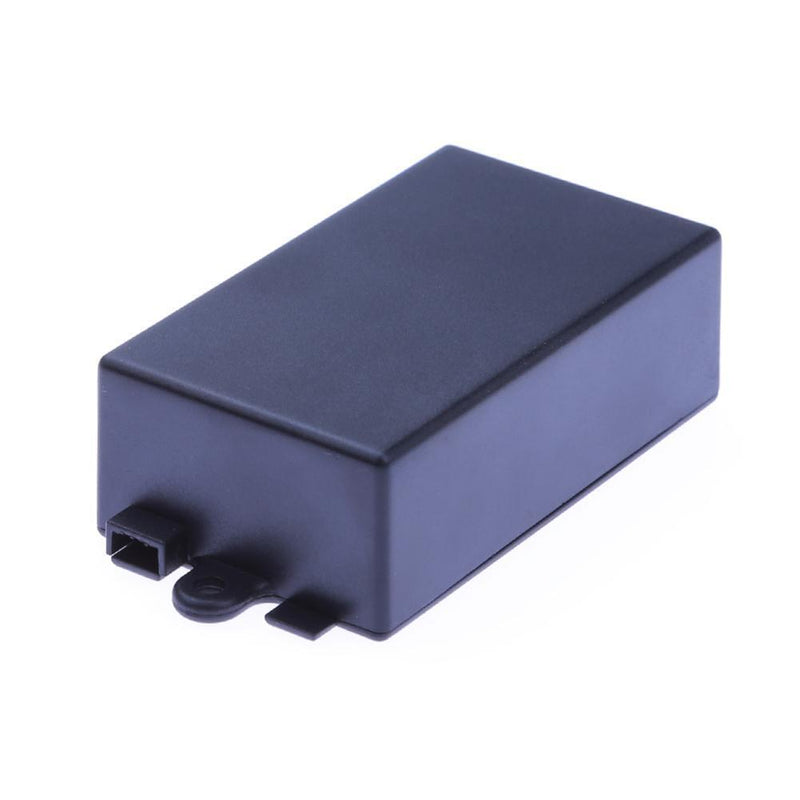

Switch size: approx. 80 x 38 x 22mm/3.15 x 1.49 x 0.87in

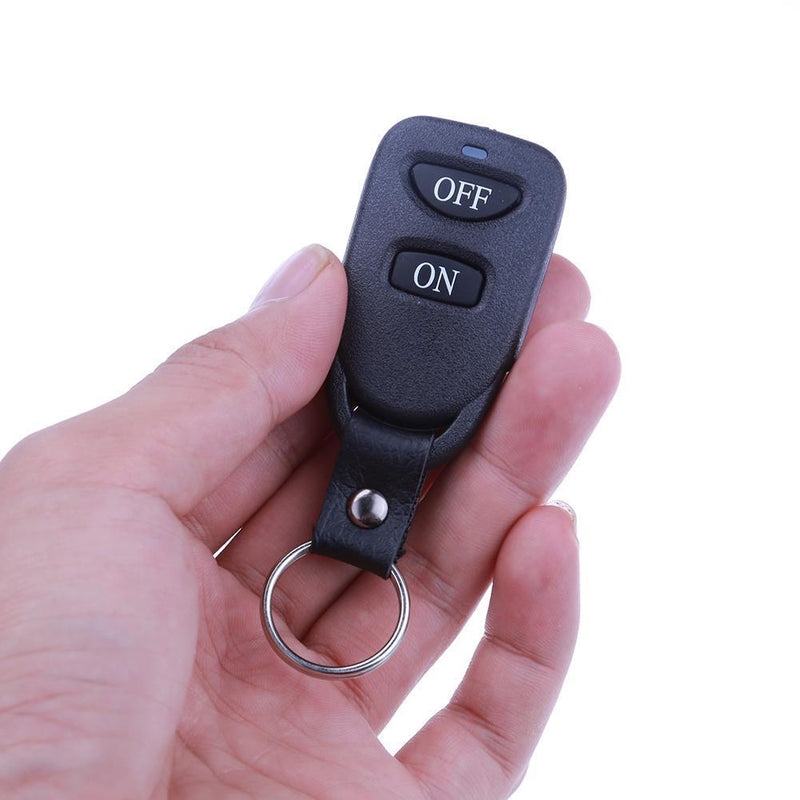

Remote Control size: approx. 65 x 35 x 15mm/2.6 x 1.38 x 0.59in
Product weight:
Control panel weight: approx. 39g
Remote control weight: approx. 22g
Material: ABS
Working Mode: Self locking, Point action and interlocking
Operation Manual:

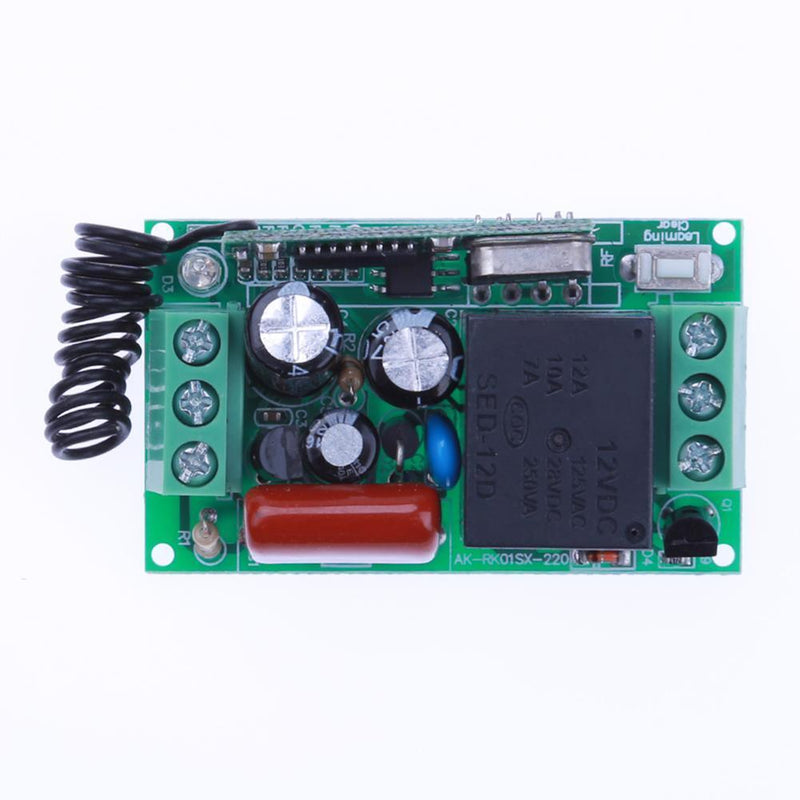

Press the learn button for three seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes four times to show the success of the study.
Note: The controller can learn the fixed code / learning code, total 20 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.
Removal method:
Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.
Work mode switching:
Short circuit 1, 2, 3 different ways to switch work.
1. Point action---Short circuit empty
2. Self locking---Short circuit 1,2
3. Interlocking----Short circuit 2,3
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
