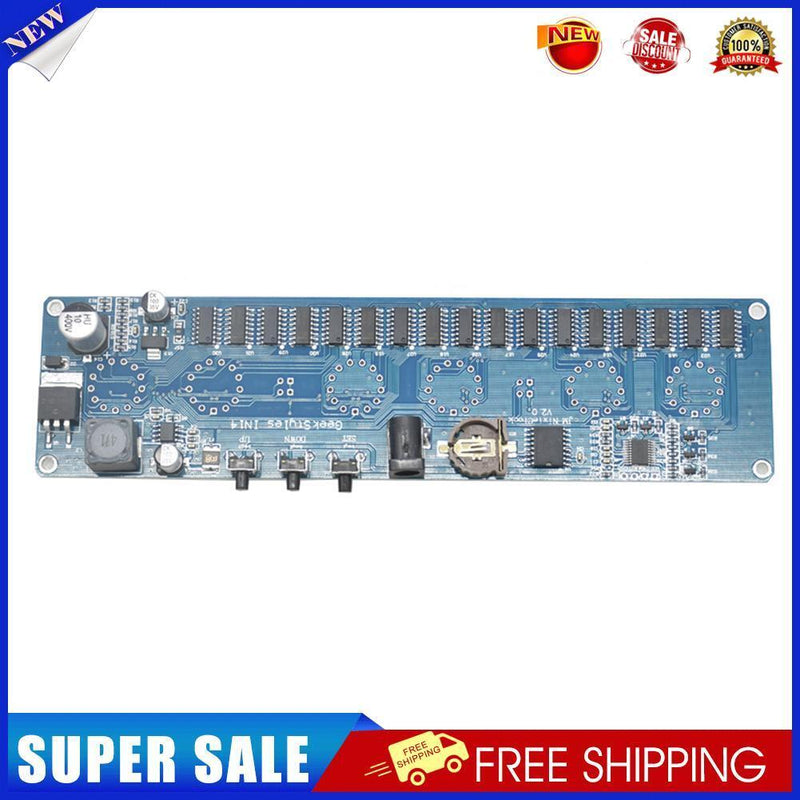

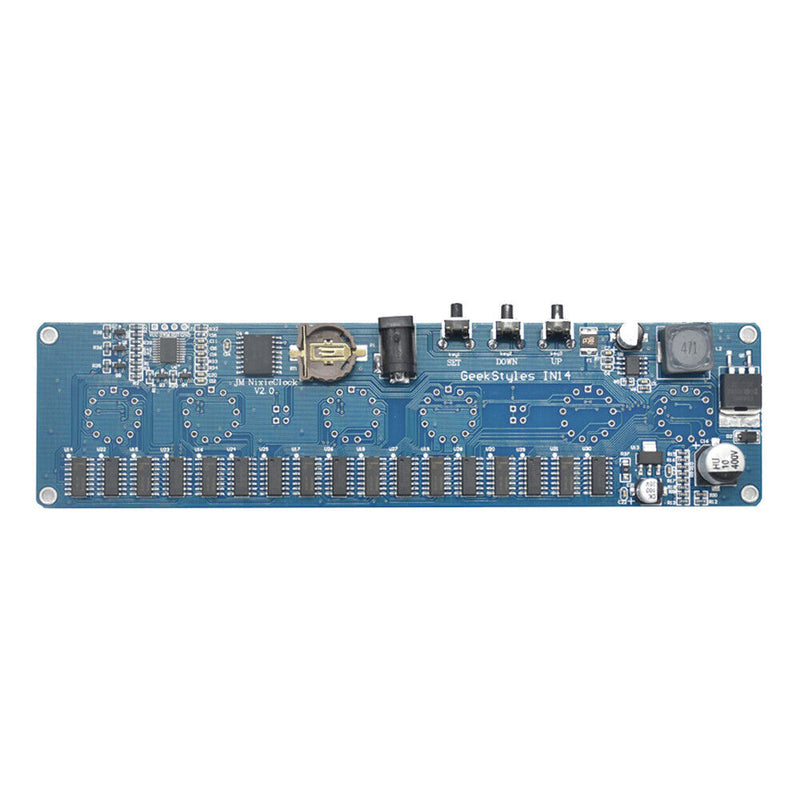

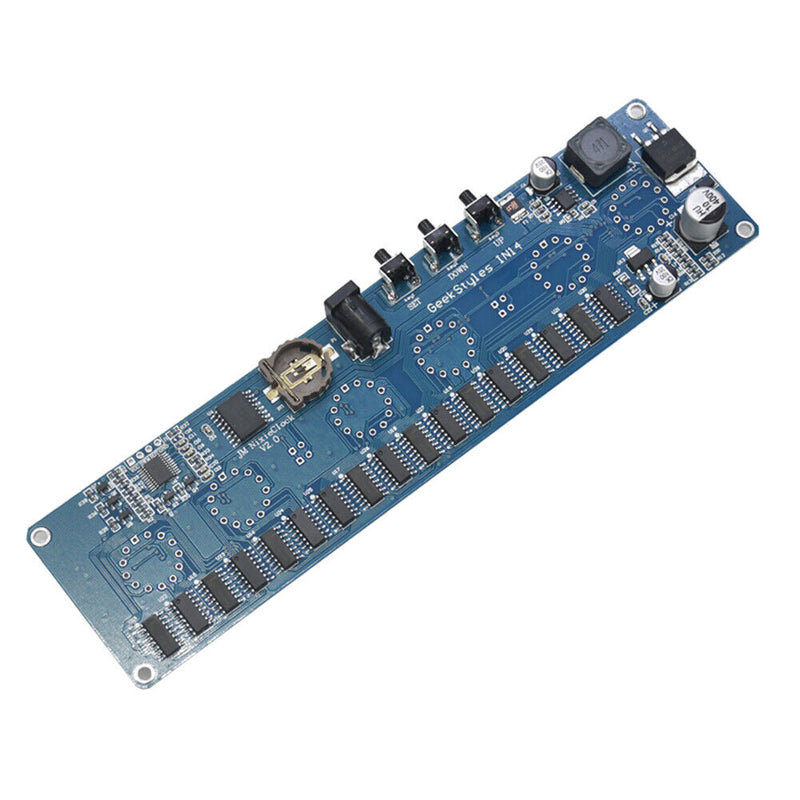

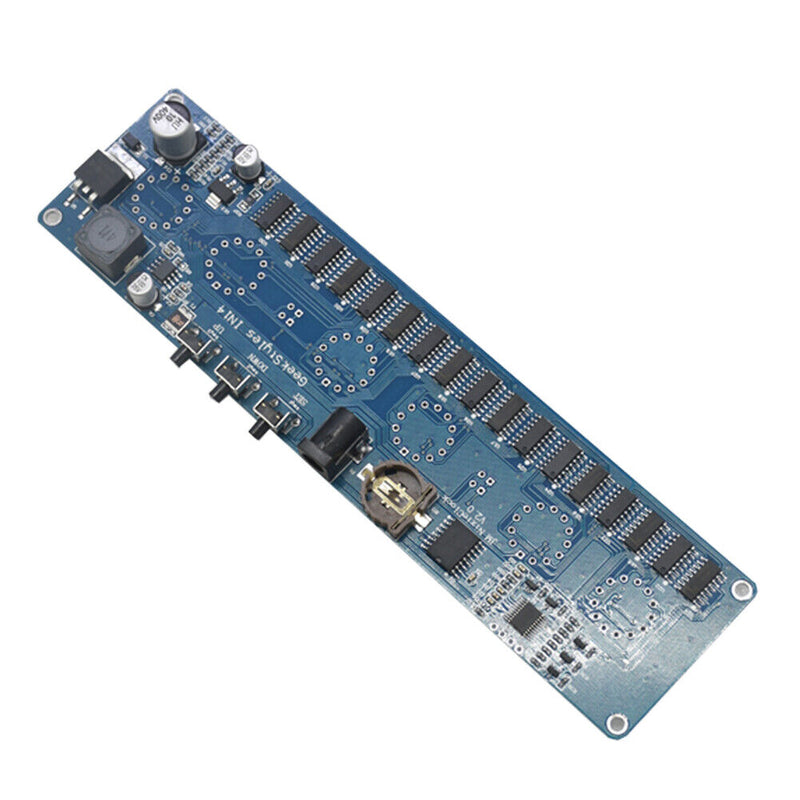

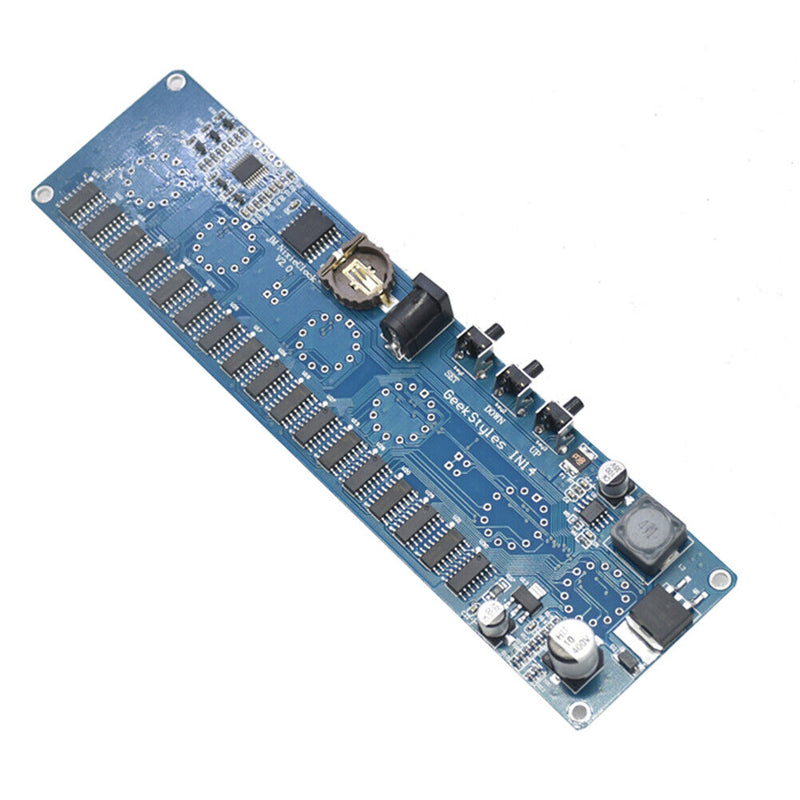

Item Name: IN14 12V Nixie Tube RGB LED Digital Clock Module Circuit Board (NO Shell). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
IN14 DC 12V 1A STM8S005 Control Nixie Tube RGB LED Digital Clock Module Kit DIY PCBA Circuit Board with Acrylic Shell
Feature:
1. Input: 11V-13V, 1A, DC power supply (5.5-2.1).

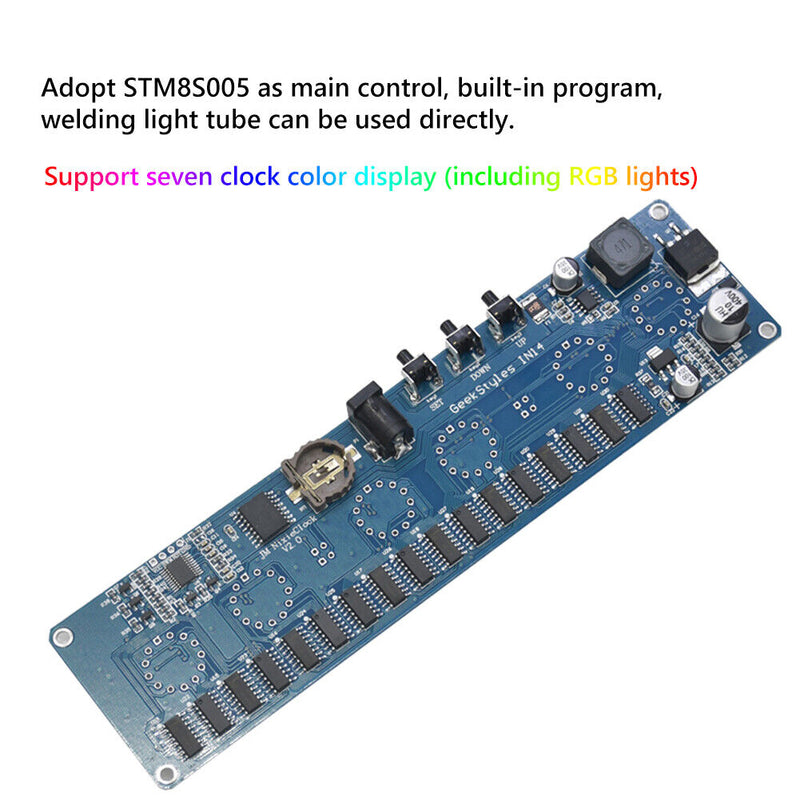

2. Adopt STM8S005 as main control, built-in program, welding lamp can be used directly.
3. Support seven-color display clock (including RGB lights).

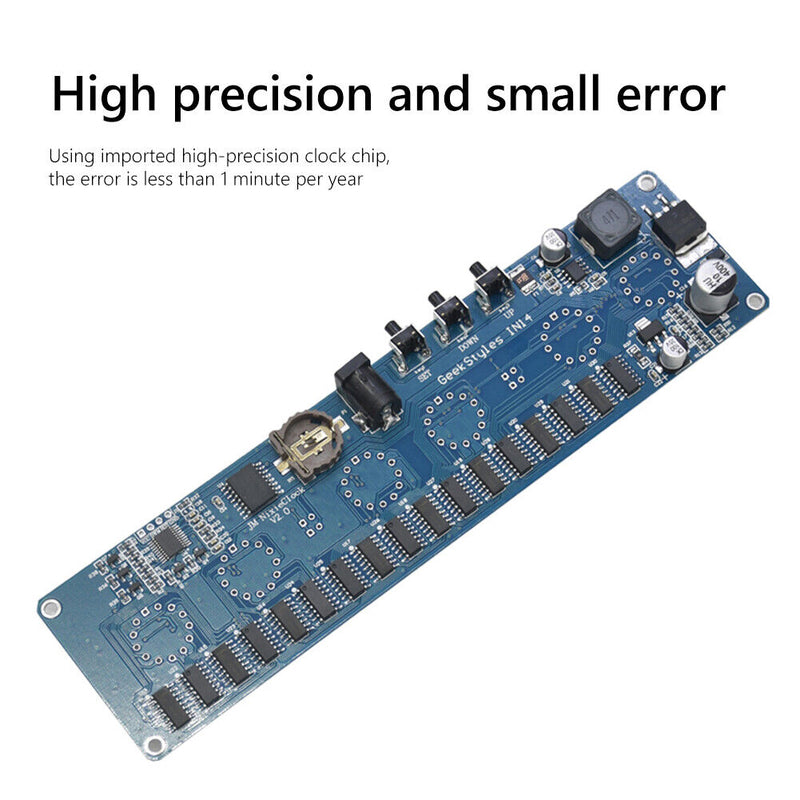

4. Using imported high-precision clock chip, the error is less than 1 minute per year.
5. Using integrated IC unit program, the screen is more stable and reliable.

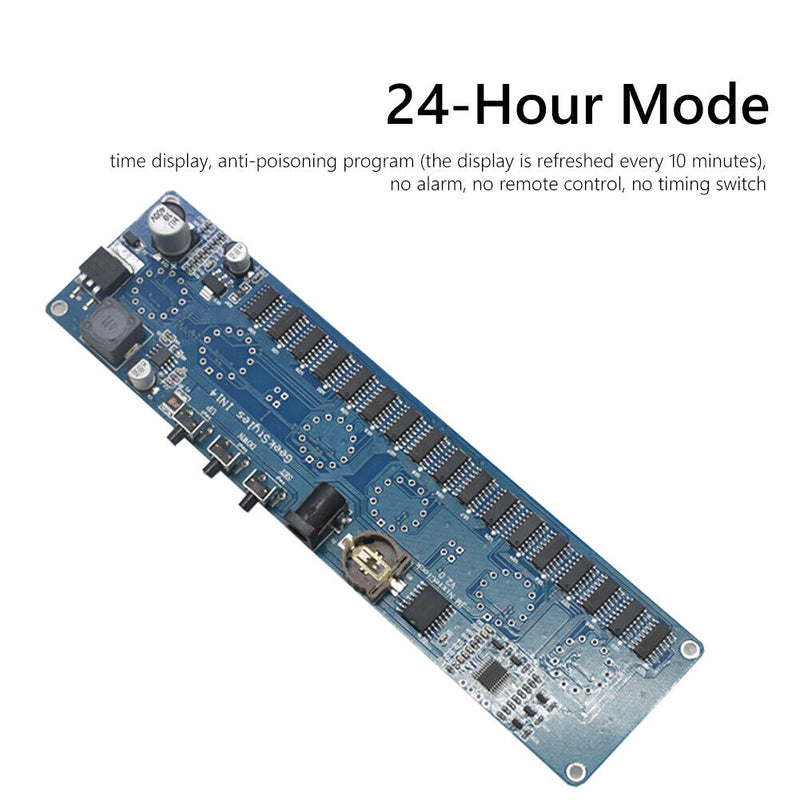

6. Function: 24-hour mode, display time, prevent program poisoning (cooling the display every 10 minutes), no alarm, no remote control, no timing switch machine.
7. Operation:
Set time: Click the "SET" button to set the time. Click "Up" and "Down" to set the time, and click "Set" to complete.
Black light color setting: Click "up" in the color adjustment mode (the color will change every day). Click the fixed color "Down".
8. Product specifications: single circuit board module / circuit board + transparent shell / circuit board + black shell (optional)
Specification:
Size: 187x48mm/7.36x1.89in
Weight: 130g
Note:
If you do not have a tube, please do not buy it.
The kit does not include a tube. We have no tubes for sale.
We only sell circuit boards and matching acrylic shells. The size of the acrylic shell can only match our board.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
