Item Name: Round 433MHz Remote Control Garage Door Electric Gate Clone Key Fob (2pcs). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

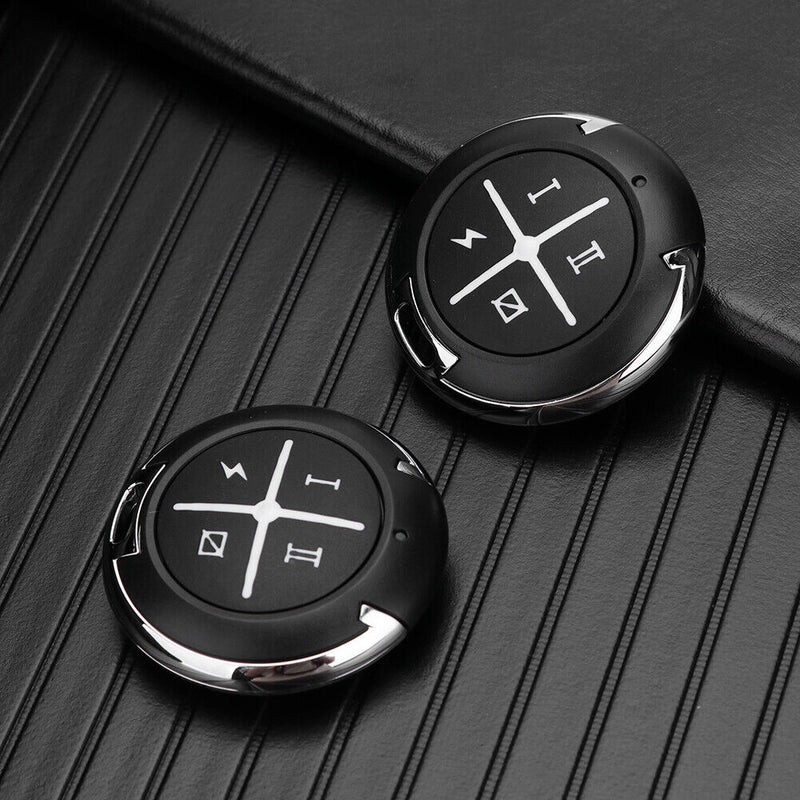

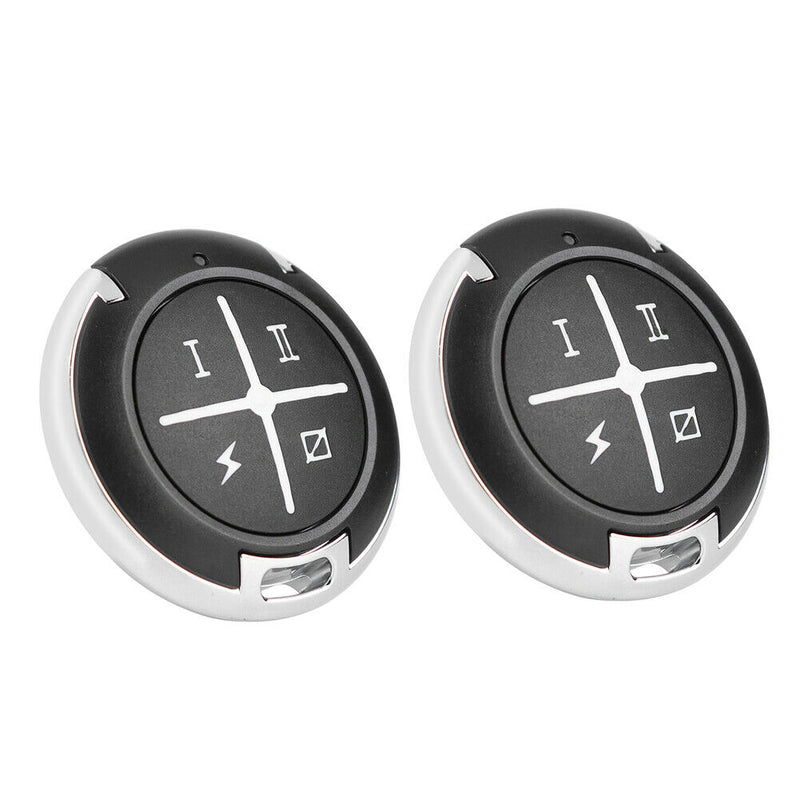

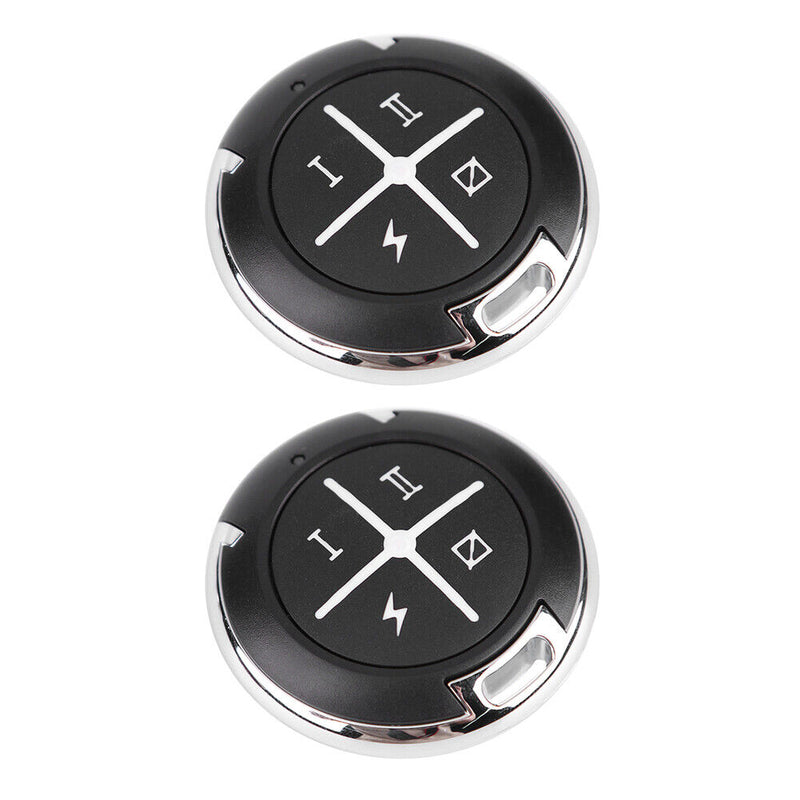

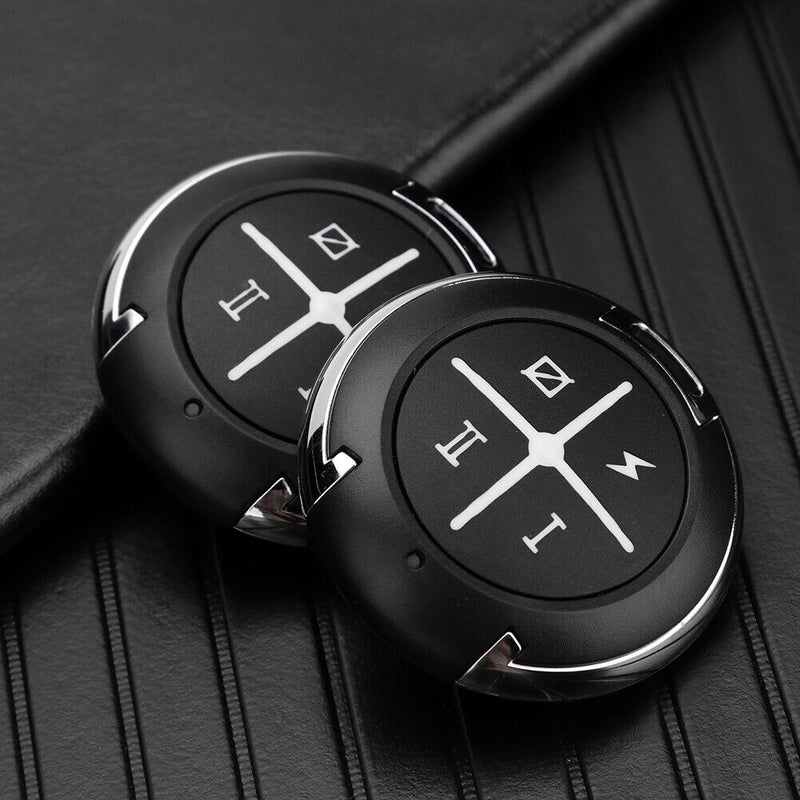

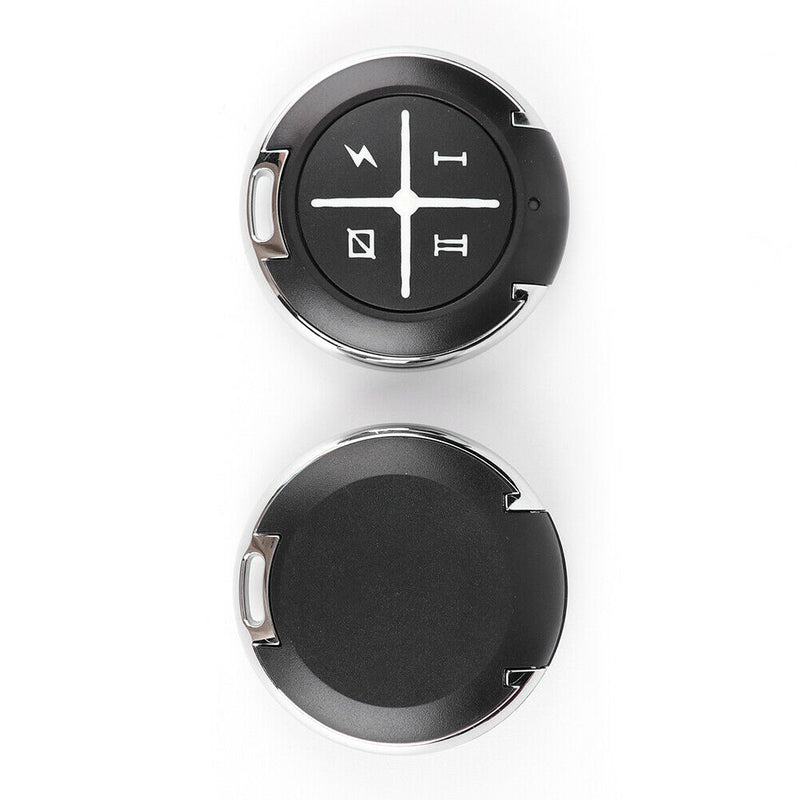

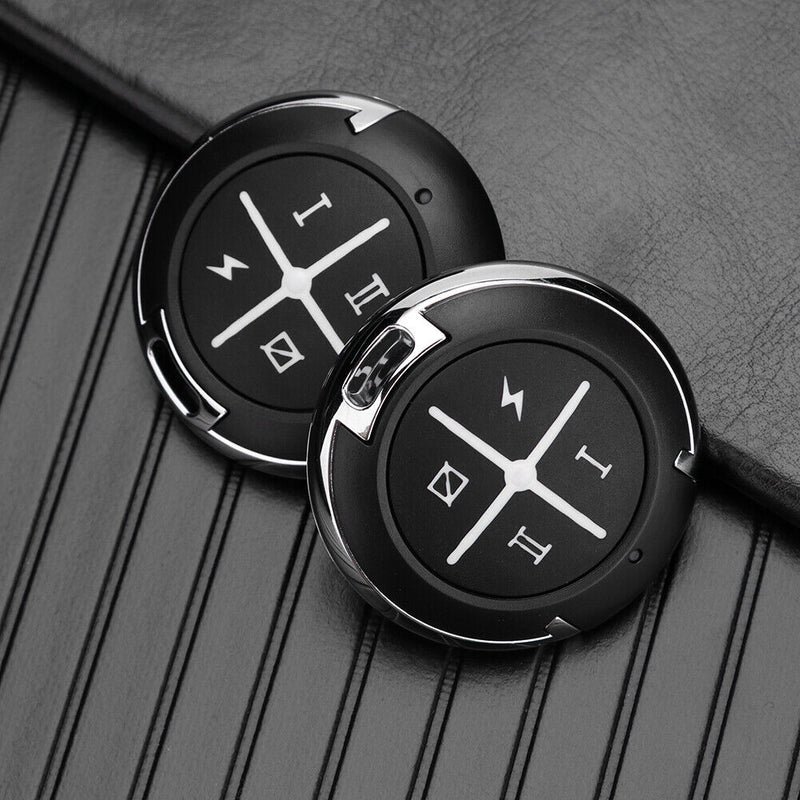

Round 433MHz Remote Control 433.92 MHz 4 Channel Garage Door Electric Gate Opener Clone Key Fob Controller
Features:
- High compatibility - can copy a variety of remote control types and brands
- Small copy error and high waveform accuracy
- It can be used as a learning remote controller via setting
- Tranmistting distance up to 100 meters
- The copy and the original remote control function coexist, perfectly combining the two remote controls into one
Additional features:
1. - Through speical setting (equivalent to a copy machine), the original remote control's address code, pulse width, button value and other parameters can be wirelessly transmitted to copying remote control without opening the case.
- You can change the oscillation resistance, button arrangement, etc. of the remote control via special setting.
- You can change to other codes via special setting: such as HT6P20, EV1527, PT2262, PT2240.
2. Lock data
- Finish copying all 4 keys before locking
- Press S3+S4 at the same time, do not let go
- After the LED flashes for about 30 times, turns off for 1 second, and then the LED flashes.
- Locking OK
- The clear operation is disabled after locking, the data is protected and is no longer cleared by mistake
3. Unlock data after locking
- Press S1+S2 at the same time to transmit the signal at all times, do not let go
- Wait until the signal transmission stops automatically (about 10 to 15 seconds, depending on the length of one frame code), and the LED keeps flashing.
- Unlocking OK
- After unlocking, clear operation is available
Specifications:
Applicable voltage: 3-12V
Working current: 6-10mA
Transmitting frequency: 433.92 MHz
Modulation method: ASK/OOK
Pulse width: 410US-4000US
Quantity: 2pcs
Compatible remote control code chip:
- PT2264 \ PT2262 \ PT2260 \ HS2260 \ HS2262 \ SC2262 \ SC2260
- EV1527 \ HS1527 \ FP527 \ EV1528 \ EV1530 \ PT2240 \
- HT12E \ HT12D \ HT12F \ HT6P20B \ HT6P20D \ HT6P237A \ HT6P247A \ HT6P427A \ HT6P437A \ HT600 \ HT680 \ HT6207 \ HT6010 \ HT6012 \ HT6014
- SMC918 \ SC5262 \ SMC926 \ VD5036 \ VD5326 \
- HC101 \ HCS200 \ HCS201 \ HCS300 \ HCS301 \ (Partial can be used)
- Microcontroller code (partial)
