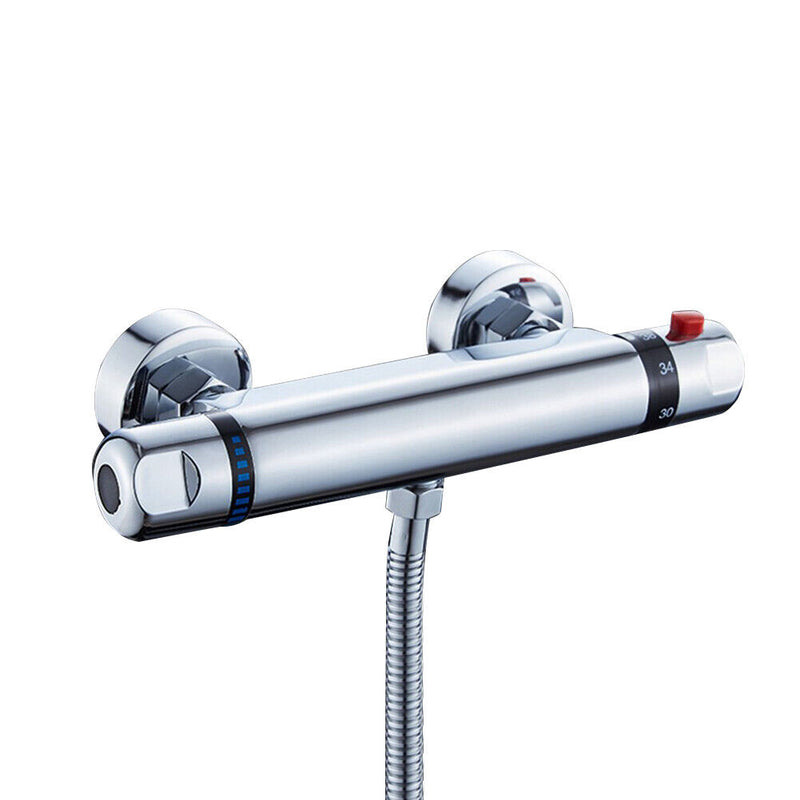

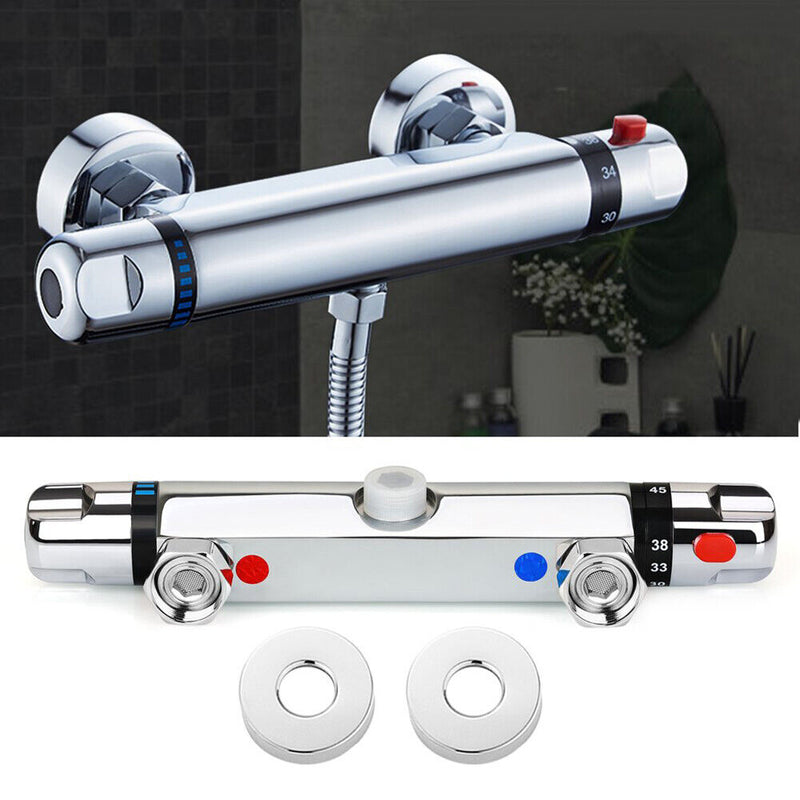

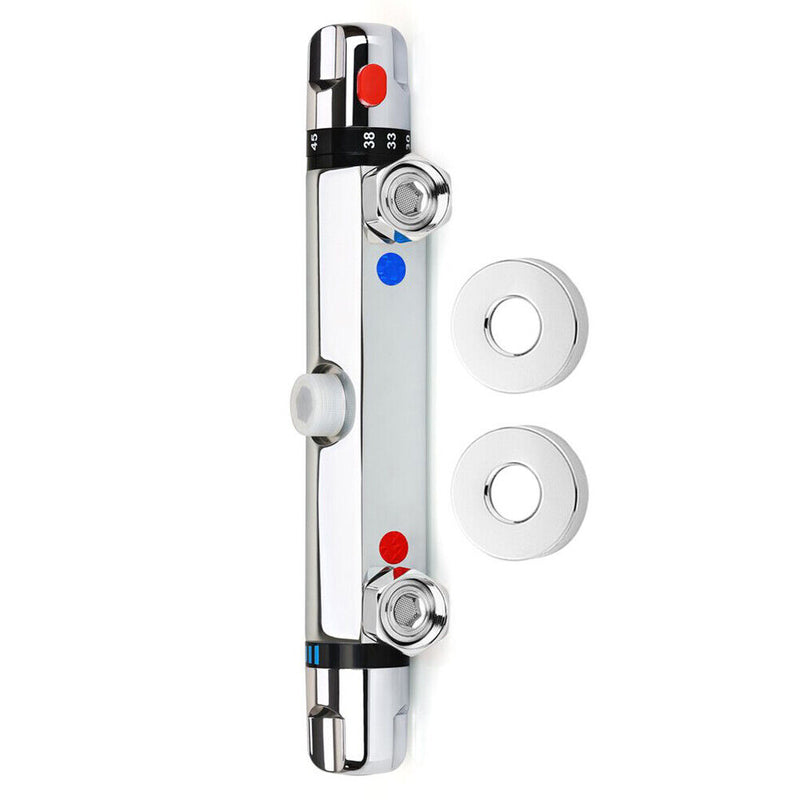

Solar Zinc Alloy Bathroom Thermostatic Mixer Tap Temperature Control Bathtub Shower Mixing Faucet Valve Home Accessories
Feature:
The exposed chrome thermostatic brass straight-way valve is a modern bathroom product. It is a thermostatic shower, which can prevent the water temperature from changing when the shower is working, so it is very suitable for use in the family bathroom, because it can protect children and the elderly from scalding or Sudden cold.

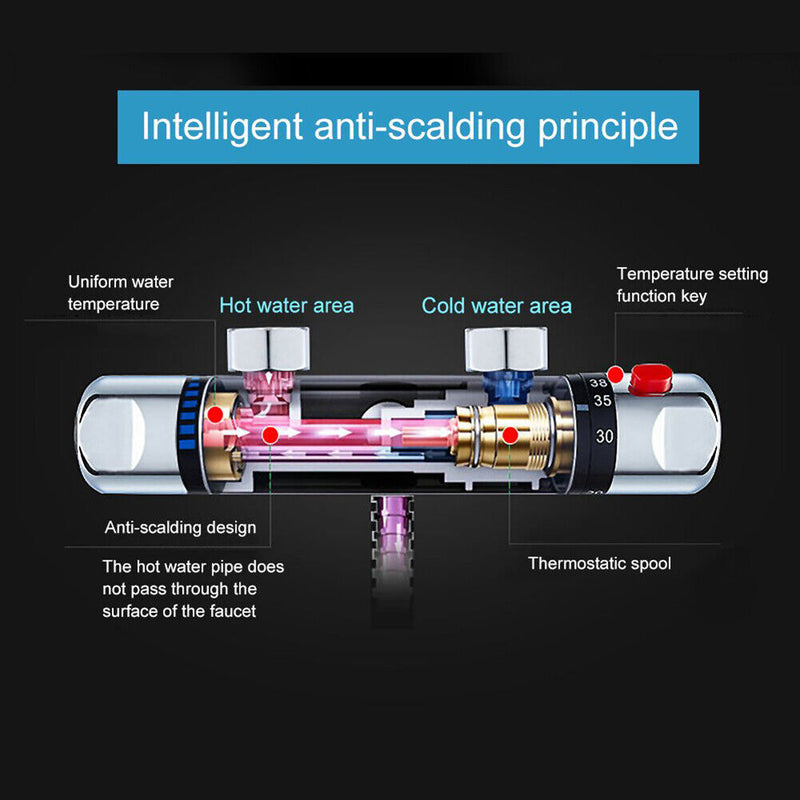

The thermostatic shower valve works by mixing hot and cold water to the temperature set using the knob on the valve. Inside the valve is a heat-sensitive element that can control the hot and cold water inlets and respond to external influences, such as flushing in the toilet or using a washing machine to keep the water temperature constant.
Work requirements:
In order for the shower to work effectively, your water system will need to generate a pressure of at least 0.5 bar, although we recommend 1.0 bar for best performance.
You can do it if you have one of the following:
Combined boiler system
Gravity feeding system (only for pumps)
Large flow system
Pumping hot water system
Unvented hot water system
Standard pressurized hot water tank system
Flow rate (l/min):
0.1 bar-2.9
0.5 bar-7.5
1.0 bar -10.6
2.0 bar-14.6
3.0 bar-18.6

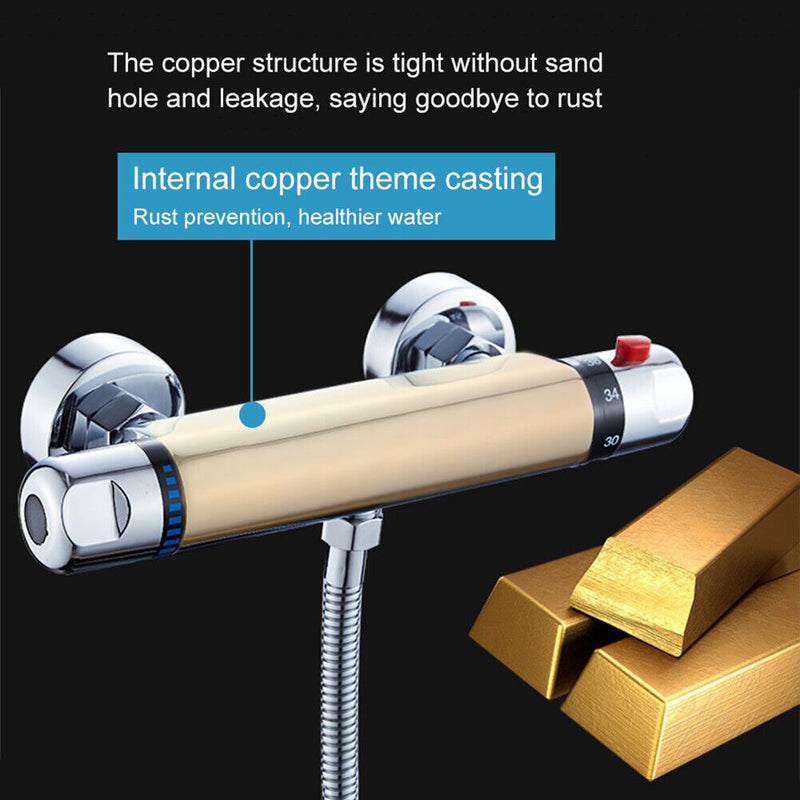

High-polished chrome solid brass body
Inlet pipe center: 150mm
Variable tube center: adjustable between 130 and 170mm
Can be installed horizontally or vertically
Left hand control to adjust the water flow
Right hand control to adjust the water temperature
The most advanced thermostat control

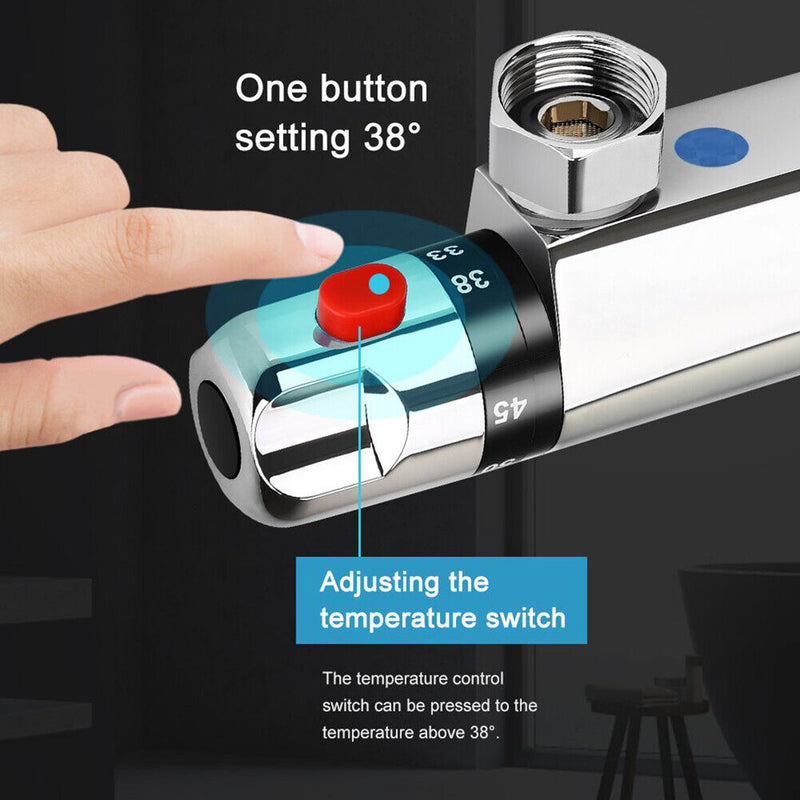

Temperature lock button increases safety
Standard half inch socket at the bottom

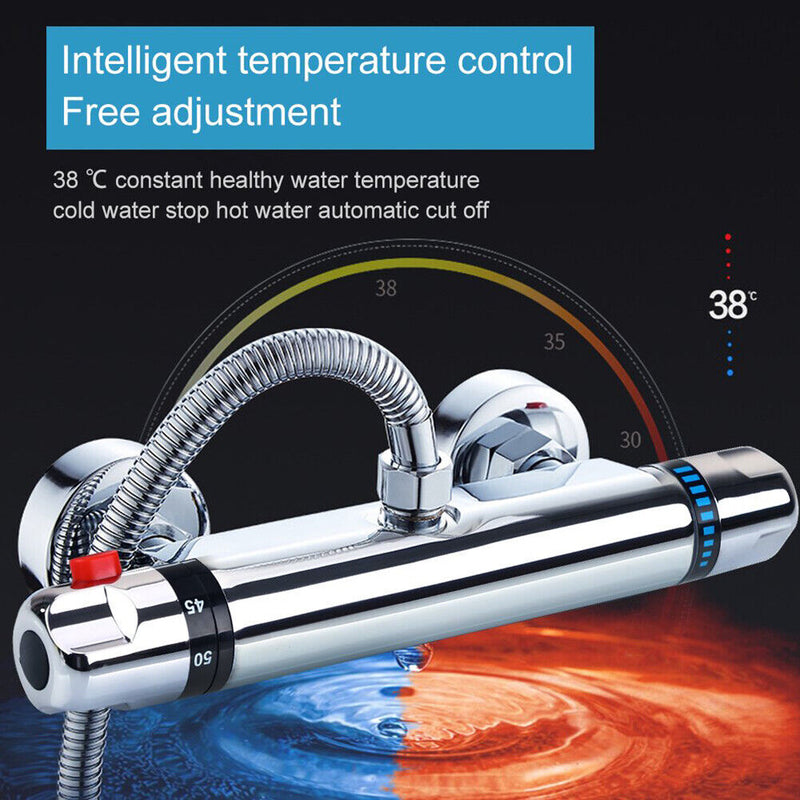

The anti-scalding device is set to 38 degrees Celsius, which can be withdrawn from the temperature control
Temperature range 20-50 degrees Celsius
Does not include shower hose
British Standard Accessories
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-2cm measuring deviation due to manual measurement.
