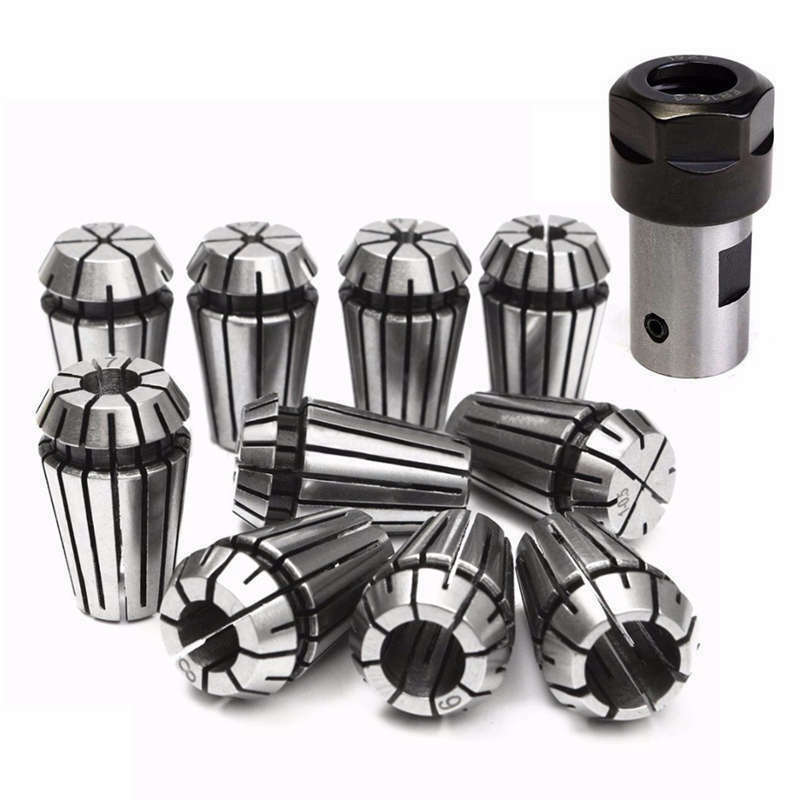

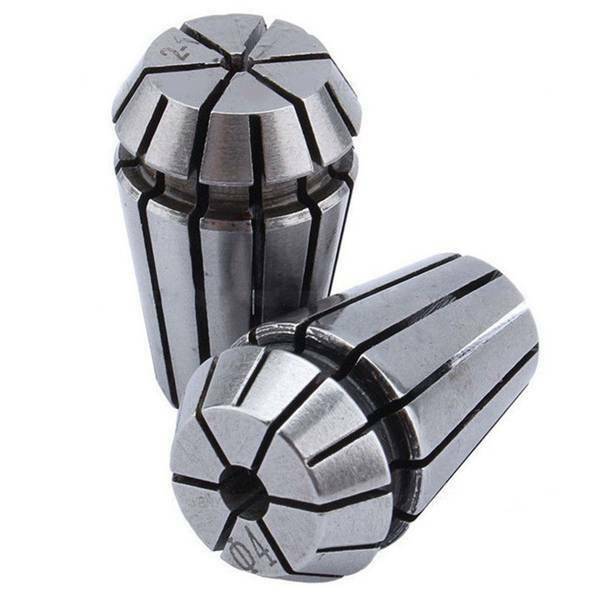

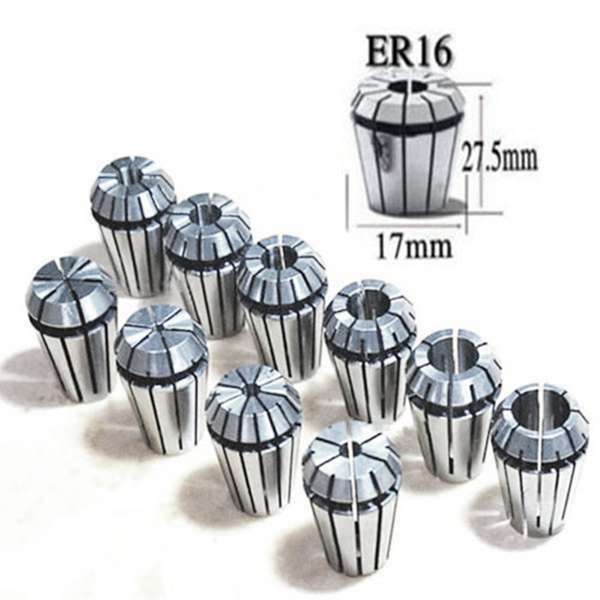

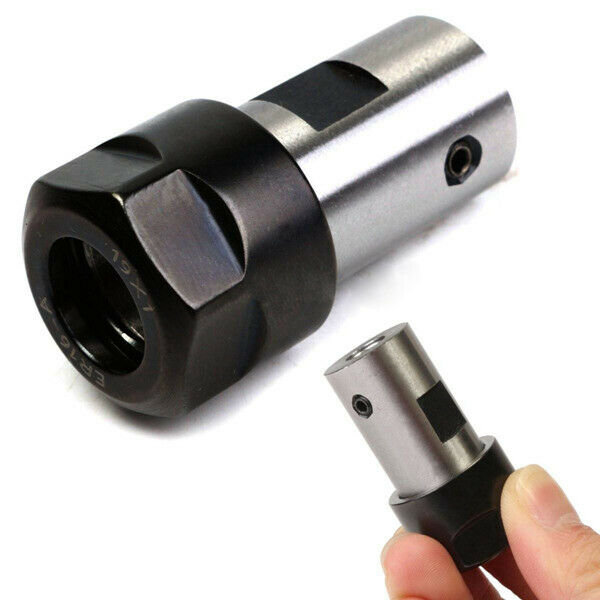

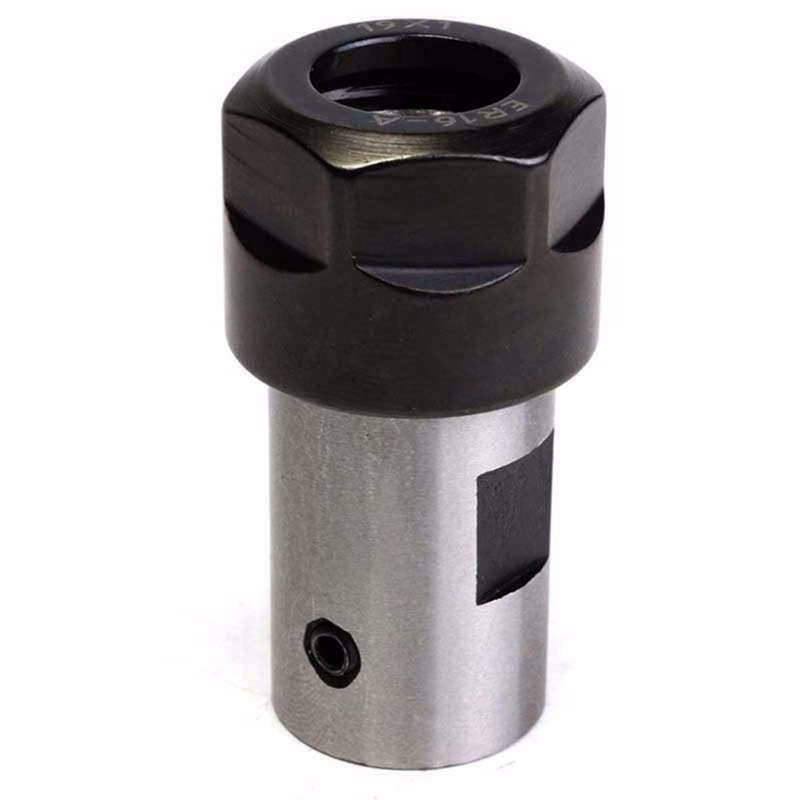

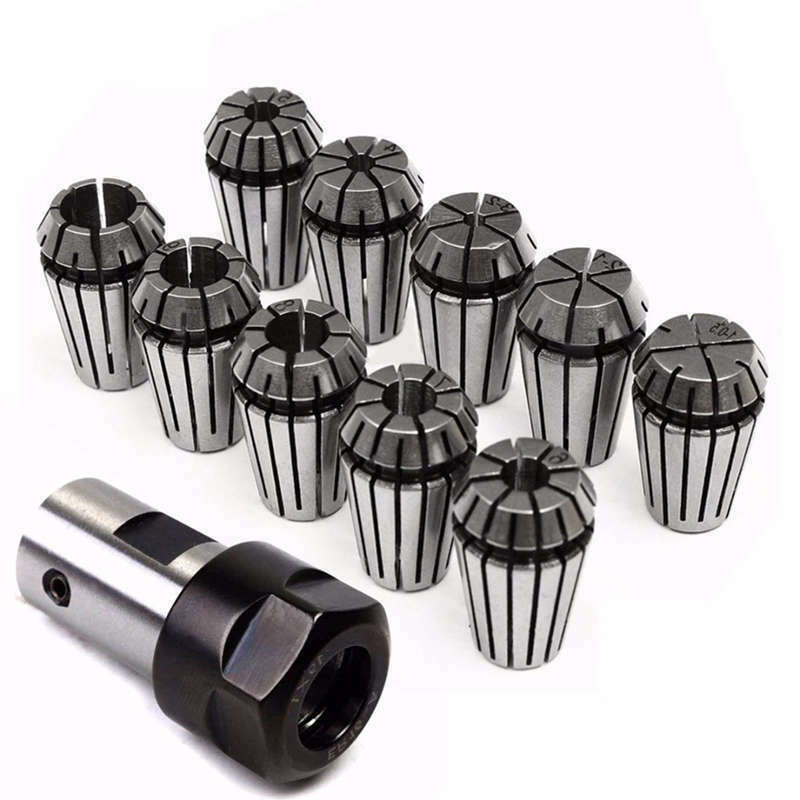

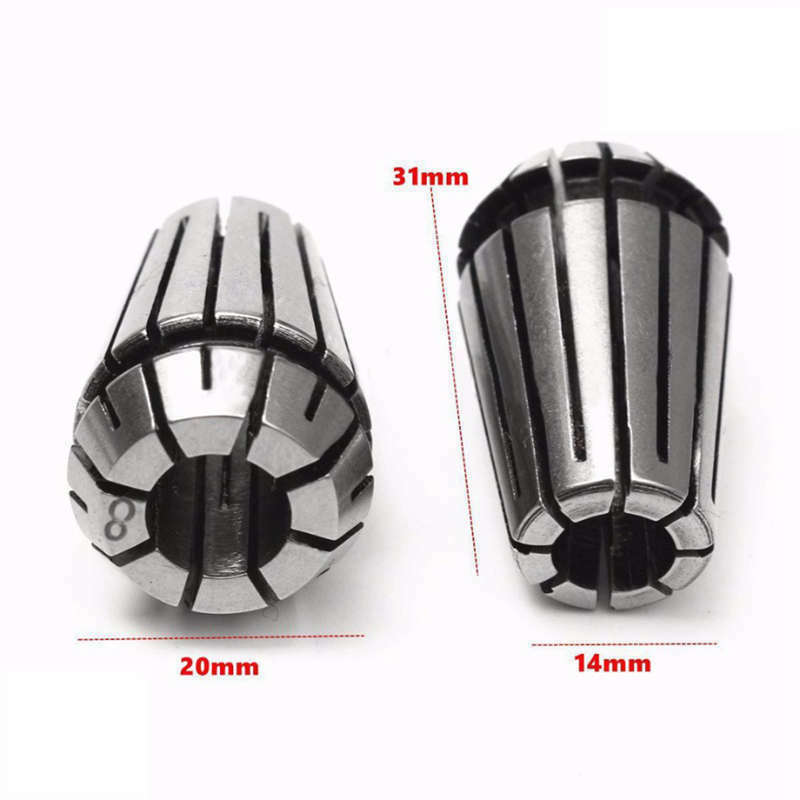

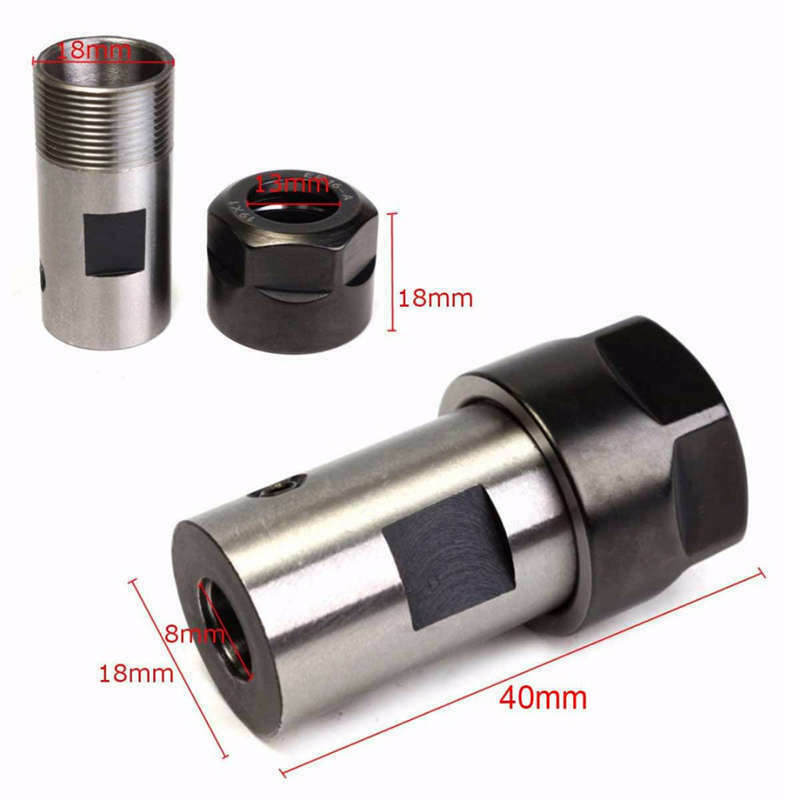

ITEM NAME:10Pcs Er16 Spring Collet + Motor Shaft 8Mm Extension Rod Holder Cnc Milling U7N1 10Pcs Er16 Spring Collet + Motor Shaft 8Mm Extension Rod Holder Cnc Milling U7N1 The Correct Method Of Mounting The Collet Nut: 1. Put the chuck into the pressure cap, gently turn the clamp spring, when eccentric portion of the pressure cap recessed clamp spring groove. Along the arrow direction and use equal force to push clamp spring, can mount pressure cap. 2. Put the clamp spring and cap all together installed on the chuck body or spindle. Insert into the clamping.hole after wipe the cylindrical shank, use a wrench to tighten the pressure cap, until clip firmly the tool before use. (Note: Avoid fastening pressure cap that not installed tool, to avoid damage the clamp spring). 3. Use a wrench to loosen the pressure cap and took out the chuck or tool, remove the tool. Along the direction of the arrow push out the clamp spring. Then according to need replace other clamp spring. Model Number:ER16 Spring Collet Application:CNC Milling Type 2:8mm Extension Rod Holder Brand new Model: ER16 (1mm, 2mm, 3mm, 4mm, 5mm,6mm, 7mm, 8mm, 9mm, 10mm) Accuracy: 0.008mm Applicable machine: CNC machine Hardened and precision ground. Big clamping force and wide clamping range. ER straight rod type collet extension handle, the handle body is relatively long, suitable for deep hole processing. Can reduce the use of tools, reduce costs, improve efficiency. The outer diameter of the rod and other parts of the rod can be eliminated by precision grinding, which can eliminate the unbalance and increase the stability of the cutting. High strength and hardness. Performance stability, high accuracy. Durable in use. Used in machining centers, general milling machines, CNC milling machine, engraving machine, high-speed machines, and other processing. colour:Black + silver Material:Spring steel Length: approx. 45mm Inner diameter: approx. 8mm Package Contents: 10 * ER16 Spring Collet 1 * Extension Rod.Model Number:ER16 Spring Collet. Model: ER16 (1mm, 2mm, 3mm, 4mm, 5mm,6mm, 7mm, 8mm, 9mm, 10mm). 10 ER16 Spring Collet. Used in machining centers, general milling machines, CNC milling machine, engraving machine, high-speed machines, and other processing.
