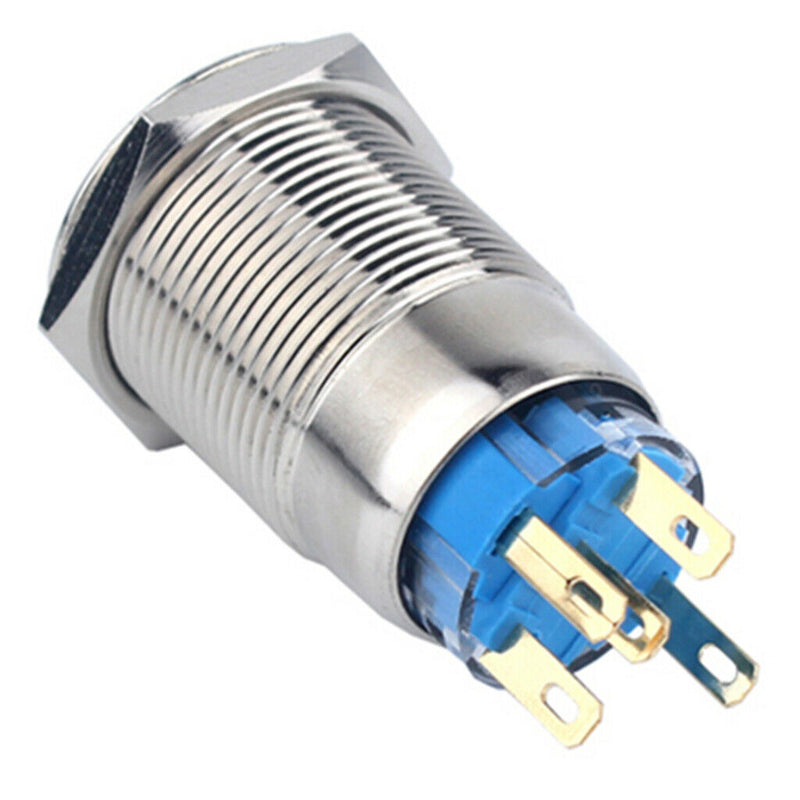

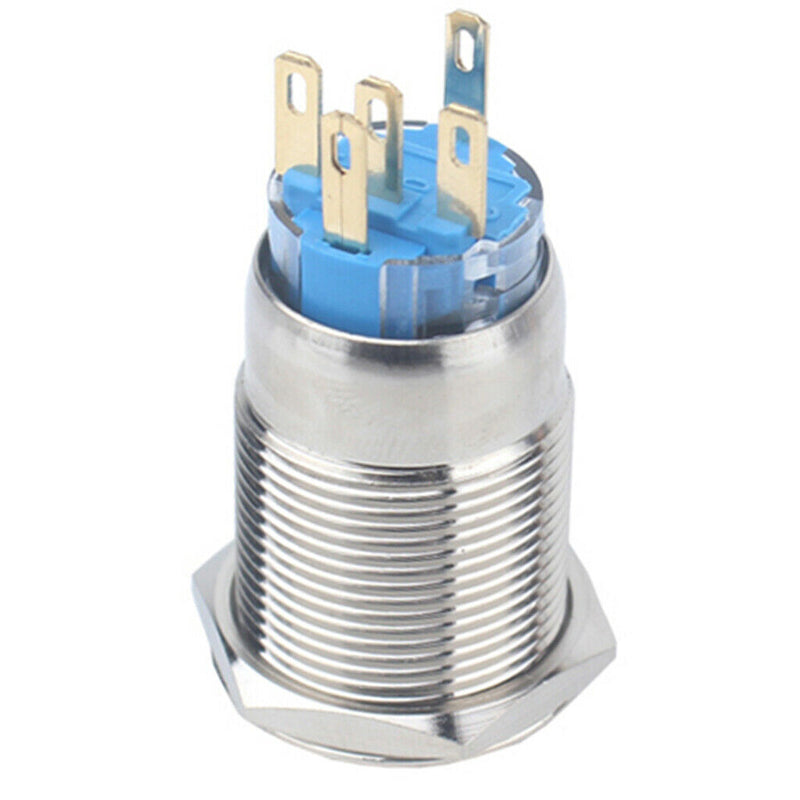

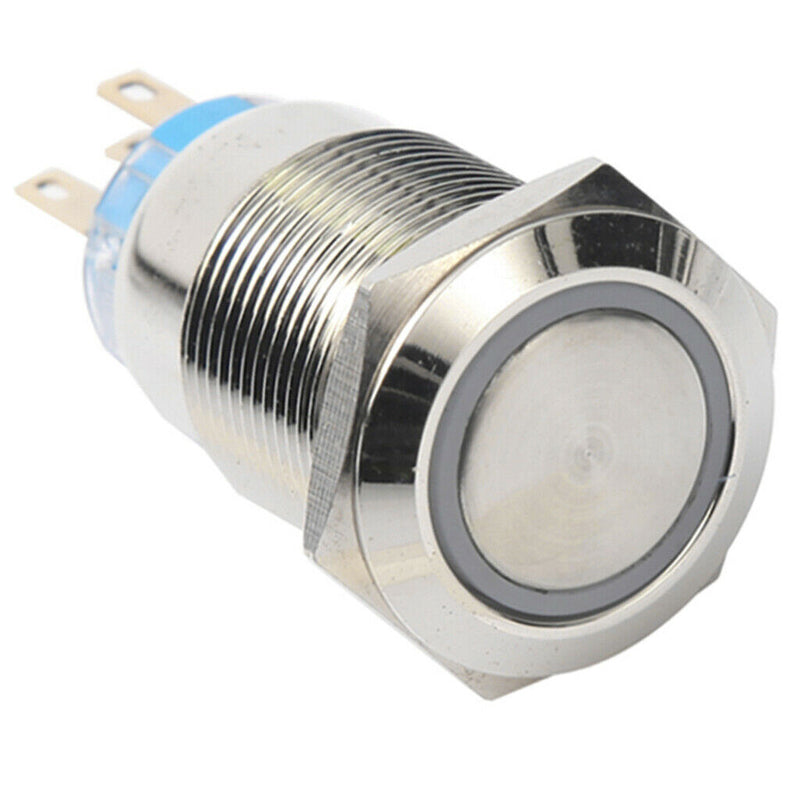

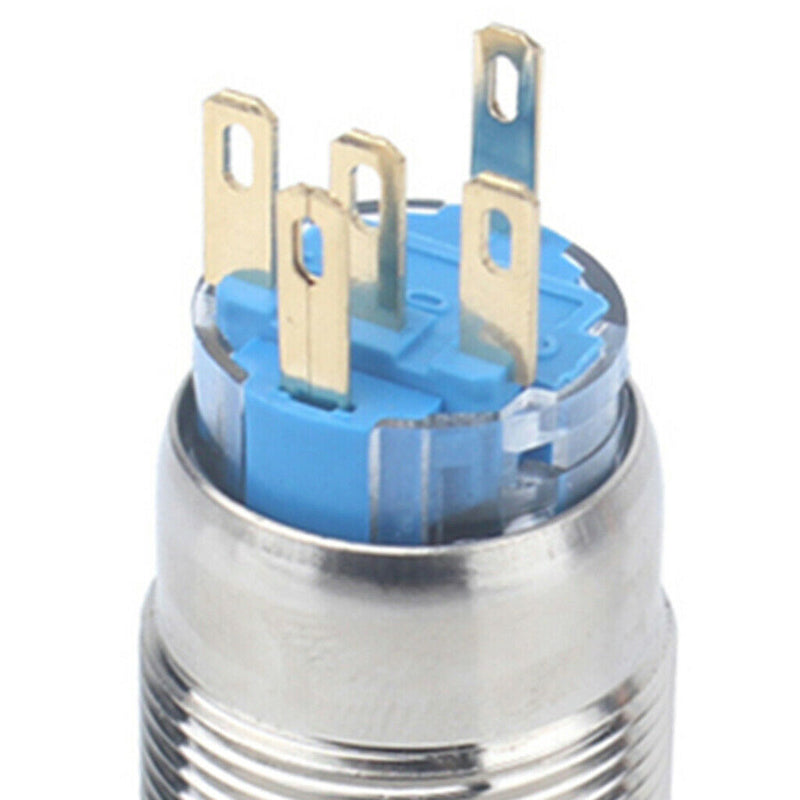

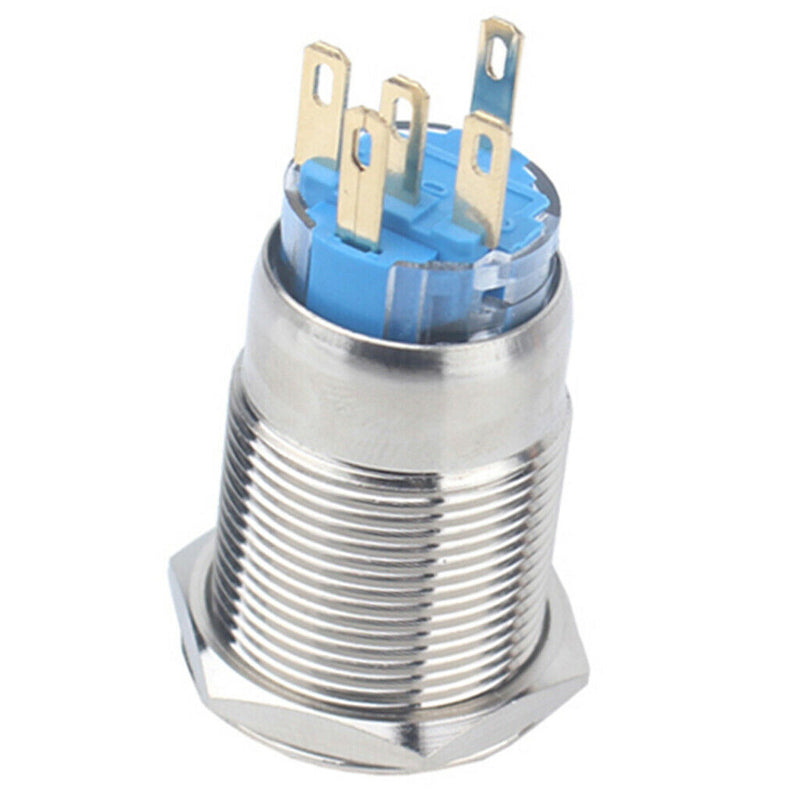

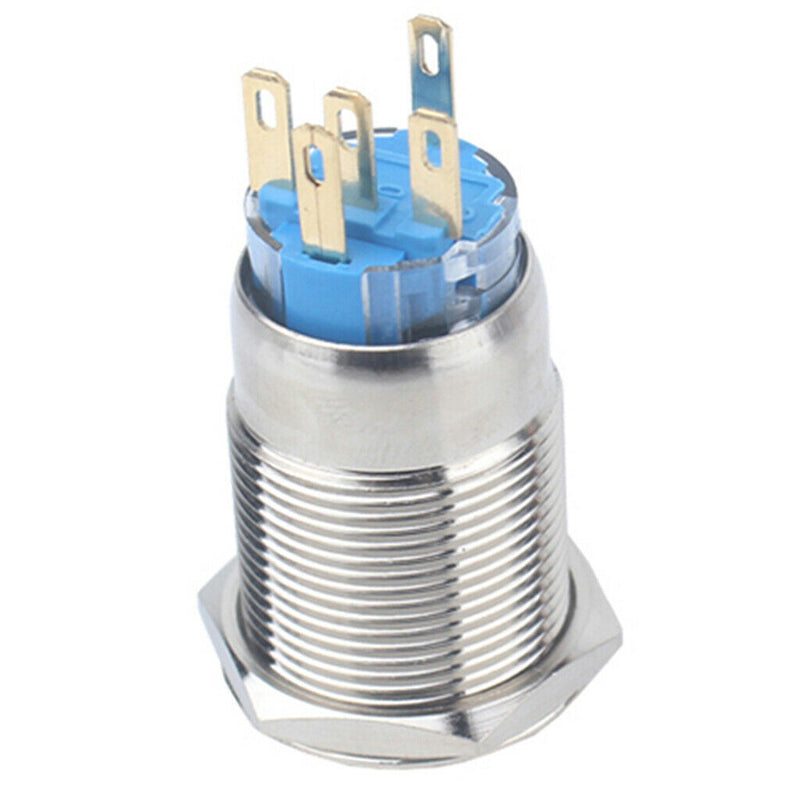

ITEM NAME:12V Stainless Steel Resetable Push Button Switch Blue Ring LED Light Description: Momentary Type: Resetable [Push & Hold ON, Release OFF],mechanical life for 500,000 cycles. Mounting hole size: 19mm; Head Diameter: 22mm; Depth (Including Contacts): 40.5mm. Switch Rating: 5A/250VAC; LED Rating Voltage: 12V Head shape: Flat Round Cap; Enclosure material: Stainless Steel, Degree of protection: IP67, IK10 High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment. Specification: Switch Rating: 5A/250VAC Contact resistance: ≠¤50mÃŽ © Insulation resistance: ≠¥1000mÃŽ © Dielectric intensity: 2000VAC Operation Temperature: -20℃ ~ +55℃ Mechanical life: 500,000 cycles Electrical life: 50,000 cycles Panel thickness: 1 - 10mm Nut torque: 5 - 14Nm Operation pressure: About 4N Operation stroke: About 2.5mm Operation Type: Momentary Head Shape: Flat Round Cap Body Material: Stainless Steel Button Material: Stainless Steel Package Includes: 1 Piece Push Button Switch SKU: DMO0013448573006863.Head shape: Flat Round Cap; Enclosure material: Stainless Steel, Degree of protection: IP67, IK10. Nut torque: 5 - 14Nm. Head Shape: Flat Round Cap. Insulation resistance: ≠¥1000mÃŽ ©. 1 Piece Push Button Switch.
