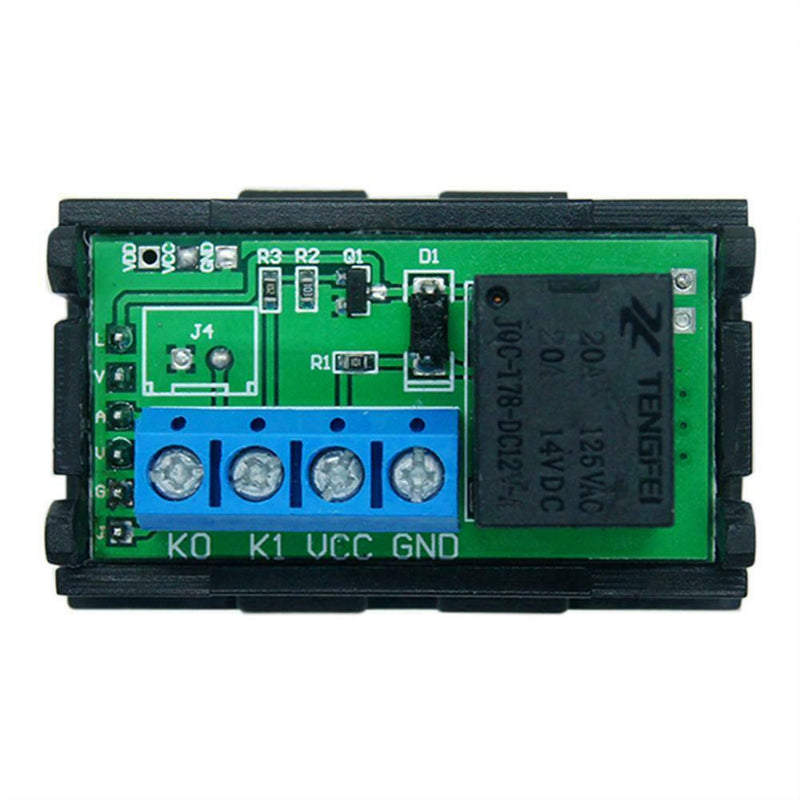

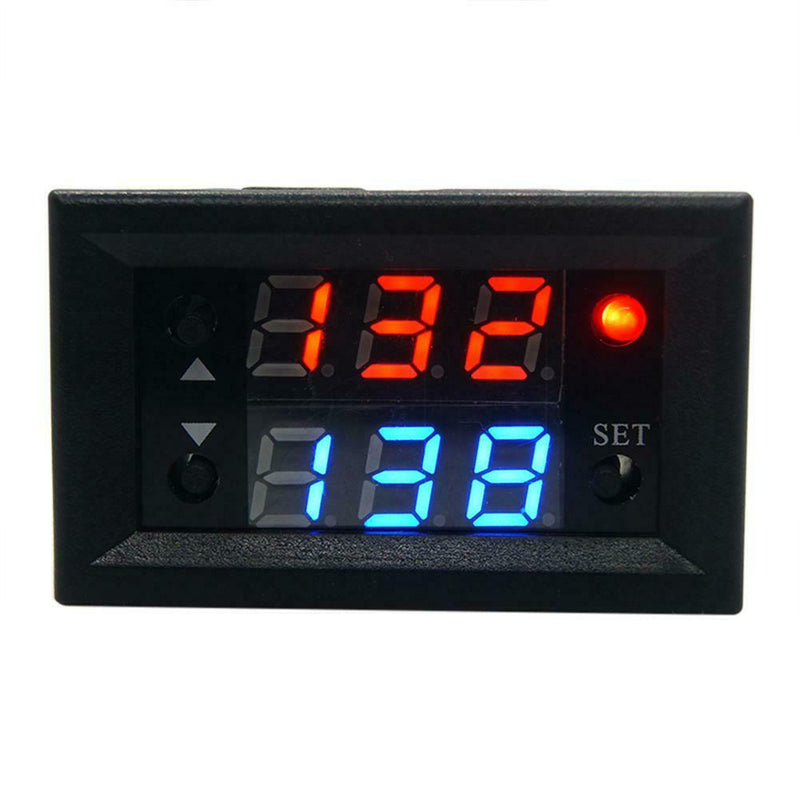

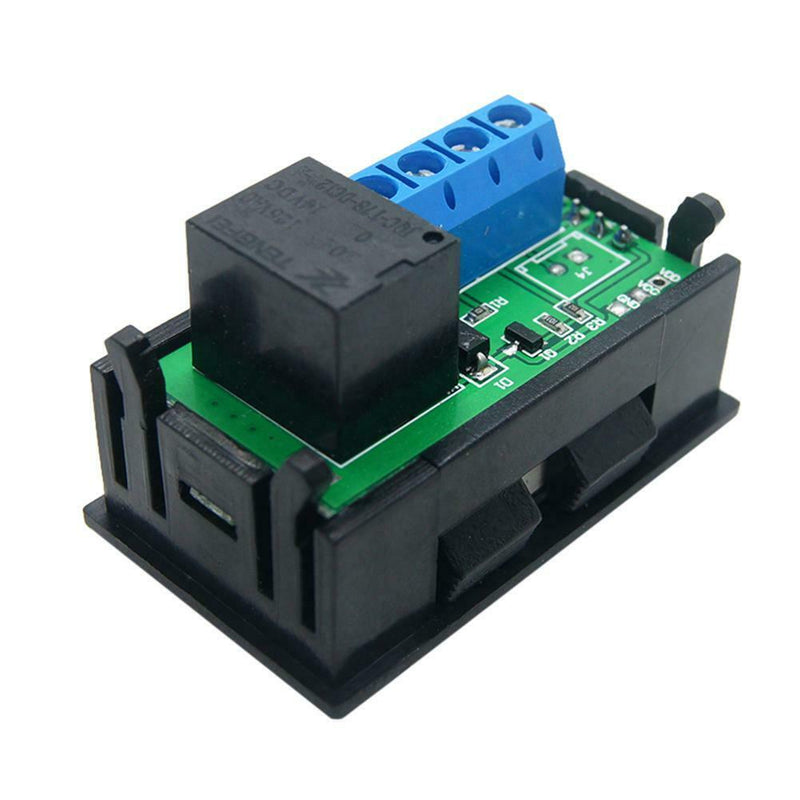

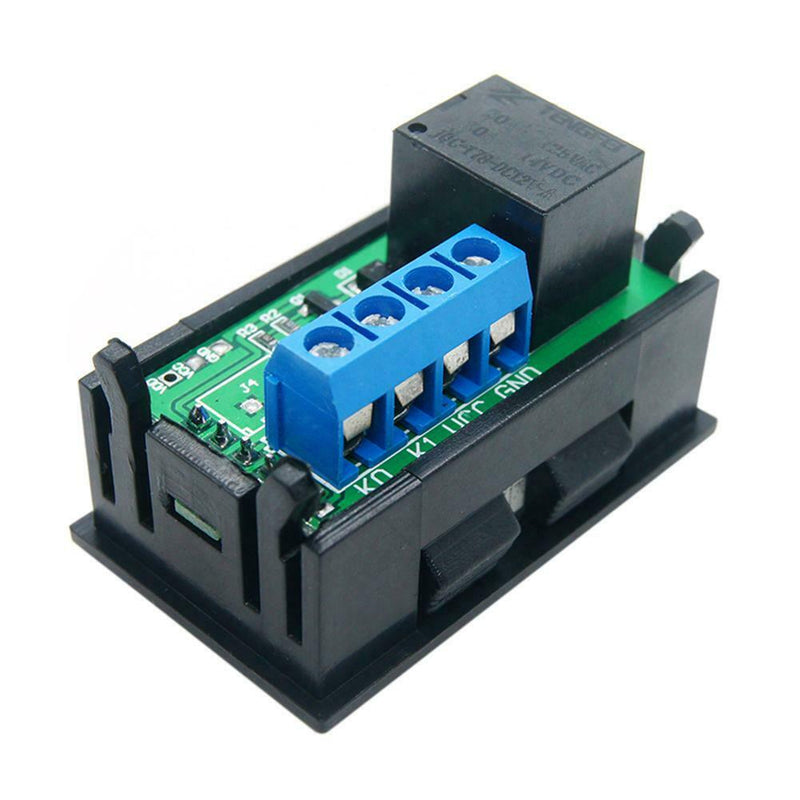

12V T2302 Timing Delay Relay Module Cycle Timer Digital LED Dual Display A#S

ITEM NAME:12V T2302 Timing Delay Relay Module Cycle Timer Digital LED Dual Display A#S Product Description Description: Specifications: Working voltage: DC 12V(5V/24V over 100pcs can be customized) Relay: 20A Timing range: 0-999 seconds, 0-999 minutes, 0-999 hours Working mode: delay on, delay off, timing on, timing off, cycle on, cycle off Size: 45.5mm*26.5mm*30mm/1.79*1.04*1.18" Weight: 25g Product Instructions: Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s. Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s . Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-. P0--0: Timing time mode : 0---999s. P0--1: Timing time mode : 0---999min. P0--2: Timing time mode : 0---999h. P1--0: The relay will connect after you delay the T1 time . P1--1: The relay will disconnect after you delay the T1 time. P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish. P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish. P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic. P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic. Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows: T1 set time 10, T2 set time 20 P0 -- 0 (T1 time range is seconds) P1--5 (tim.Working mode: delay on, delay off, timing on, timing off, cycle on, cycle off. Relay: 20A. You need wait 6s after your setting data, the module will save the date you have set after 6s. You could switch P0 or P1 by short press SET.
