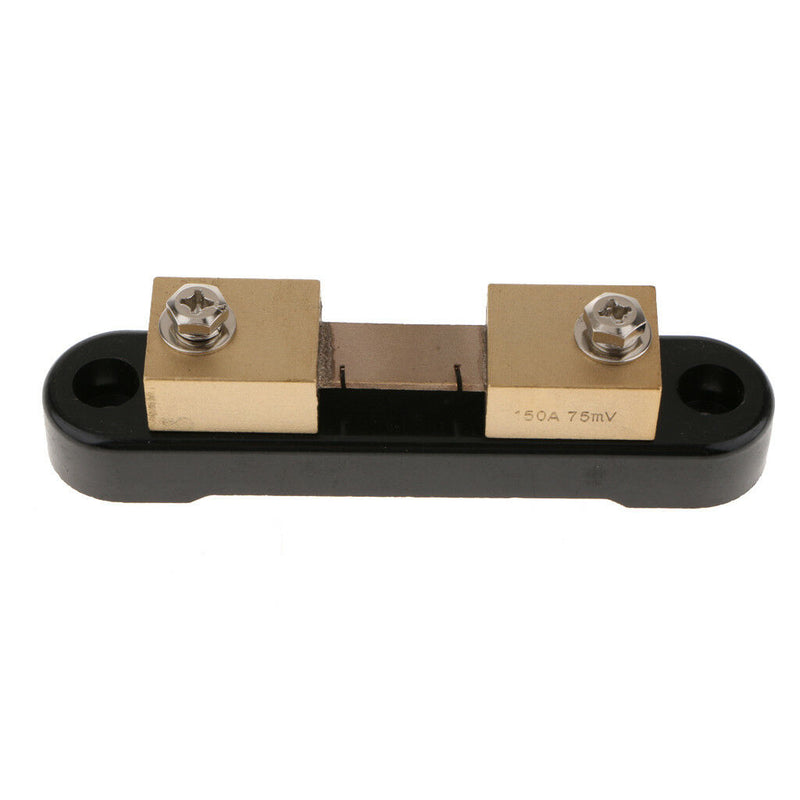

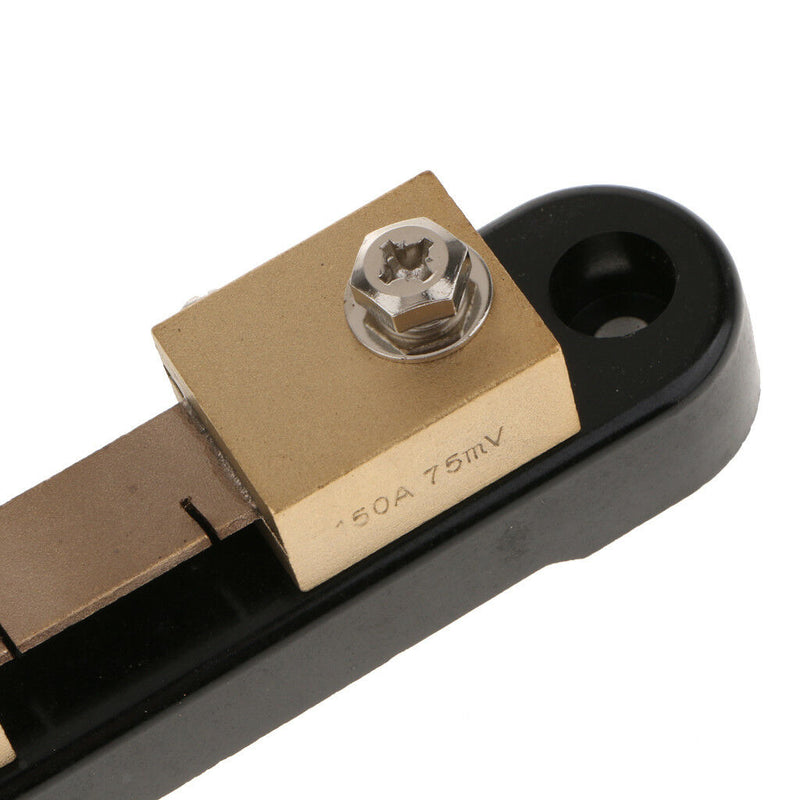

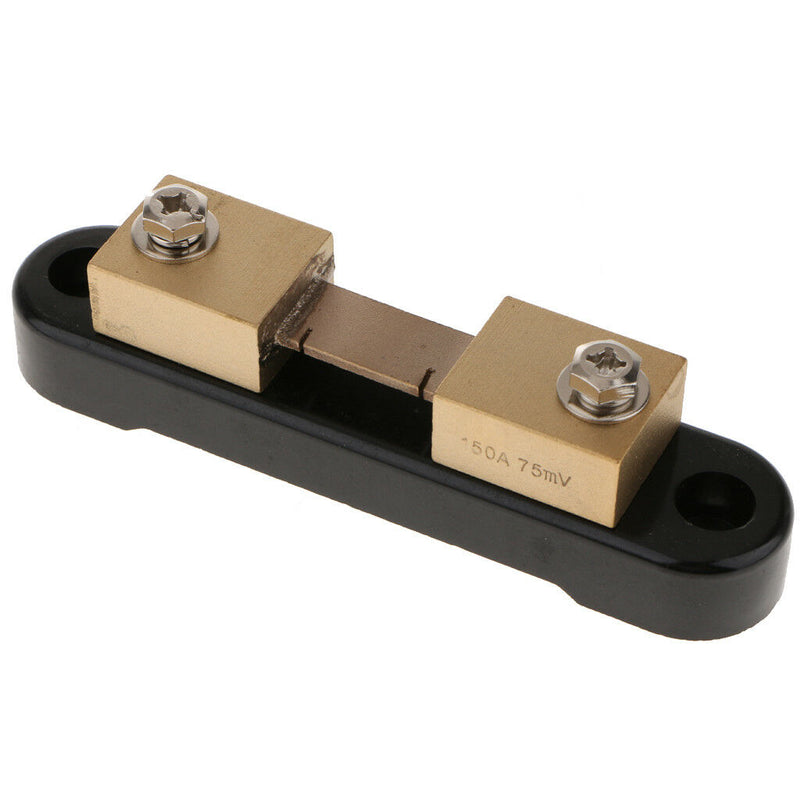

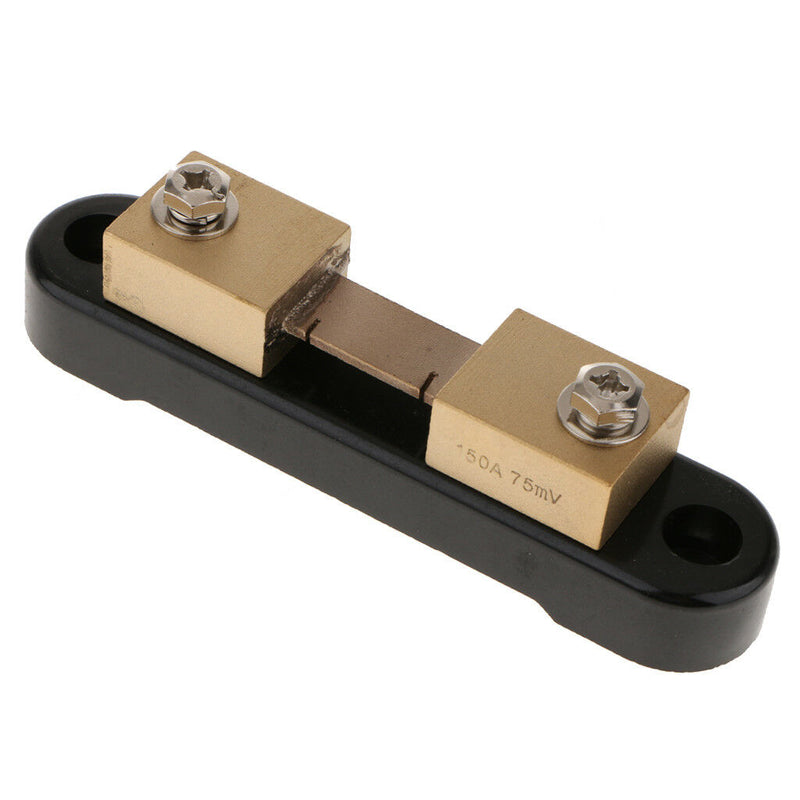

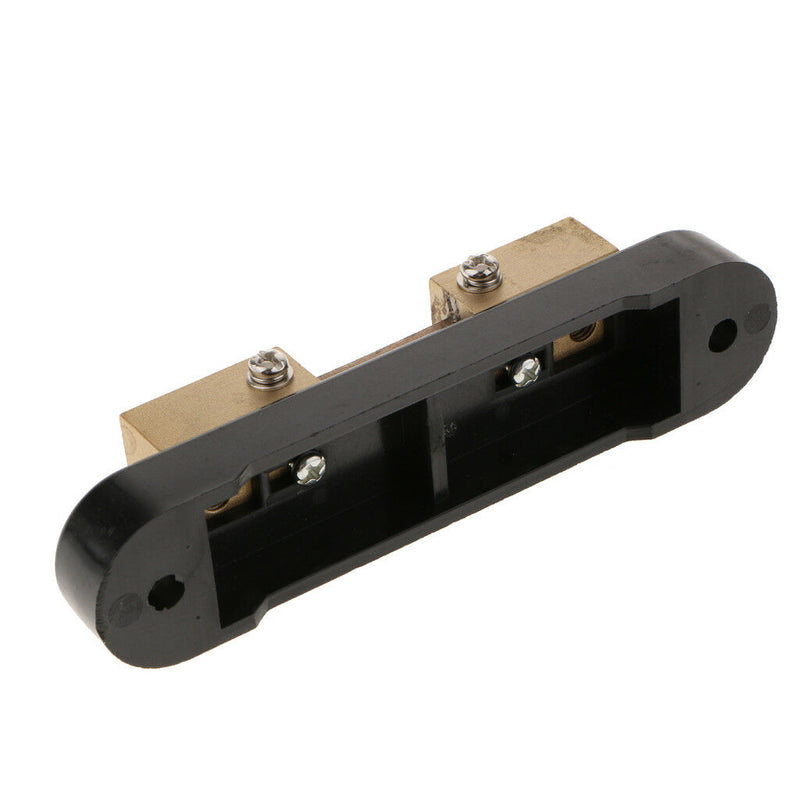

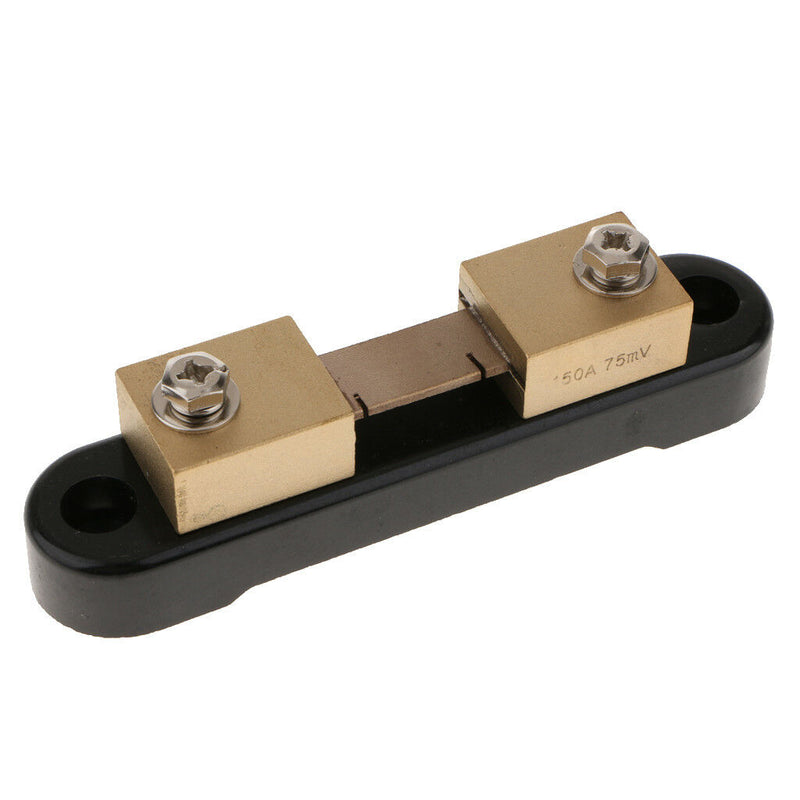

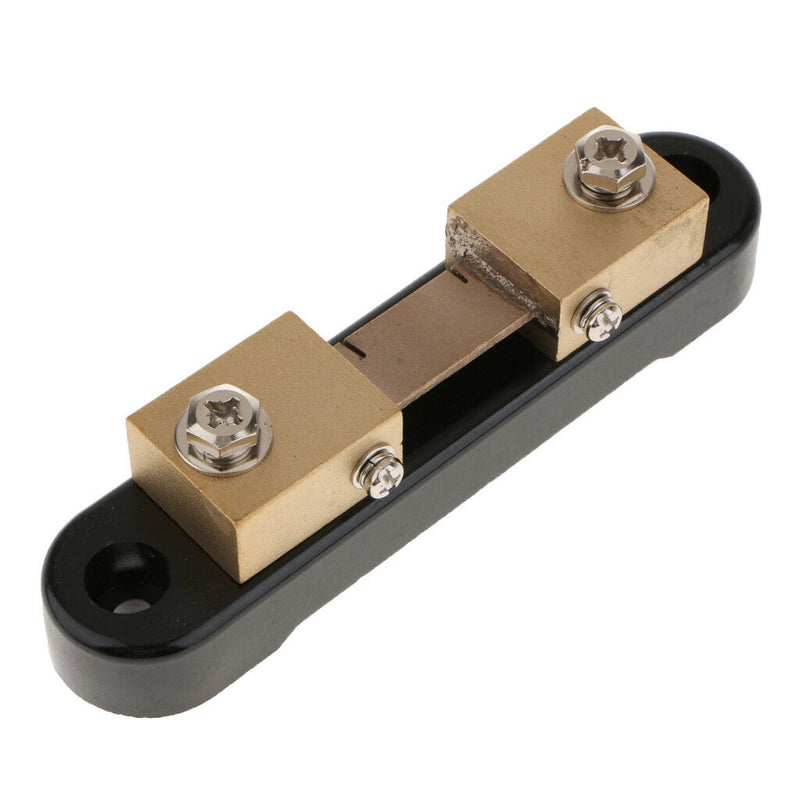

ITEM NAME:(150A) (75mV) Shunt With Base FOR DC Current Meter Amp Analog Panel Ammeter Description: - The shunt is mainly composed of manganese copper sheets and copper joints. There are two sets of terminal knobs on the joints at both ends of the shunt. - Outer one is a potential end button for connection With the power line, and the inner side is a potential end button for measurement and measurement. Instrument connection. Accuracy of the FL-2 series shunt is: 0.5, the specification range is: 1A-15000A, secondary voltage: 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc., the conventional is 75mV. - High Quality Metal Material: ammeter shunt is made of high quality metal material and is painted to avoid corrosion, tough and can be used for a long time - It is thicker than the shunts sold by other sellers. It meets the international standard A-class 11mm. Specification: - Material: Alloy - Product detailed size: with base shunt size: length 13.5cm / 5.31inch - Width : 3cm / 1.18inch - Height : 3cm / 1.18inch - Accuracy level: 2-4000A; 0.5 level; 5000~10000A; Level 1 - Environmental.The shunt is mainly composed of manganese copper sheets and copper joints. 1 Piece Shunt. - Heating under load: After the temperature rise changes to stabilize, the rated current is less than 80 Â °C below 50A; the rated current is not more than 120 Â °C above 50A.
