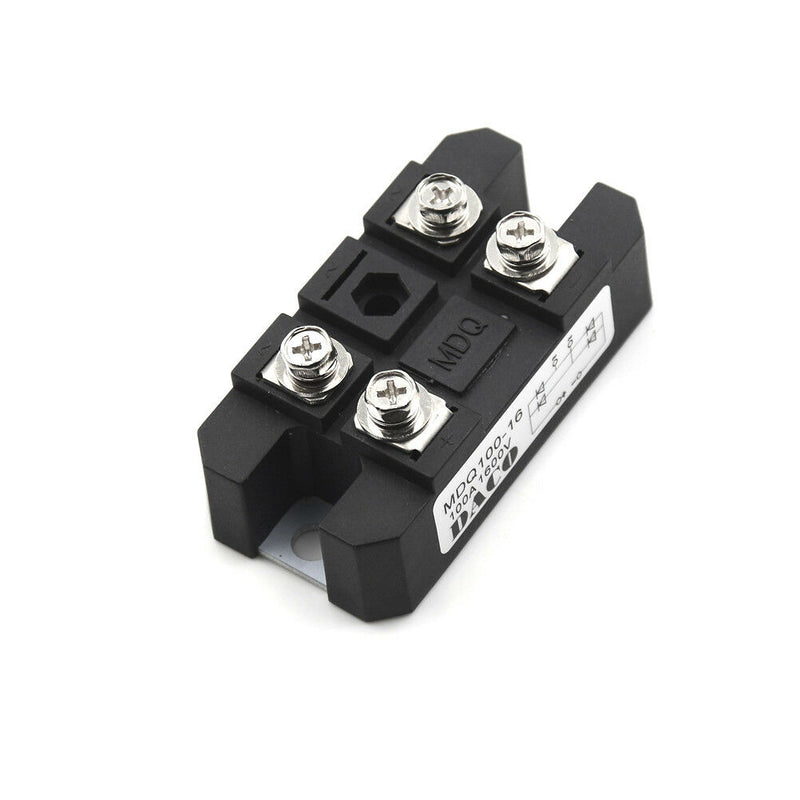

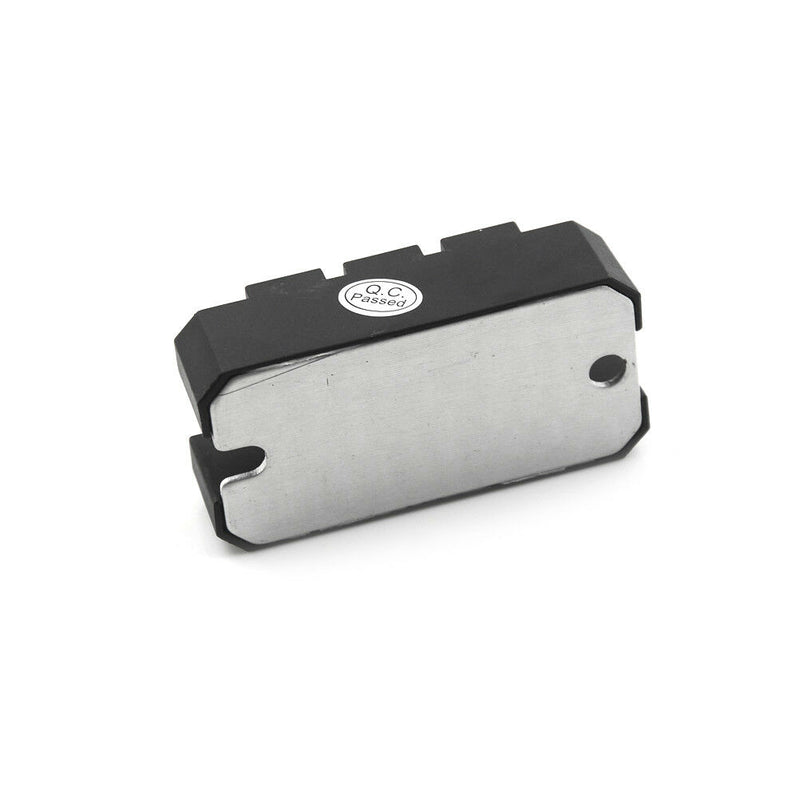

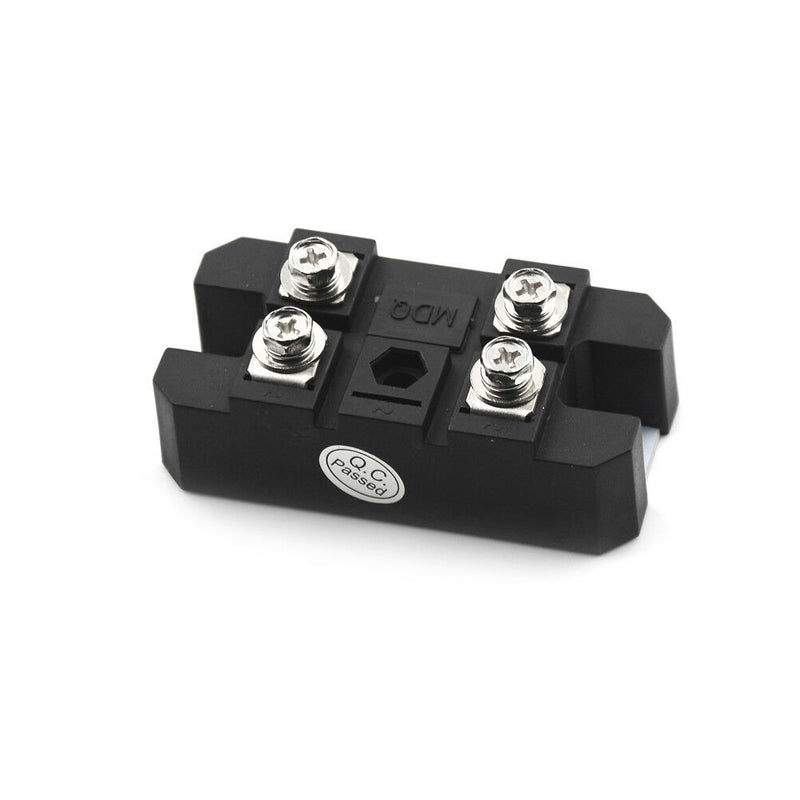

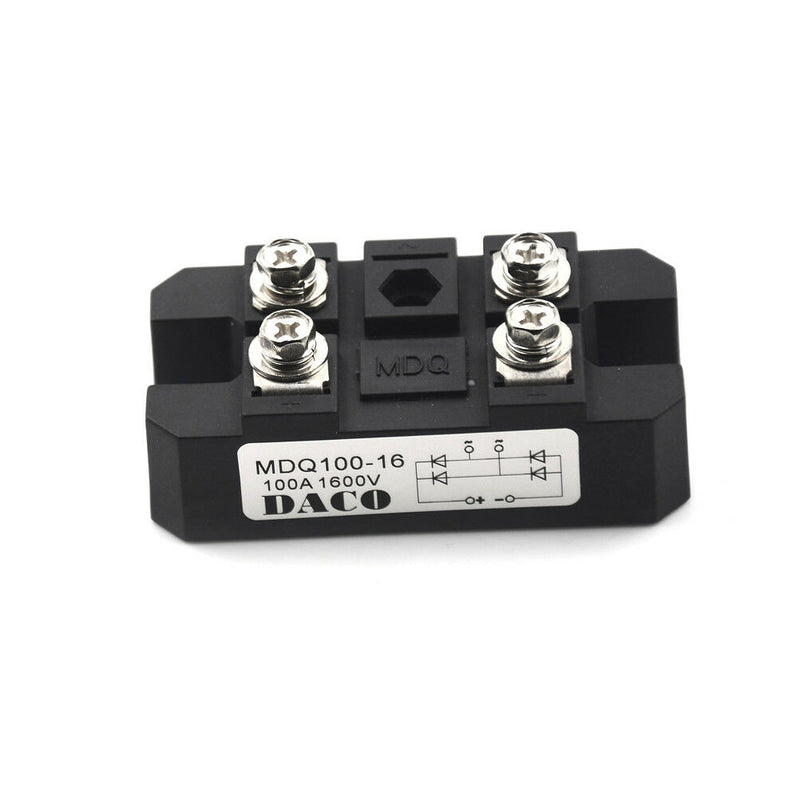

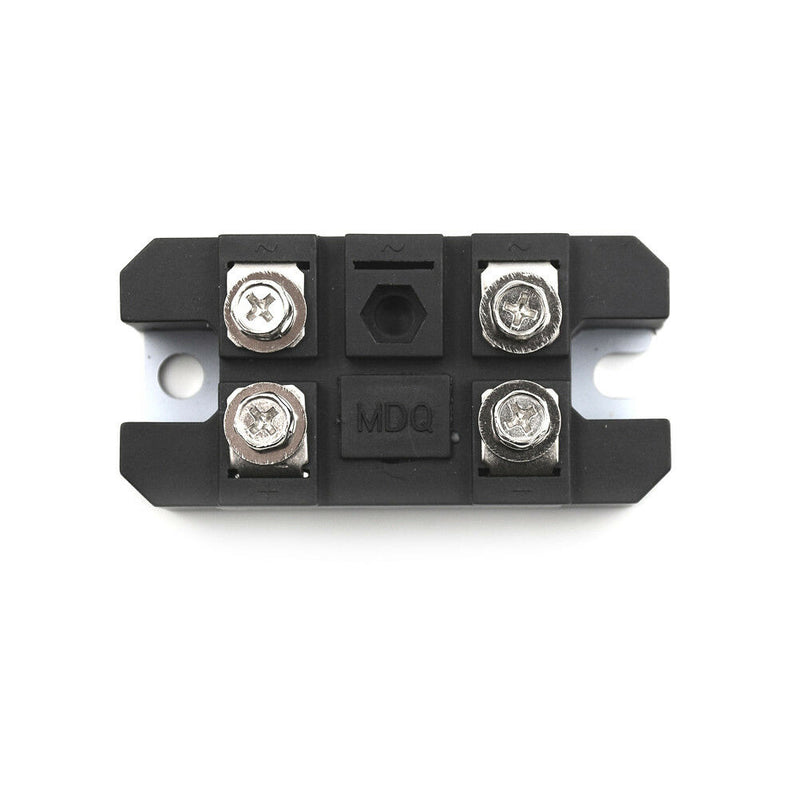

ITEM NAME:1PC MDQ 100A Amp 1600V Volt Single 1 Phase Diode Metal Case Bridge Rectifier .SE Features: High quality bridge rectifiers used for conversion of an alternating current input into a direct current output. Well welded structure with good temperature and power cycle ability ensures a more stable performance. Designed for single phase rectification, output DC current is 100A. It has a large over-current capacity, good heat dissipation and low voltage drop. This high power bridge rectifier can be widely used for power supply. Specifications: Output Current: 100A Three Phase Input Positive Average Current: 35A Repetitive Peak Reverse Voltage(VRRM): 1600V Repetitive Peak Inverse Current(IRRM): 10mA Isolation Voltage(Viso): 2500VAC VTM: 1.45V ITM: 100A Phase: Single Phase Terminals: 4 Max. Junction Temperature: 150℃ Size: 78 x 40 x 35mm / 3.07 x 1.57 x 1.37" Quantity: 1.Designed for single phase rectification, output DC current is 100A. Output Current: 100A. Phase: Single Phase. Three Phase Input Positive Average Current: 35A. High quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
