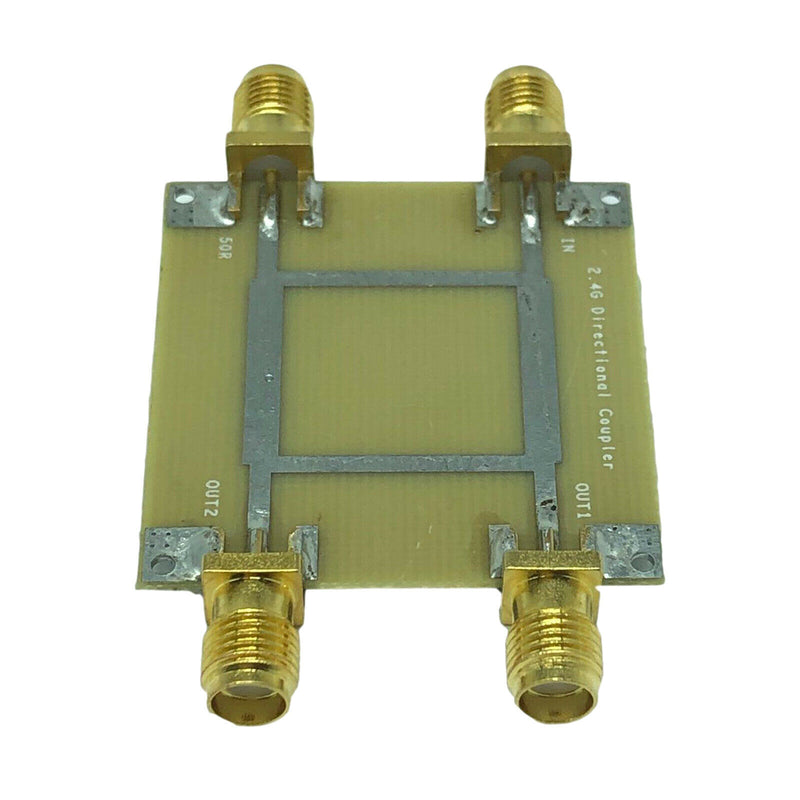

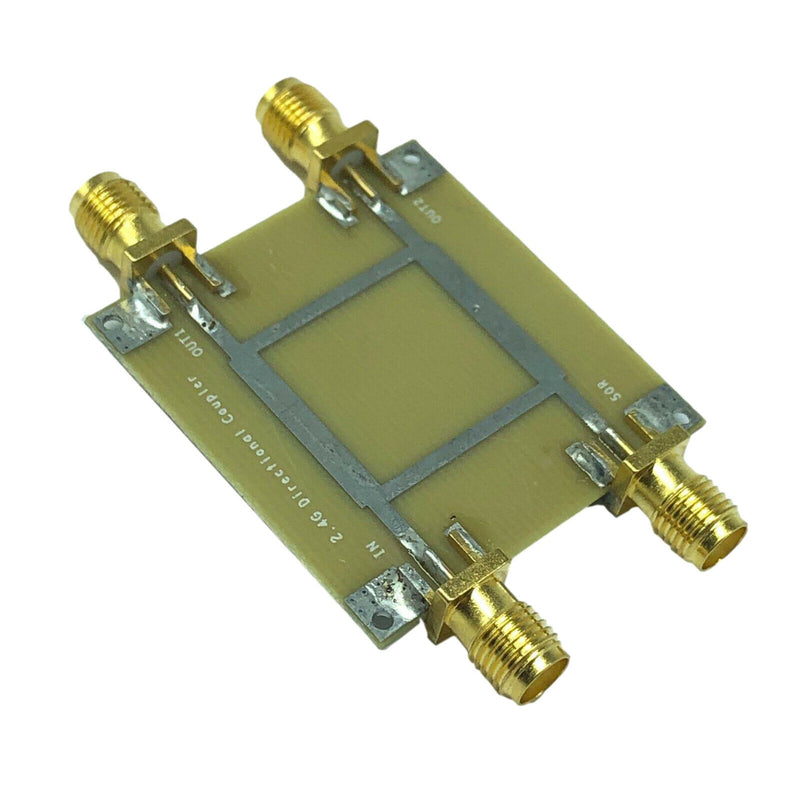

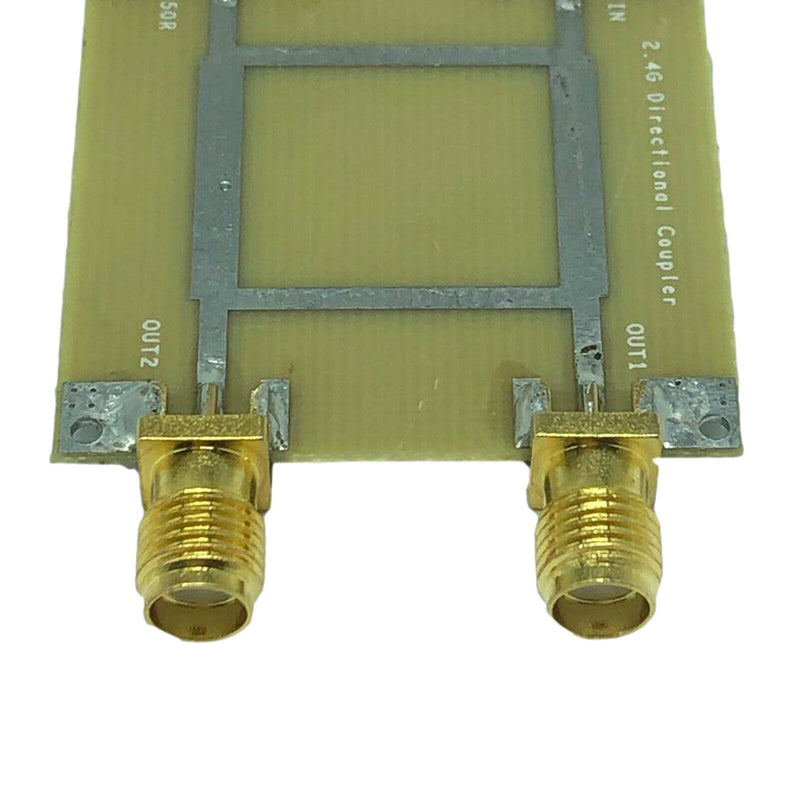

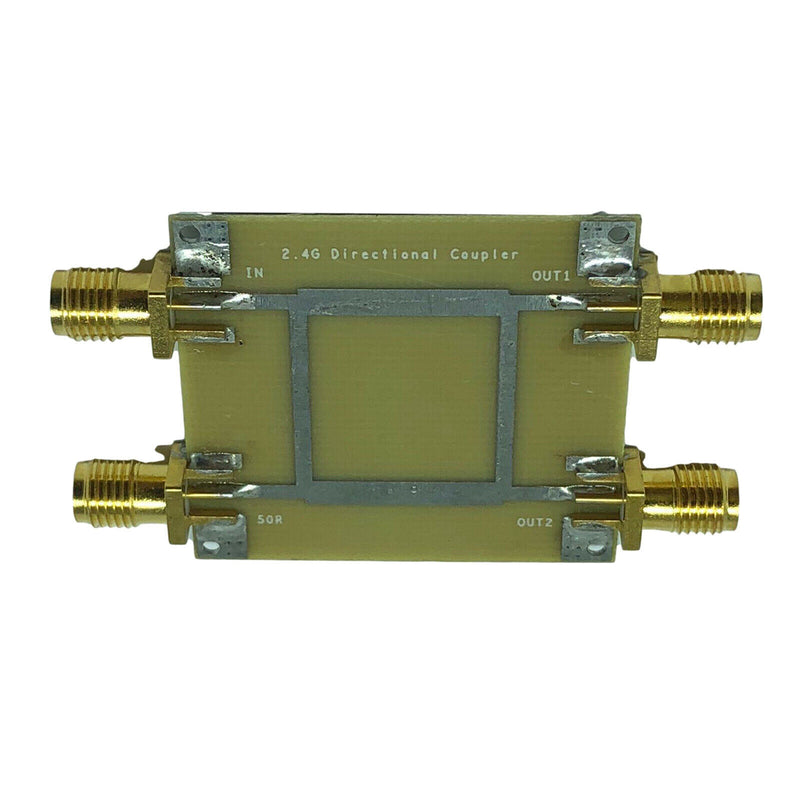

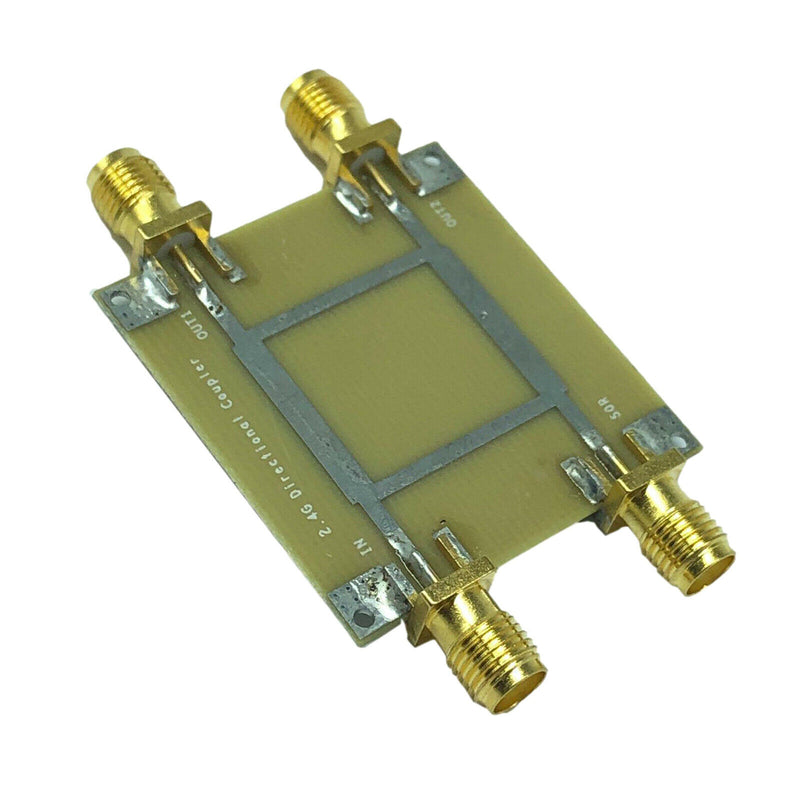

ITEM NAME:2.4GHZ Directional Coupler Directional Microstrip 3.6dB 15dB 15dB 1 2 3 Port Description: 2.4GHZ directional coupler directional bridge microstrip power divider The microstrip directional coupler, power splitters is similar to the structure as shown in figure 1, ideally no reflection port 1 input, input power output by 2, 3, port, port 4 no output, namely, 1, 4 port isolation from each other. Speed 12 with/S13 (90 degrees), the phase difference of PI / 2. Frequency range 2.3GHz-2.5GHz 2, S21>-3.6dB 3, S11
