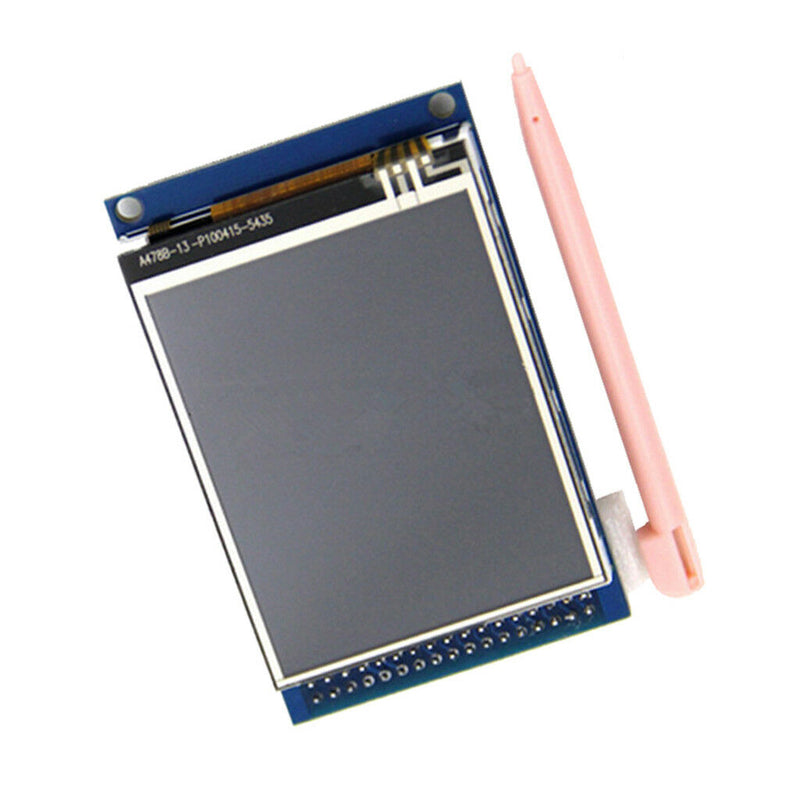

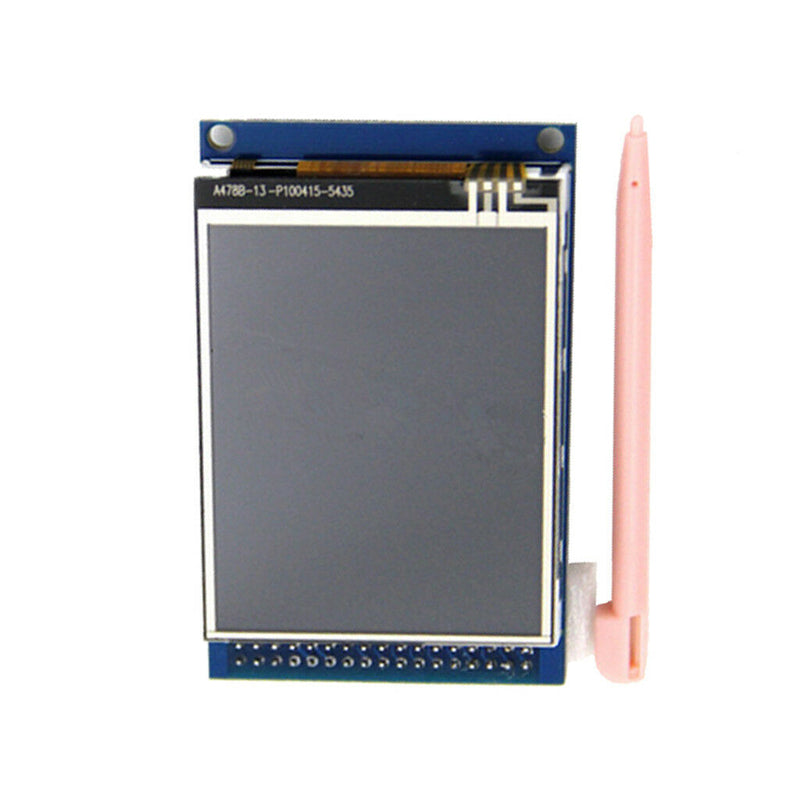

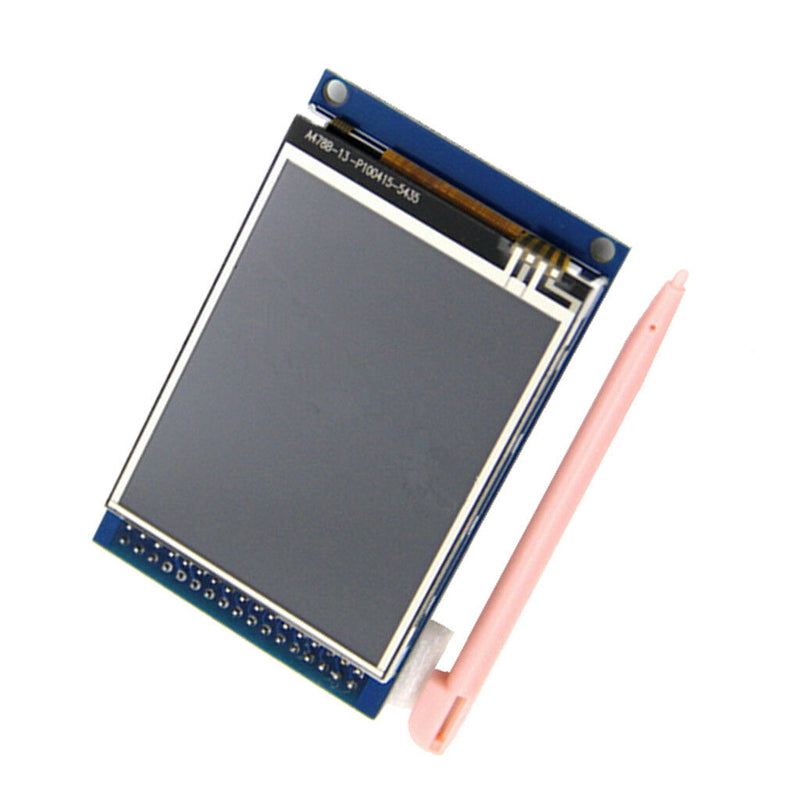

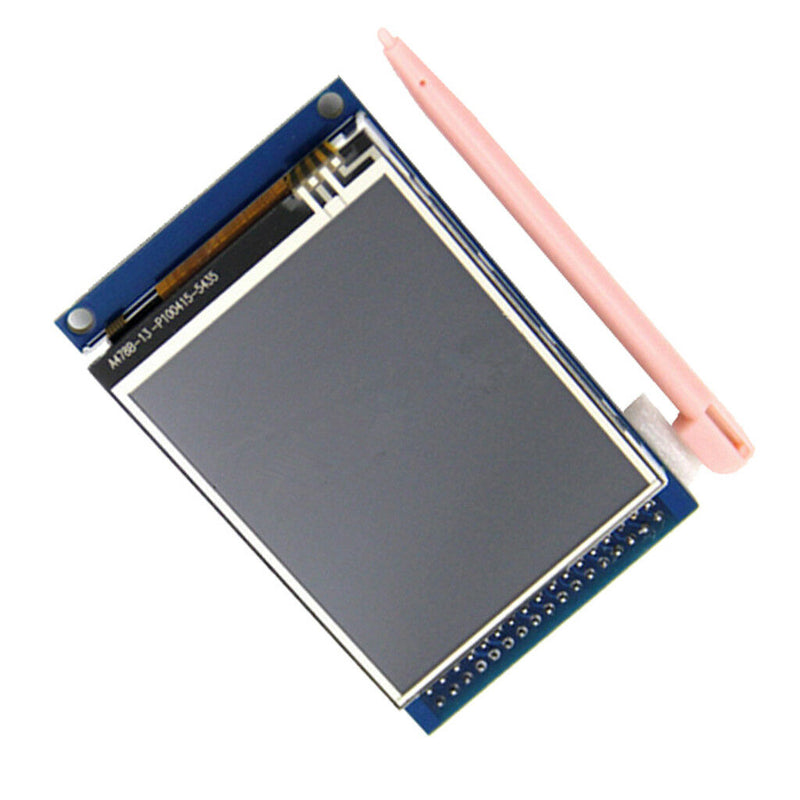

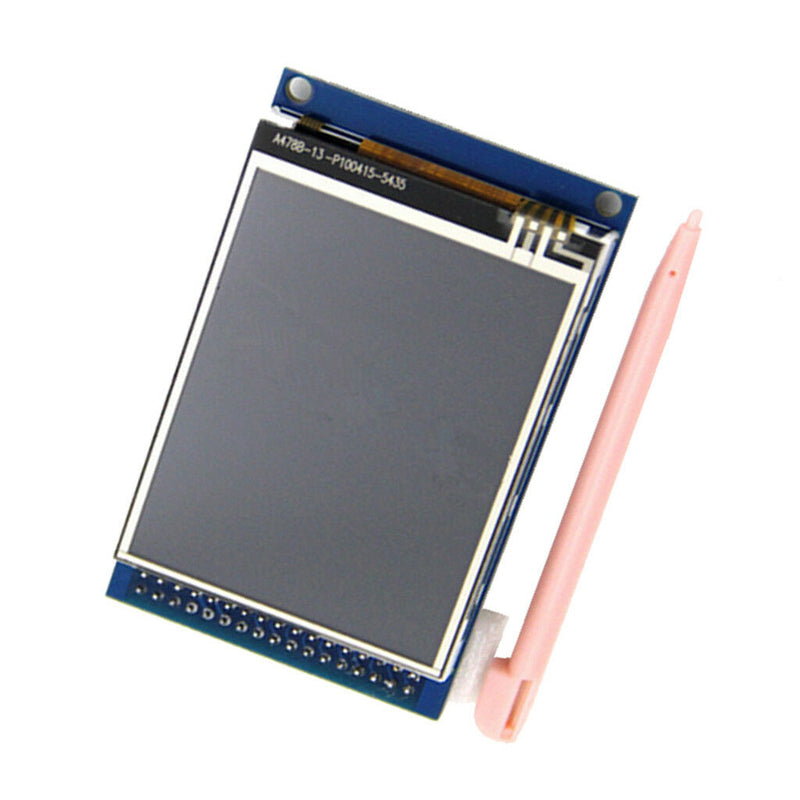

ITEM NAME:2.8" 240 x 320 TFT LCD Touch Screen Panel Display Module for stm32 Description: 320 x 240 resolution. 16-bit color (65000 colors) display support. With a bright backlight, the backlight has good brightness and low power consumption. High quality touch panel, high sensitivity and high linearity. Adopts customized copper gold plated pin, beautiful and durable. Suitable for mcu like arduino Universal interface for the full range of ALIENTEK development boards. Specification: LCD size: 2.8 inches Driver IC: ILI9341 Resolution: 320*240 (RGB) Color depth: 16 bits (65K colors) Operating voltage: 3.3V or 5V Backlight voltage: 2.8~3.3V, high bright 4LED Power Dissipation: 60~70(mA) Touch screen type: resistive, glass touch screen Interface mode: 16-bit (default)/8-bit configurable Module size: 51mm*82.6mm Display area size: 57.6mm*47.2mm Package Includes: 1 Piece TFT LCD Touch Screen Display Module 1 Piece Touch Screen Pen.1 Piece TFT LCD Touch Screen Display Module. 320 x 240 resolution. Resolution: 320 240 (RGB). High quality touch panel, high sensitivity and high linearity. Touch screen type: resistive, glass touch screen.
