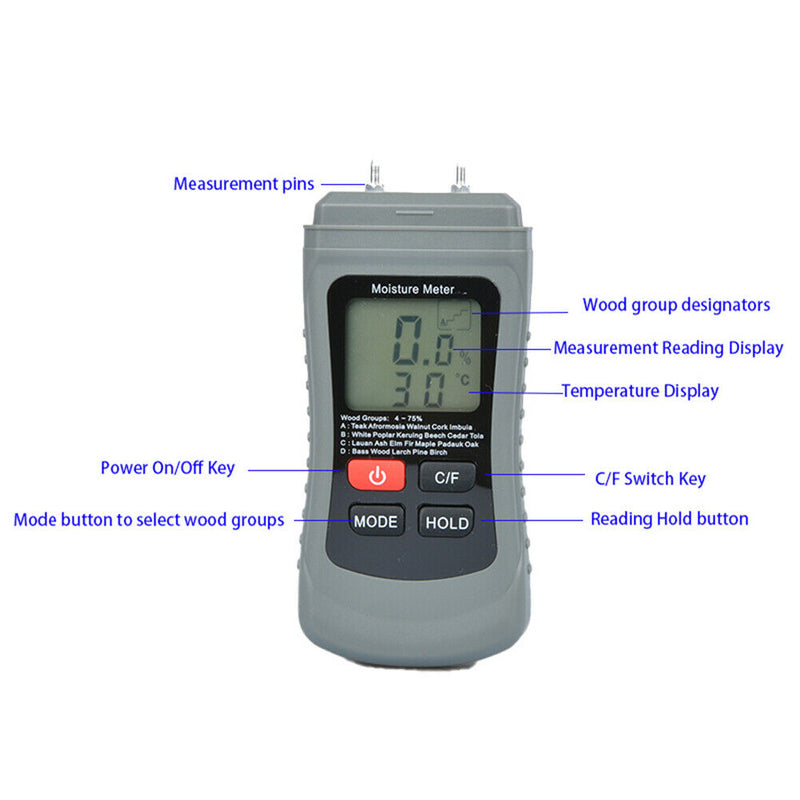

ITEM NAME:2 Pins LCD Digital Wood Moisture Meter Humidity Tester Timber Damp Detector A#S Product Description Description: Features: Measurement pins. Low battery icon. LCD measurement reading. Hold indicator. Wood group designators. Power on-off button. Mode button to select wood groups. Hold button. Simply description of each wood group. Specifications: Display: Large LCD characters display Measurement principle: Electrical resistance Range: Wood: 0~99.9% Resolution: 0.1% Accuracy: Â ±0.5% Electrode length: 10mm(0.4") Electrode pins: Integrated Auto Power OFF: After approx.15 minutes Power Supply: One 9V battery(battery is not included) Meter housing material: ABS plastic Operating Temperature: 0-40℃ (32℃- 104℃) Dimensions: 145 X 67 X 32mm (5.7" x 2.6" x 1.3") Weight: 200g (7.0 oz) Operation: Caution: The electrode measurement pins are extremely sharp. Users care when handling this instrument. Cover the pins with the protective cap when the instrument is not in use. Measurement Instructions: 1. Remove the cap to expose the needle electrodes. 2. Power ON the Instrument. 3. Select the appropriate wood calibration scale A, B, C, D (See the Wood Calibration explanation later in this guide) Using "MODE" button. 4. Push the needle pins into the wood and observe the reading. 5. Power OFF the instrument. Auto Power OFF: This instrument will be Auto Power OFF if there is no any button pressing in 15 minutes. This design is for saving battery power consumption. Care and Maintenance: When the instrument is not in use, store the instrument in a stable, dust-free environment out of direct sunlight. Remove the battery from the instrument if it is to be stored for periods of more than one month, or when the low battery power symbol appears on the display. Battery replacement: When the low battery icon appears on the display, replace the battery as soon as practical. Remove the rear battery compartment cover. Replace one 9V battery.(battery is not included) Cover the compartment do.D/Basswood, Larch, Pine, Birch. B/Keruing, White Poplar, Beech, Cedar, Tola. C/Lauan, Ash, Elm, Fir, Maple, Padauk, Oak, Cherry. Hold indicator. Electrode pins: Integrated. Push the needle pins into the wood and observe the reading.
