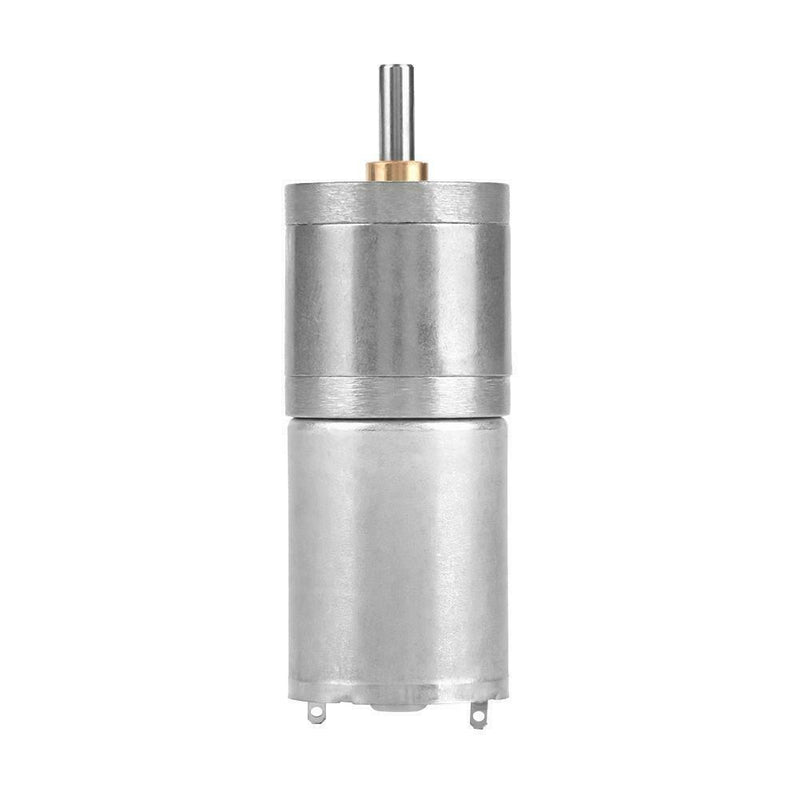

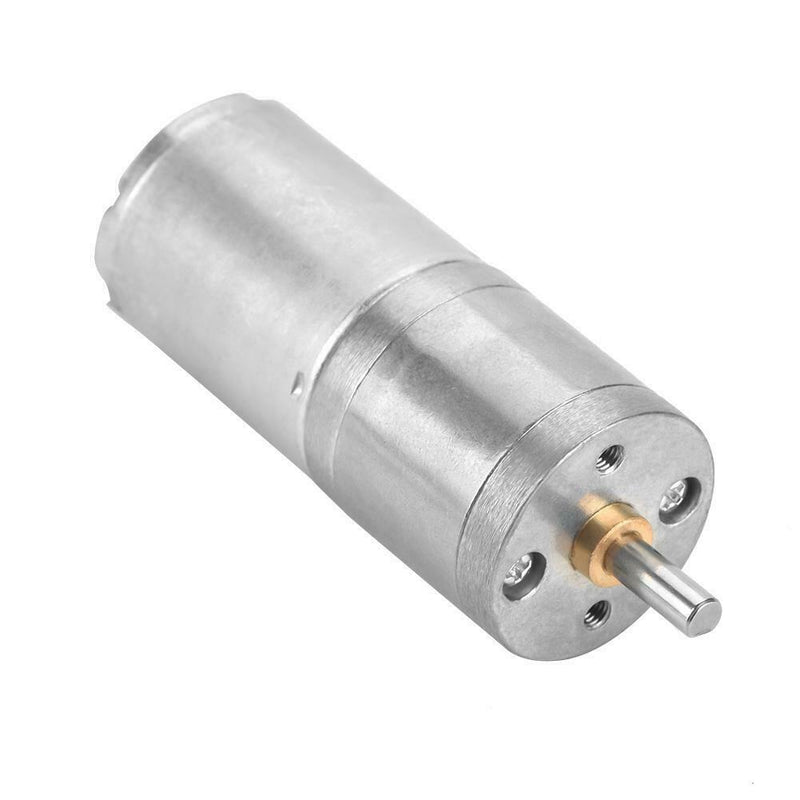

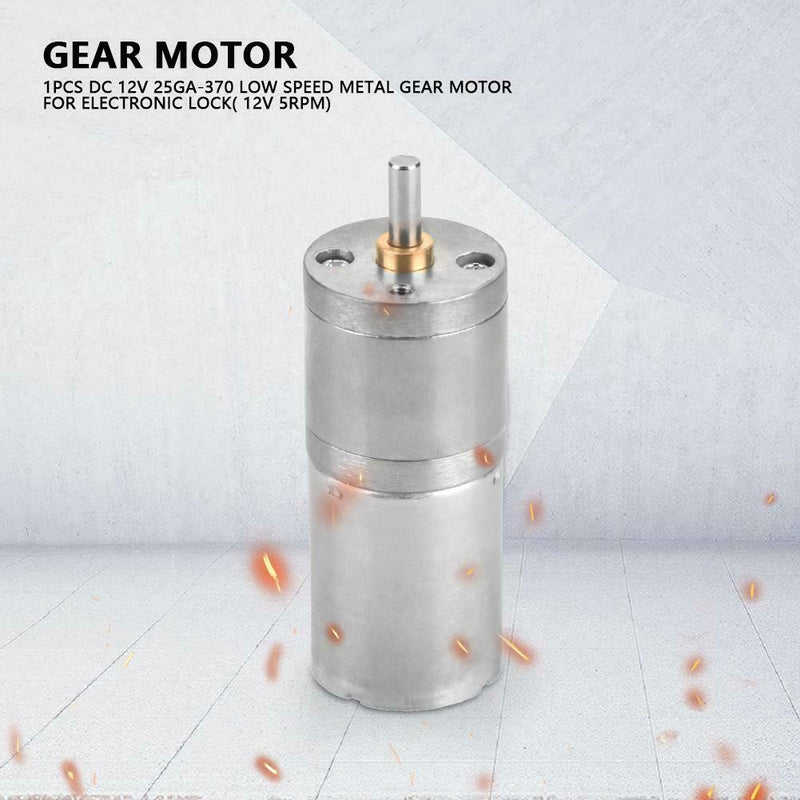

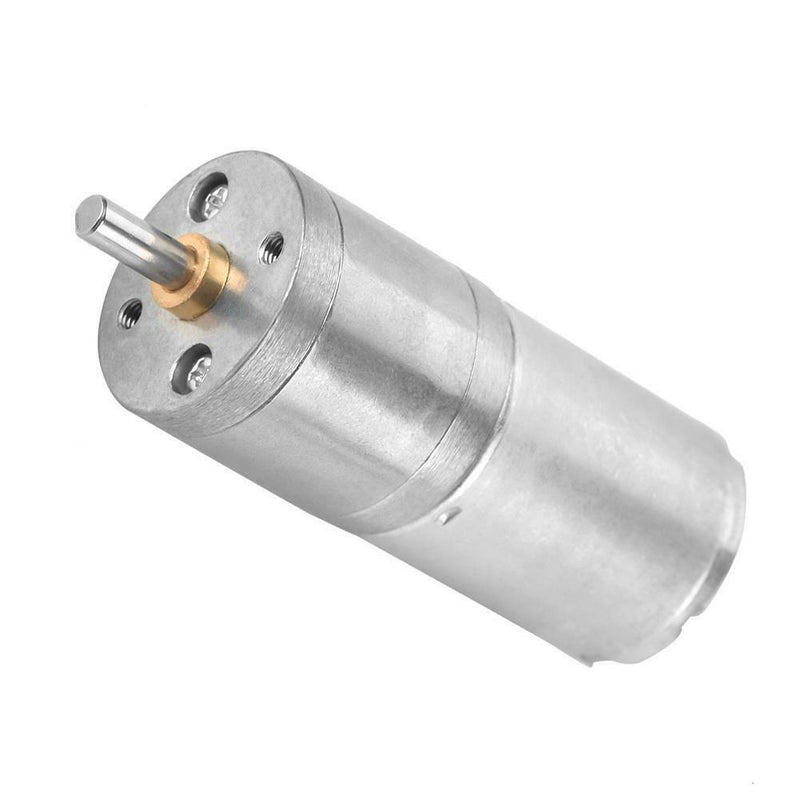

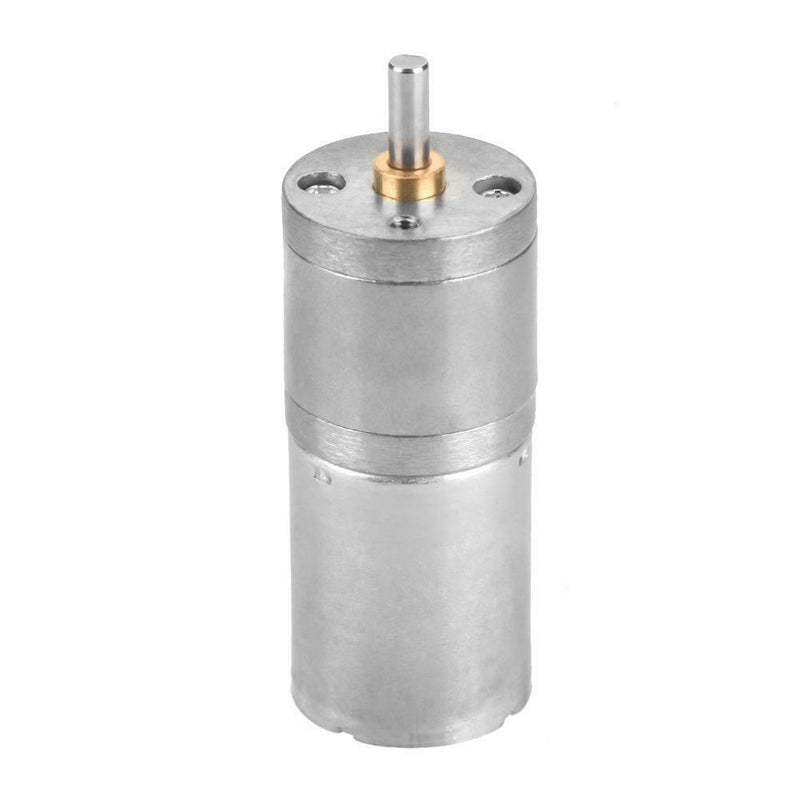

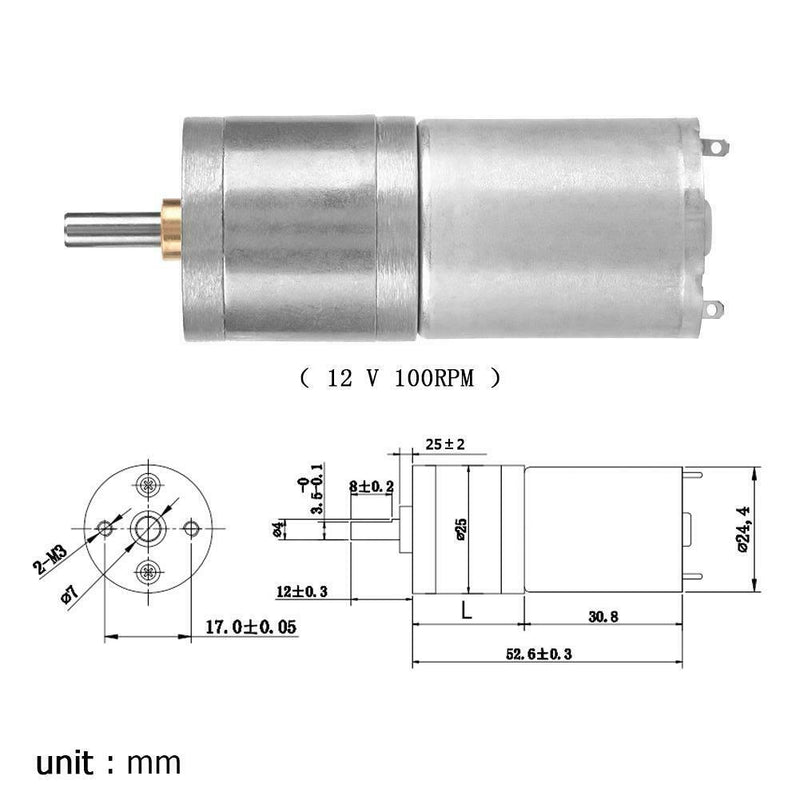

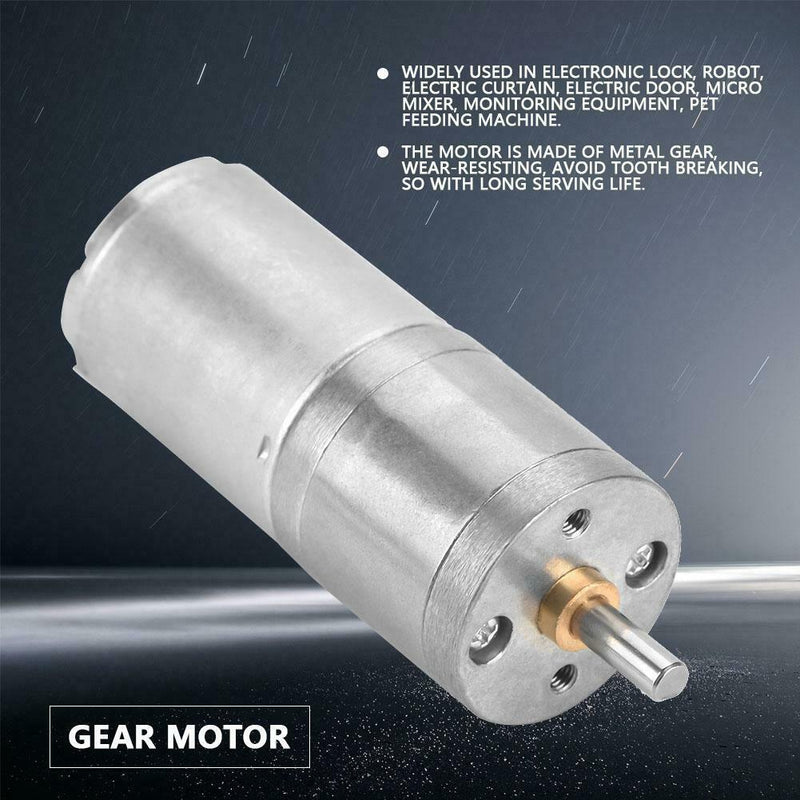

ITEM NAME:25GA370 Metal Low Speed High Torque Gear Motor DC Gear Reduction (100RPM) Product Description Description: 25GA370 Metal Gear Low Speed High Torque Micro Speed Gear Motor DC Gear Reduction Motor Electric Gearbox Reducer for Mechanical Robot Model Features: This product is a straight gear reducer motor, using high precision metal gears, stable operation of the DC motor has greater torque, low speed and low noise. The motor is made of metal gears. It is wear-resistant, avoids broken teeth and has long service life. The motor adopts pure copper coil, which has low calorific value and low loss. Widely used in electronic locks, robots, electric curtains, electric doors, micro mixers, monitoring equipment, pet feeders, etc. Specifications: Model: GA25YN370 Rated power: 3.5 W Product type: Brush DC motor Rated voltage: 5-12 V Rated current: 0.06 A Appearance size: 25 mm/0.98" Material: Metal Main applications: mechanical equipment, rotating tools, medical equipment, measuring tools Types (optional): 12V 100 RPM Specification: Voltage Gear Ratio No Load Speed No Load Current Load Speed Load Current Load T orque Stall Current Stall T orque 12V      1:100      100RPM     ≠¤150MA       73RPM      ≠¤185MA  660gf.cm  ≠¤2.1A   10.5kgf.cm Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow slight measuring deviation due to manual measurement. Included: 1 x Gear Motor.12V 1:100 100RPM ≠¤150MA 73RPM ≠¤185MA 660gf. cm ≠¤2.1A 10.5kgf.cm. The motor adopts pure copper coil, which has low calorific value and low loss.
