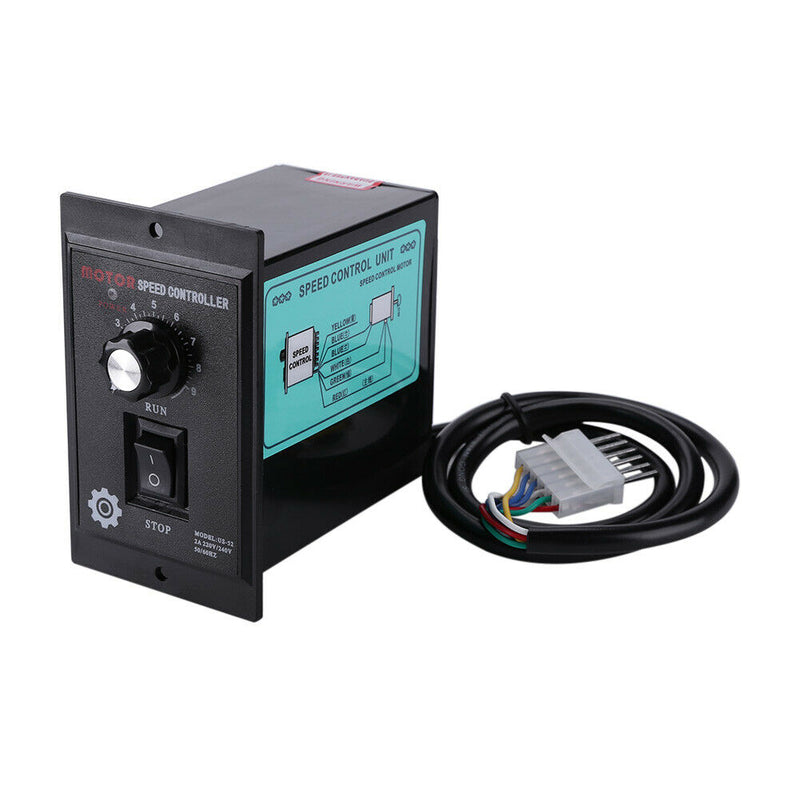

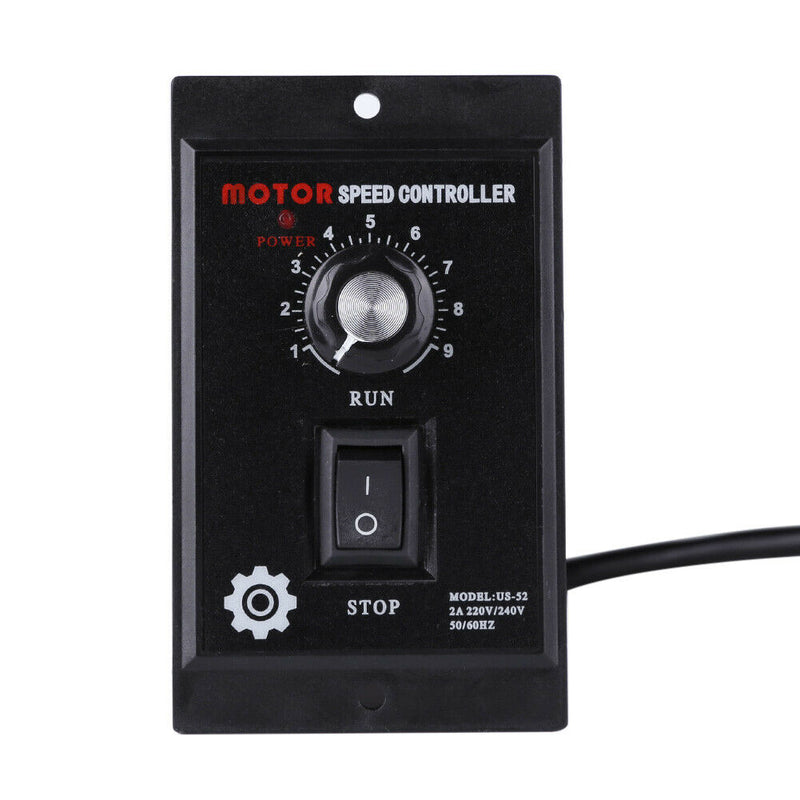

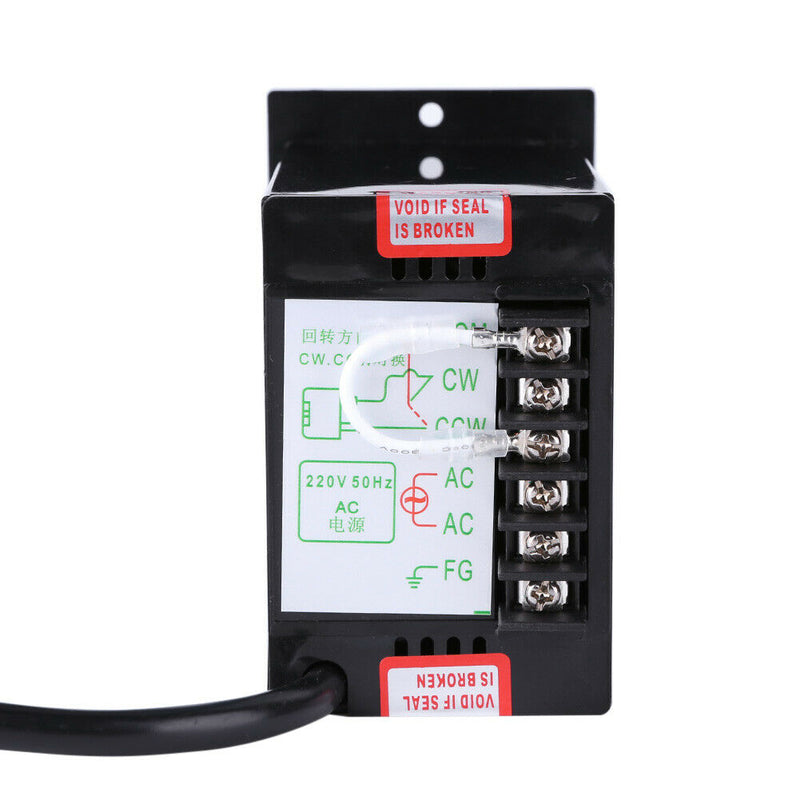

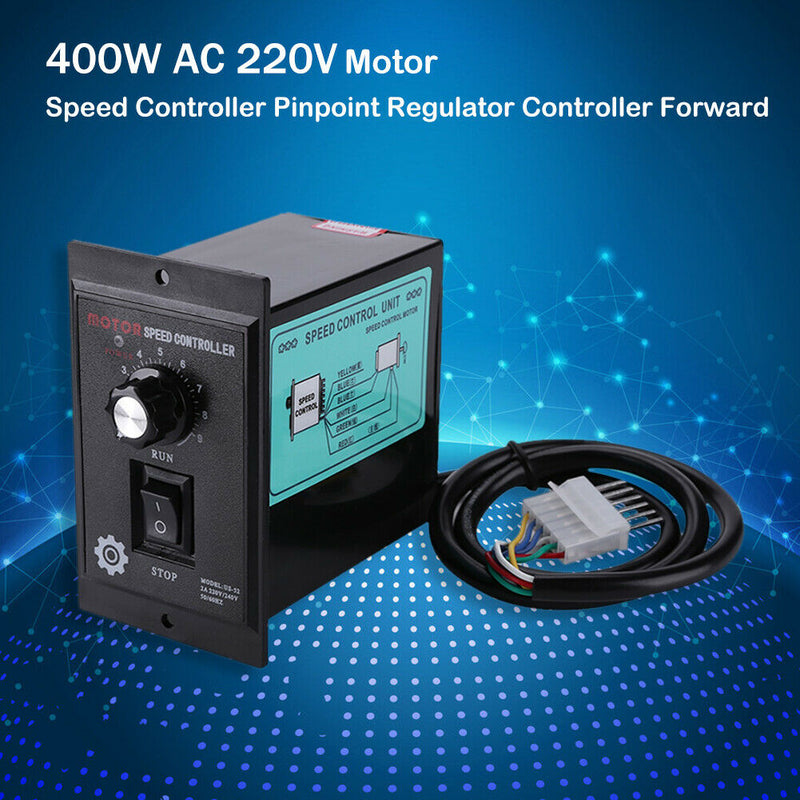

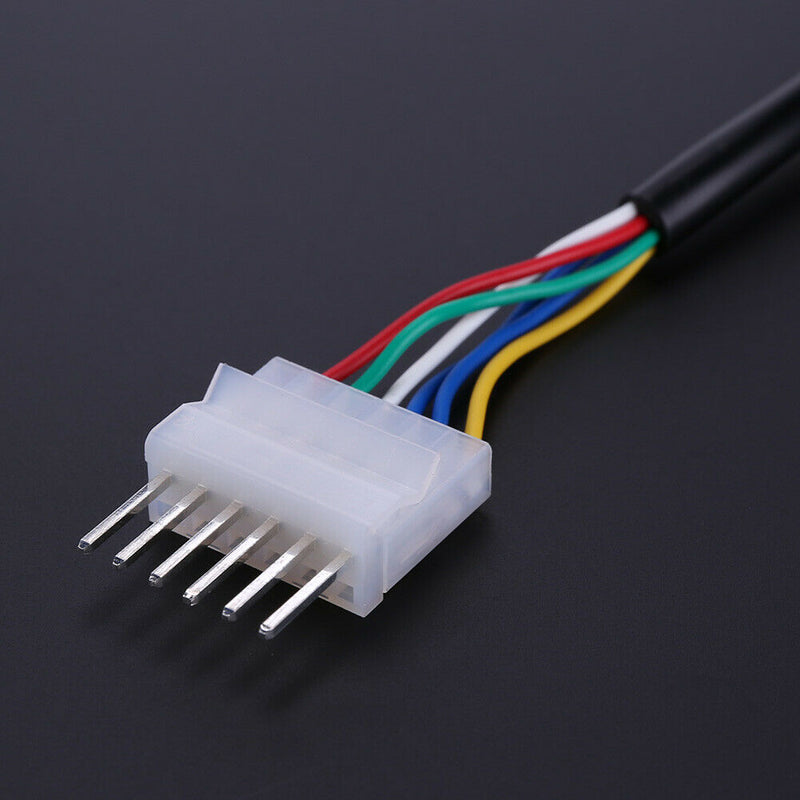

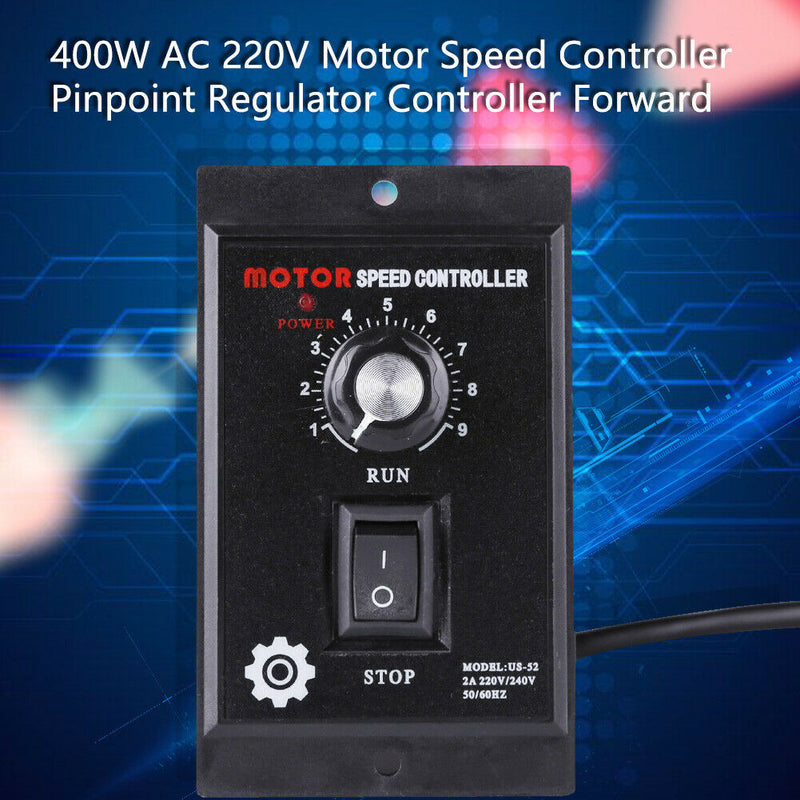

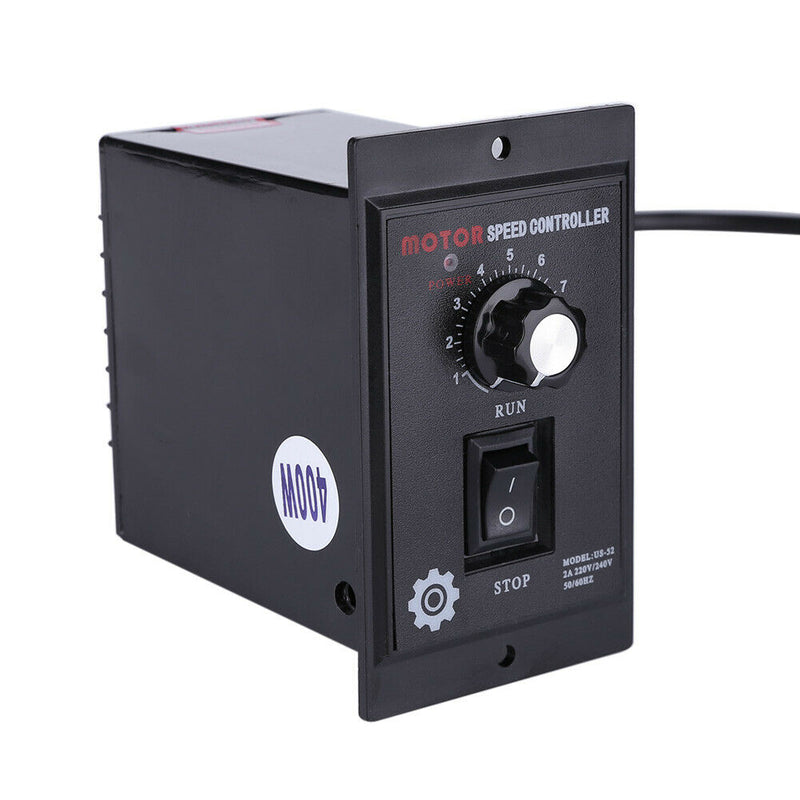

ITEM NAME:400W AC 220V Motor Speed Controller Pinpoint Regulator Controller Forward Product Description Description: 400W AC 220V Motor Speed Controller Pinpoint Regulator Controller Forward and Backward Product Description: The Speed Controller has 6 wires, the black wire is the main line of the motor, the red and white are the capacitance auxiliary lines, and the two blue lines are the speed feedback lines. The green line is the ground wire. Widely used in packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line as speed drive device. Specifications: Parameters: Working power supply: AC220V 50/60HZ, voltage fluctuation range is positive or negative 10%Ue; Rated power: 400W The use of the environment temperature: -10~+50℃ Relative humidity: less than 90%. Speed range: 90-1400r/min 50HZ, 90-1700r/min 60HZ Dimension:10*8*5cm/3.94*3.15*1.97" Usage method: 1. Turn off the power supply, connect to the wiring diagram and confirm that the connection is correct and do not modify it arbitrarily. 2. Fixed the controller well and set the speed to the lowest "0" so as to avoid the instantaneous high current and permanent damage when starting the power supply. 3. Then turn on the power supply, adjust the speed knob to the desired position, and turn off the power when it is not needed. 4. Adjust the fine-tuning potentiometer (speed setting adjustment) on the side of the product if the connection between the governor and the motor fails to meet the requirements of the rotation distance or speed. 5. In order to change the direction of motor operation, only the jumper of CCW and CW on the connection seat on the back of the controller is replaced. Select COM and CW short, then the motor rotates clockwise. Select COM and CCW short, then the motor rotates counterclockwise. 6. The action switch only controls the motor to operate or stop, and does not interrupt the power supply. If it is not used for a long time, please turn off the p.Find many great new & used options and get the best deals for 400W AC 220V Motor Speed Controller Pinpoint Regulator Controller Forward at the best online prices at !
