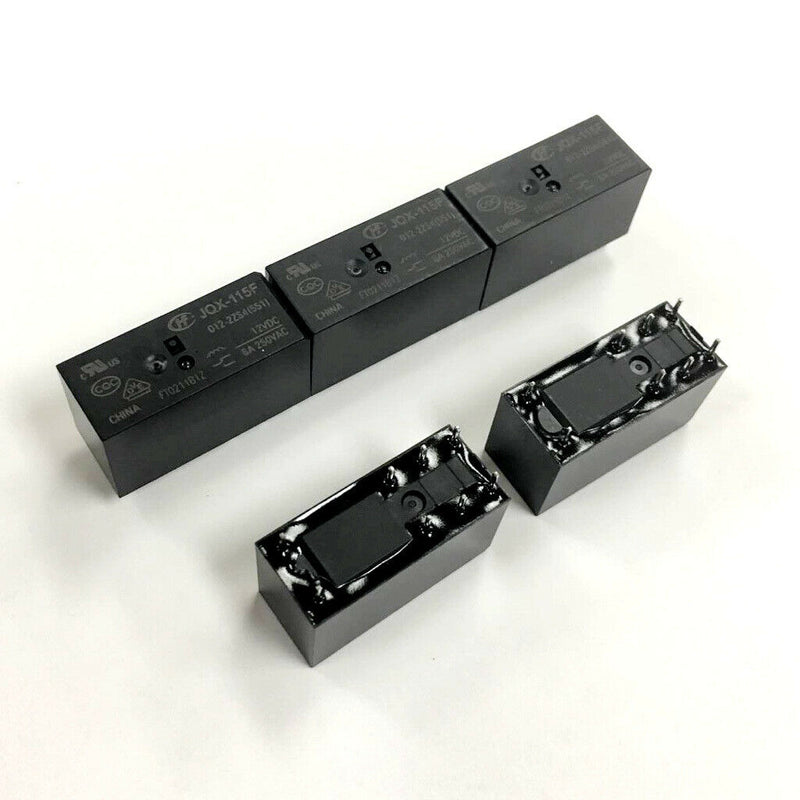

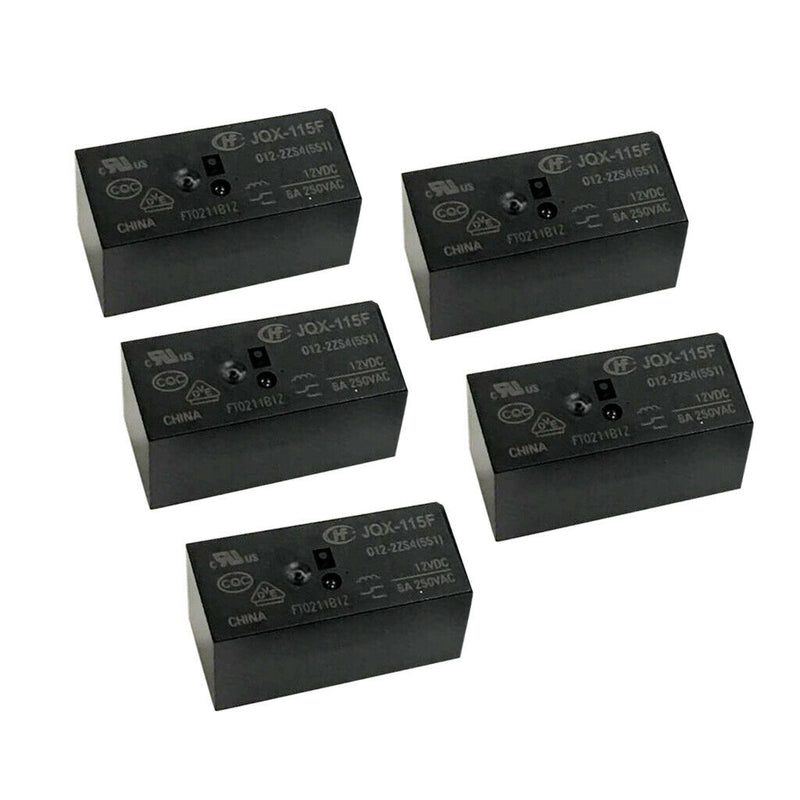

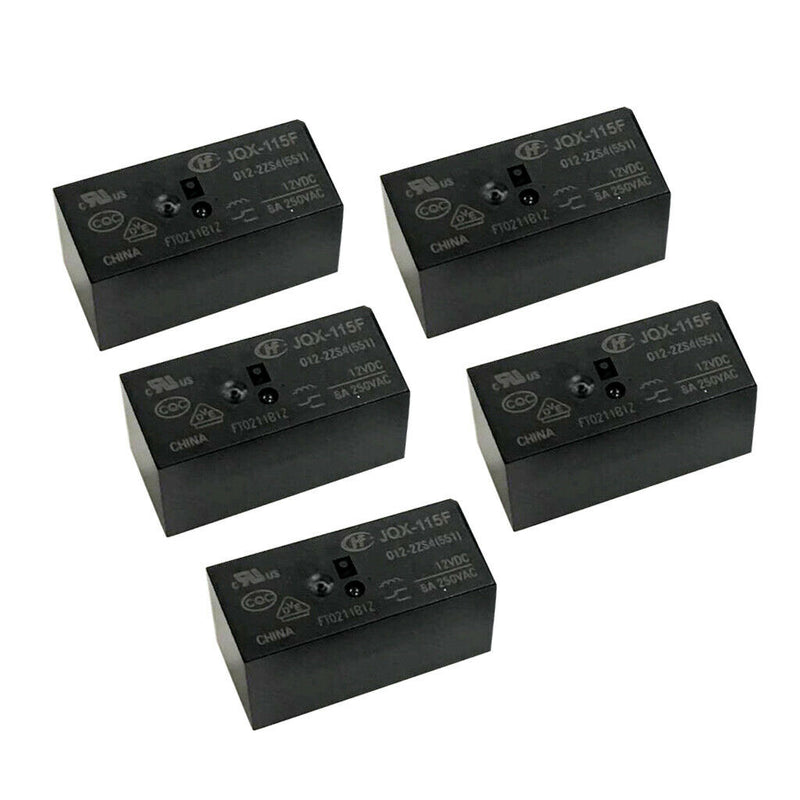

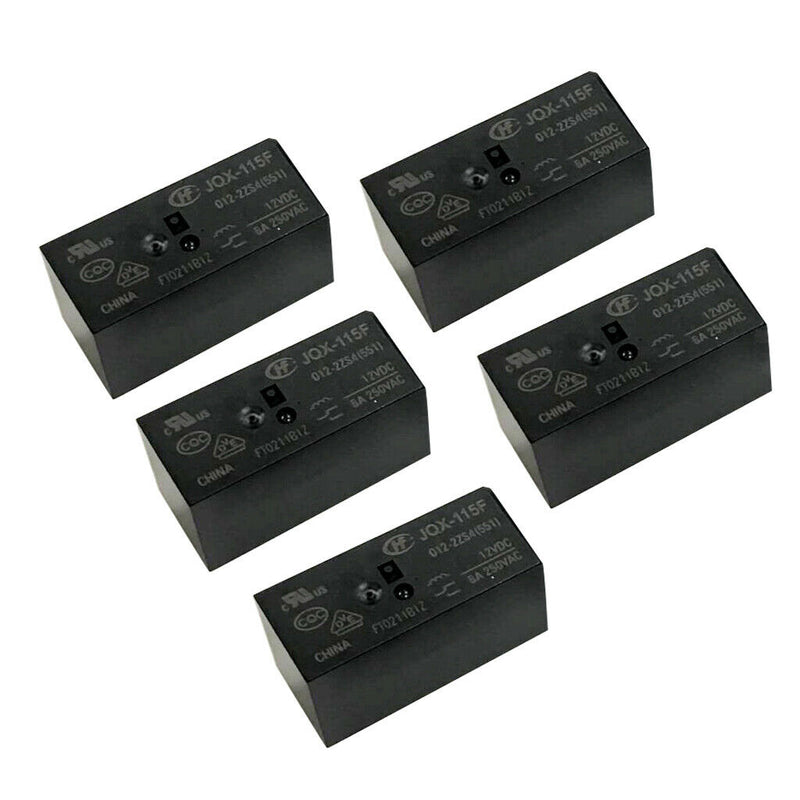

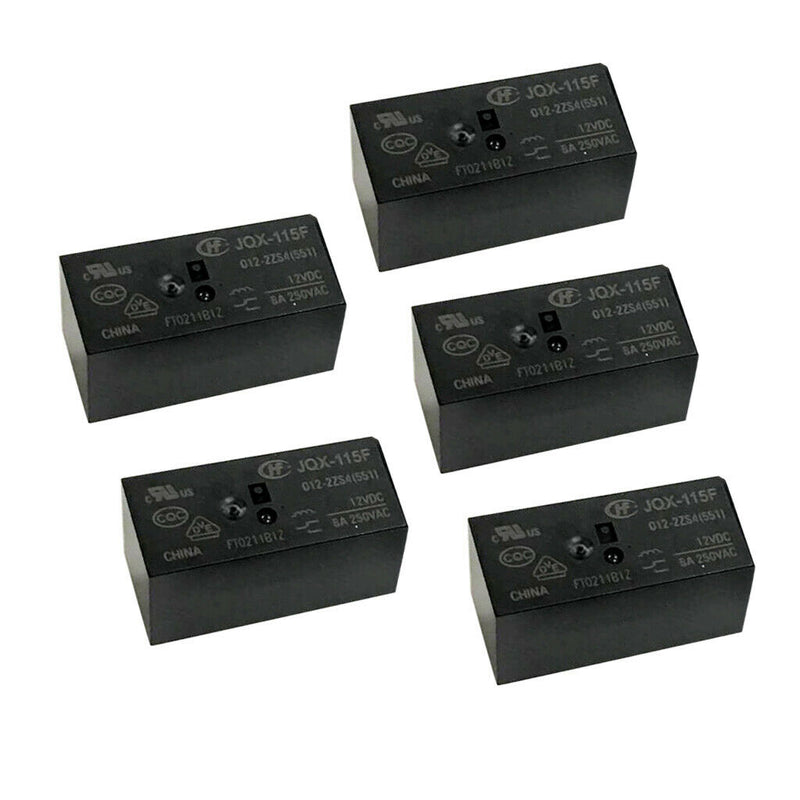

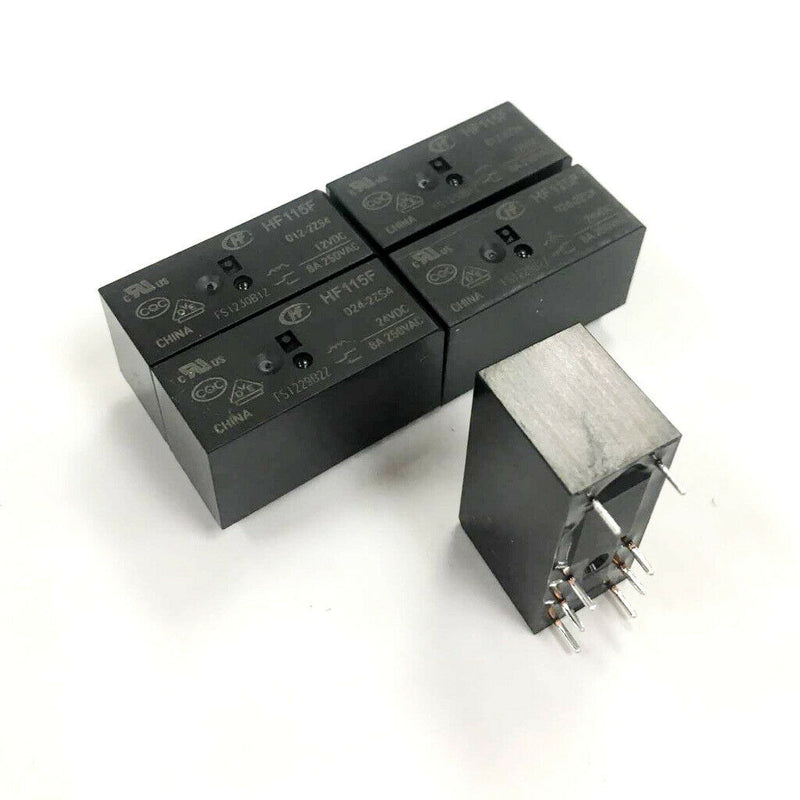

ITEM NAME:5 Pcs HF115F 12V-2C Mini Power Relay Relais PCB Type Modul Leistungsrelais Description: Power relays with a coil rated voltage of 12V DC and SPDT contacts with a 8A rating. The relays have 8 pins and are very good quality with a long operational life.Compact and sealed construction. It is especially suitable for harsh environments such as corrosion, humidity, dust, explosion protection, and frequent switching. It can control small motors, incandescent lamps, indicator lights, low-power power supplies, intelligent instrumentation and various solenoid valves, etc. It can also be used as a pusher for high-power electromagnetic contactors. Widely used in the field of petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, etc. Specification: Material: Acrylic resin Product detailed size: Approx.29x12.7x15.7mm/1.14x0.5x0.62inch Insulation Resistance : 100MÃŽ ©Min at 500VDC Dielectric Strength Between Open Contacts : 1000VAC(for one minute) Between Contacts and coil : 5000VAC(for one minute) Operate Time : 20ms Release Time : 10ms Temperature Range : -40℃to+70℃ Shock Resistance : Operating Extremes: 10G 11ms Damage Limits: 100G 6ms Vibration Resistance : 10-55Hz, 1.5mm Max. switching frequency Mechanical:18,000operations/hr Electrical:1,800operations/hr Humidity : 40-85% Weight : Approx 14g Package Includes: 5 Piece Power Relay SKU: DMO0012528573014938.5 Piece Power Relay. Insulation Resistance : 100MÃŽ ©Min at 500VDC. Shock Resistance Vibration Resistance : 10-55Hz, 1.5mm. Humidity : 40-85%. Electrical:1,800operations/hr. switching frequency.
