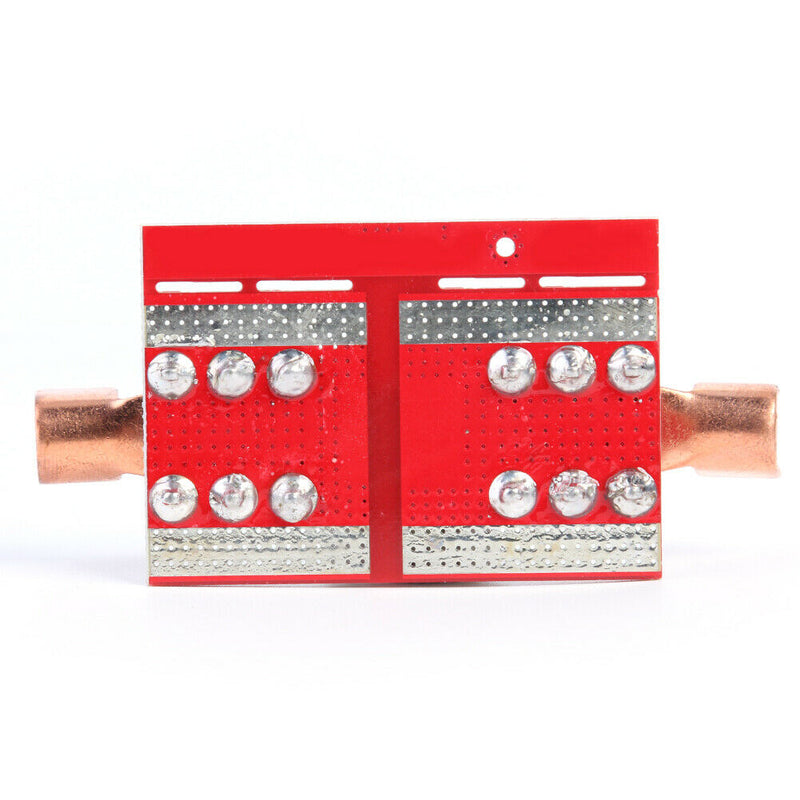

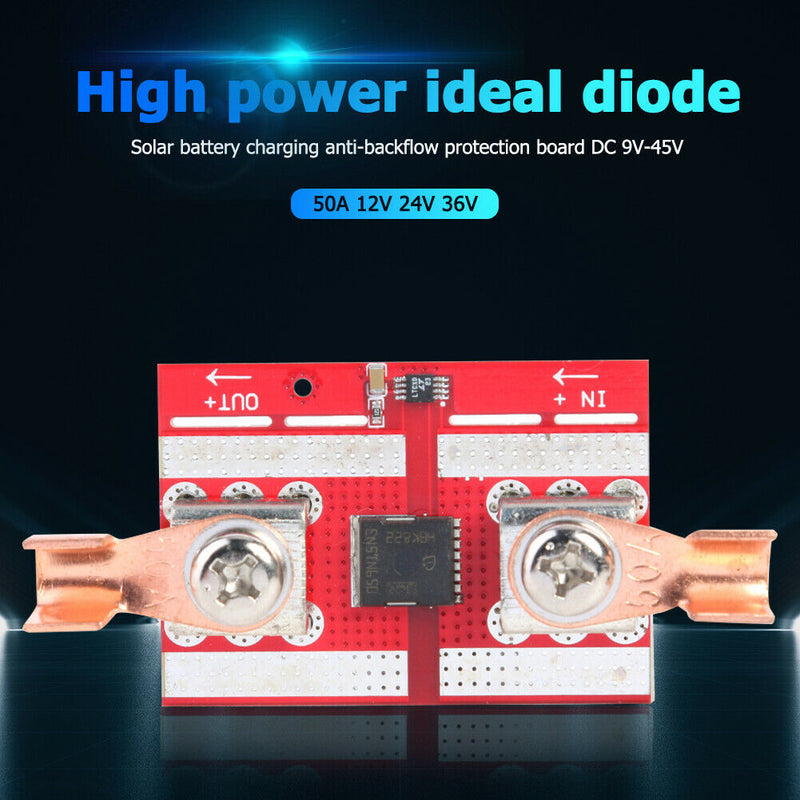

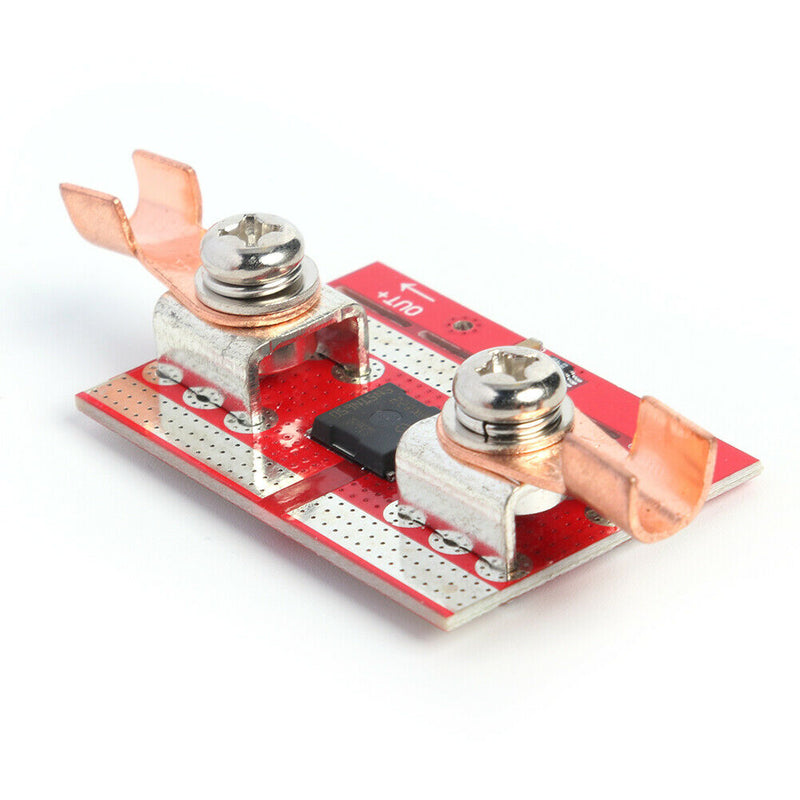

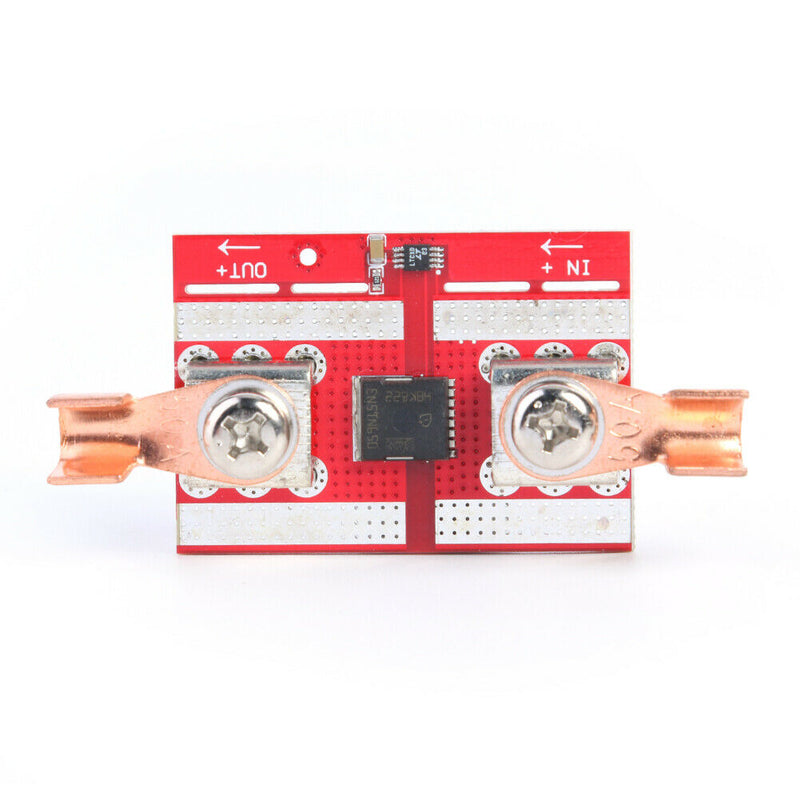

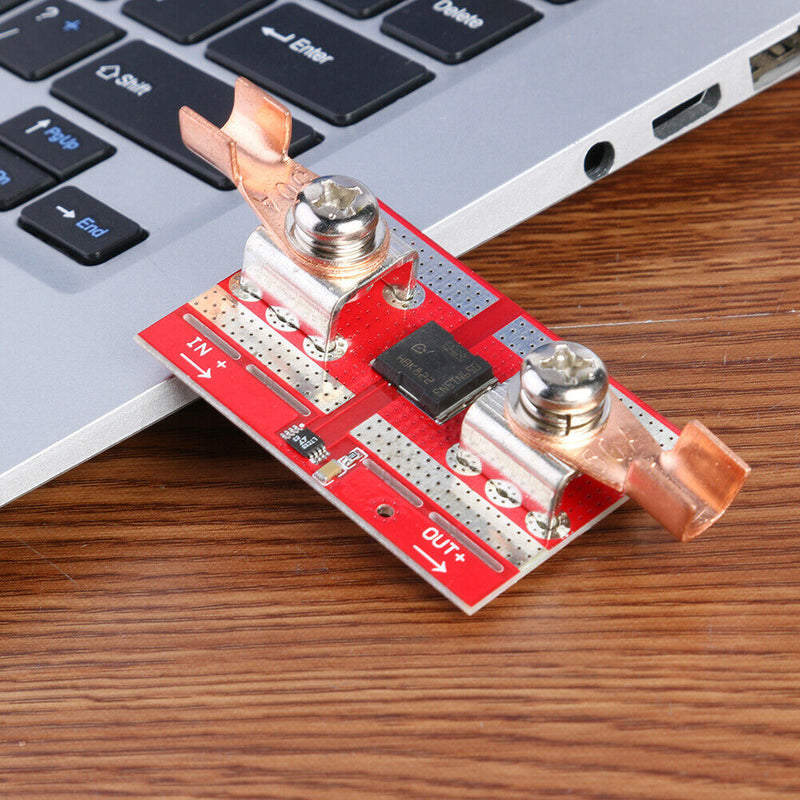

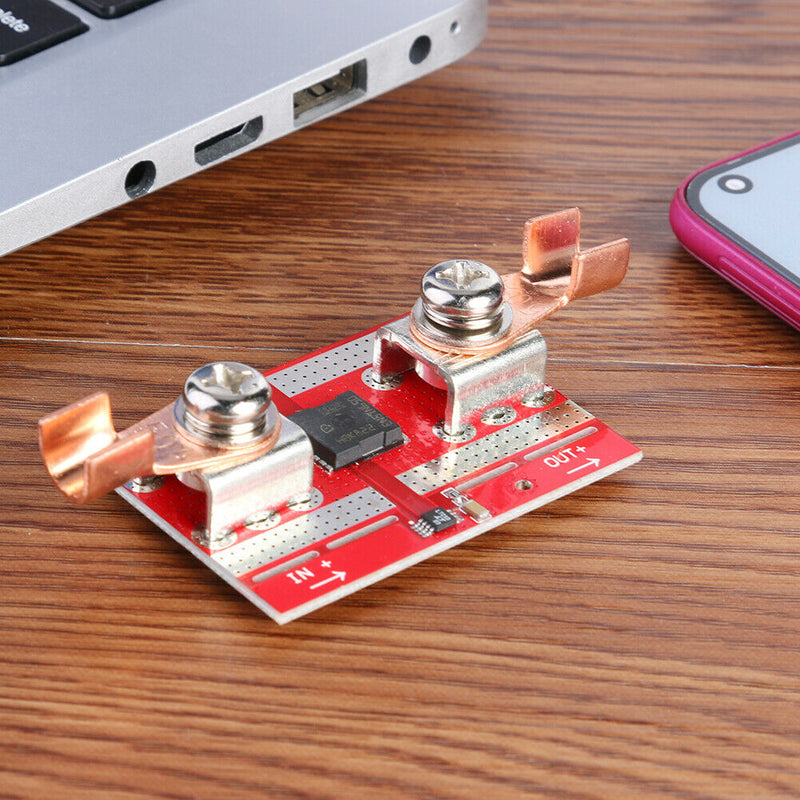

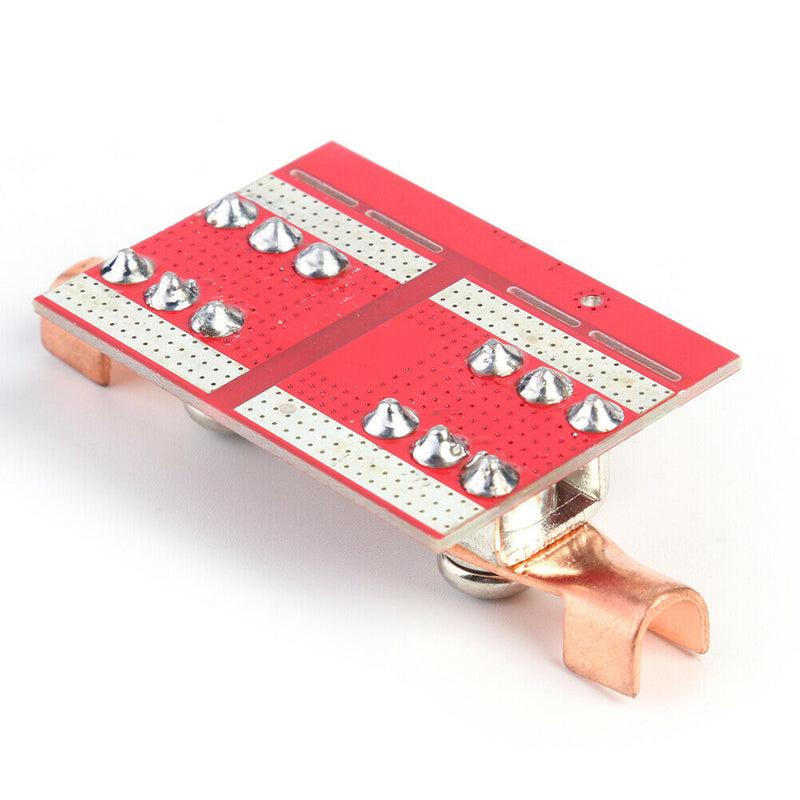

ITEM NAME:50A 12V 24V 36V Ideal Diode Controller Solar Anti-backflow Protection Board A#S Product Description Description: 50A 12V 24V 36V High Power Ideal Diode Controller Module Solar Battery Anti-backflow Protection Board Feature: 50A high power ideal diode controller. Positive high voltage ideal diode controller. This provides a lower loss path than Schottky diodes, and in high power applications, it provides a more efficient solution and saves valuable circuitry by reducing the need for heat dissipation. Board space. The input and output are equivalent to a diode. The output voltage is detected to be greater than the input and the output is immediately turned off, and the detection value is in the millivolt level. The corresponding speed is very fast. Uses: Replacing ordinary high current diodes, ideal for parallel connection of solar panels, Suitable for charging backfill protection. Specification: Working voltage: 9-70V Working current: maximum 50A Board size: 38*54mm/1.50*2.13" Copper foil thickness: 1.5oz Product weight: 39g Package size: 120*80*25mm/4.72*3.15*0.98" Note: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor. Included: 1 X Ideal Diode Solar Anti-backflow Protection Board.Working current: maximum 50A. This provides a lower loss path than Schottky diodes, and in high power applications, it provides a more efficient solution and saves valuable circuitry by reducing the need for heat dissipation.
