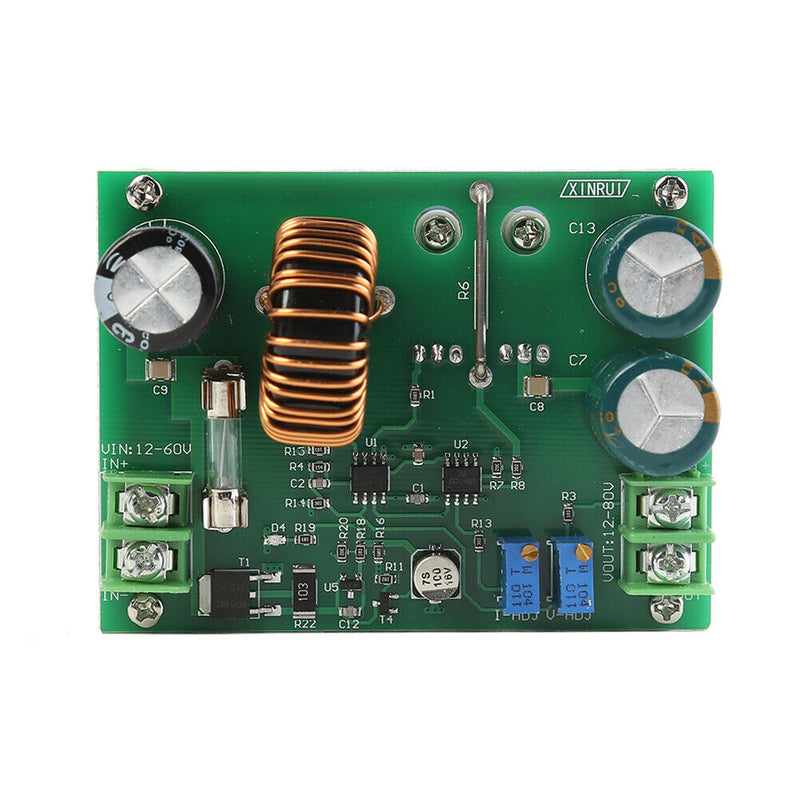

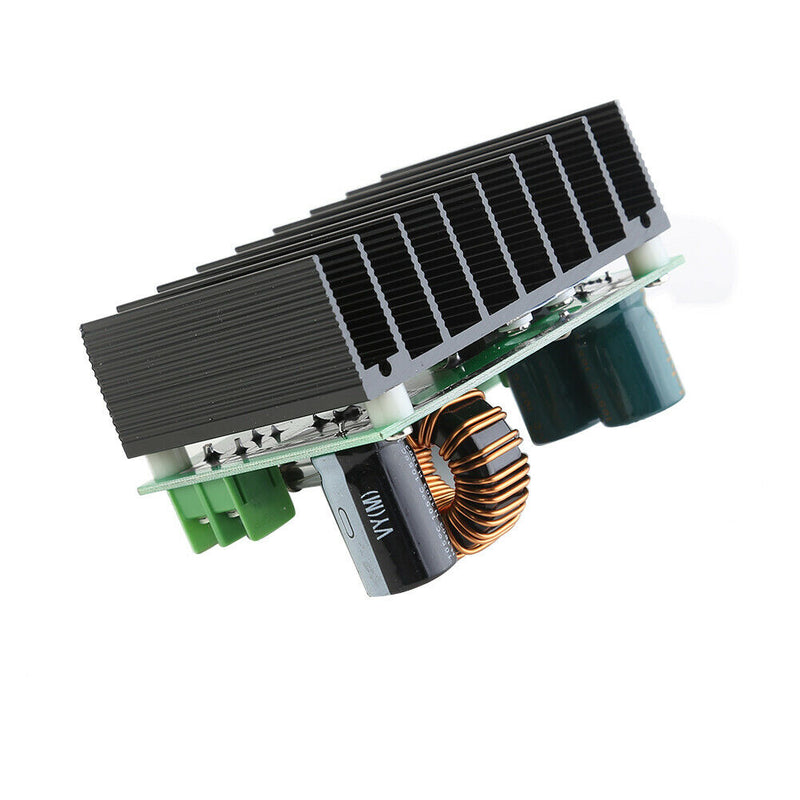

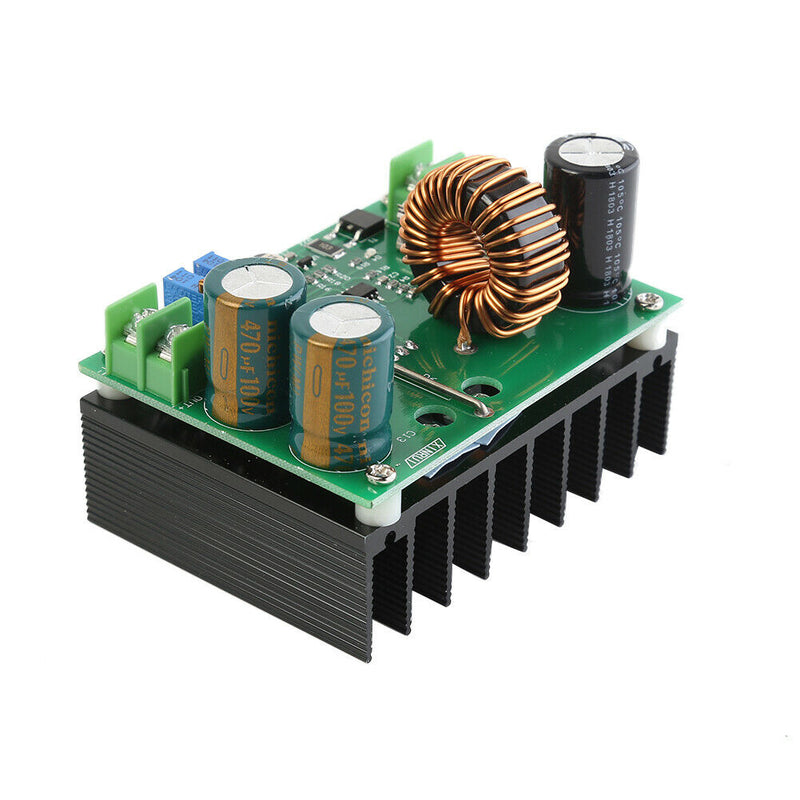

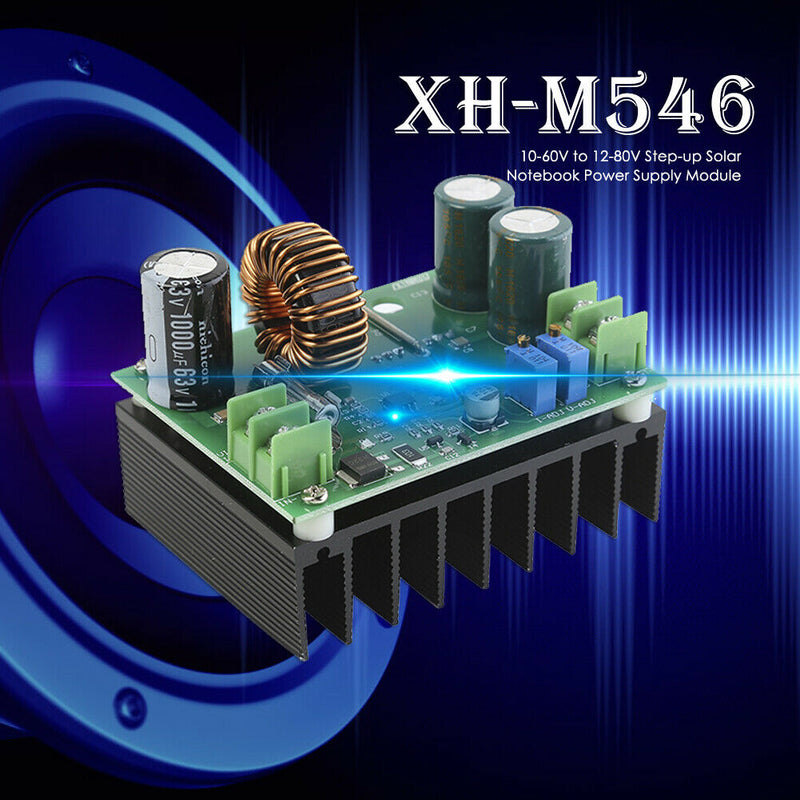

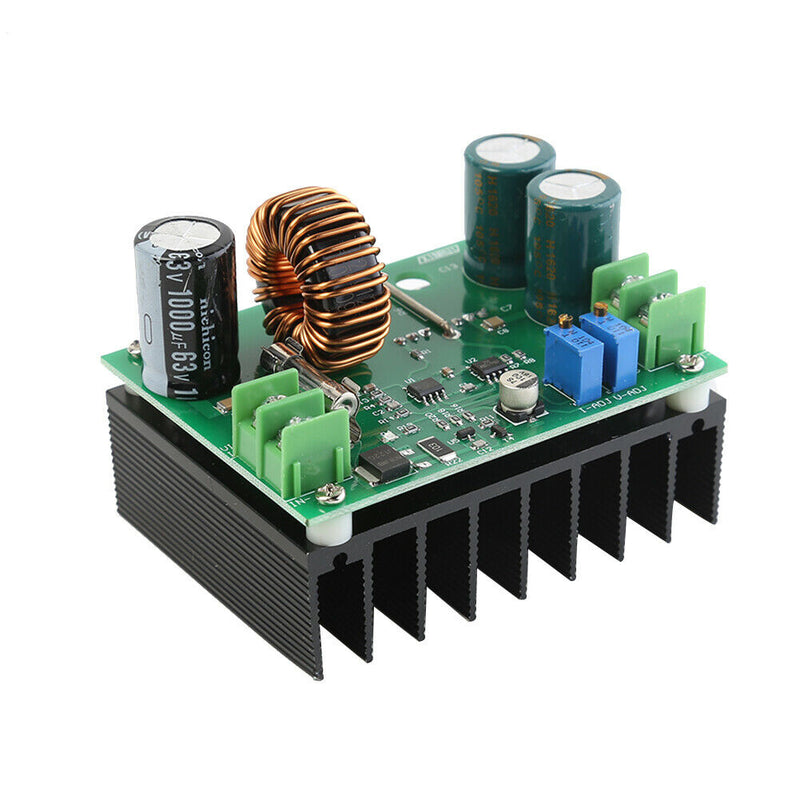

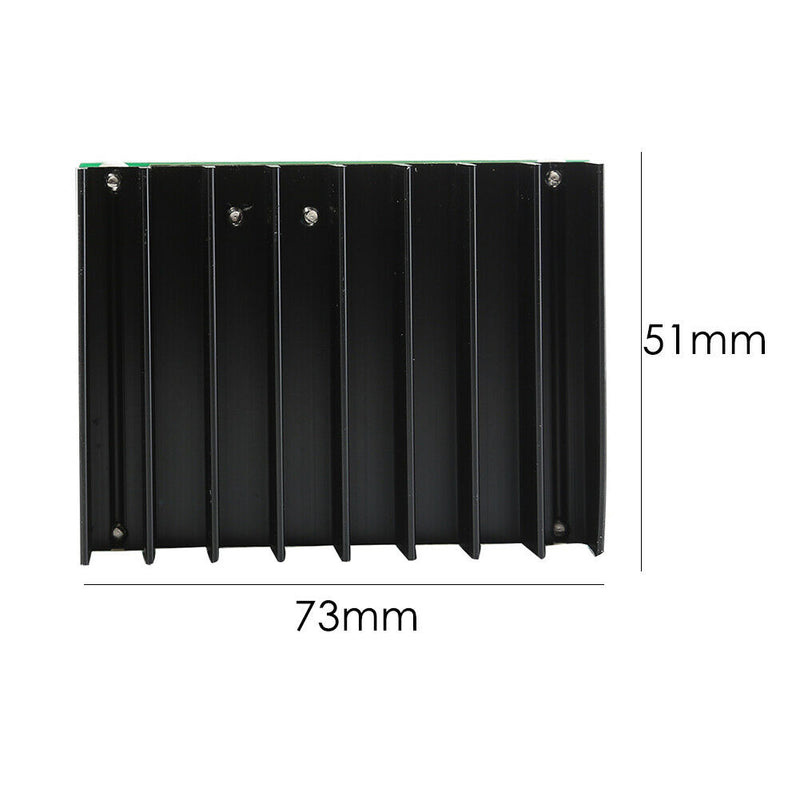

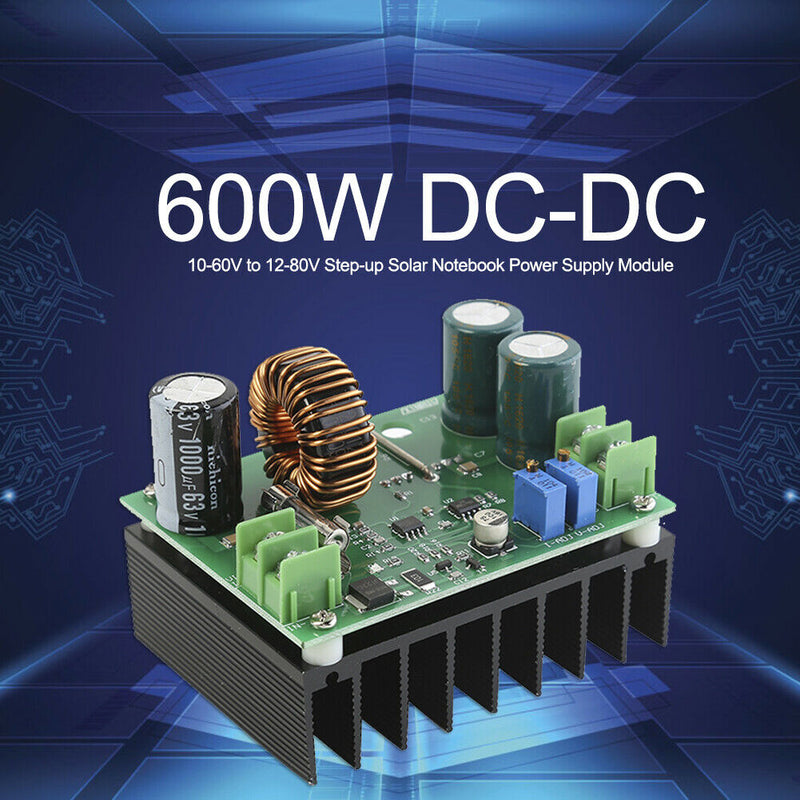

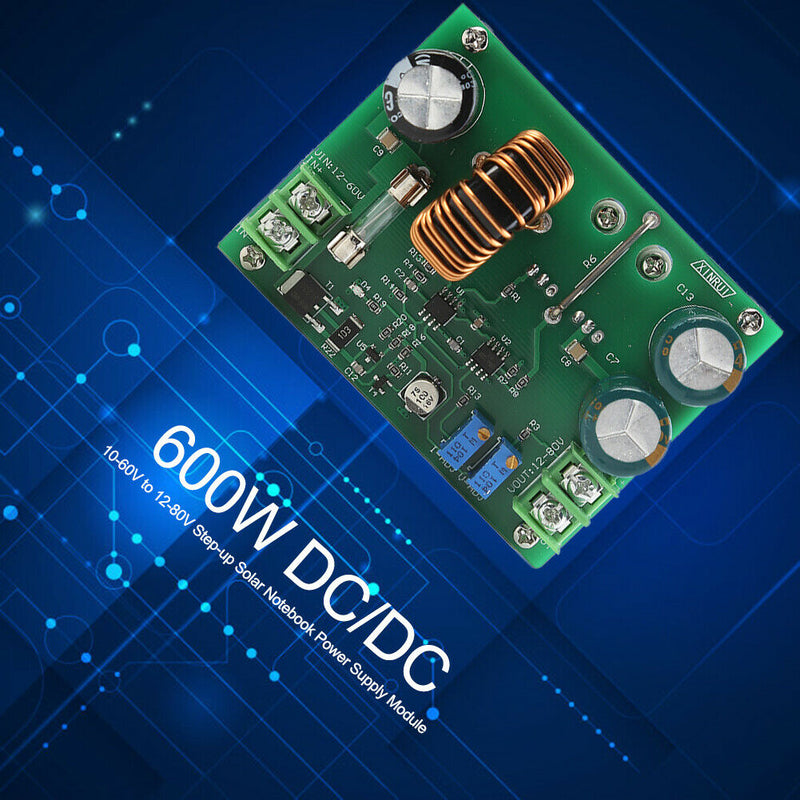

ITEM NAME:600W DC/DC 10-60V to 12-80V Step-up Solar Notebook Power Supply Module A#S Product Description Description: Specification: Input voltage: 12V-60V Input current: maximum input current 15A Output voltage: 12v-80v continuously adjustable Output current: maximum output current 10A (adjustable) Output power: effective power P = input voltage V * 10A Conversion efficiency: up to 95% (input voltage and current; output voltage and current affect conversion efficiency) Short circuit protection: fuses Module size: 73 * 51 * 32mm/2.87*2*1.25'' Weight: 177g Module nature: non isolated boost module (boost) Input voltage: 12-60VDC input (for wide input voltage range applications) Input current: 15A (max) over 10A, please strengthen heat dissipation Static working current: 15mA (measured when 12V rises to 20V, the higher the output voltage, the higher the static overcurrent will increase) Output voltage: 12-80VDC continuously adjustable, suitable for applications where the input voltage is less than the output voltage, no voltage reduction Output current: 10A Max over 10A, please strengthen heat dissipation (related to input and output differential pressure, the higher the differential pressure, the smaller the output current) Maximum output power: = input voltage * 10A, for example: input 12V * 10A = 120W, input 24V * 10A = 240W, input 36V * 10A = 360W, input 48V * 10A = 480W, input 60V * 10A = 600W If more power is needed, two modules can be used in parallel, for example, the output is 15A, two modules can be used in parallel, and the current of each module can be adjusted to 8A. Working temperature: - 40-85 ℃ (please strengthen heat dissipation when the ambient temperature is too high) Working frequency: 150kHz Conversion efficiency: up to 95% (efficiency related to input, output voltage, current and differential pressure) Overcurrent protection: Yes (when the input exceeds 17A, the output voltage will be reduced automatically, and there is a certain range of error.) .Included: 1 X 600W DC/DC 10-60V to 12-80V Step-up Module. Module nature: non isolated boost module (boost). Short circuit protection: double short circuit protection (input 20A fuse). If more power is needed, two modules can be used in parallel, for example, the output is 15A, two modules can be used in parallel, and the current of each module can be adjusted to 8A.
