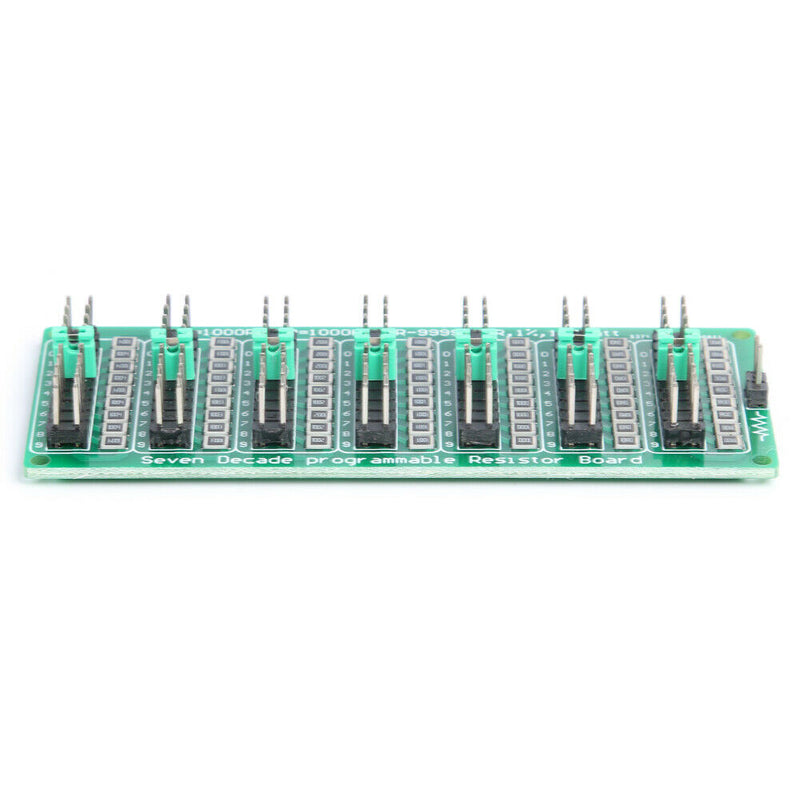

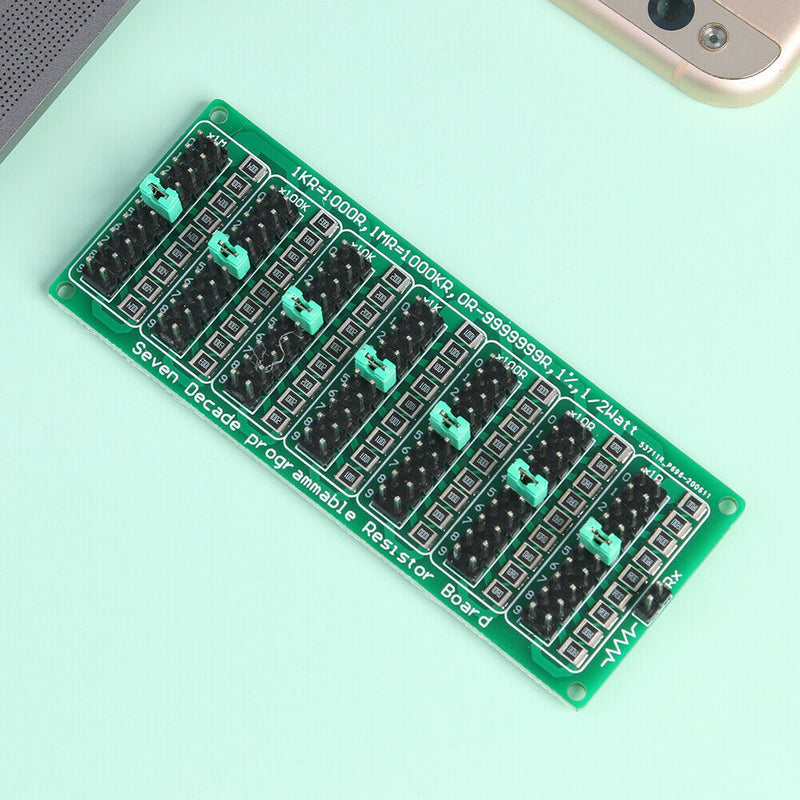

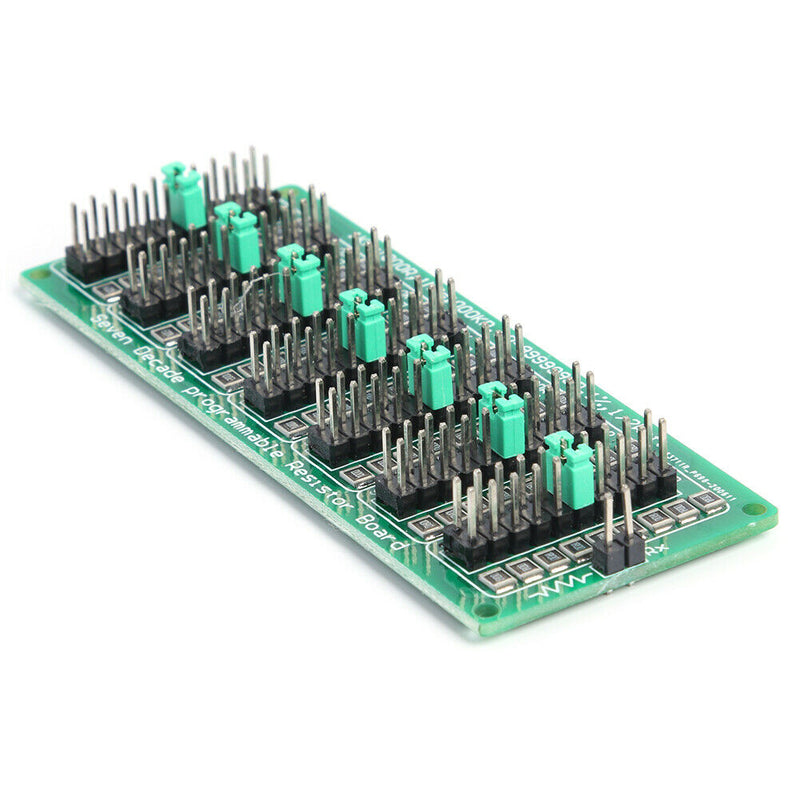

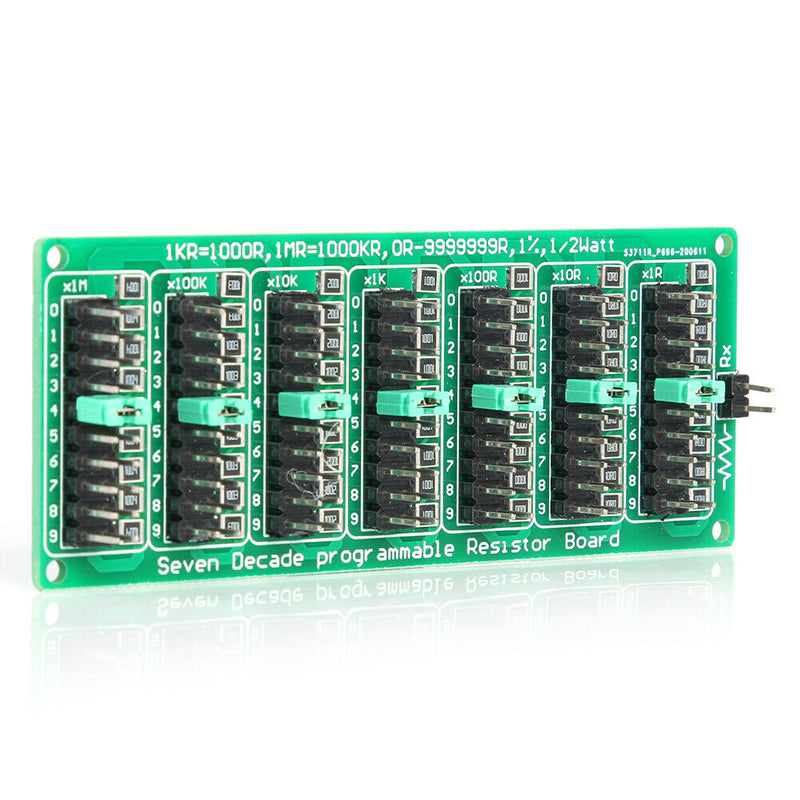

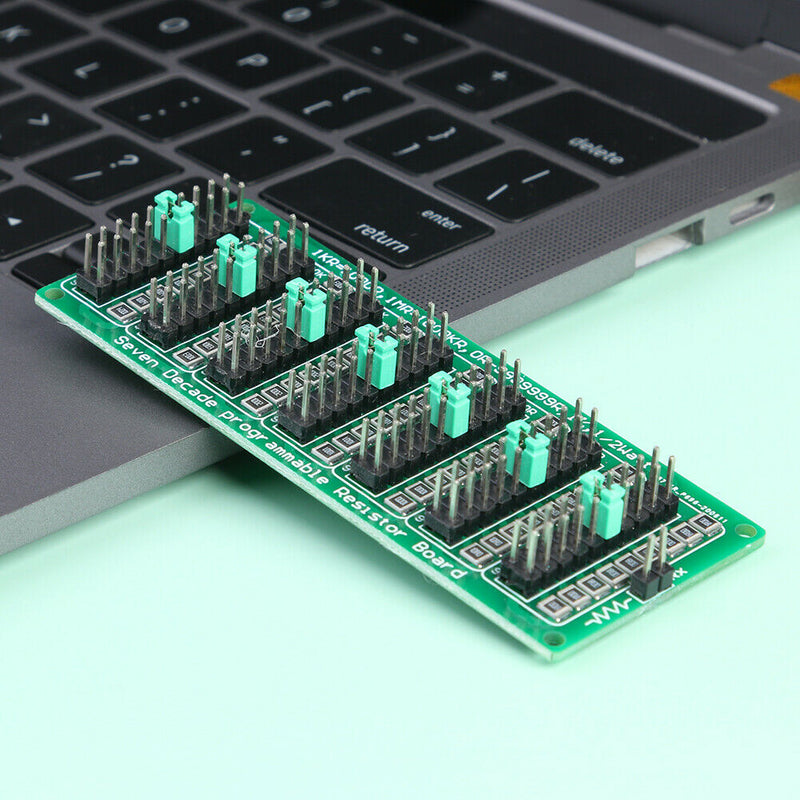

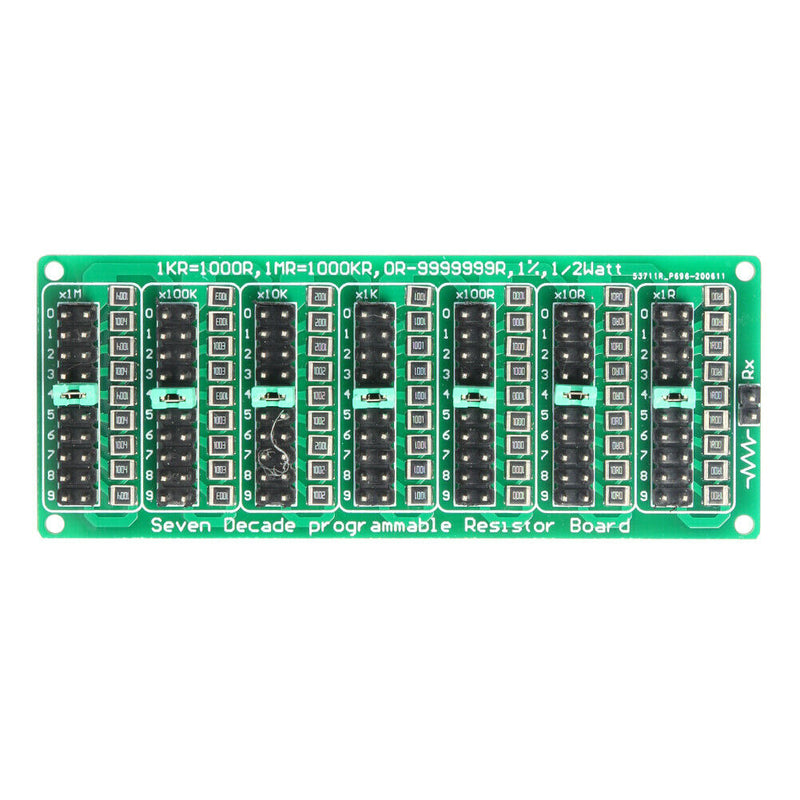

ITEM NAME:7 Decade Resistor Board 1R-9999999R/1R Programmable Resistance SMD Module A#S Product Description Description: Seven Decade Resistor Board 1R-9999999R Step Accuracy 1R 1/2 Watt Programmable Resistance SMD Module Description: This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications. Feature: Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. High quality FR4 glass fiber PCB. With spare parts 7 pieces jumper caps Specification: Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: Â ±1% Rated Power: 1/2W Maximum Working Voltage: 200V Product Size: 90 X 35 X 10mm/3.54 X 1.38 X 0.39" Note: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3mm measuring deviation due to manual measurement. Included: 1 X Programmable Resistor Board.This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step.
